OEM PART NUMBERS:
• Yamaha: 6H1-43880-00-00 / 6H1438800000
• Yamaha: 6H1-43880-00 / 6H14388000
• Quicksilver: 8M6007571
AFTERMARKET CROSS REFERENCE:
• API Marine: PT609NM
• Arco Marine: 6267
• 18-6259
SPECIFICATIONS:

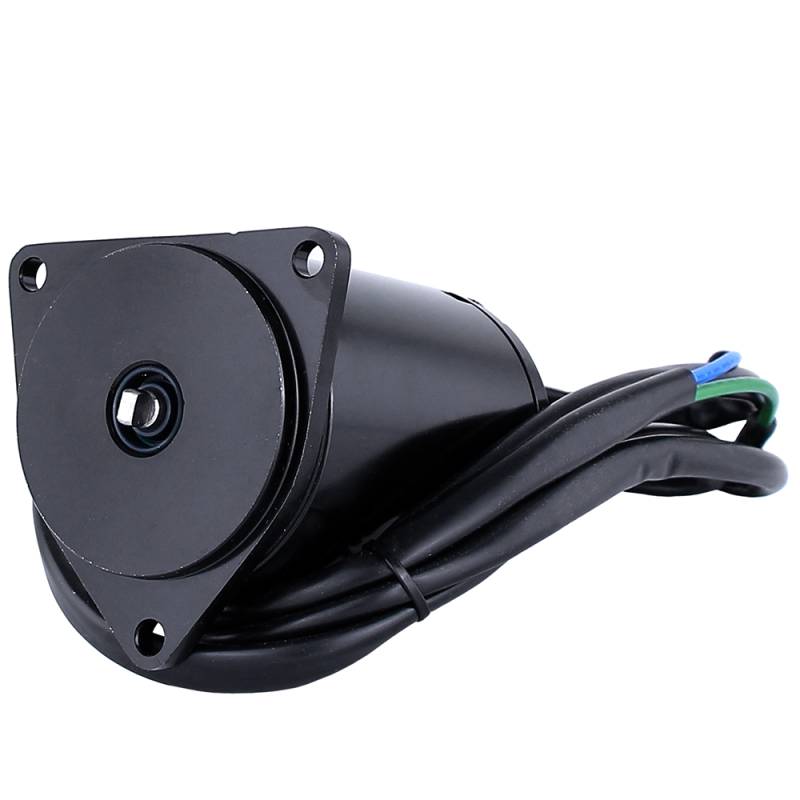

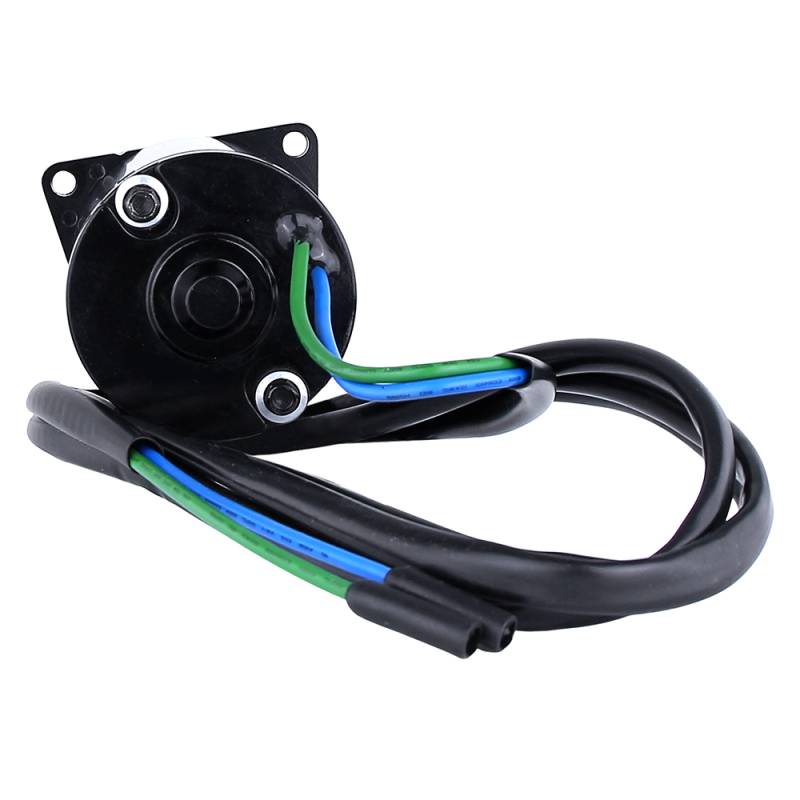

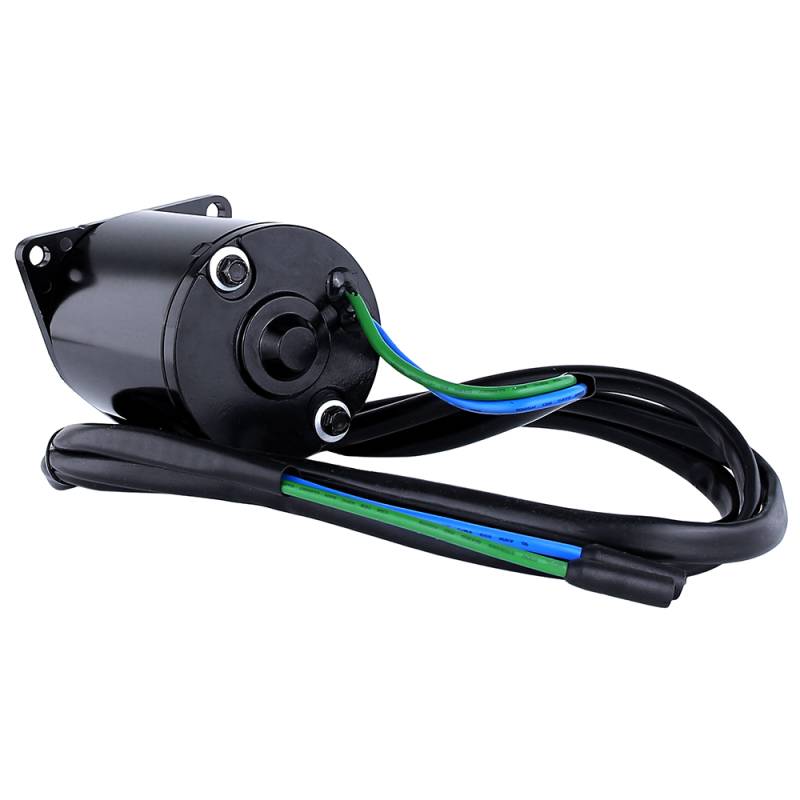

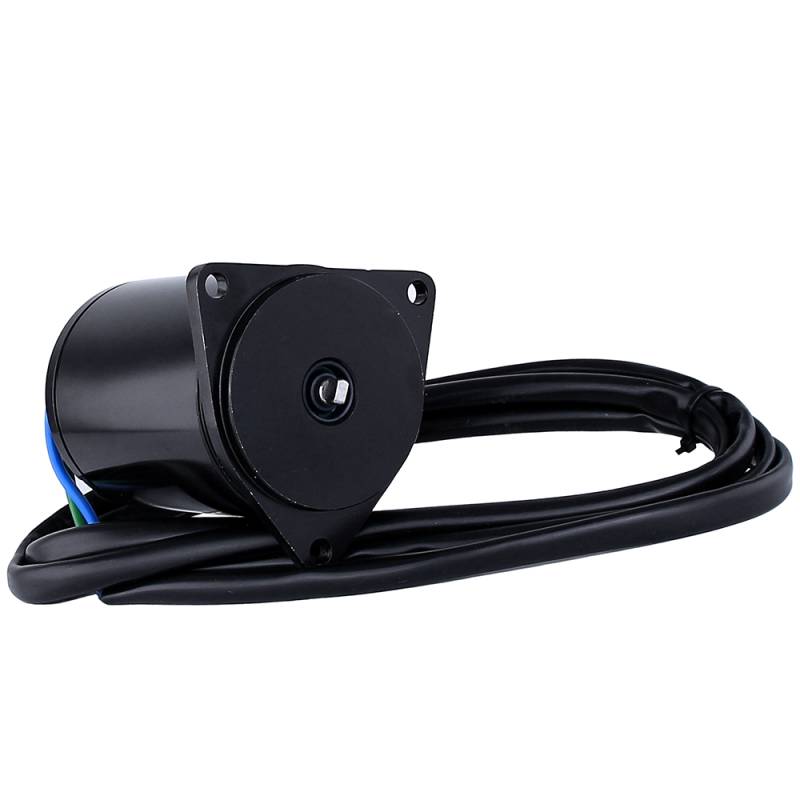

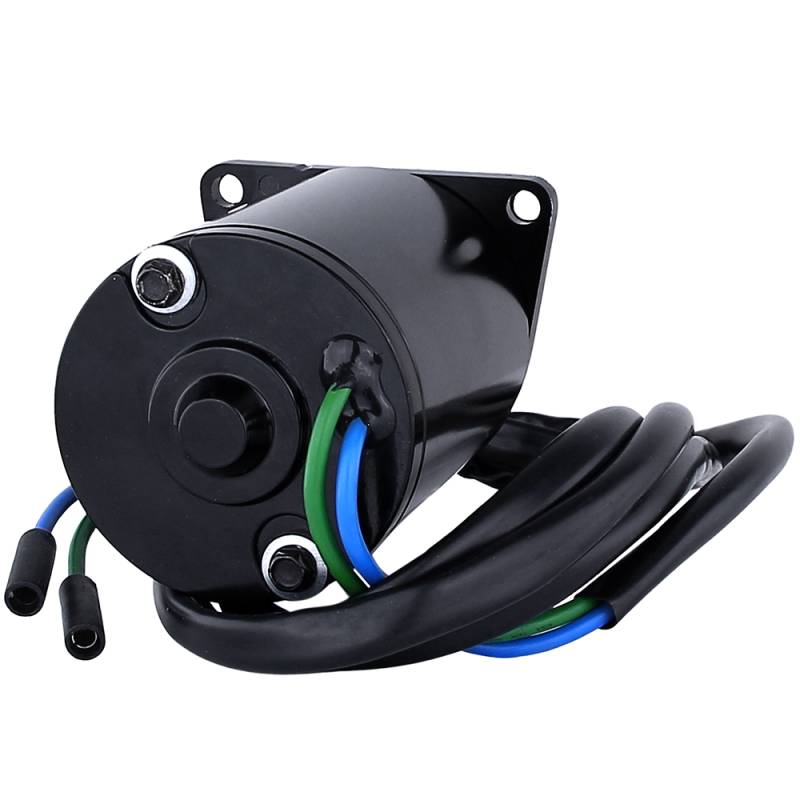

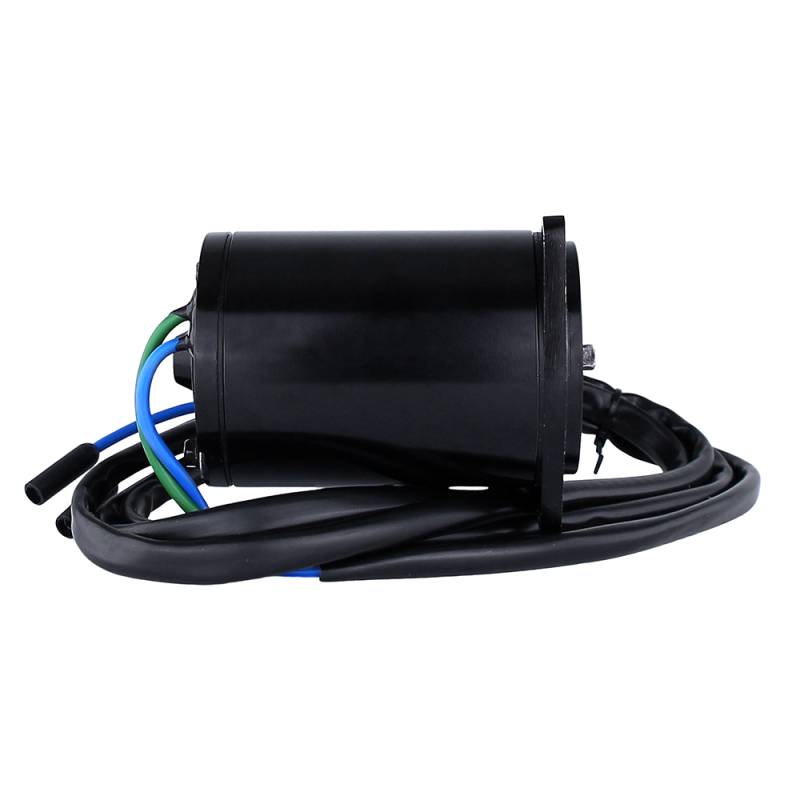

• Type: Tilt Trim Motor Conversion Kit
• Voltage: 12V DC
• Rotation: Reversible

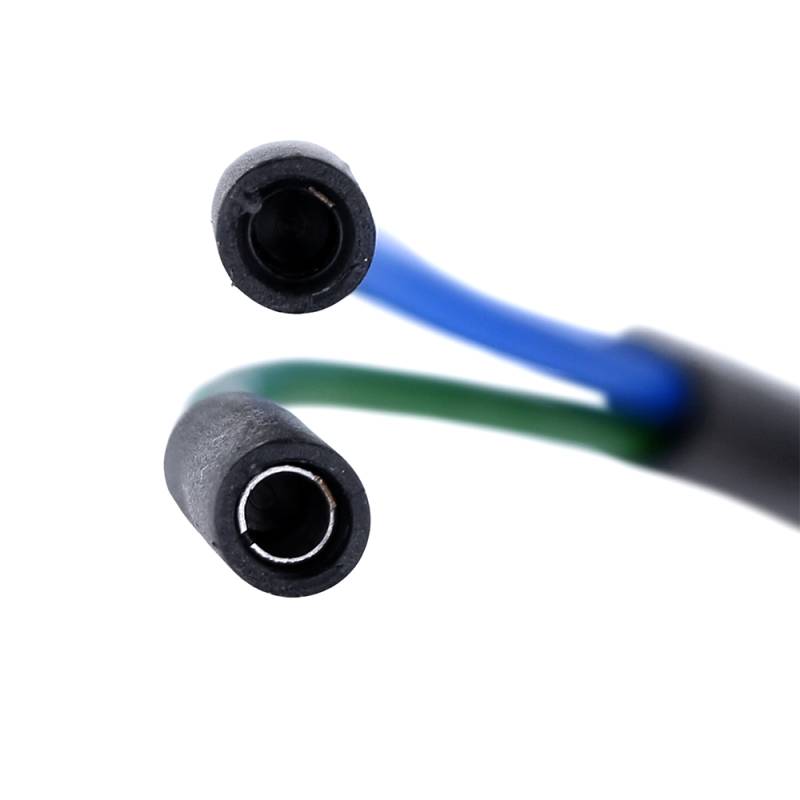

• Connection: 2-Wire (Butt Connectors)
• NOTE: 2-Wire Replacement for 3-Wire OE Unit
• Shaft OD: 7.9mm / 0.311in
• Shaft Type: 4mm W x 5.5mm H Tang
• Field Housing OD: 77.7mm / 3.059in
• Registration OD: 70.7mm
• Overall Length: 127.5mm / 5.02in
• Mounting: 3-Bolt
• Includes: O-Ring

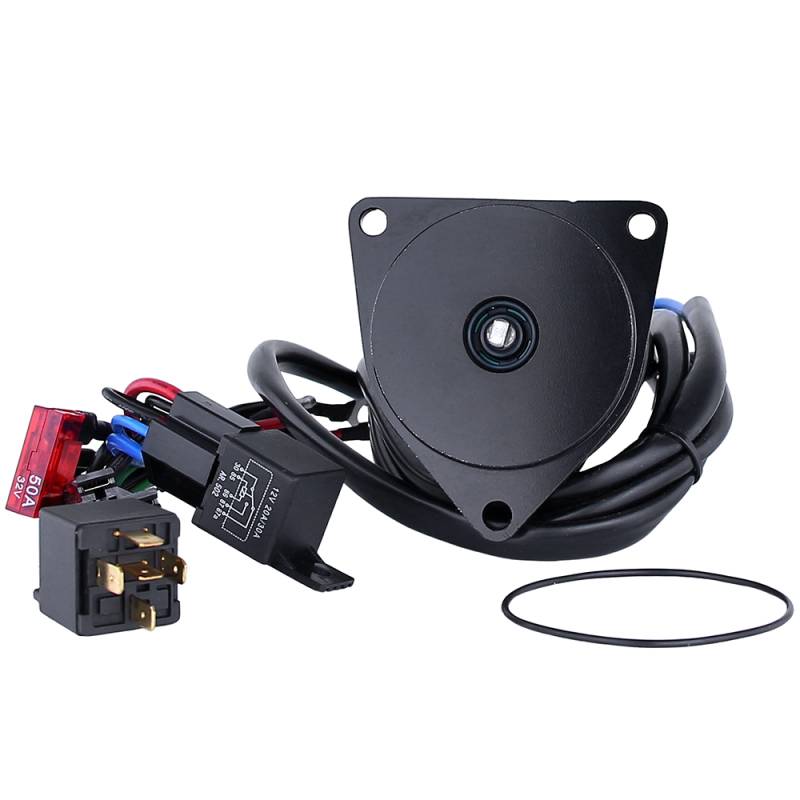

• Includes: Adaptor Harness w/32V 30A Fuse
• Includes: (2) 12V 20A/30A Relays
• Weight: 5.06 lbs / 2.3 kg
• Condition: New
YAMAHA APPLICATIONS (1987-1991):
• 60HP: P60TLHP (1991)
• 70HP: 70ETL (1987-1990) / 70TLRP (1991)
• 85HP: CV85ELD/ETLD (1990) / C85TLRP (1991)
• 90HP: 90ETL (1987-1990) / 90TJRP/TLRP (1991)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
