OEM PART NUMBERS:
• Hitachi: S114-407 / S114407
• Suzuki: 31100-95310 / 3110095310
• Suzuki: 31100-95312 / 3110095312
• Suzuki: 31100-95313 / 3110095313
• API Marine: MOT5006N
• Sierra Marine: 18-6414
• Arco Marine: 3440
SPECIFICATIONS:
• Voltage: 12V
• Type: DD (Direct Drive)
• Rotation: CCW (Counterclockwise)
• Teeth: 9
• Pinion Gear OD: 29.3mm / 1.154"
• Mounting Holes: 2x M8-1.25 Threaded
• DE Housing: M8-1.25 Threaded Hole on Side
• CE Cap: Mounting Ear with 9.2mm Hole
• Weight: 5.82 lbs / 2.65 kg
• Condition: New
APPLICATION:
• Suzuki DT50ECL 48.7ci 50HP (1984)
• Suzuki DT60CL 48.7ci 60HP (1983-1984)
• Suzuki DT75TCL 73.0ci 75HP (1983-1987)
• Suzuki DT85EL 73.5ci 85HP (1980)
• Suzuki DT85TCL 73.0ci 85HP (1982-1987)
• Suzuki DT85TEL 73.5ci 85HP (1980)

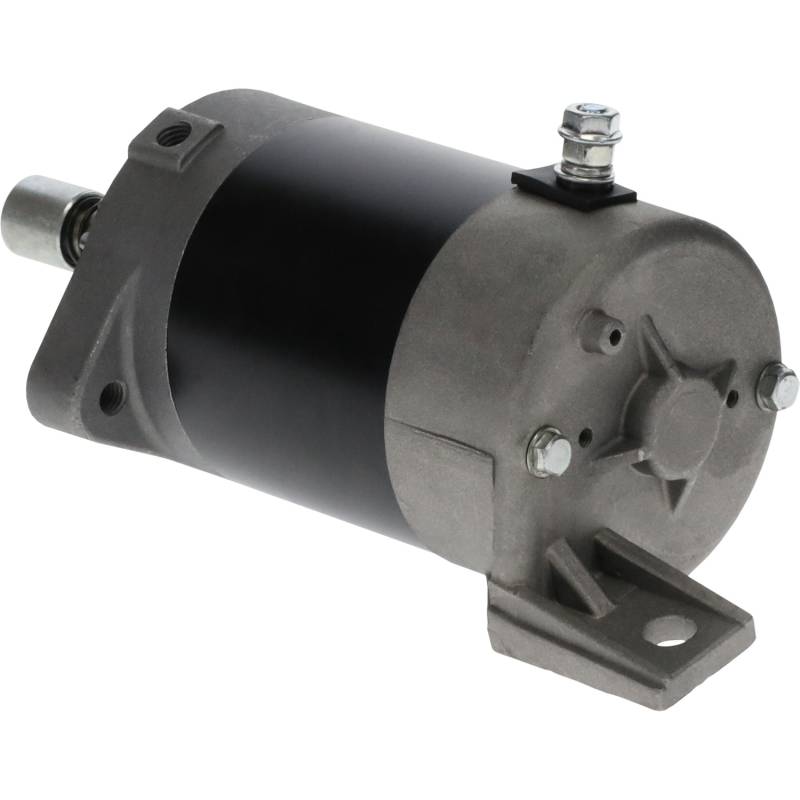

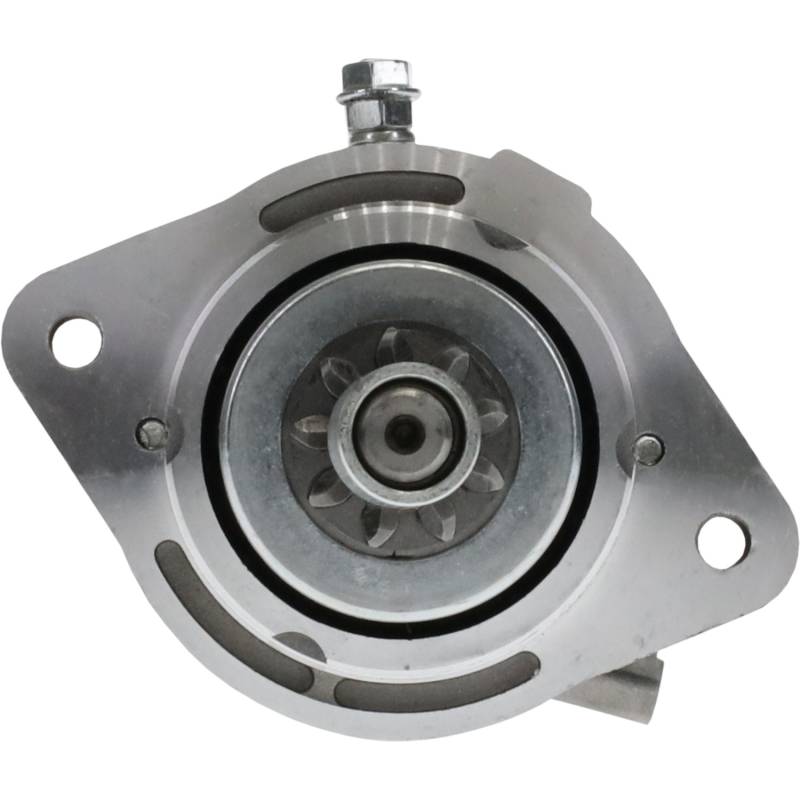

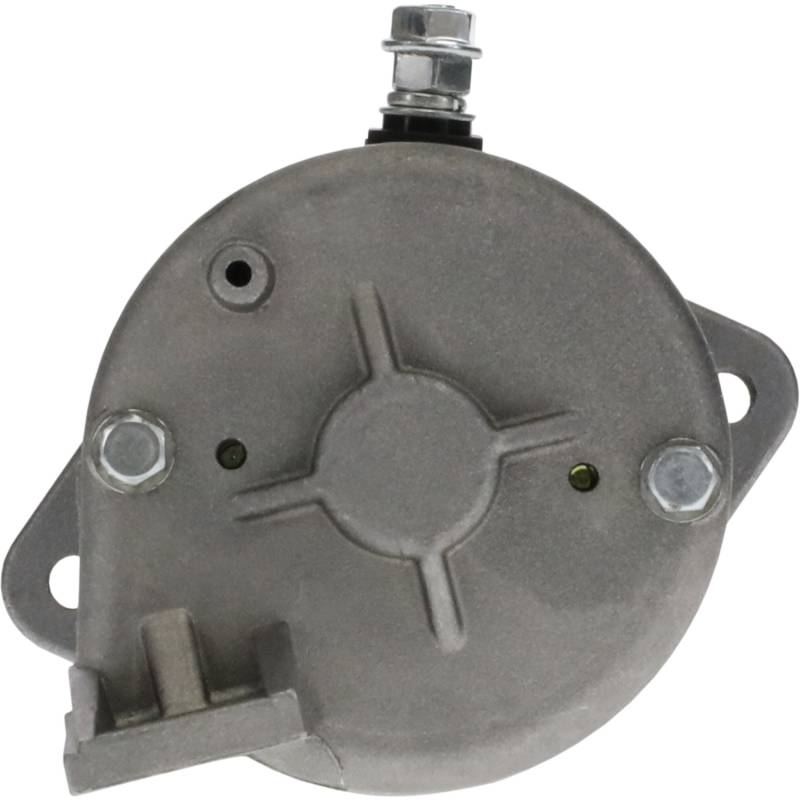

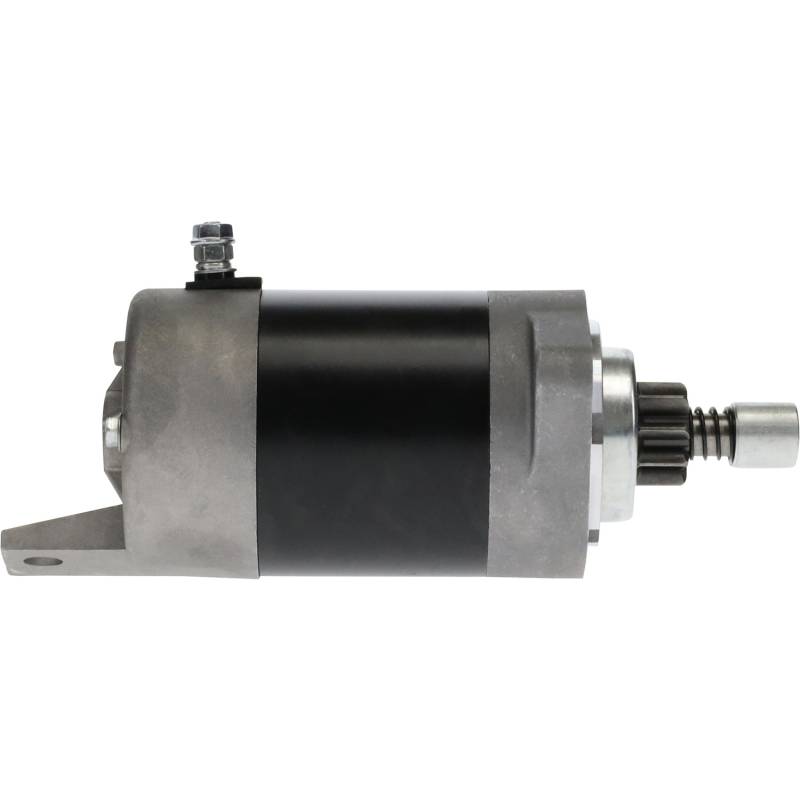

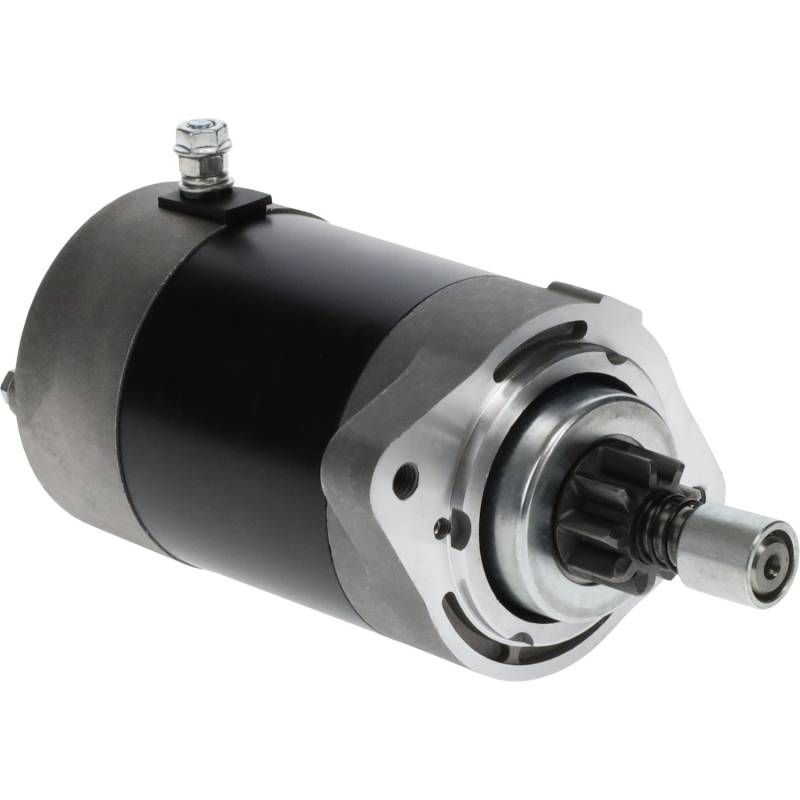

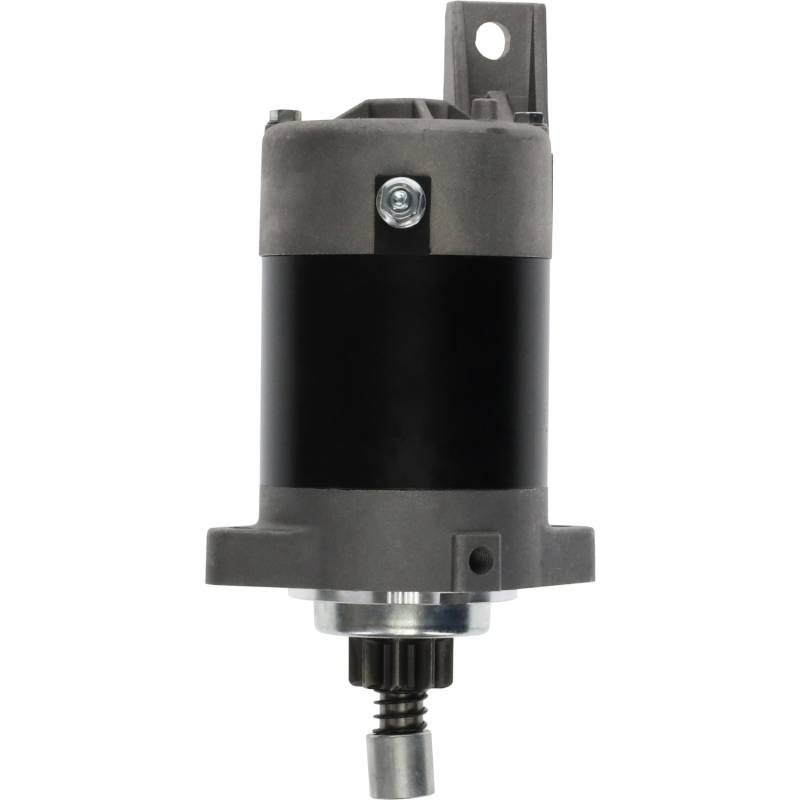

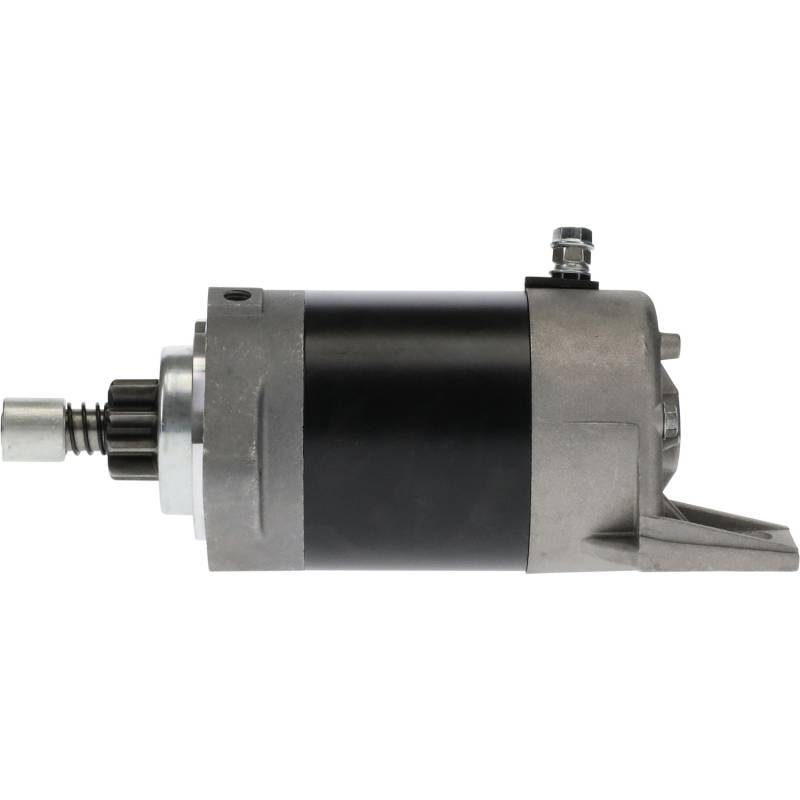

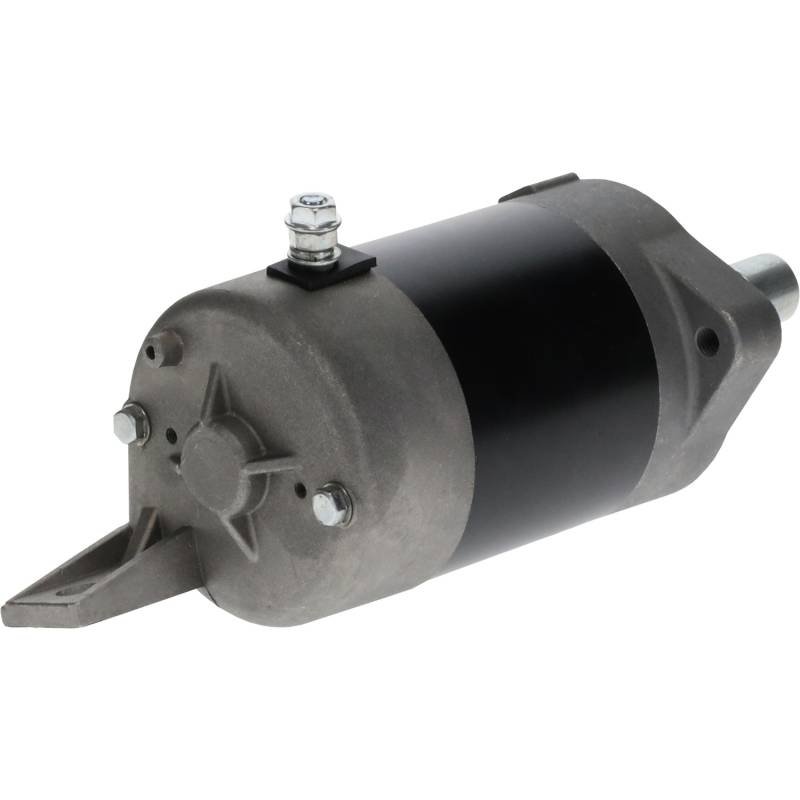

Starter Motor - Suzuki DT75TCL DT85TCL DT60CL
New 12V Hitachi-type direct drive starter for Suzuki 2-stroke outboard motors. CCW rotation, 9 teeth, 29.3mm pinion gear OD, 5.82 lbs. Two M8-1.25 threaded mounting holes. Replaces Suzuki 31100-95310, 31100-95312, Hitachi S114-407, API Marine MOT5006N, Sierra Marine 18-6414, and Arco Marine 3440. Verify part number before ordering.
