Rebuild Kit 0.5Mm Over 80.50Mm Compatible With Kawasaki Ss 750 Ssxi 750 Sx 750 St 750 743Cc 2-Cyl

OEM PART NUMBERS (EARLY STYLE — 20MM WRIST PIN):
• Kawasaki: 13001-3707 / 130013707
• Kawasaki: 13001-3710 / 130013710
• Kawasaki: 13001-3712 / 130013712
• Kawasaki: 13001-3713 / 130013713
• Kawasaki: 13001-3718 / 130013718
• Kawasaki: 13001-3722 / 130013722

RING SET OEM NUMBERS:
• 13029-3705 / 13029-3706 / 13029-3707 / 13029-3708 / 13029-3710 / 13029-3713

SPECIFICATIONS:
• Product Type: Top End Rebuild Kit
• Bore Size: 80.50mm (0.5mm Over Standard 80.00mm)
• Piston Type: Cast — OEM Specification
• CRITICAL: Early Style Piston with 20mm Wrist Pin (NOT 22mm Big Pin)
• Engine: Kawasaki 743cc 2-Cylinder Twin 2-Stroke
• Bore x Stroke: 80mm x 74mm
• Power Output: 83 HP
• Fuel System: Triple Mikuni Carburetors
• Induction: Crankcase Reed Valve
• Cooling: Open-Loop Water Cooling

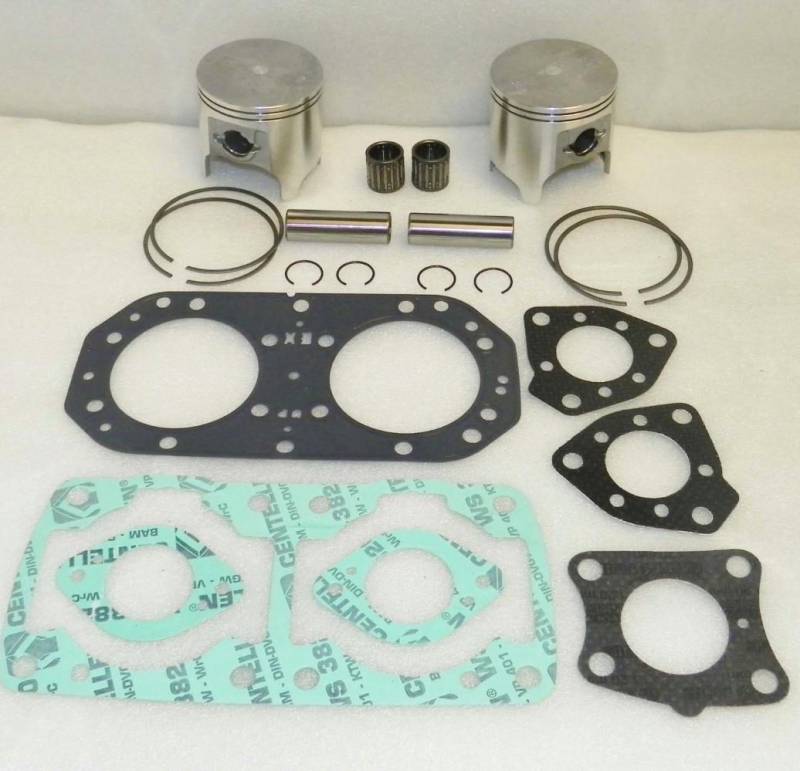

• Kit Includes: 2 Pistons, 2 Ring Sets, 2 Wrist Pins (20mm), 2 Wrist Pin Bearings, 4 Circlips, Complete Top End Gasket Set (Head, Base, Exhaust)
• Piston-to-Wall Clearance: .004-.0045"
• Weight: 5 lbs

APPLICATIONS (EARLY 20MM PIN MODELS 1992-1995):
• Kawasaki SS/SSXi/SX/ST/STS/SXi/Xi Sport/XIR/ZXI 750 (1992-1995)
• ⚠ Does NOT fit 1995+ Big Pin (22mm) models — verify wrist pin size
