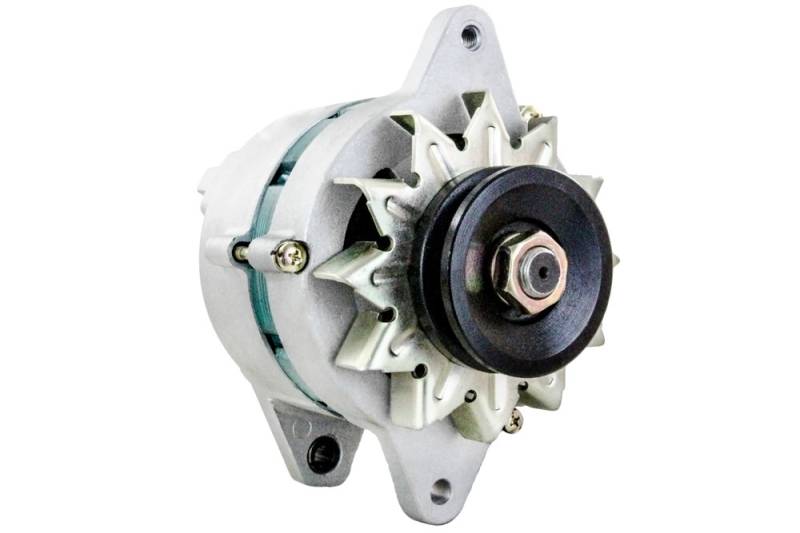

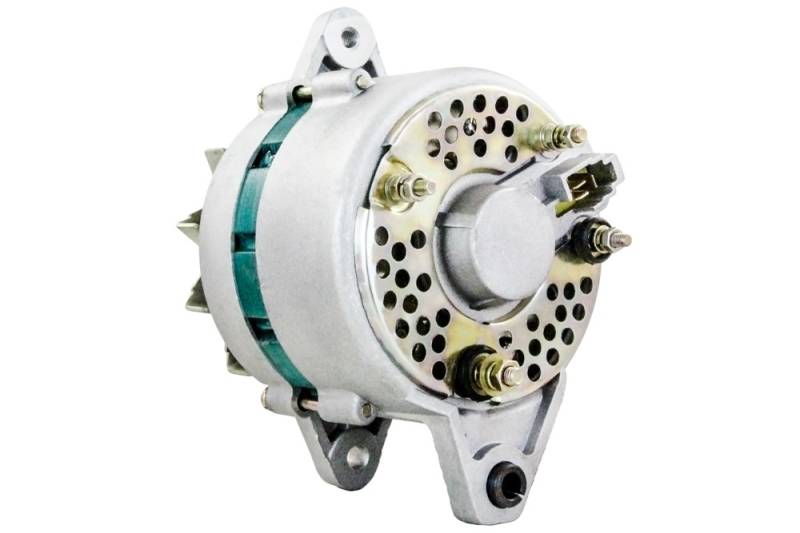

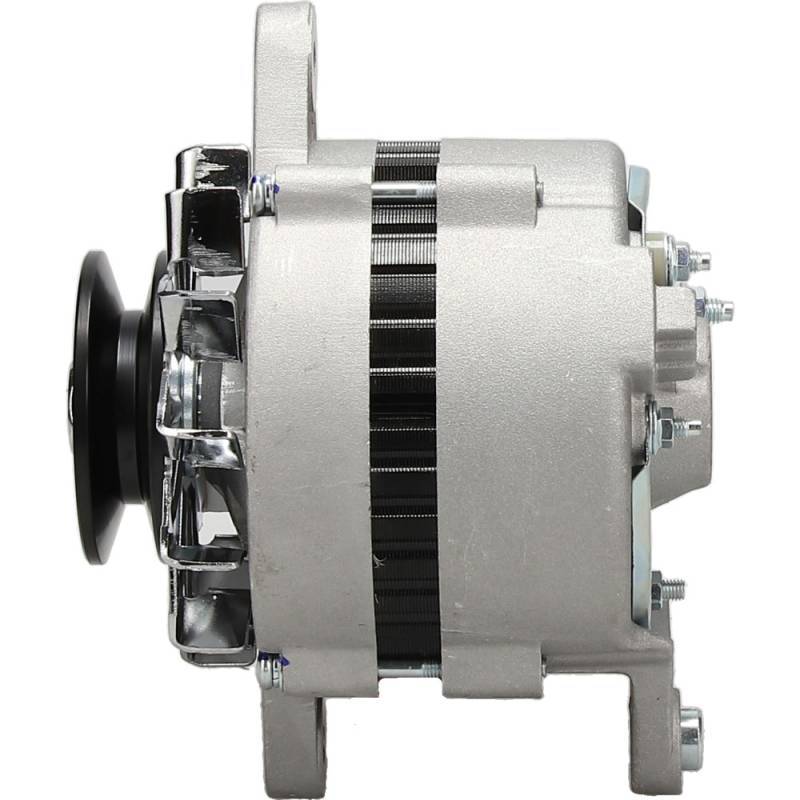

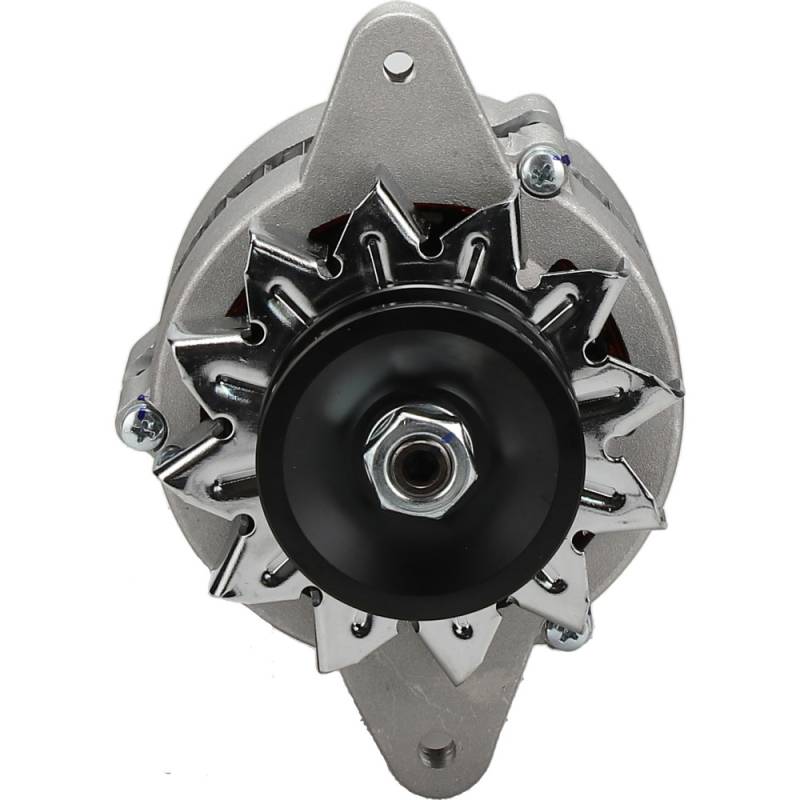

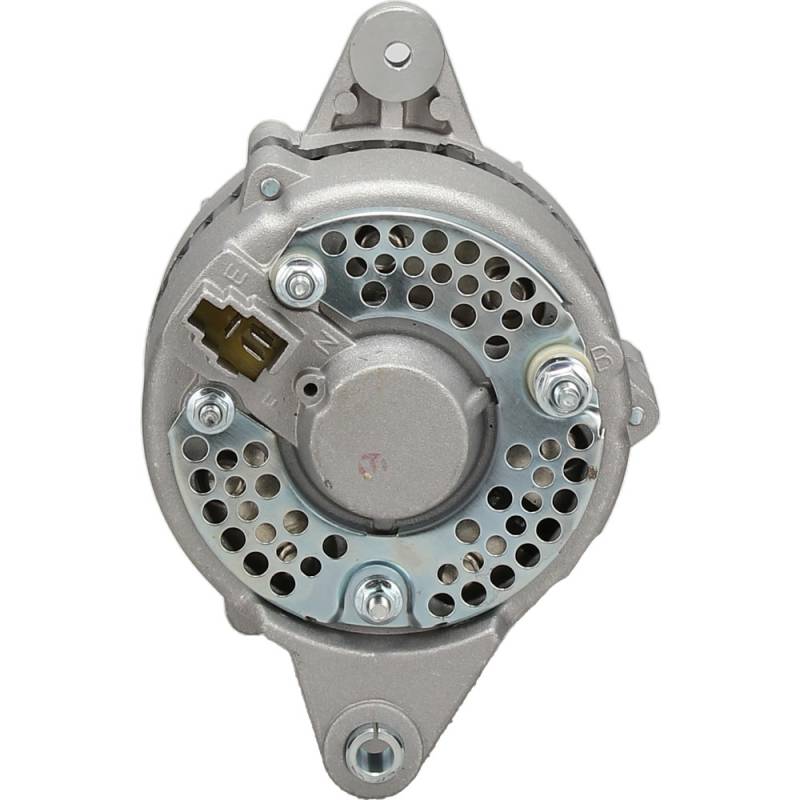

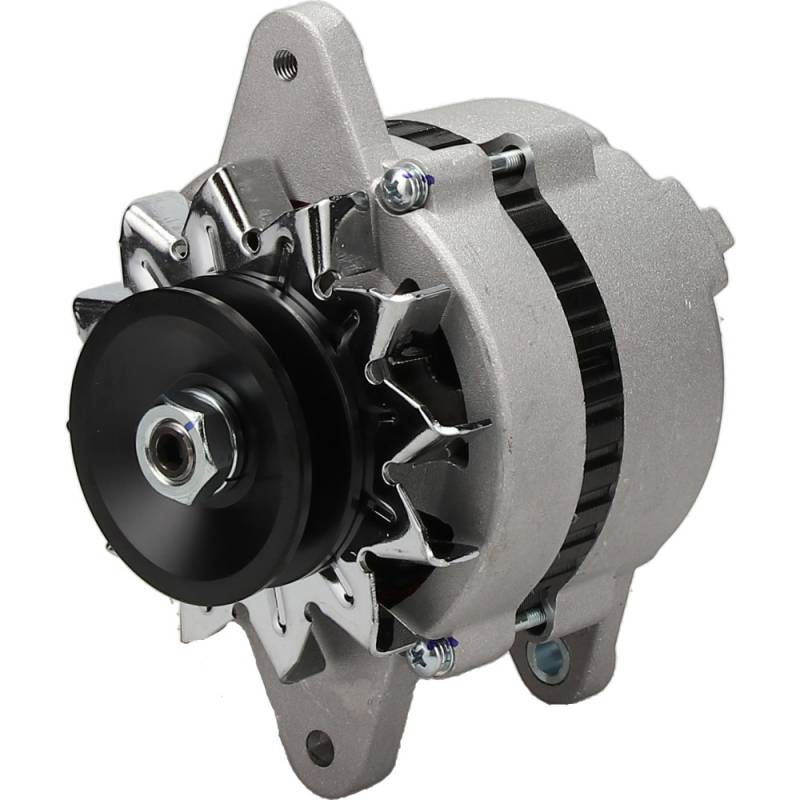

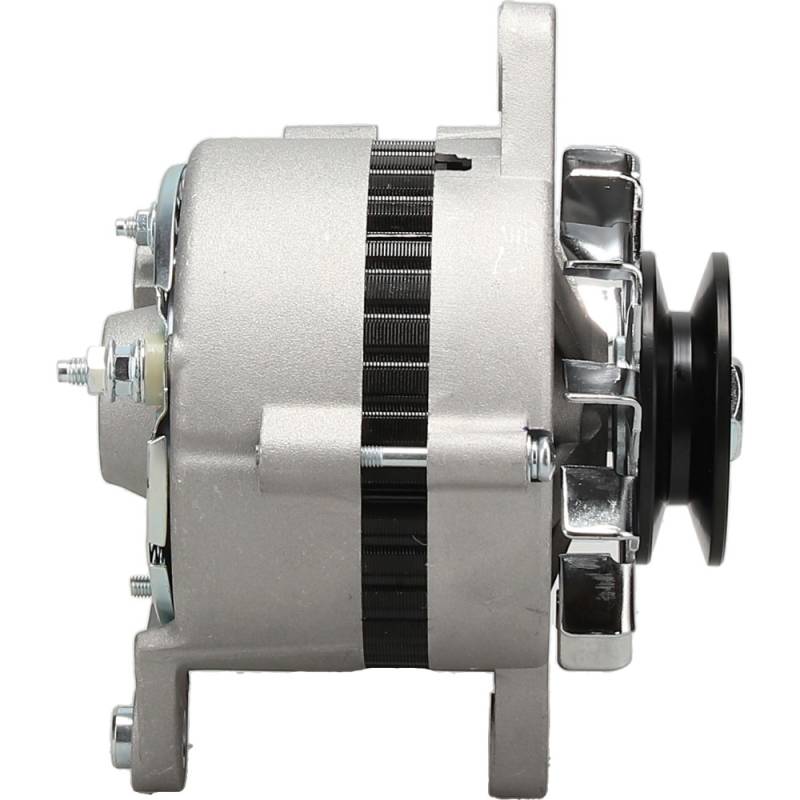

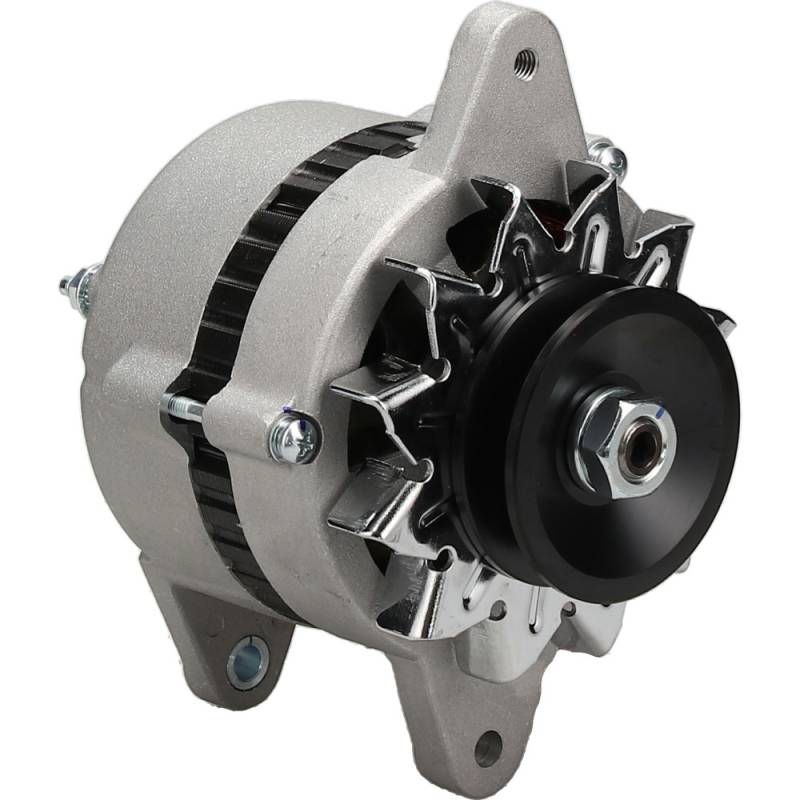

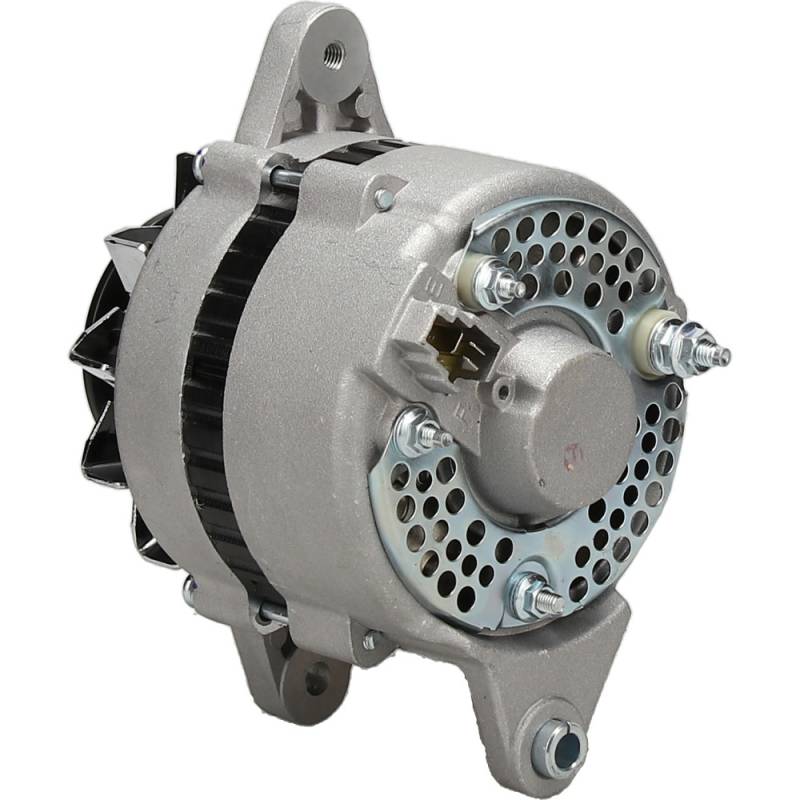

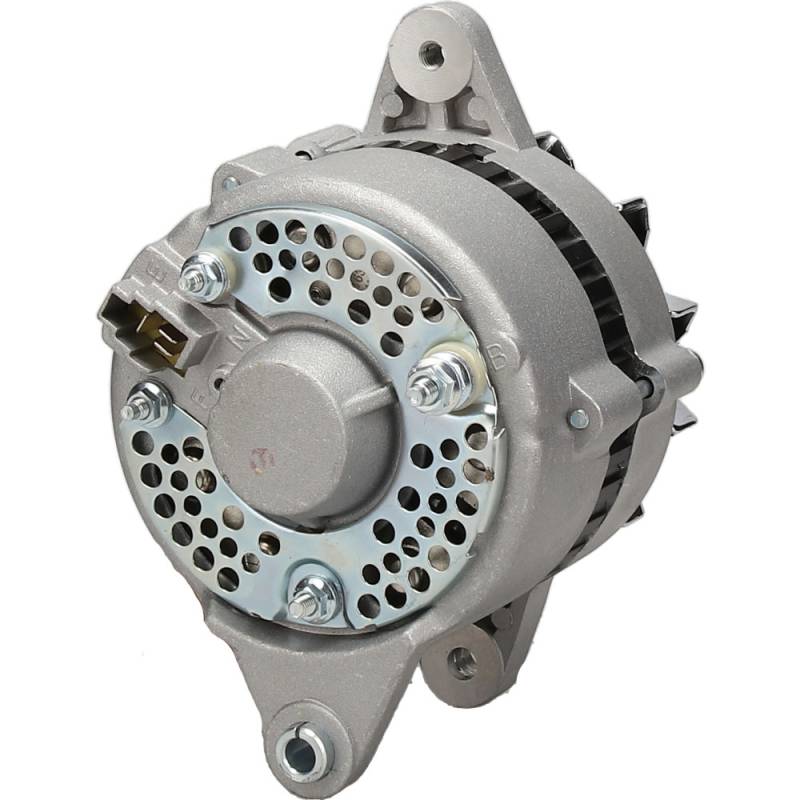

New Alternator Compatible With Toyota Lift Truck 2Fd-10 2Fd-7 2Fd-9 2Fg-7 2Fg-9 2Fgl-7 Fgl-9

(0) Reviews: Write first review
14129A1
TOYOTA PART NUMBERS:
• 27020-31090, 2702031090
• 27020-31030, 27020-31031
• 27020-31032, 27020-31033
• 27020-31050, 27020-31051
• 27020-24010, 2702024010
• 27020-24020, 27020-24021
• 27020-23022
• 27020-87201

DAIHATSU PART NUMBERS:
• 27020-87102
• 27020-87212
• 27020-87701
• 27020-87705

DENSO PART NUMBERS:
• 021000-5600, 0210005600
• 021000-5490, 0210005490
• 021000-5450
• 021000-5220
• 021000-4590
• 021000-4570, 0210004570
• 210-7025 (first time fit)

BOSCH PART NUMBERS:
• 0-986-032-401, 0986032401 (remanufactured)

HYSTER / YALE / TOWMOTOR PART NUMBERS:
• Hyster 3000967
• Yale 2200072-43, 220007243
• Towmotor 971515

LUCAS PART NUMBERS:
• LRA00142, LRA142

WILSON PART NUMBERS:
• 90-29-5001, 90295001

SPECIFICATIONS:
• Type: Denso small case
• Voltage: 12 Volt
• Amperage: 35 Amp
• Rotation: Clockwise (CW)
• Regulator: external, plug at 10:00
• Fan: external
• Pulley: 1 groove V, 70 mm / 2.756 in OD
• Mounting: 3 ears, 8.2 mm, 8.3 mm, 8.3 mm unthreaded
• Polarity: negative ground
• Weight: 8.4 lb / 3.82 kg

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $212.99
Sale: $121.71
Save: 43%
Save: $91.28
Qty:
Free Shipping!

Description

⚠️ 12 VOLT 35 AMP DENSO TYPE ALTERNATOR:
• 12 volt, 35 amp, clockwise, external regulator, external fan, plug at 10:00
• 1 groove V pulley 70 mm OD, negative ground
• 3 mounting ears 8.2 mm, 8.3 mm, 8.3 mm unthreaded, 8.4 lb / 3.82 kg
• Replaces Toyota 27020-31090 / 27020-24010 and Denso 021000-5600 / 021000-4570

TOYOTA 2FG, 2FD AND 3FD LIFT TRUCKS:
• 1981-1992 Toyota 2FG-7, 3P
• 1981-1992 Toyota 2FG-9, 3P
• 1981-1992 Toyota 2FGL-7, 3P
• 1981-1992 Toyota 2FGL-9, 3P
• 1981 Toyota 2FD-7, V1502
• 1981 Toyota 2FD-9, V1502
• Toyota 2FD-10, 4P
• 1980-1988 Toyota 3FD-10, V1502
• 1980-1988 Toyota 3FD-14, V1502
• 1980-1988 Toyota 3FD-15, V1502
• 1980-1988 Toyota 3FD-18, V1502

TOYOTA 3FDL AND 4FDL LIFT TRUCKS:
• 1980-1986 Toyota 3FDL-10, V1502
• 1980-1986 Toyota 3FDL-14, V1502
• 1980-1986 Toyota 3FDL-15, V1502
• 1982-1986 Toyota 3FDL-18, V1502
• 1982-1986 Toyota 3FDL-20, V1502
• 1982-1986 Toyota 3FDL-25, V1502
• 1982-1986 Toyota 4FDL-20, V1502
• 1982-1986 Toyota 4FDL-23, V1502
• 1982-1986 Toyota 4FDL-25, V1502

TOYOTA 3FG, 3FGL AND 3FGC LIFT TRUCKS:
• 1978-1982 Toyota 3FG-20, 4P or 5R
• 1979-1982 Toyota 3FG-23, 4P
• 1978-1982 Toyota 3FG-25, 4P or 5R
• 1978-1982 Toyota 3FGL-20, 4P
• 1978-1982 Toyota 3FGL-23, 4P
• 1978-1982 Toyota 3FGL-25, 4P
• 1980-1988 Toyota 3FGC-10, 5R
• 1980-1988 Toyota 3FGC-13, 5R
• 1980-1988 Toyota 3FGC-15, 5R

TOYOTA 4FG, 4FGC AND 4FGL LIFT TRUCKS:
• 1978-1986 Toyota 4FG-10, 4P or 5R
• 1978-1986 Toyota 4FG-14, 4P or 5R
• 1978-1986 Toyota 4FG-15, 4P or 5R
• 1978-1986 Toyota 4FG-18, 4P or 5R
• 1982-1986 Toyota 4FG-20, 4P or 5R
• 1978-1986 Toyota 4FG-23, 4P or 5R
• 1978-1986 Toyota 4FG-25, 4P or 5R
• 1980-1988 Toyota 4FGC-20, 4P or 5R
• 1980-1988 Toyota 4FGC-25, 4P or 5R
• 1978-1986 Toyota 4FGL-10, 4P
• 1978-1986 Toyota 4FGL-14, 4P
• 1978-1986 Toyota 4FGL-15, 4P
• 1982-1986 Toyota 4FGL-18, 4P
• 1982-1986 Toyota 4FGL-20, 4P
• 1982-1986 Toyota 4FGL-23, 4P

TOYOTA FG, FGC, FGL AND FD LIFT TRUCKS:
• 1978-1982 Toyota FG-18, 4P or 5R
• 1978-1982 Toyota FG-23, 4P or 5R
• 1980-1988 Toyota FGC-18, 4P or 5R
• 1980-1988 Toyota FGC-23, 4P or 5R
• 1978-1986 Toyota FGL-18, 4P
• 1978-1986 Toyota FGL-20, 4P
• 1978-1986 Toyota FGL-23, 4P
• 1978-1986 Toyota FGL-25, 4P
• 1980-1986 Toyota FD-18, V1502
• 1980-1982 Toyota FDL-18, V1502
• 1980-1982 Toyota FDL-23, V1502

ENGINES:
• Toyota 3P, 4P, 5R gas / LPG
• Kubota V1502 diesel
