OEM PART NUMBERS:
• Onan: 191-1828 / 1911828
• Onan (superseded): 191-1549 / 1911549
• Onan (superseded): 191-1549-01 / 191154901
• John Deere: HE191-1828 / HE1911828
• United Technologies: 5082740-M030SM / 5082740M030SM
• United Technologies: SM50827
• Johnson Electric: 5082740

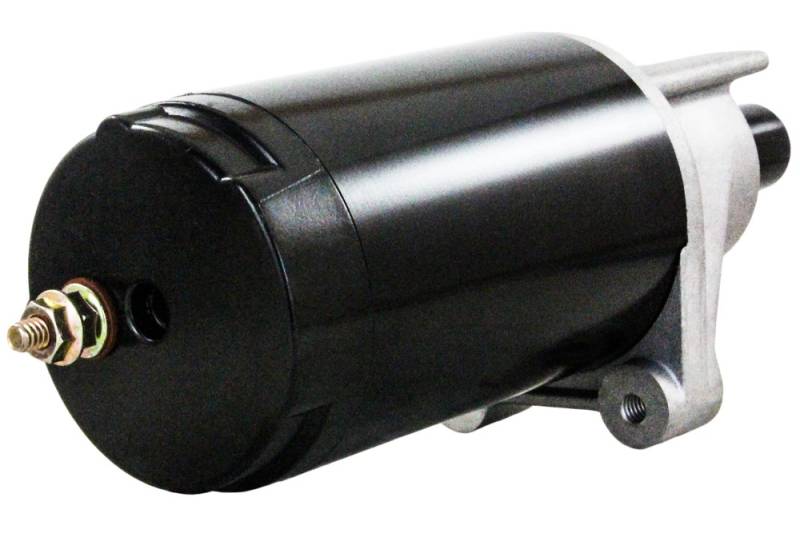

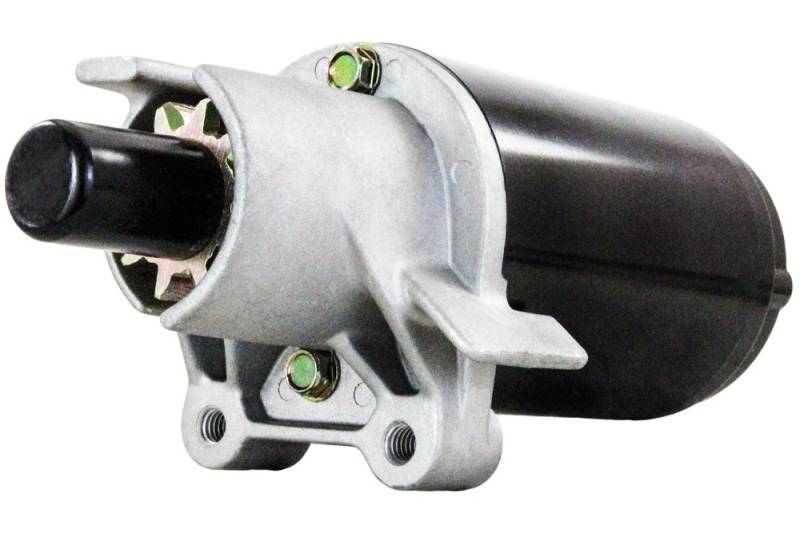

SPECIFICATIONS:
• Voltage: 12V
• Type: PMDD (Permanent Magnet Direct Drive)
• Rotation: CCW (Counter-Clockwise, viewed from pinion end)
• Tooth Count: 10
• Pinion/Spline OD: 40mm / 1.575"
• Mounting Hole 1: 5/16"-18 ID Threaded
• Mounting Hole 2: 5/16"-18 ID Threaded
• Field Case Length: 102.4mm / 4.031"
• Condition: New
COMPATIBLE EQUIPMENT:
• Cub Cadet 882, 982, 984, 986, 1811, 1861, 1872, 1882, 1912, 1914 w/Onan
• John Deere 316, 317, 318 w/Onan P218G; 420 w/Onan P220G
• Case 195, 446, 448, 644, 646, 648 w/Onan B48G
• Wheel Horse C-175, 416-H, 520-H w/Onan B43G/B48G/P220G
• Simplicity 9523, 9528 w/Onan B48G
• Allis-Chalmers 719, 720 w/Onan B48G
• Onan B43G, B48G, P-216, P-218, P-220, P-224 AG/Industrial/Marine
NOTE: JD 316 & 318 also came with Kawasaki FC540V — Onan-equipped units only
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
