OEM PART NUMBERS:
• Hitachi: S25-166 / S25166
• Hitachi: S25-166A / S25166A
• Yanmar: 129612-77010 / 12961277010
• Yanmar: 129612-77011 / 12961277011
• (): 20513063
• NSN: 2920-01-546-8025 / 2920015468025
SPECIFICATIONS:

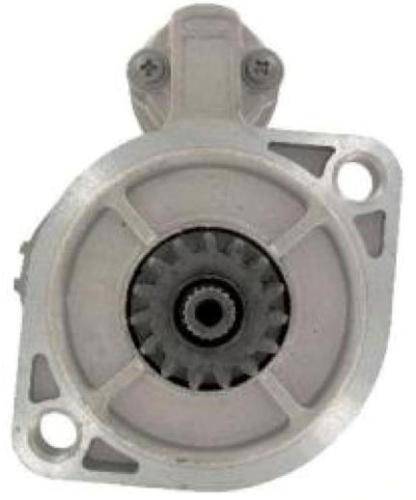

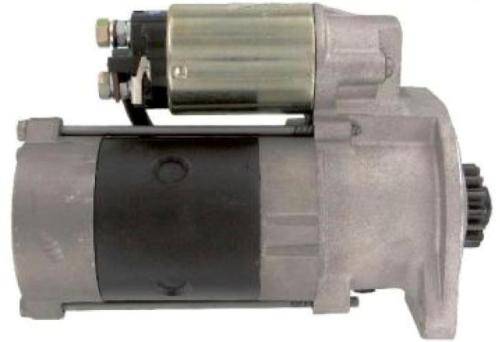

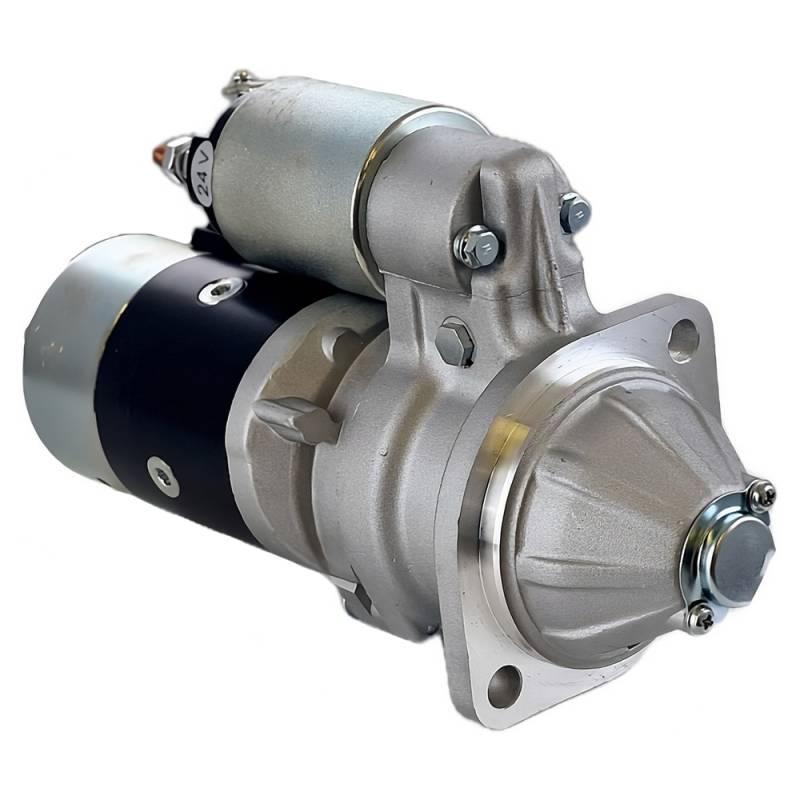

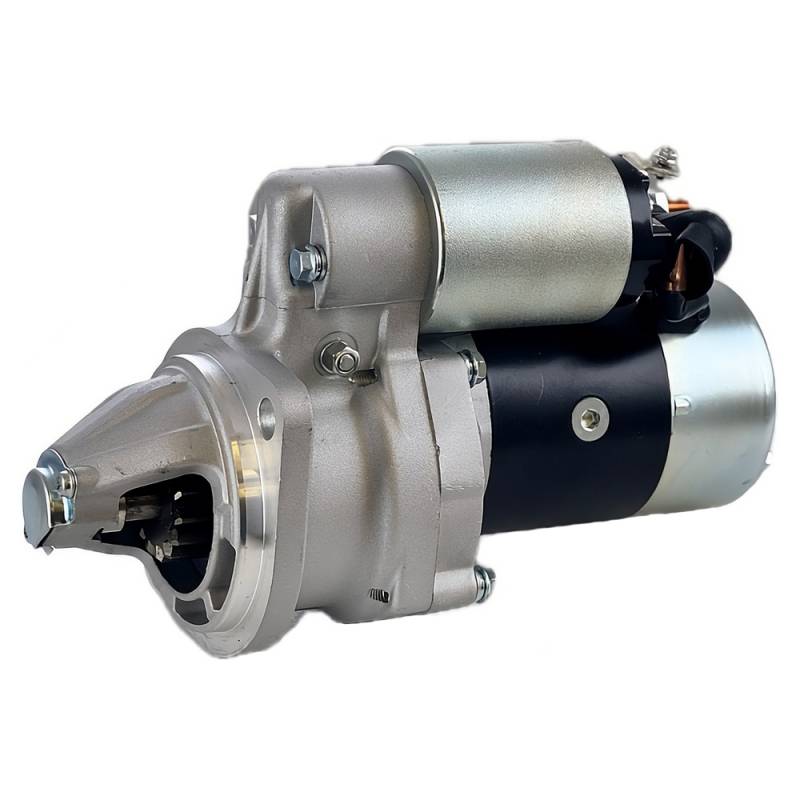

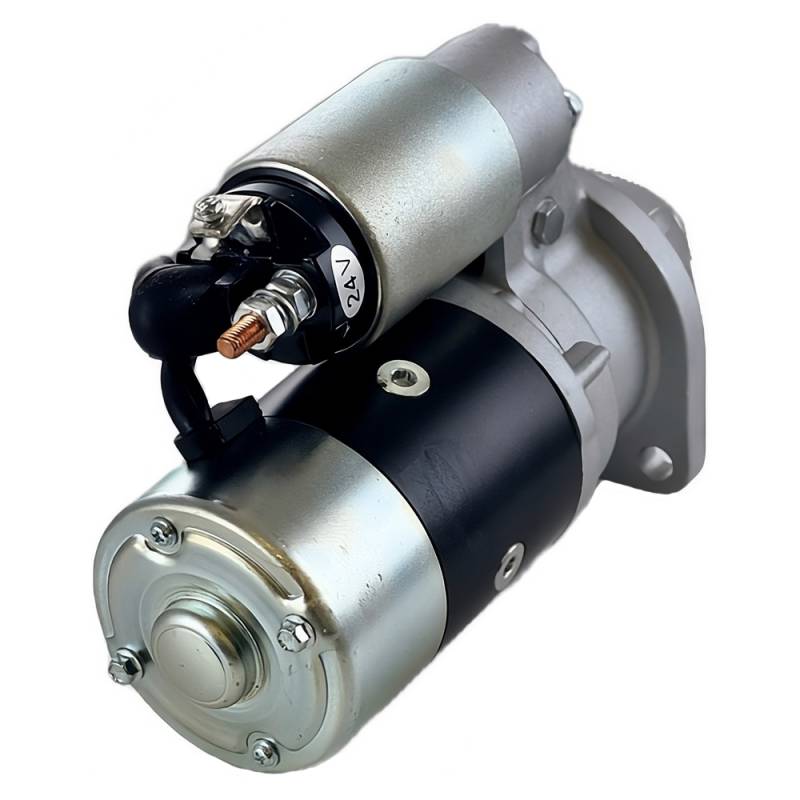

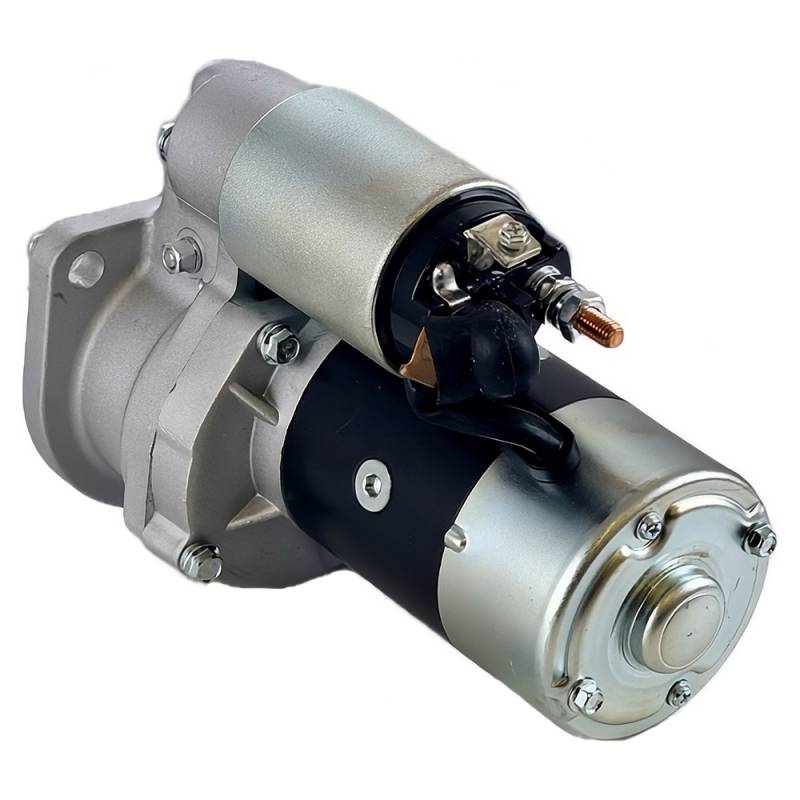

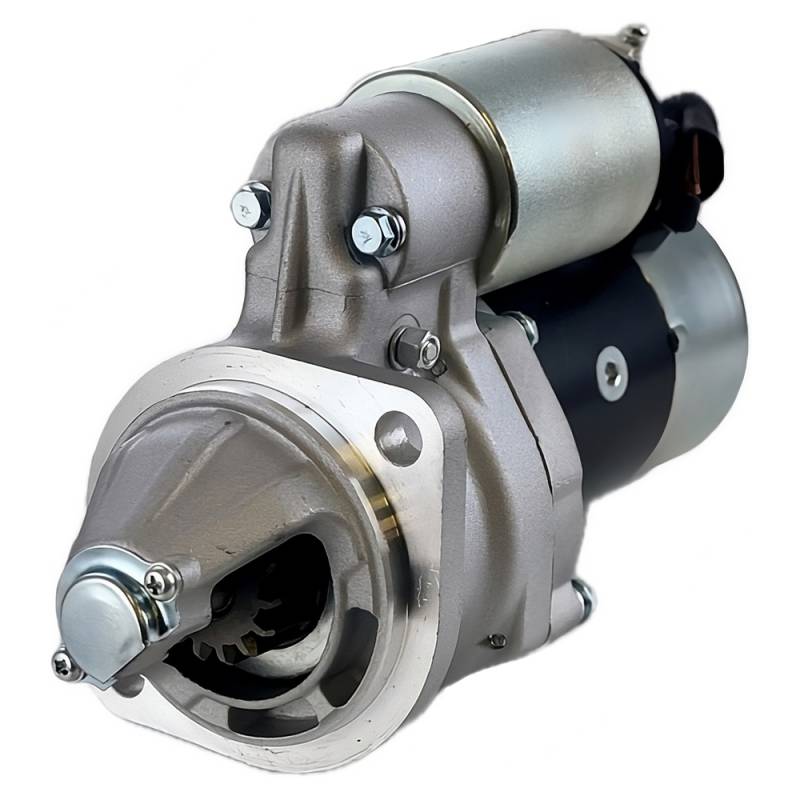

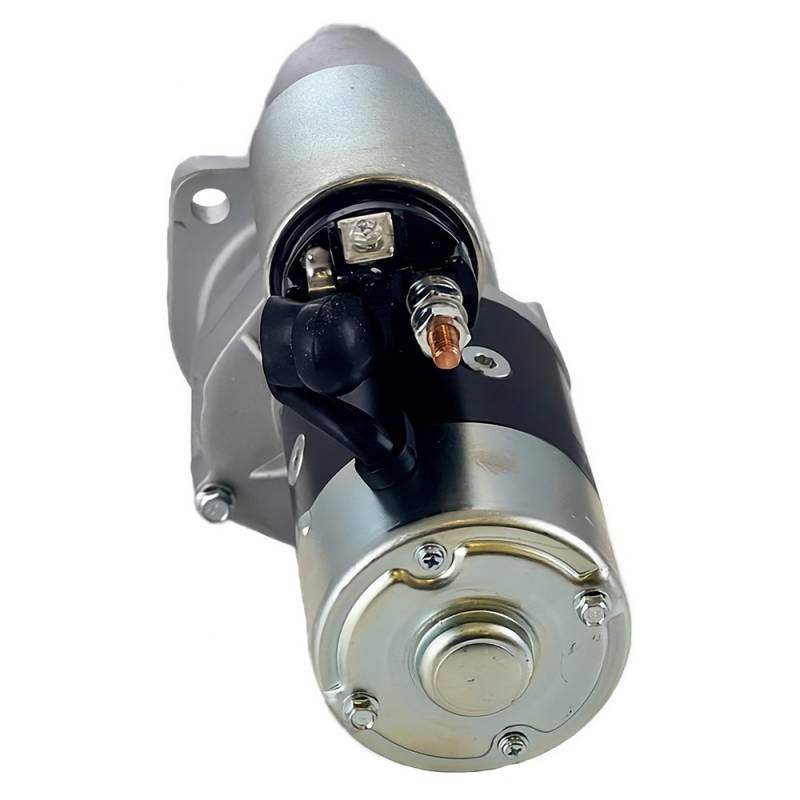

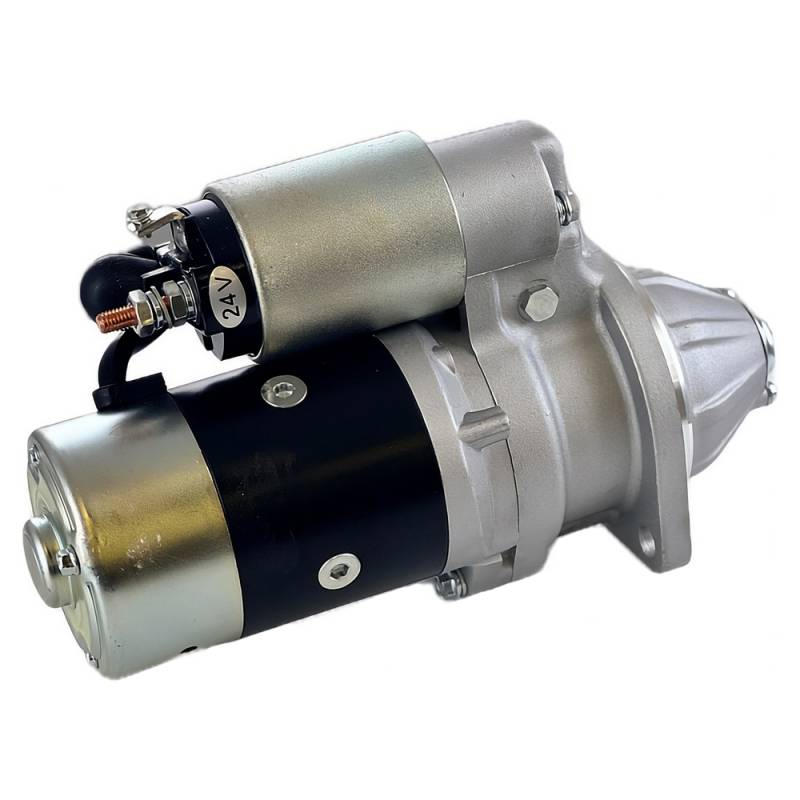

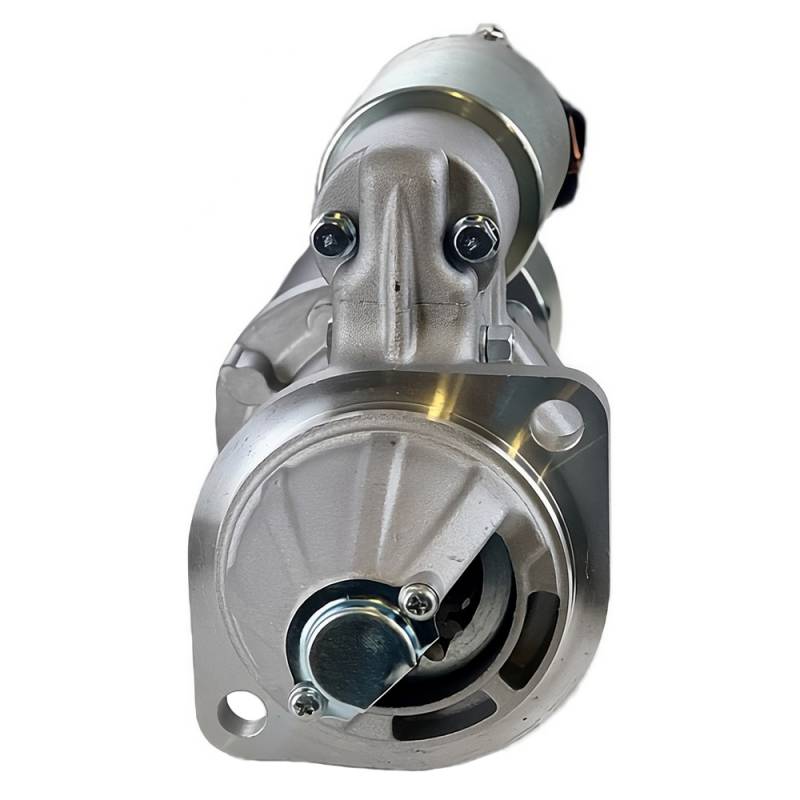

• Type: Starter Motor — OSGR (Offset Gear Reduction)
• Voltage: 24V
• Power: 4.5 KW (6.03 HP)
• Rotation: Clockwise (CW)
• Teeth on Drive Gear: 15
• Pinion / Gear OD: 44mm / 1.732"
• Mount Hole 1: 13mm ID Unthreaded
• Mount Hole 2: 13mm ID Unthreaded
• B+ Terminal: M8-1.25 | S Terminal: M4-0.7 Tab
• Length: 232mm / 9.134"
• Registry OD: 94.6mm / 3.724"
• Mounting Ear Distance: 119.5mm / 4.705"
• Weight: 19.46 lbs / 8.85 kg
• Condition: New
APPLICATIONS:
• Yanmar 4TNV84T-DFM 4-Cyl 2.0L Turbocharged Diesel — US Army MEP-804B & MEP-814B 15kW TQ Generator Sets
• Yanmar 4TNV84T 4-Cyl 2.0L Turbocharged Diesel — Standard Variant
• Army TM9-2815-538-24P | Air Force TO 38G1-129-3
PRODUCT NOTICE:
