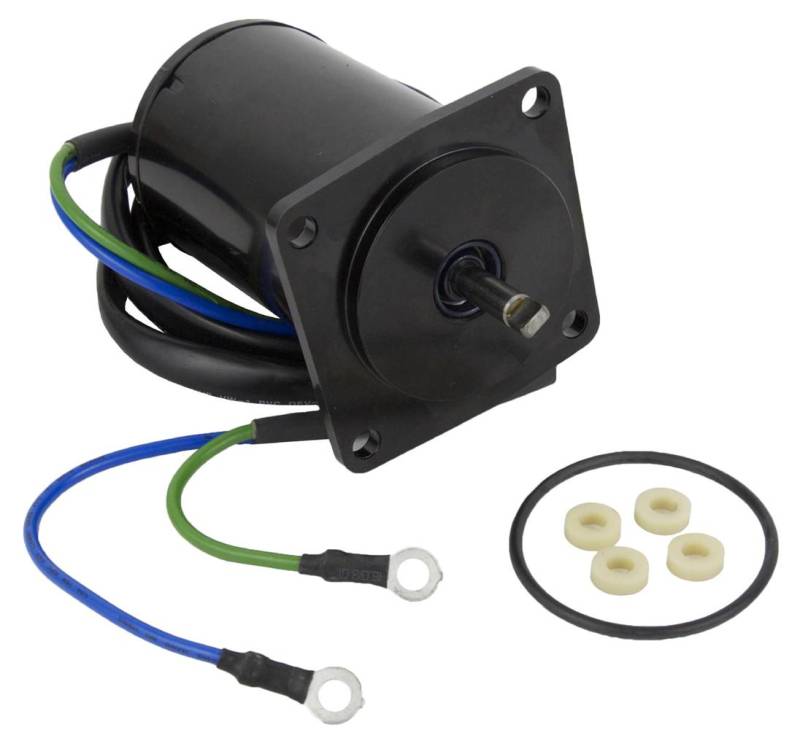

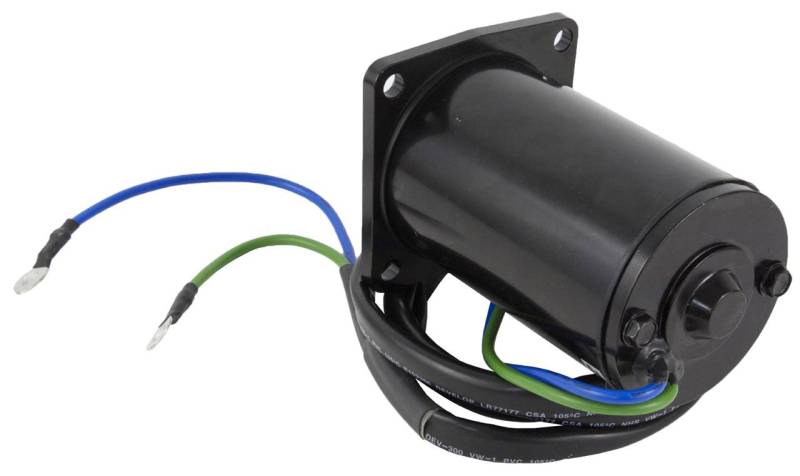

12V Tilt Trim Motor Compatible With Yamaha F80 F100 4-Stroke Outboard F80tlr F100tlr F80txr F100txr

(0) Reviews: Write first review
10862*2
OEM PART NUMBERS:
• Yamaha: 67F-43880-00-00 / 67F438800000 (original)
• Yamaha: 67F-43880-01-00 / 67F438800100 (supersedes -00)
• Yamaha: 67F-43880-02-00 / 67F438800200 (supersedes -01, current)



AFTERMARKET CROSS REFERENCE:
• API Marine: PT615NM
• Arco Marine: 6261
• 18-6787
SPECIFICATIONS:
• Type: Tilt Trim Motor
• Voltage: 12V DC
• Rotation: Reversible
• OD: 64.6mm (2.543 in)
• Overall Length: 142.5mm (5.61 in)
• Shaft OD: 8mm (0.315 in)
• Shaft: 4mm x 8mm Drive Tang
• Connection: 2-Wire
• Mounting: 4-Bolt
• Includes: O-Ring
• Current Type: DC
• Weight: 3.09 lbs (1.4 kg)
• Condition: New

YAMAHA 4-STROKE OUTBOARD APPLICATIONS:
• F75TLR 75HP 4-Stroke (2003-2004)
• F80TLR / F80TXR / F80TJR 80HP 4-Stroke (1999-2003)
• F90TJR / F90TLR 90HP 4-Stroke (2003-2004)
• F100TLR / F100TXR 100HP 4-Stroke (1999-2002)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $199.22
Sale: $113.84
Save: 43%
Save: $85.38
Qty:
Free Shipping!

Description

YAMAHA F75 75HP 4-STROKE OUTBOARD (2003-2004):
• F75TLRB 75HP 4-Stroke Inline-4 (2003)
• F75TLRC 75HP 4-Stroke Inline-4 (2004)

YAMAHA F80 80HP 4-STROKE OUTBOARD (1999-2003):
• F80TLRX 80HP 4-Stroke Inline-4 (1999)
• F80TXRX 80HP 4-Stroke Inline-4 (1999)
• F80TLRY 80HP 4-Stroke Inline-4 (2000)
• F80TLRZ 80HP 4-Stroke Inline-4 (2001)
• F80TLRA 80HP 4-Stroke Inline-4 (2002)
• F80TJR 80HP 4-Stroke Inline-4 (2002-2003)
• F80TLRB 80HP 4-Stroke Inline-4 (2003)

YAMAHA F90 90HP 4-STROKE OUTBOARD (2003-2004):
• F90TJRB 90HP 4-Stroke Inline-4 (2003)
• F90TJRC 90HP 4-Stroke Inline-4 (2004)
• F90TLRB 90HP 4-Stroke Inline-4 (2003)
• F90TLRC 90HP 4-Stroke Inline-4 (2004)

YAMAHA F100 100HP 4-STROKE OUTBOARD (1999-2002):
• F100TLRX 100HP 4-Stroke Inline-4 (1999)
• F100TXRX 100HP 4-Stroke Inline-4 (1999)
• F100TLRY 100HP 4-Stroke Inline-4 (2000)
• F100TLRZ 100HP 4-Stroke Inline-4 (2001)
• F100TXRZ 100HP 4-Stroke Inline-4 (2001)
• F100TLRA 100HP 4-Stroke Inline-4 (2002)
• F100TXRA 100HP 4-Stroke Inline-4 (2002)

MODEL SUFFIX REFERENCE:
• TLR = Tiller Remote, Long Shaft
• TXR = Remote Control, Extra-Long Shaft
• TJR = Jet Drive, Long Shaft
• Year suffix: X=1999, Y=2000, Z=2001, A=2002, B=2003, C=2004

NOTES:
• All models are inline-4 cylinder 4-stroke engines
• 2-wire connection, 4-bolt mount
• O-ring included
• 67F-43880 supersession: -00 → -01 → -02
