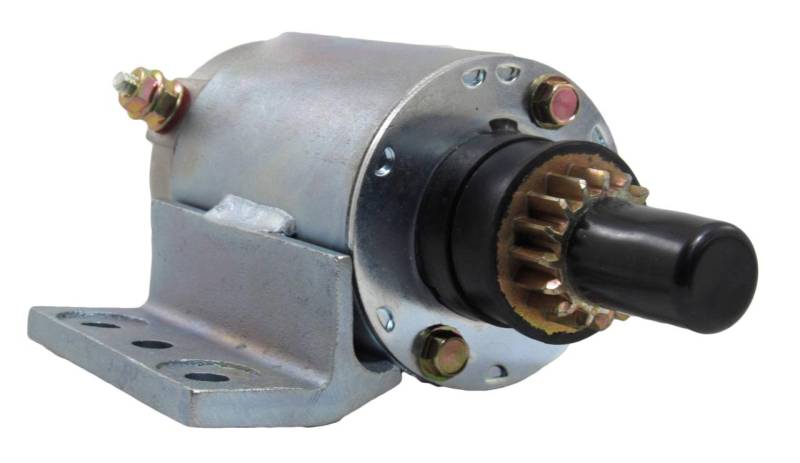

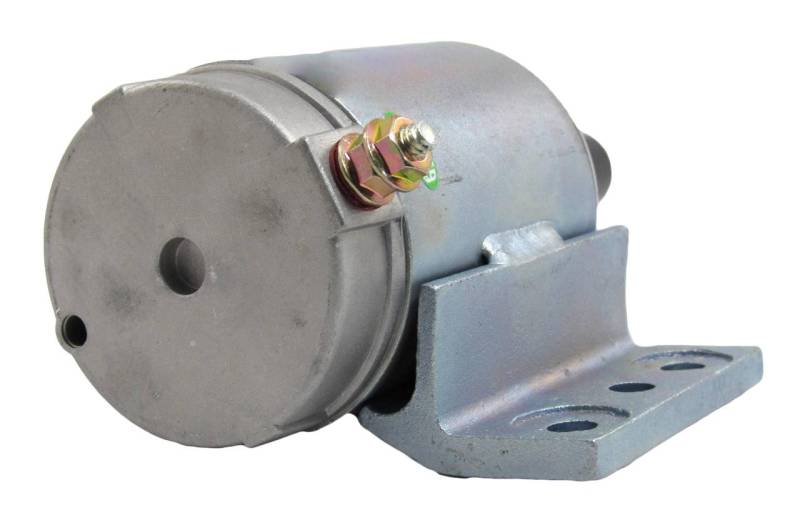

New 12V Ccw Pmdd Starter 16-Tooth Compatible With 1967-1974 John Deere 110 112 Lawn Tractor Kohler

KOHLER K-SERIES CAST-IRON L-HEAD AIR-COOLED ENGINES — PRIMARY ENGINE FAMILY:
• Kohler K-161 — 16.1 Cubic Inch (264cc) 7HP Single-Cylinder Air-Cooled Gasoline Cast-Iron L-Head Engine
• Kohler K-181 — 18.1 Cubic Inch (296cc) 8HP Single-Cylinder Air-Cooled Gasoline Cast-Iron L-Head Engine
• Both are part of the older Kohler K-Series engine family (production 1950s through 1980s)
• Predecessor to the Kohler Magnum M-Series and Command CH-Series

JOHN DEERE LAWN TRACTORS — KOHLER K-181 8HP ENGINE (1968-1978):
• 1968-1974 John Deere 110 Lawn Tractor with Kohler K-181 8HP Cast-Iron L-Head Engine
• 1967-1972 John Deere 112 Lawn Tractor with Kohler K-181 8HP Cast-Iron L-Head Engine (Early Production)
• 1975 John Deere 200 Lawn Tractor with Kohler K-181 8HP Cast-Iron L-Head Engine
• 1977-1978 John Deere 208 Lawn Tractor with Kohler K-181 8HP Cast-Iron L-Head Engine

CUB CADET GARDEN TRACTORS — KOHLER K-181 8HP ENGINE (1974-1980):
• 1974-1980 Cub Cadet 800 Garden Tractor with Kohler K-181 8HP Cast-Iron L-Head Engine

FITMENT NOTES — CRITICAL APPLICATION REQUIREMENTS:
• 12 VOLT SYSTEM REQUIRED
• Counterclockwise (CCW) rotation, 16-tooth pinion, 1.358" (34.5mm) gear OD
• PMDD (Permanent Magnet Direct Drive) starter — original UT/JE design
• Field case length: 3.45" / 87.6mm
• Mounting: 3 ears (mounting ear 1, 2, AND 3), all 9.5mm ID unthreaded — IMPORTANT 3-ear mounting pattern
• Weight: 5.605 lbs (2.55 kg)
• OEM Manufacturer: Johnson Electric / United Technologies
• Engine Family: Kohler K-Series K-161 / K-181 cast-iron L-head air-cooled gasoline
• Will NOT fit Kohler M-Series Magnum engines (M-8 / M-10 / M-12 / M-14 / M-16 — those use with 10-tooth pinion)
• Will NOT fit Kohler K-Series K-241 / K-301 / K-321 / K-341 (larger HP variants — different starter)
• Will NOT fit Kohler Courage / Command / Aegis engine families (different starter)
• Will NOT fit John Deere 110H / 112H Hydrostatic models with K-241 (different starter)
• Will NOT fit John Deere 210/212/214/216 (those use larger K-Series — different starter)
• Will NOT fit John Deere 300/314/316/317/322 (later models with different engines/starters)
• Will NOT fit Cub Cadet 1000/1100/1200/1450/1650 (those use larger K-Series — different starter)
• Always verify your OEM part number from the original starter unit before ordering
