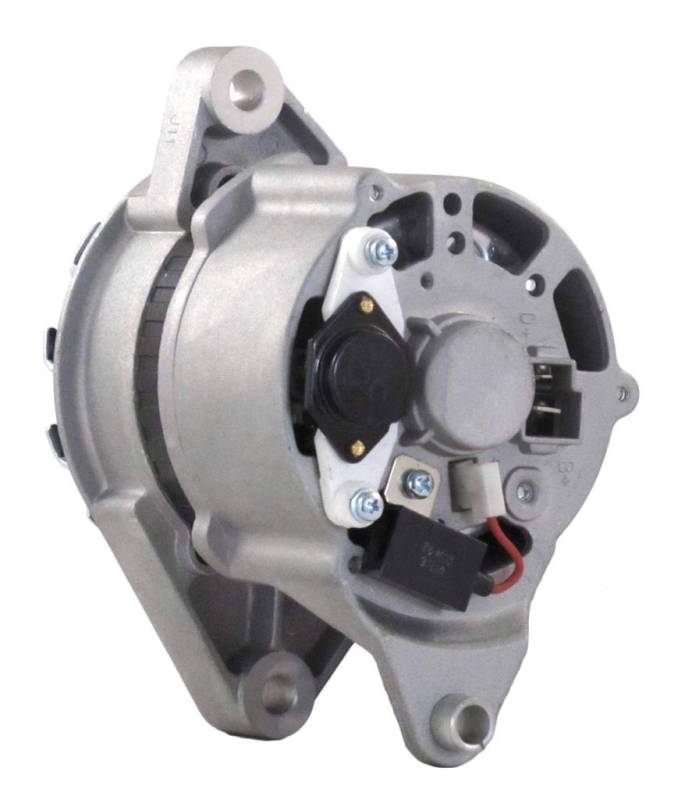

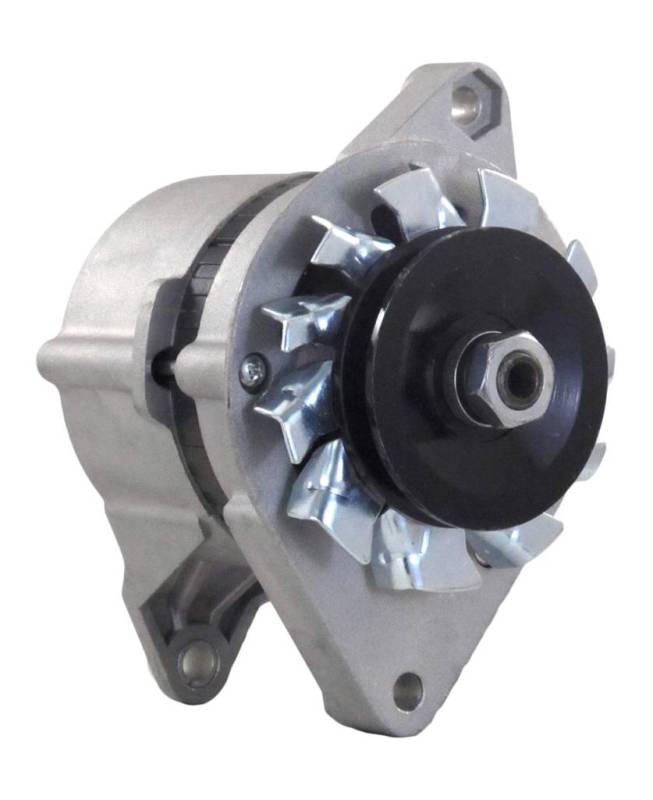

New Alternator Compatible With Fiat-Hesston Tractor 45.66 55.46 55.56 55.65 55.66 8035 Diesel

12029A1
BOSCH PART NUMBERS:
• 0 120 339 515, 0-120-339-515, 0120339515
• 0 120 339 516, 0-120-339-516, 0120339516
• 0 120 339 523, 0-120-339-523, 0120339523
• 0 120 339 527, 0-120-339-527, 0120339527
• 0 120 339 528, 0-120-339-528, 0120339528
• 0 986 030 120, 0986030120 (Bosch service)

FIAT PART NUMBERS:
• 4224325
• 4257074
• 4275283
• 4373600
• 4373601
• 4474729
• 4474752
• 4998353
• 5101645
• 4475266
• 46231680
• 51217620
• 77145410
• 77250410

ISKRA / LETRIKA / MAHLE PART NUMBERS:
• Iskra IA 0037, IA0037
• Iskra IA 0336, IA0336
• Iskra IA 9430, IA9430
• Letrika 11.201.017, 11201017
• Letrika 11.201.037, 11201037
• Letrika 11.209.651, 11209651
• Letrika AAG0403, AAG1104, AAG1374
• Mahle MG 123, MG123

MARELLI PART NUMBERS:
• 63300900
• 63300901
• 63300920
• 63300921
• MAN344

OTHER REPLACEMENT NUMBERS:
• SAME 2.9439.090.0, 294390900
• Lucas LRA00913, LRA913
• Lucas LRA00199, LRA199
• Valeo 436109
• Hella 8EL 012 427-661, 8EL012427661
• Hella 8EL 725 944-001, 8EL725944001

SPECIFICATIONS:
• Type: alternator, Bosch style, internal regulator and external fan (IR/EF)
• Voltage: 12 volt
• Output: 33 amp
• Regulator: internal (IR)
• Fan: external (EF)
• Pulley: V1 single groove
• Rotation: clockwise (CW)
• Weight: 9 lb (4.08 kg)
• Interchange: Bosch version, replaces the Marelli and Iskra versions when fitted with fan and pulley
• Condition: New aftermarket, not a Bosch, Marelli, Iskra or Fiat branded unit

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $283.31
Sale: $161.89
Save: 43%
Save: $121.42
Qty:
Free Shipping!

Description

FIAT-HESSTON TRACTORS WITH THE FIAT 8035 DIESEL:
• Fiat-Hesston 45.66 tractor with the Fiat 8035 2.7L diesel, 1985
• Fiat-Hesston 55.46 tractor with the Fiat 8035 2.7L diesel, 1988
• Fiat-Hesston 55.56 tractor with the Fiat 8035 2.7L diesel, 1988
• Fiat-Hesston 55.65 tractor with the Fiat 8035 2.7L diesel, 1988-1989
• Fiat-Hesston 55.66 tractor with the Fiat 8035 2.7L diesel, 1985
• Fiat-Hesston 55.75 tractor with the Fiat 8035 2.7L diesel, 1989
• Fiat-Hesston 55.85 tractor with the Fiat 8035 2.7L diesel, 1992
• Fiat-Hesston 55.86 tractor with the Fiat 8035 2.7L diesel, 1992
• Fiat-Hesston 60.46 tractor with the Fiat 8035 3.0L diesel, 1988
• Fiat-Hesston 60.56 tractor with the Fiat 8035 3.0L diesel, 1989
• Fiat-Hesston 60.65 tractor with the Fiat 8035 3.0L diesel, 1988-1989
• Fiat-Hesston 60.66 tractor with the Fiat 8035 3.0L diesel, 1984
• Fiat-Hesston 60.75 tractor with the Fiat 8035 3.0L diesel, 1989
• Fiat-Hesston 60.85 tractor with the Fiat 8035 3.0L diesel, 1992
• Fiat-Hesston 60.86 tractor with the Fiat 8035 3.0L diesel, 1992
• Fiat-Hesston 60.88 tractor with the Fiat 8035 3.1L diesel, 1989

FIAT-HESSTON TRACTORS WITH THE FIAT 8045 DIESEL:
• Fiat-Hesston 65.46 tractor with the Fiat 8045 3.6L diesel, 1988
• Fiat-Hesston 65.56 tractor with the Fiat 8045 3.6L diesel, 1990
• Fiat-Hesston 65.66 tractor with the Fiat 8045 3.6L diesel, 1987
• Fiat-Hesston 65.90 tractor with the Fiat 8045 3.6L diesel, 1987
• Fiat-Hesston 70.56 tractor with the Fiat 8045 3.6L diesel, 1990
• Fiat-Hesston 70.65 tractor with the Fiat 8045 3.6L diesel, 1988-1989
• Fiat-Hesston 70.66 tractor with the Fiat 8045 3.6L diesel, 1984
• Fiat-Hesston 70.75 tractor with the Fiat 8045 3.6L diesel, 1989
• Fiat-Hesston 70.76 tractor with the Fiat 8045 3.6L diesel, 1990

ENGINES:
• Fiat 8035 2.7L diesel: 45.66, 55.46, 55.56, 55.65, 55.66, 55.75, 55.85, 55.86
• Fiat 8035 3.0L diesel: 60.46, 60.56, 60.65, 60.66, 60.75, 60.85, 60.86
• Fiat 8035 3.1L diesel: 60.88
• Fiat 8045 3.6L diesel: 65.46, 65.56, 65.66, 65.90, 70.56, 70.65, 70.66, 70.75, 70.76

ALSO FITS (SAME UNIT):
• Fiat-Hesston 70.86, 70.88 (Fiat 8045 3.6L), 80.65, 80.66, 80.75, 80.88, 82.86 (8045 3.9L), 1988-1992
• SAME crawlers Leopard 85, Leopard 90, Leopard C (105-4P) 1980-1986, Solar 55C (100-3P) 1987, Taurus C (105-3P) 1980-1984
• SAME engines 105-2LP, 105-3P, 105-4P, 1055P, 1056P / PS / PT 1973-1983, 985P, 986P 1974-1980
• SAME tractors Buffalo 130, Centauro 70, Centurion 75, Condor 55, Corsaro Frutteto 70, Corsaro Synchro 70, Crop 85, Delfino 35, Drago 120, Falcon, 1978-1990
• SAME tractors Jaguar 95, Jaguar 100, Leopard 85, Leopard 90, Mercury 75, Mercury 85, Minitaurus 60, Minitaurus Frutteto 60, Panther 90, Panther 95, Ranger 45, Row Crop 85, Saturno Synchro 80, 1978-1991
• SAME Taurus 60, Tiger 100, Tiger Six 105, Trident 130, Vigneron 35, 50, 60, 70 tractors 1977-1990, Condor C crawler (983L) 1980-1986
• Ford 5010S and New Holland 3010S, 3830, 4010S, 4030, 4230, 4330V, 4430N, 4430V, 5010S farm tractors, 1992-2000

SPECIFICATIONS:
• Type: alternator, Bosch style, internal regulator and external fan (IR/EF)
• Voltage: 12 volt
• Output: 33 amp
• Regulator: internal (IR)
• Fan: external (EF)
• Pulley: V1 single groove
• Rotation: clockwise (CW)
• Weight: 9 lb (4.08 kg)
• Interchange: Bosch version, replaces the Marelli and Iskra versions when fitted with fan and pulley
• Condition: New aftermarket, not a Bosch, Marelli, Iskra or Fiat branded unit
