BOSCH PART NUMBERS: • 0001109008, 0-001-109-008
• 0001109043, 0-001-109-043
• 0001109024, 0-001-109-024
HATZ PART NUMBERS: • 50353510
• 50353511
• 01721000, 1721000 (current Hatz service kit)
• 50496200
• 50496201
BOMAG PART NUMBERS: • 05726002, 5726002
• 05821275, 5821275
LUCAS PART NUMBERS: • LRS01330, LRS1330
DELCO REMY PART NUMBERS: • DRS3974

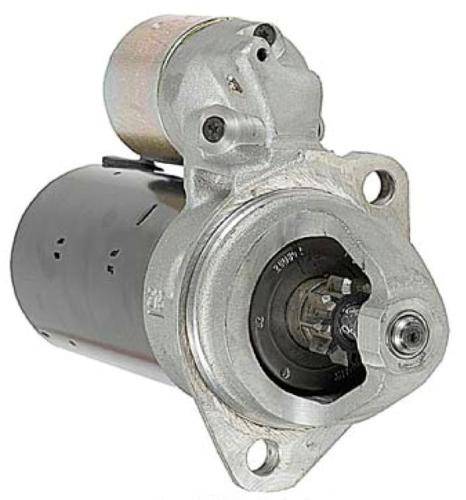

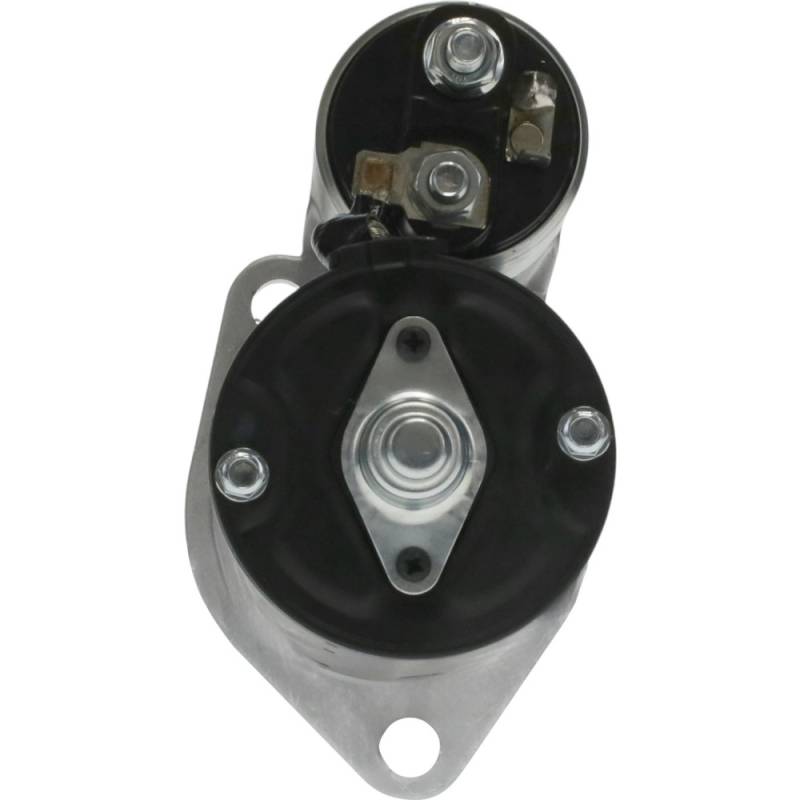

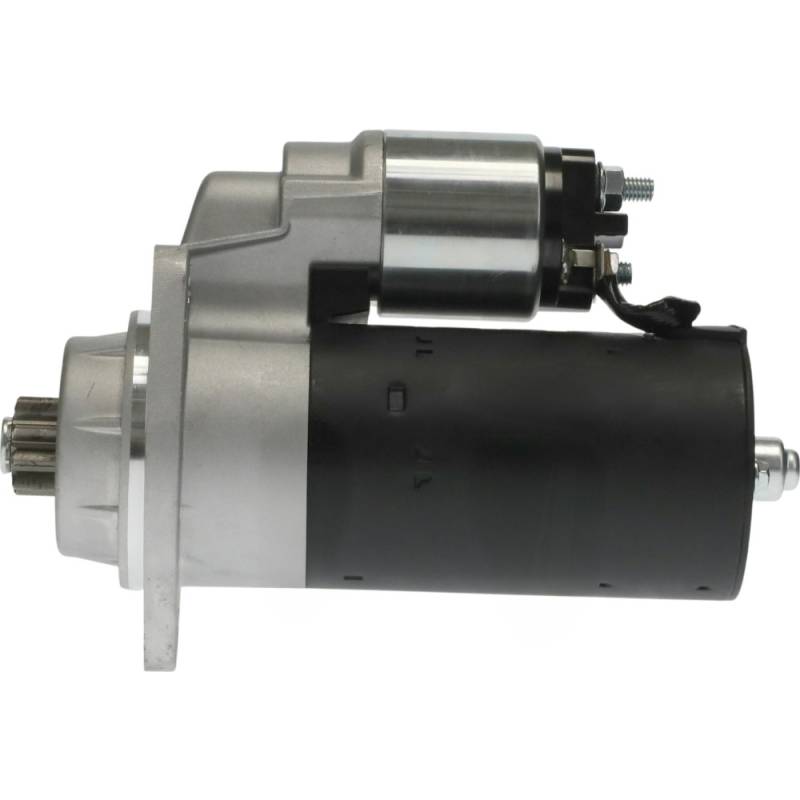

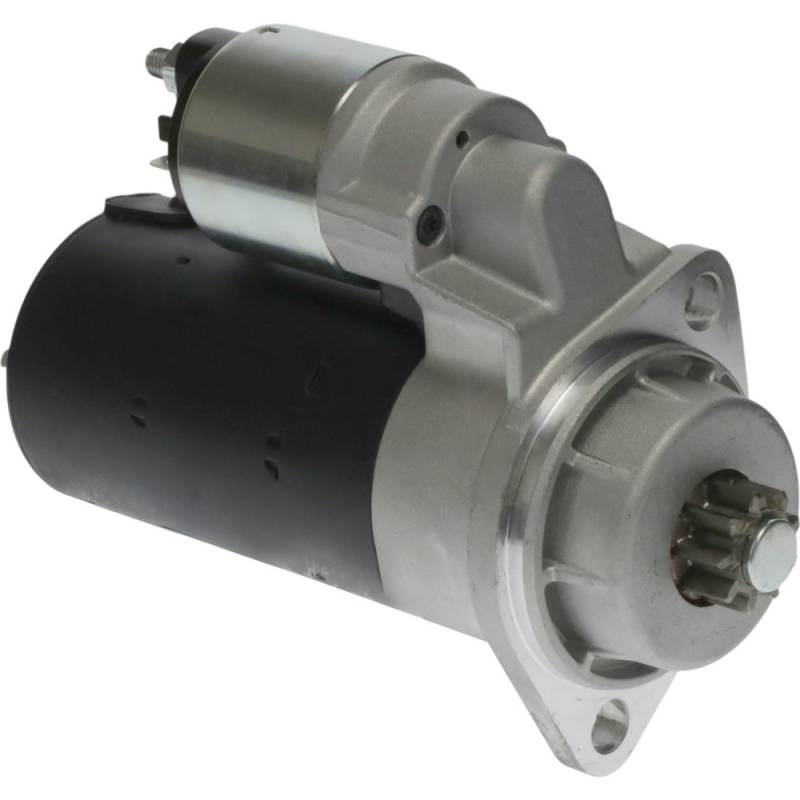

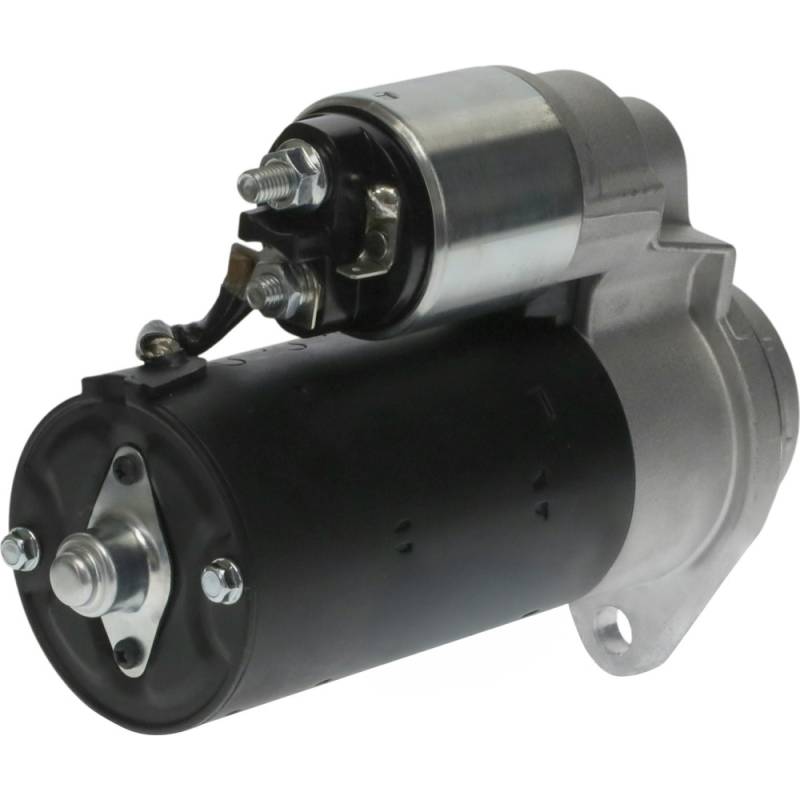

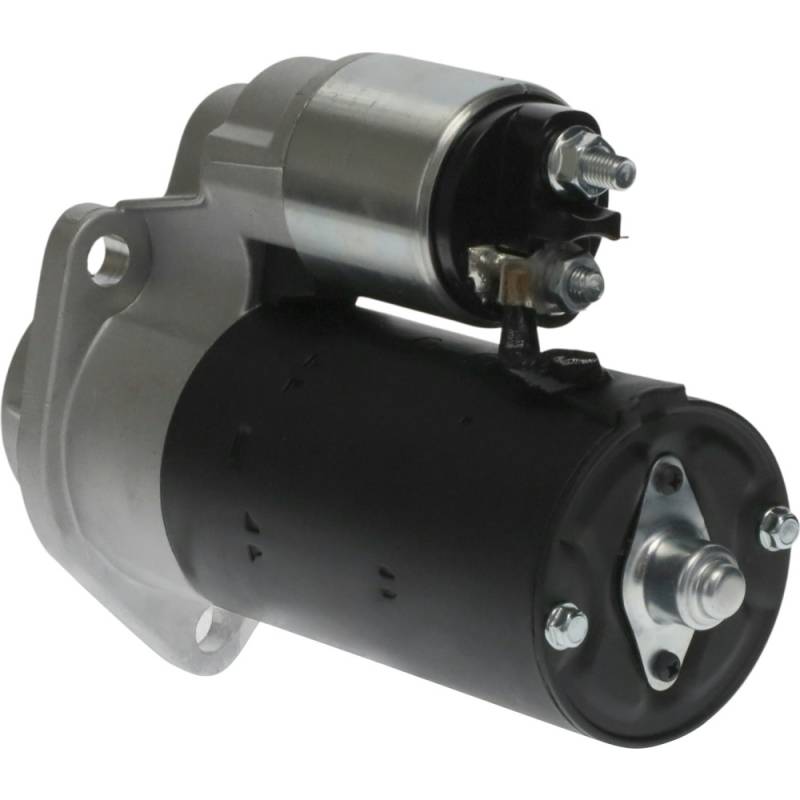

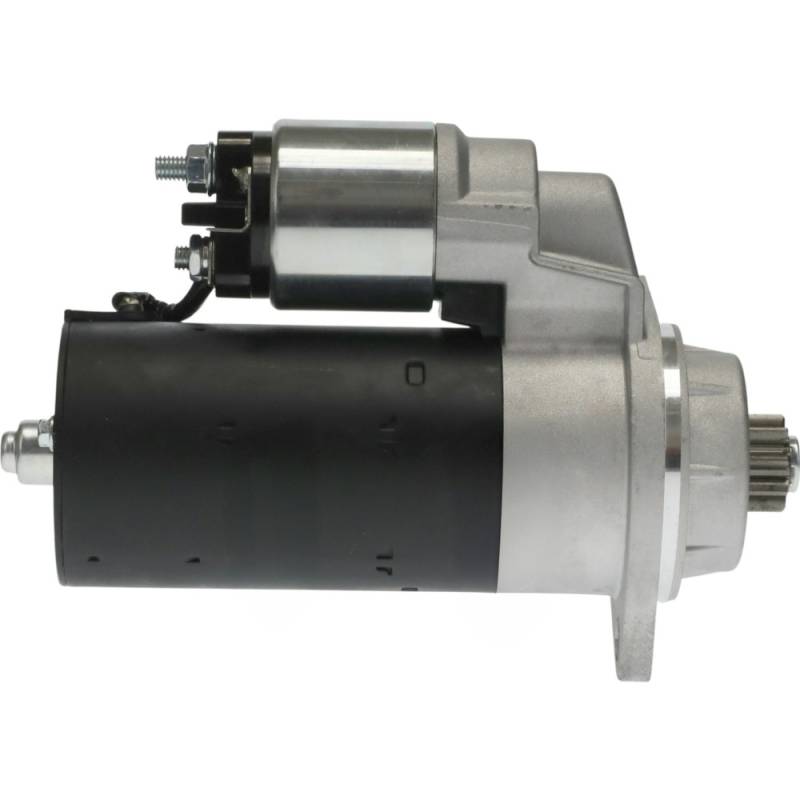

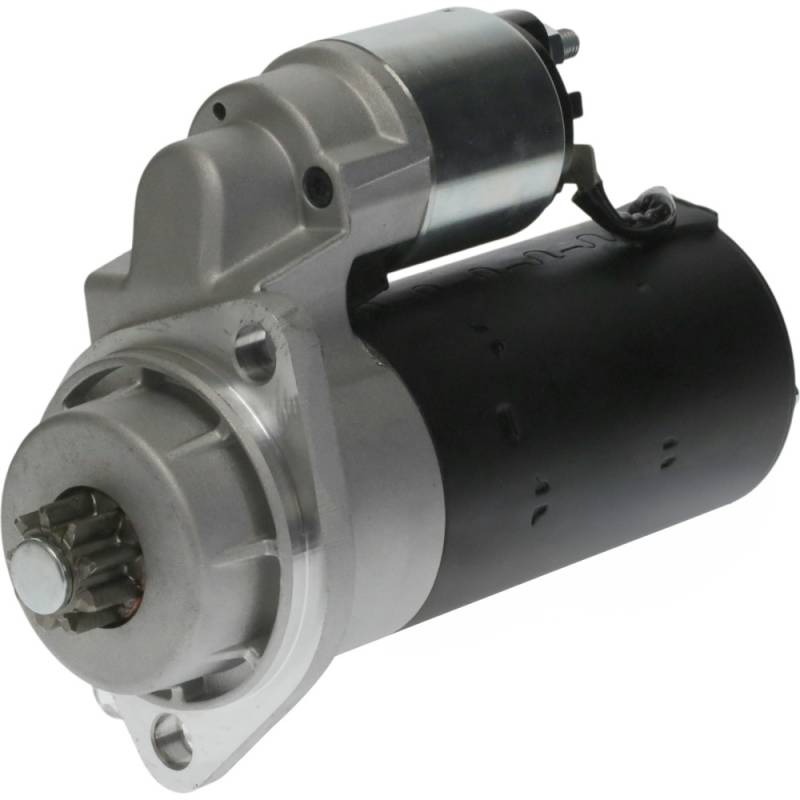

SPECIFICATIONS: • Type: permanent magnet gear reduction (PMGR)
• Voltage: 12 Volt
• Power: 1.6 kW
• Rotation: Clockwise (CW)

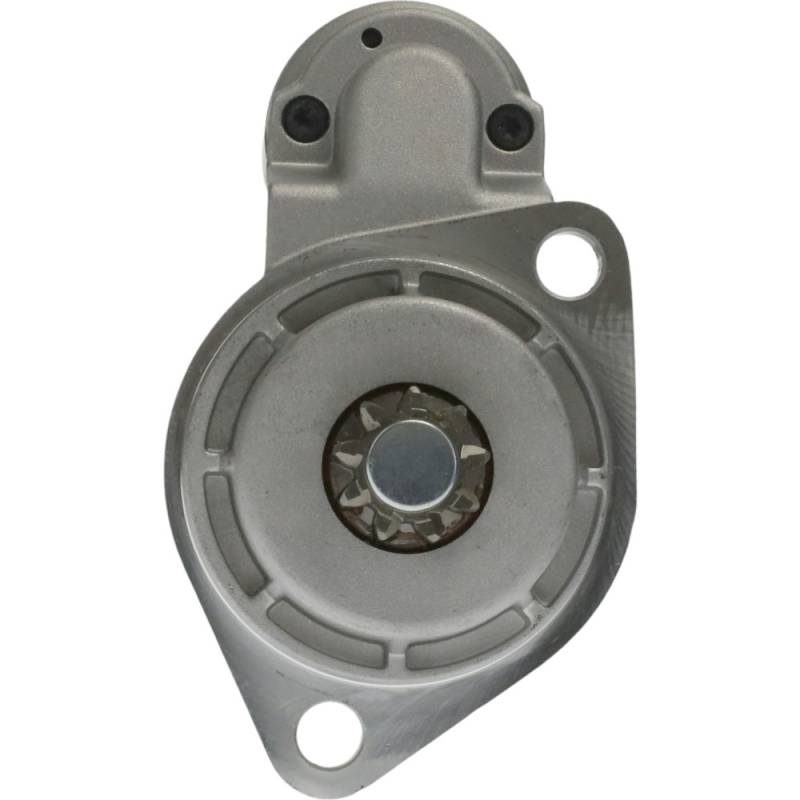

• Pinion: 9 tooth
• Gear OD: 28.8 mm (1.134 in)
• Flange: 82.5 mm
• Mounting: 2 ears, 12.6 mm unthreaded
• Battery terminal: M8
• Weight: 12.45 lb (5.66 kg)
• Fits: Hatz 1D20, 1D30, 1D31, 1D40, 1D41, 1D42, 1D50
• Condition: New aftermarket
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
