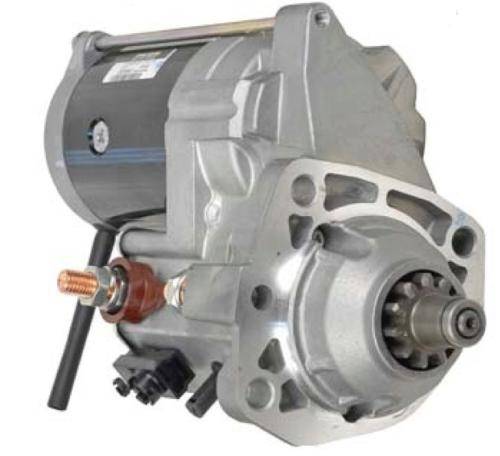

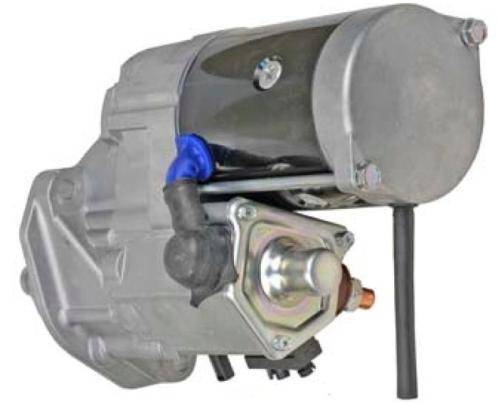

New 24V 7.5Kw 11 Tooth Starter Motor Compatible With John Deere Forwarder 1710D 810D 8.1 4.5

(0) Reviews: Write first review
19847C2
JOHN DEERE PART NUMBERS:
• RE501060
• RE501050
• RE501150
• RE69705
• RE70958
• TY24443
• SE501406
• RE501888
• RE500748

DENSO PART NUMBERS:
• 228000-7413, 2280007413
• 228000-7411, 2280007411
• 228080-6562, 2280806562
• TG228080-6562, TG2280806562
• 280-7064, 2807064
• 228000-7410, 2280007410
• 228000-7412, 2280007412
• 228080-7413, 2280807413
• TG228080-7413, TG2280807413
• 228000-6560, 2280006560
• 228000-6561, 2280006561
• 228000-6562, 2280006562
• DSN2027
• DSN2147

WILSON PART NUMBERS:
• 91-29-5607, 91295607
• 91-29-5469, 91295469
• 91-29-5469N, 91295469N
• 91-29-5608, 91295608

LUCAS PART NUMBERS:
• LRS03893, LRS3893
• LES0748

OTHER PART NUMBERS:
• Kohler GM81904
• MES S5736M
• Liebherr 10424195

SPECIFICATIONS:
• Voltage: 24 volt
• Type: offset gear reduction (OSGR)
• Power: 7.5 kW (John Deere and Denso also list it as 7.8 kW)
• Rotation: clockwise (CW)
• Pinion: 11 tooth, 39.8 mm (1.567 in) gear OD
• Flange: 89 mm, three unthreaded mounting ears, 11.4 mm
• Terminals: M12 battery stud and M12 ground stud
• Clutch: wet, oil sealed
• Length: 244 mm
• Weight: 23.8 lb (10.8 kg)
• Fit check: 12 volt 4.8 kW and 24 volt 5.5 kW or 6.0 kW Denso starters look alike, match voltage, kW and the number on your old starter
• Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $515.66
Sale: $294.66
Save: 43%
Save: $221.00
Qty:
Free Shipping!

Description

JOHN DEERE AND TIMBERJACK TRACKED FELLER BUNCHERS, B / G / L / S SERIES:
• John Deere 608B tracked feller buncher with the 8.1L 494 cu in 6081HT, 2003-2007
• John Deere 608L tracked feller buncher with the 8.1L 6081HT, 2003-2004
• John Deere 608S tracked feller buncher with the 8.1L 6081HT, 2000-2005
• John Deere 703G tracked feller buncher with the 8.1L 6081HT, 2003-2007
• John Deere 753G tracked feller buncher with the 8.1L 6081HT, 2000-2005
• John Deere 753GL tracked feller buncher with the 8.1L 6081HT, 2003-2004
• John Deere 759G tracked feller buncher with the 8.1L 6081HT, 2005-2007
• John Deere 853G tracked feller buncher with the 8.1L 6081HT, 2002-2005
• John Deere 903G tracked feller buncher with the 8.1L 6081HT, 2002-2005
• John Deere 953G tracked feller buncher with the 8.1L 6081HT, 2001-2002
• John Deere 900 feller buncher with the 8.1L 6081HT, 2002-2005
• John Deere 950 feller buncher with the 8.1L 6081HT, 2002-2005

JOHN DEERE TRACKED FELLER BUNCHERS AND HARVESTERS, J SERIES:
• John Deere 703J tracked feller buncher with the 8.1L 6081, 181 hp
• John Deere 703JH tracked harvester with the 8.1L 6081HT, 2007-2012
• John Deere 753J tracked feller buncher with the 8.1L 6081HT 241 hp or 9.0L 6090HT, 2007-2014
• John Deere 753JH tracked harvester with the 8.1L 6081HT or 9.0L 6090HT, 2007-2014
• John Deere 759J tracked feller buncher with the 8.1L 6081HT 241 hp or 9.0L 6090HT, 2007-2014
• John Deere 759JH tracked harvester with the 8.1L 6081HT or 9.0L 6090HT, 2007-2014
• John Deere 853J tracked feller buncher with the 8.1L 6081HT, 294 hp, 2007-2010
• John Deere 853JH tracked harvester with the 8.1L 6081HT, 294 hp
• John Deere 903J tracked feller buncher with the 8.1L 6081HT, 294 hp, 2007-2010
• John Deere 903JH tracked harvester with the 8.1L 6081, 294 hp, 2008-2010
• John Deere 909J tracked feller buncher with the 8.1L 6081HT, 294 hp, 2006-2010
• John Deere 909JH tracked harvester with the 8.1L 6081HT, 2006-2010
• John Deere 953J tracked feller buncher with the 8.1L 6081HT, 294 hp, 2007-2010
• John Deere 959J tracked feller buncher with the 8.1L 6081HT, 294 hp, 2006-2010

CUMMINS POWERED 608L AND 753GL IN THE SOURCE DATA, CHECK FOR A 24 VOLT STARTING SYSTEM:
• John Deere 608L tracked feller buncher with the Cummins 6CT8.3 or 6CTA8.3 8.3L 504 cu in, 2000-2003
• John Deere 753GL tracked feller buncher with the Cummins 6CT8.3 or 6CTA8.3 8.3L 504 cu in, 2000-2003

JOHN DEERE TRACKED FELLER BUNCHERS AND HARVESTERS, K AND M SERIES:
• John Deere 903K tracked feller buncher with the 9.0L 549 cu in 6090HT, 2010-2014
• John Deere 903KH tracked harvester with the 9.0L 6090HT, 2010-2014
• John Deere 909K tracked feller buncher with the 9.0L 6090HT, 2010-2014
• John Deere 909KH tracked harvester with the 9.0L 6090HT, 2010-2014
• John Deere 953K tracked feller buncher with the 9.0L 6090HT, 2010-2014
• John Deere 959K tracked feller buncher with the 9.0L 6090HT, 2010-2014
• John Deere 803M tracked feller buncher with the 9.0L 549 cu in 6090HT, 2014-2025
• John Deere 803MH tracked harvester with the 9.0L 6090HT, 2014-2025
• John Deere 853M tracked feller buncher with the 9.0L 6090HT, 2014-2025
• John Deere 853MH tracked harvester with the 9.0L 6090HT, 2014-2025
• John Deere 859M tracked feller buncher with the 9.0L 6090HT, 2014-2025
• John Deere 859MH tracked harvester with the 9.0L 6090HT, 2014-2025
• John Deere 903M tracked feller buncher with the 9.0L 6090HT, 2014-2025
• John Deere 903MH tracked harvester with the 9.0L 6090HT, 2014-2025
• John Deere 909M tracked feller buncher with the 9.0L 6090HT, 2014-2025
• John Deere 909MH tracked harvester with the 9.0L 6090HT, 2014-2025
• John Deere 953M tracked feller buncher with the 9.0L 6090HT, 2014-2025
• John Deere 953MH tracked harvester with the 9.0L 6090HT, 2014-2025
• John Deere 959M tracked feller buncher with the 9.0L 6090HT, 2017-2025
• John Deere 959MH tracked harvester with the 9.0L 6090HT, 2014-2025

SPECIFICATIONS:
• Voltage: 24 volt
• Type: offset gear reduction (OSGR)
• Power: 7.5 kW (John Deere and Denso also list it as 7.8 kW)
• Rotation: clockwise (CW)
• Pinion: 11 tooth, 39.8 mm (1.567 in) gear OD
• Flange: 89 mm, three unthreaded mounting ears, 11.4 mm
• Terminals: M12 battery stud and M12 ground stud
• Clutch: wet, oil sealed
• Length: 244 mm
• Weight: 23.8 lb (10.8 kg)
• Fit check: 12 volt 4.8 kW and 24 volt 5.5 kW or 6.0 kW Denso starters look alike, match voltage, kW and the number on your old starter
• Condition: New aftermarket
