OEM PART NUMBERS:
• Kohler: 12-098-22-S / 12-098-22 (Current Part Number)
• Kohler: 12-098-20-S / 12-098-20 (Superseded by 12-098-22-S)
• Kohler: 12-098-15-S / 12-098-15 (Superseded by 12-098-22-S)
• Kohler: 12-098-13-S / 12-098-13
• Kohler: 12-098-08-S / 12-098-08
• Kohler: 12-098-04-S / 12-098-04
• Kohler: 12-098-02
• John Deere: AM122435 / AM132235 / AM132236 / AM132818 / SE501845 / AM120729
• United Technologies: 5225040-M030SM / 5278340-M030SM / 5666940-MO30SM / SM56669

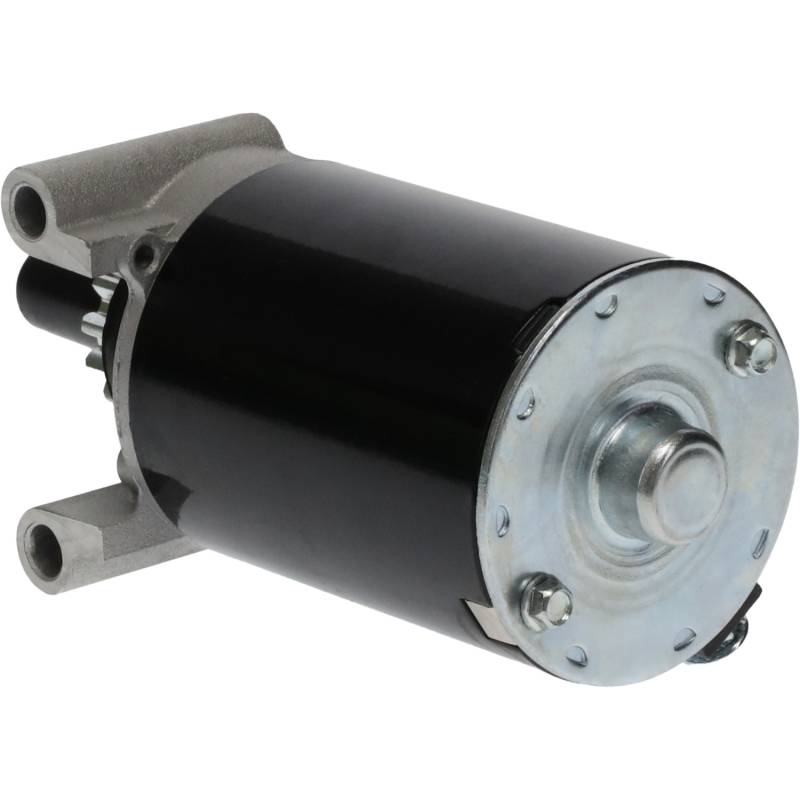

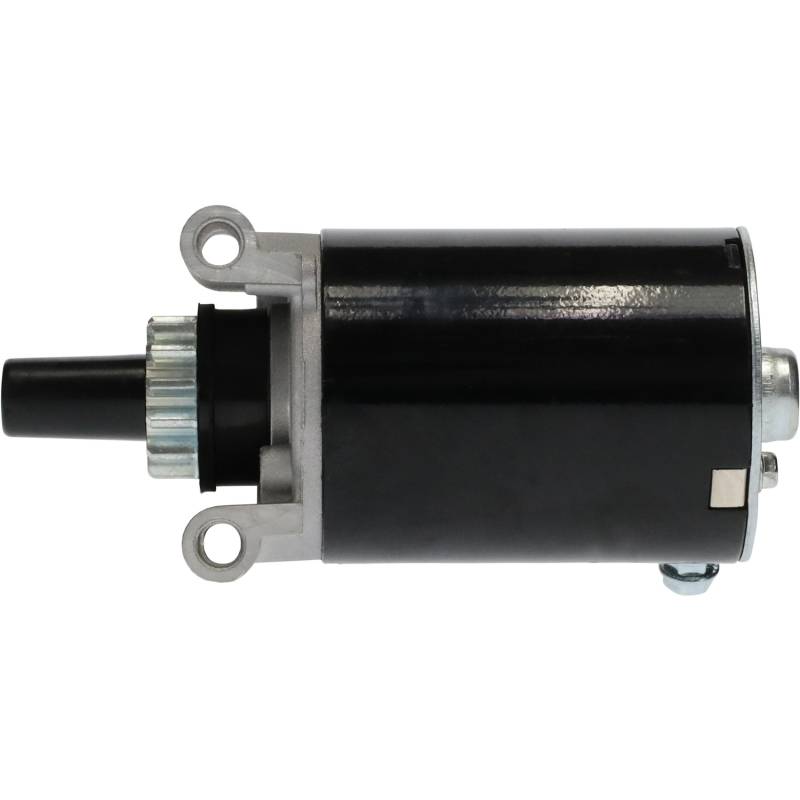

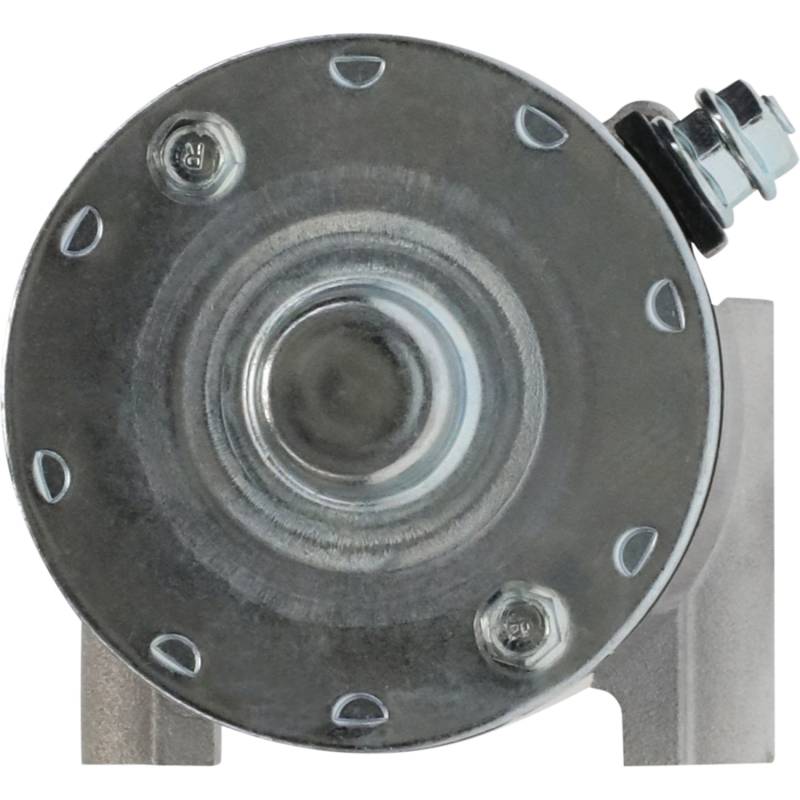

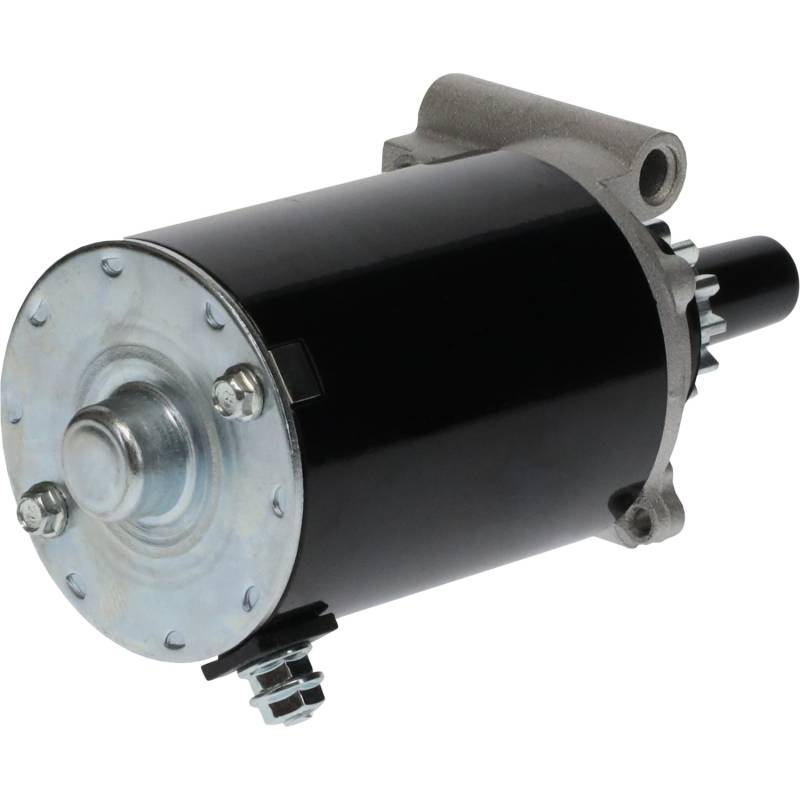

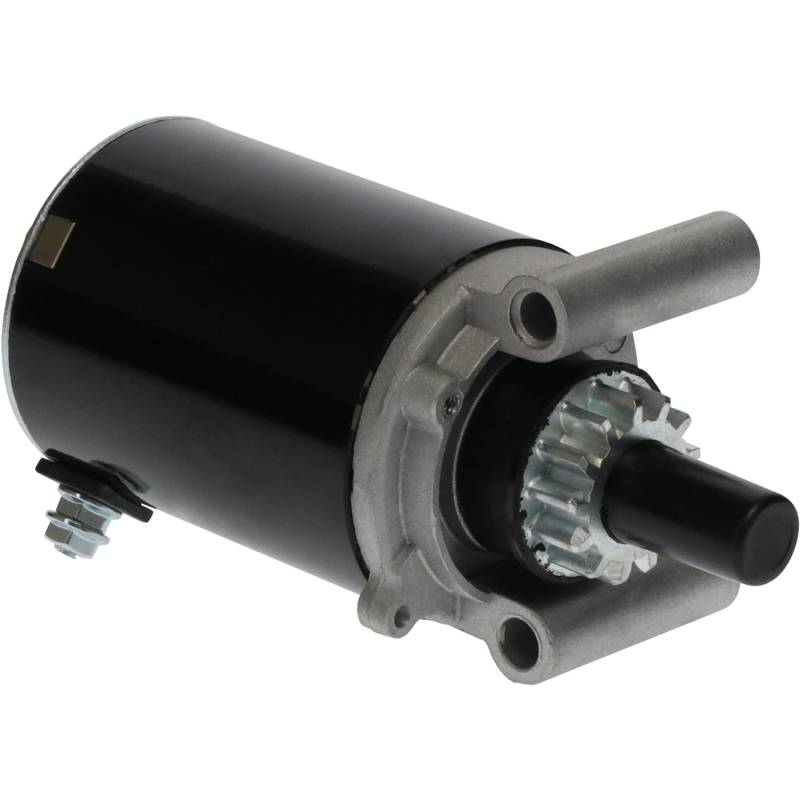

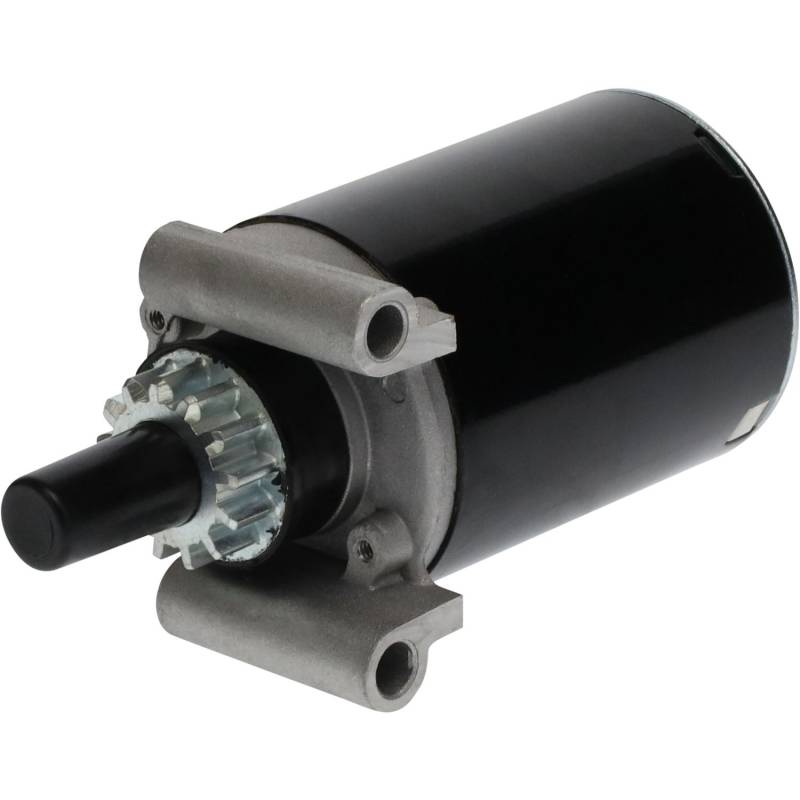

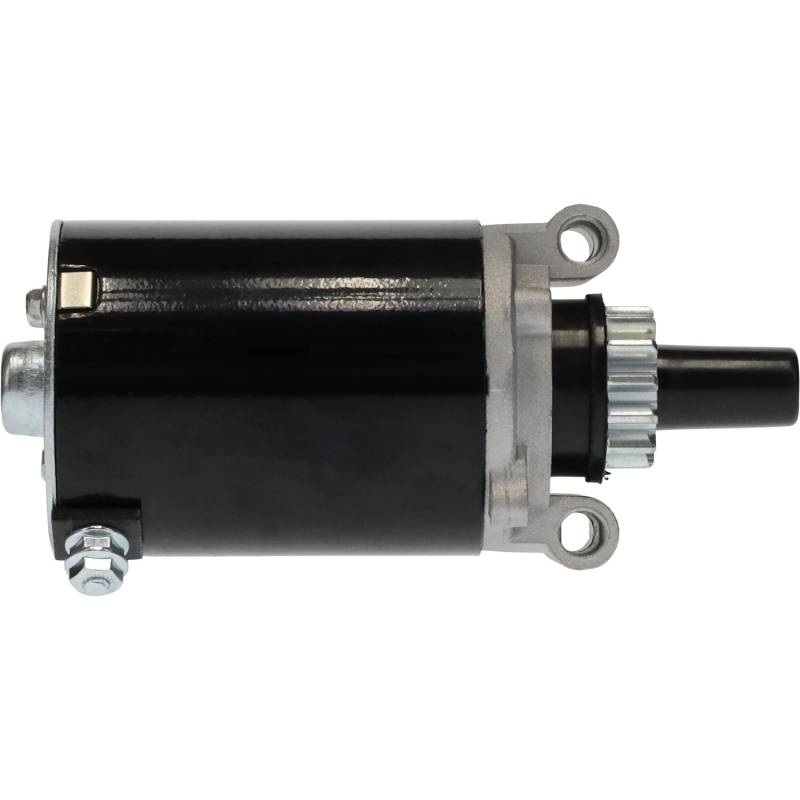

SPECIFICATIONS:
• Voltage: 12V DC
• Starter Type: PMDD (Permanent Magnet Direct Drive)
• Rotation: CCW (Counterclockwise)
• Tooth Count: 13
• Gear OD: 38.3mm / 1.508"
• Overall Length: 191mm / 7.5"
• Width: 78.2mm / 3.1"
• Mounting Ears: (2) 8.0mm ID Unthreaded
• Mounting Hole Distance: 67mm / 2.63"
• Field Housing Length: 97mm / 3.81"
• Terminal: 1 (Battery Terminal on CE Plate)
• Weight: 5.185 lbs / 2.36 kg
• Condition: New
SUPERSESSION CHAIN:
• 12-098-04 → 12-098-15-S → 12-098-20-S → 12-098-22-S (Current)
ENGINE APPLICATION:
• Kohler Command CH14, CV11-CV16, CV430, CV460-CV465, CV490-CV495 (11-20 HP)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
