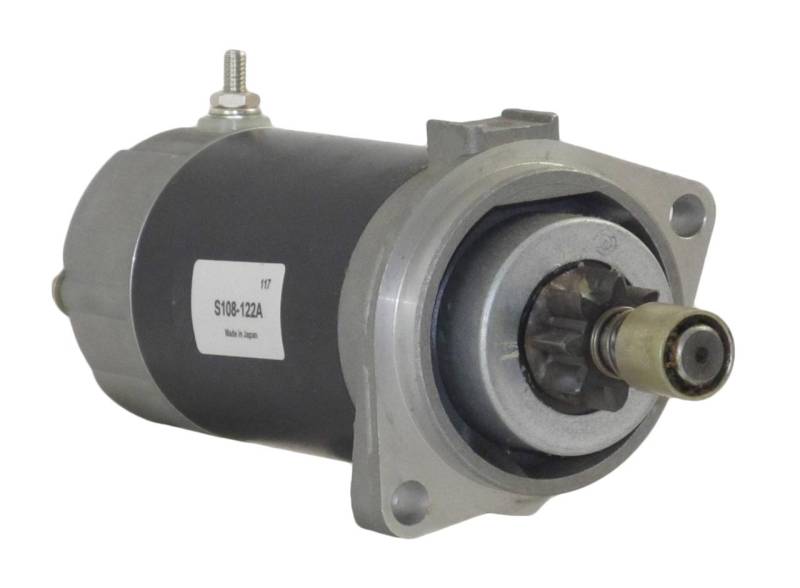

OEM PART NUMBERS:
• Hitachi: S108-122A / S108122A / S108-122AN / S108122AN / S108-122 / S108122
• Suzuki: 31100-89J00 / 3110089J00
• Suzuki: 31100-89J01 / 3110089J01
• Quicksilver: 8M6007389
• Johnson/OMC: 5032026
AFTERMARKET CROSS REFERENCE:
• Sierra: 18-6419
SPECIFICATIONS:
• Type: Starter Motor — PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V
• Rotation: CCW (Counterclockwise)
• Number of Teeth: 9
• Gear OD: 1.102" / 28mm
• Mounting Ear 1: 8.9mm Unthreaded
• Mounting Ear 2: 8.9mm Unthreaded
• SAE J1171 Marine Ignition Protection Certified
• Weight: 6 lbs
• Condition: New
SUZUKI 4-STROKE OUTBOARD APPLICATIONS (25-30HP):
• DF25E / DF25EQL / DF25EQS / DF25T / DF25TL / DF25MQL / DF25MQS — 25HP (2000-2006)
• DF30E / DF30EQL / DF30T / DF30TL / DF30MQL / DF30MQS — 30HP (2000-2007)
• Engine: Inline-3 597cc (36.4ci) SOHC 4-Stroke Carbureted
• Bore × Stroke: 65.0 × 60.0mm (2.56 × 2.36")
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
