0.75Mm Oversize Rebuild Kit 76.75Mm Compatible With 1989-1992 Kawasaki Jet Mate 650 1991-1995 Sc 650

OEM PART NUMBERS:
• Kawasaki: 13001-3701 / 130013701
• Kawasaki: 13001-3705 / 130013705
• Kawasaki: 13001-3714 / 130013714
• Kawasaki: 13001-2094 / 130012094

SPECIFICATIONS:
• Type: Top End Rebuild Kit (0.75mm Oversize)
• Bore Size: 76.75mm (0.75mm Over Standard 76.00mm)
• Standard Bore: 76.00mm (2.99")
• Oversize Bore: 76.75mm (0.030" Over)
• Engine: 635cc 2-Cylinder 2-Stroke Vertical Twin
• Bore × Stroke: 76mm × 70mm (2.99" × 2.76")
• Compression Ratio: 7.2:1
• Power: 52HP @ 6,000 RPM
• Induction: Crankcase Reed Valve
• Weight: 5 lbs
• Condition: New

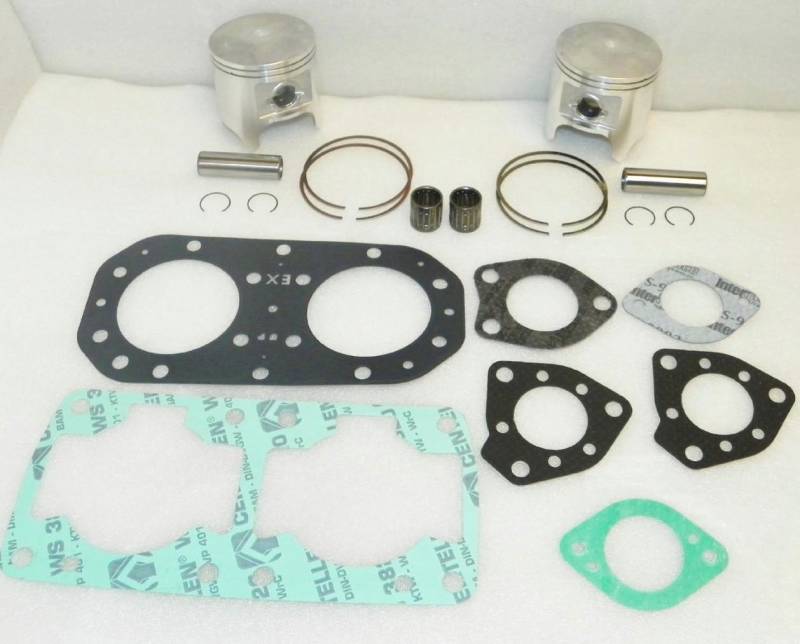

KIT CONTENTS (Complete 2-Cylinder Top End):
• (2) Cast Pistons with Ring Sets (Japanese RIK Performance)
• (2) Wrist Pins / (2) Wrist Pin Bearings / (4) Circlips
• (1) Head Gasket / (1) Base Gasket / Exhaust Gasket(s)
• All gaskets and O-rings needed for complete top end rebuild

BORE SIZE CHART (Kawasaki 650):
• Standard: 76.00mm (010-810-10)
• 0.25mm Over: 76.25mm (010-810-11)
• 0.50mm Over: 76.50mm (010-810-12)
• 0.75mm Over: 76.75mm (010-810-13) — THIS KIT
• 1.00mm Over: 77.00mm (010-810-14)

APPLICATIONS:
• Kawasaki X2 650 (1986-1995) / SX 650 (1987-1993) / TS 650 (1989-1996)
• Kawasaki SC 650 (1991-1995) / Jet Mate 650 (1989-1992)

PRODUCT NOTICE:
