Starter Compatible With Yamaha Wr450f 449Cc Off-Road Dirt Bike 2003 2004 2005 2006 Mitsuba 12V Pmdd

OEM PART NUMBERS:
• Yamaha: 5TJ-81890-20-00 / 5TJ818902000 (Current)
• Yamaha: 5TJ-81890-10-00 / 5TJ818901000 (Superseded)
• Yamaha: 5TJ-81890-00-00 / 5TJ818900000 (Original)

SPECIFICATIONS:
• Type: PMDD (Permanent Magnet Direct Drive) / Unit Type: Mitsuba SM-14
• Voltage: 12V / Rotation: CW (Clockwise) / Teeth: 9-Spline
• Gear OD: 11.5mm / 0.453in
• Overall Length: 147mm / Registration OD: 29.8mm

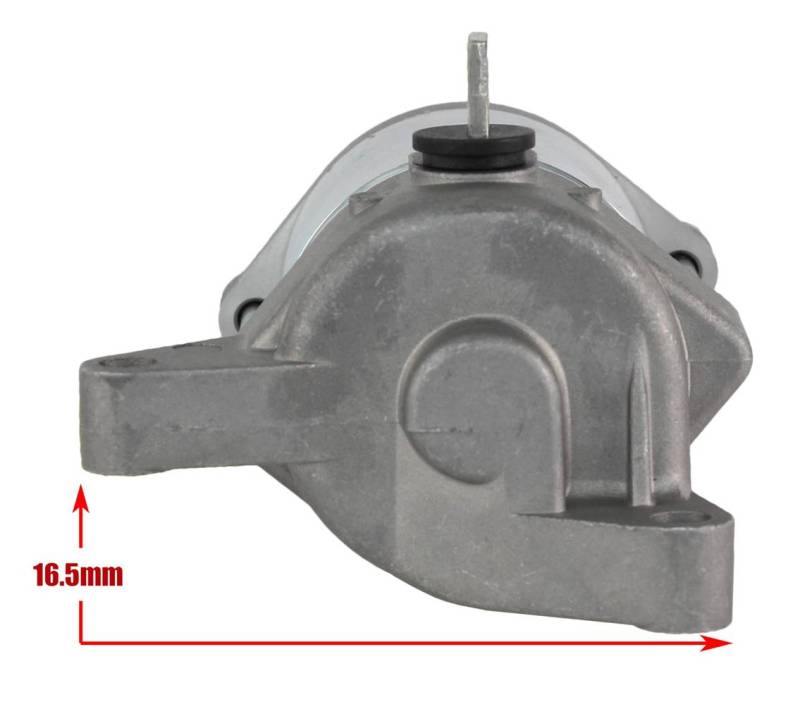

• Drive Shaft Length: 23.6mm / Registration Height: 16.3mm (w/O-Ring)
• Mounting: (2) 6.6mm Unthreaded Ears + 5mm x 0.8 Threaded Tab B+
• Weight: 3 lbs / Condition: New

YAMAHA WR450F APPLICATIONS:
• WR450F 449cc DOHC 4-Valve Liquid-Cooled Single-Cylinder (2003-2006)
• Enduro / Off-Road / Dirt Bike / Trail Bike
• Supersession: 5TJ-81890-00-00 → -10-00 → -20-00 (Current)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
