OEM PART NUMBERS:
• 228000-7000 / 228000-7001 / 228000-7002 / 228000-7003 / 228000-7004
• 2280007000 / 2280007001 / 2280007002 / 2280007004
• GM: 97147778 / 10461527
• Isuzu: 8971477780 / 8971477781 / 8971477782 / 8971477783 / 8971477784 / 8971477785
• Isuzu: 8-97147-778-0 / 8-97147-778-1 / 8-97147-778-2 / 8-97147-778-3 / 8-97147-778-4 / 8-97147-778-5
• Isuzu: 2900578600 / 2901239100
SPECIFICATIONS:

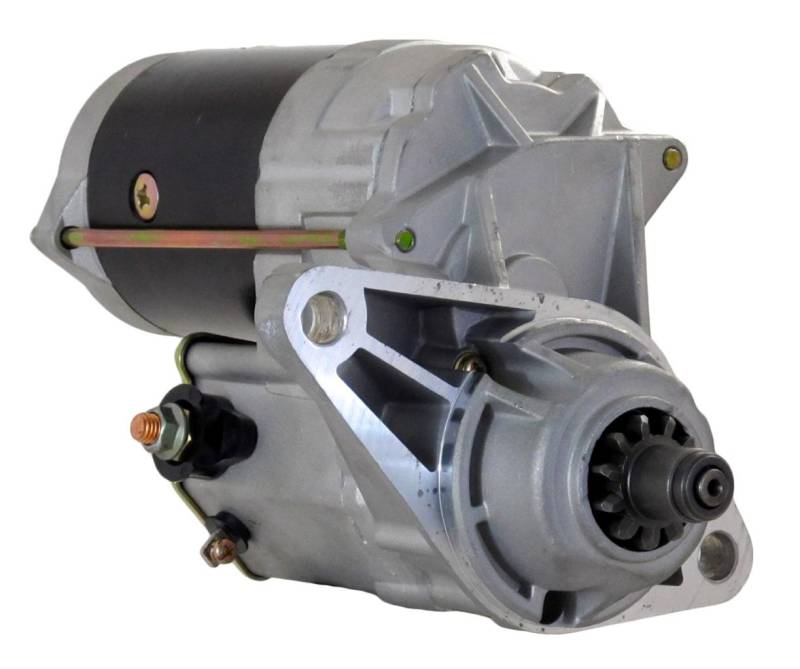

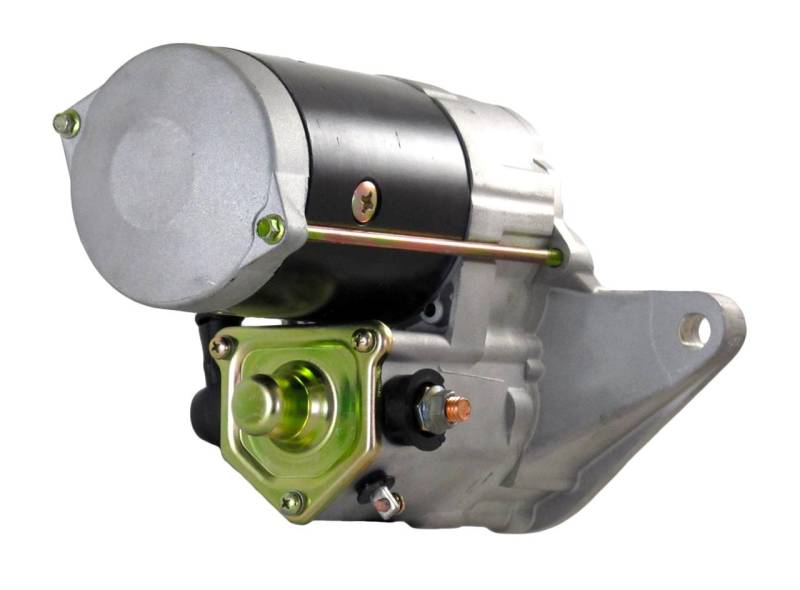

• Product Type: Starter Motor
• Voltage: 12V
• Power: 3kW
• Type: OSGR (Offset Gear Reduction)
• Rotation: CCW (Counterclockwise)
• Teeth: 11
• Gear OD: 39.7mm (1.563")
• Battery Stud: M10-1.5 Threaded
• Mounting: 2-Ear, 15.8mm unthreaded holes
• External Thru Bolts
• Weight: 24.81 lbs (11.28 kg)
• OE Manufacturer: (Nippondenso)
• Condition: New
APPLICATIONS:
• Chevy/GMC W3500/W4500/W5500 Tiltmaster/Forward with Isuzu 3.9L 4BD2 / 4.8L 4HE1
• Isuzu NPR/NQR with 3.9L 4BD1 / 4.8L 4HE1 diesel
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
