OEM PART NUMBERS:
• Iskra: AZJ3283 / AZJ3158 / AZJ3274
• Lucas: LRS01484
• John Deere (Additional): AL110504 / TY6780 / AL78760
SPECIFICATIONS:
• Voltage: 12V
• Type: DD (Direct Drive)
• Power: 3.1 kW
• Rotation: CW (Clockwise)
• Tooth Count: 10
• Gear OD: 32mm / 1.260 in
• Mounting Ear 1: 13.4mm ID Unthreaded
• Weight: 29.49 lbs / 13.40 kg
• Condition: New
APPLICATION:
• John Deere Utility Tractors 820-2240 Diesel (1968-1985)

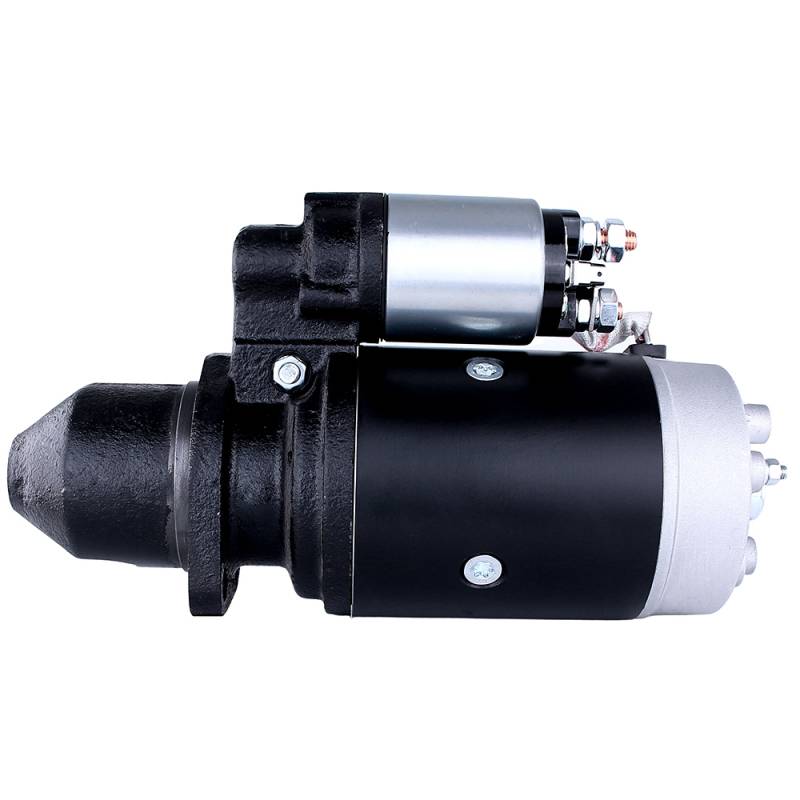

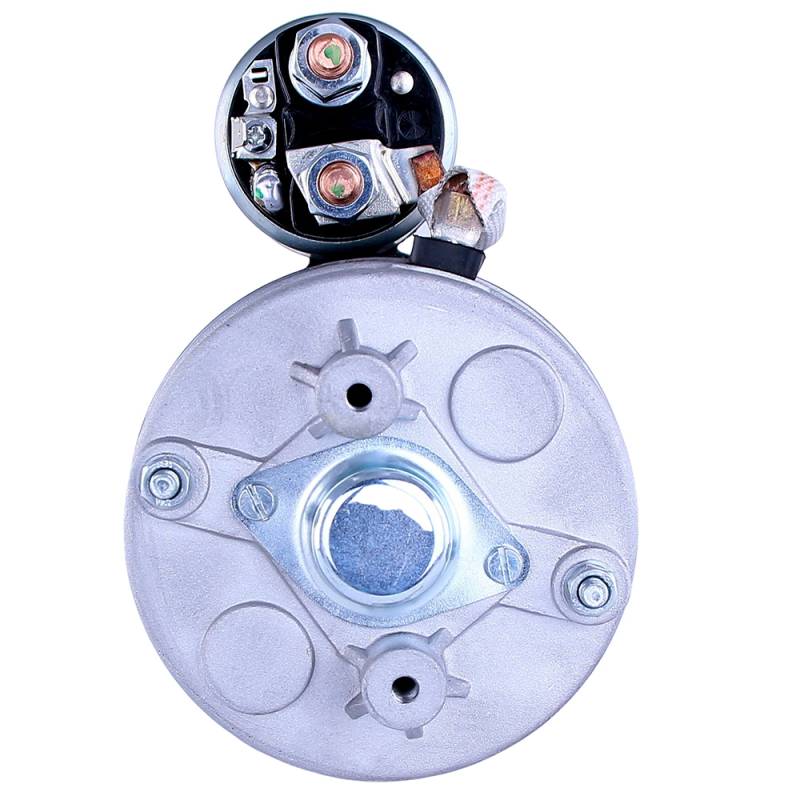

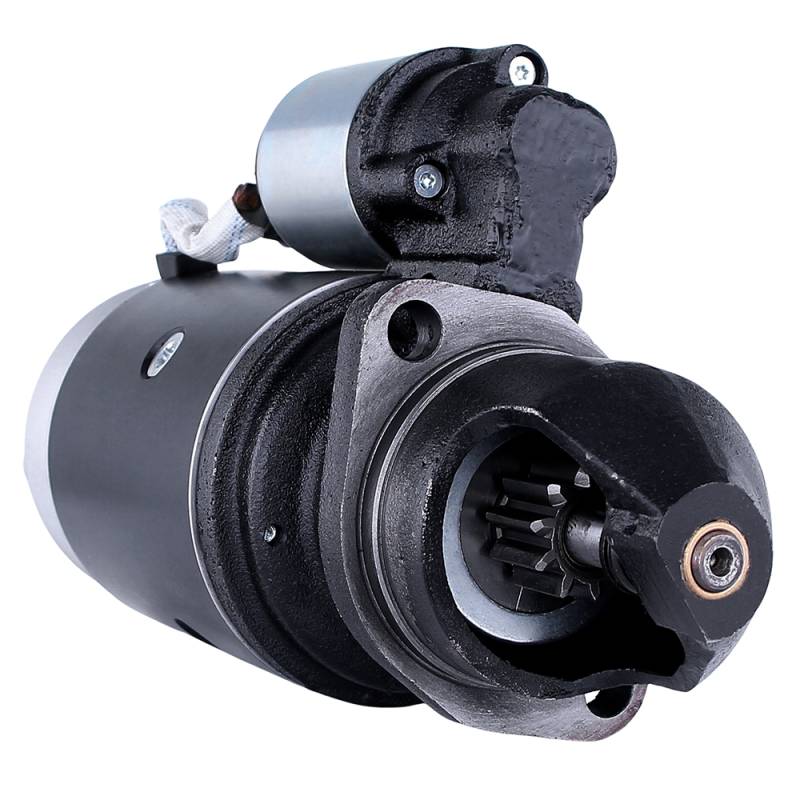

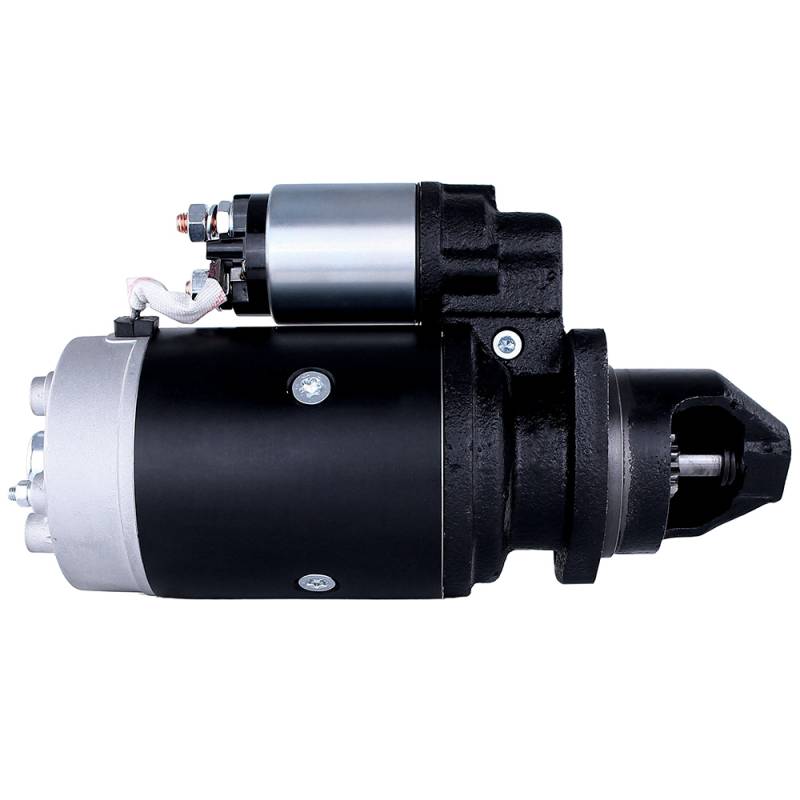

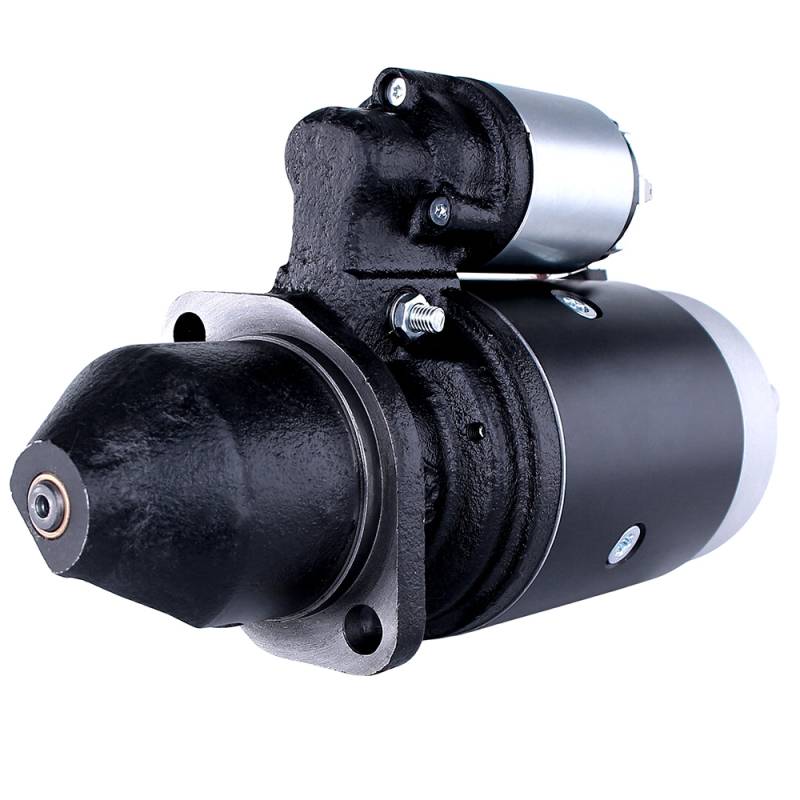

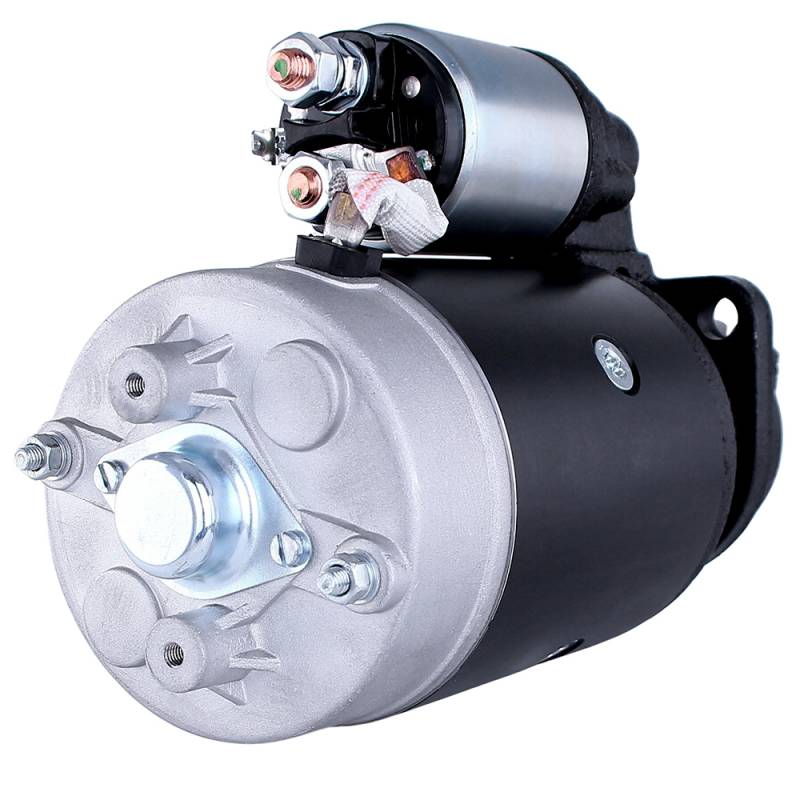

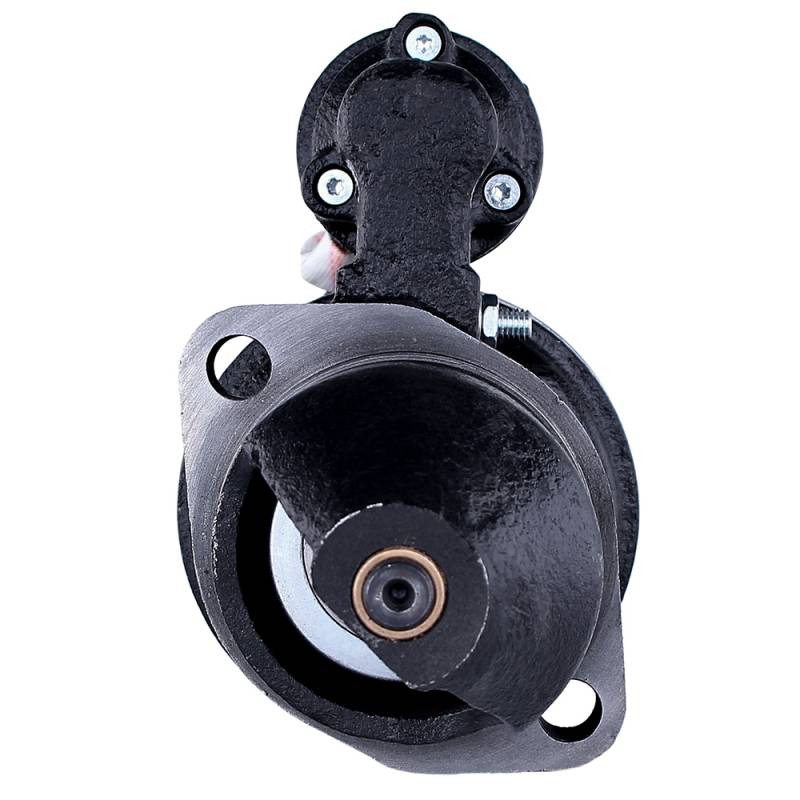

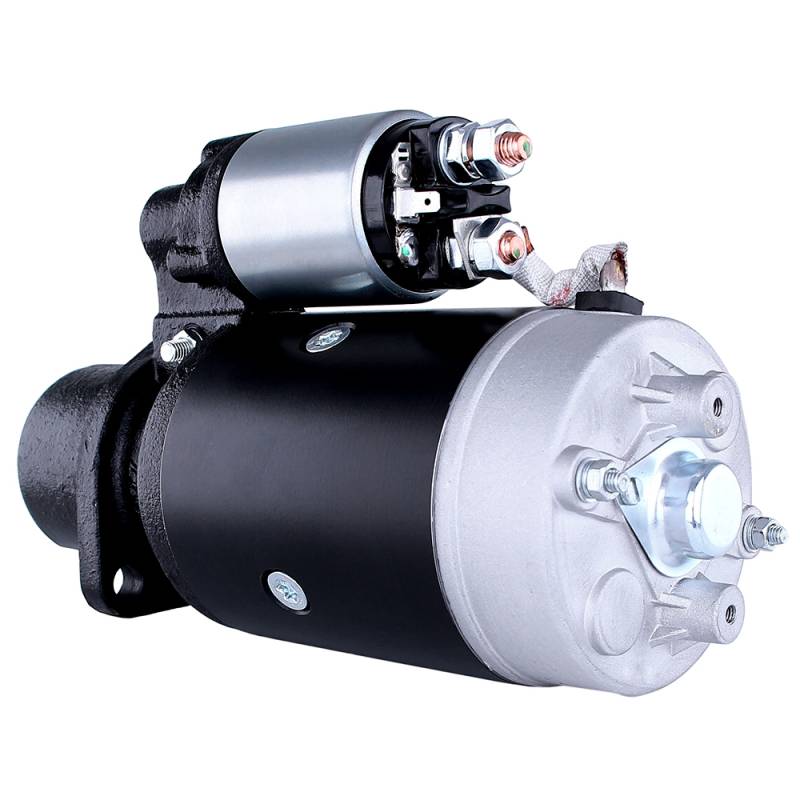

12V 3.1kW Starter Motor - John Deere 820-2240 Utility Tractor
New Bosch-type DD 12 volt 3.1 kW starter for John Deere utility tractors from 820 through 2240. CW rotation, 10-tooth pinion with 32mm (1.260 in) gear OD. 13.4mm unthreaded mounting ear. Weight 29.49 lbs (13.40 kg). Direct replacement for Iskra AZJ3283, AZJ3158, AZJ3274, Lucas LRS01484, John Deere AL110504, TY6780, and AL78760. Also cross-references Magneton 443-115-142-700 and Renault 6005012976/7700044184. Fits 3-cylinder engine utility tractors.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
