KUBOTA M8540 TRACTORS, V3800-DI:
• Kubota M8540 with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540DT with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540DT-1 with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540F with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540F-1 with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540HD with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540HD-1 with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540HD12 with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540HD12-1 with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540HDNB with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540HDNB-1 with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540DTC with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540DTC-1 with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540FC with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540FC-1 with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540HDNBC with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540HDNBPC with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540HDC with the V3800-DI 85.5 hp diesel, 2007-2009
• Kubota M8540HDC12 with the V3800-DI 85.5 hp diesel, 2007-2009
• Kubota M8540HDNBC10 with the V3800-DI 85.5 hp diesel, 2007-2009
• Kubota M8540DTHQ with the V3800-DI 85.5 hp diesel, 2007-2009
• Kubota M8540DTQ with the V3800-DI 85.5 hp diesel, 2007-2009
KUBOTA M9540 TRACTORS, V3800-DI:
• Kubota M9540DT with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540DT-1 with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540F with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540F-1 with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540HD with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540HD-1 with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540HD12 with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540HD12-1 with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540HDL with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540HDL-1 with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540HDL-1S with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540HFL with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540HFL-1 with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540HFL-1S with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540DTC with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540DTC-1 with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540FC with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540FC-1 with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540HDC with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540HDC-1 with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540HDC12 with the V3800-DI 95 hp diesel, 2007-2009
• Kubota M9540HDC-LTD with the V3800-DI 95 hp diesel, 2007-2009
• Kubota M9540HDC24-1 with the V3800-DI 95 hp diesel, 2007-2009
• Kubota M9540DTHQ with the V3800-DI 95 hp diesel, 2007-2009
• Kubota M9540DTQ with the V3800-DI 95 hp diesel, 2007-2009
KUBOTA M8560 AND M9960 TRACTORS:
• Kubota M8560HDC with the V3800 diesel, 2013-2016
• Kubota M8560HFC with the V3800 diesel, 2013-2016
• Kubota M8560HDC12 with the V3800 diesel, 2013-2016
• Kubota M9960HDC with the V3800 diesel, 2013-2016
• Kubota M9960HFC with the V3800 diesel, 2013-2016
• Kubota M9960HDC12 with the V3800 diesel, 2013-2016
• Kubota M9960HDC24 with the V3800 diesel, 2013-2016
ALSO FITS, KUBOTA M95, M96, M105, M108, M5 TRACTORS:
• Kubota M95SDS with the V3800-DI 95 hp diesel, 2005-2007
• Kubota M95SH with the V3800-DI 95 hp diesel, 2005-2007
• Kubota M95SDSC with the V3800-DI 95 hp diesel, 2003-2009
• Kubota M95SDSCS with the V3800-DI 95 hp diesel, 2003-2009
• Kubota M95XDTC with the V3800-DI 95 hp diesel, 2003-2009
• Kubota M96SDS with the V3800-DI 95 hp diesel, 2007-2014
• Kubota M96SDSC with the V3800-DI 95 hp diesel, 2007-2014
• Kubota M96SH with the V3800-DI 95 hp diesel, 2007-2014
• Kubota M105SDH with the V3800-DI 105 hp diesel, 2005-2007
• Kubota M105SDS with the V3800-DI 105 hp diesel, 2005-2007
• Kubota M105SDSF with the V3800-DI 105 hp diesel, 2005-2007
• Kubota M105SDSL with the V3800-DI 105 hp diesel, 2005-2007
• Kubota M105SH with the V3800-DI 105 hp diesel, 2005-2007
• Kubota M105SHD with the V3800-DI 105 hp diesel, 2005-2007
• Kubota M105SDSC with the V3800-DI 105 hp diesel, 2003-2009
• Kubota M105SDSCC with the V3800-DI 105 hp diesel, 2003-2009
• Kubota M105SHC with the V3800-DI 105 hp diesel, 2003-2009
• Kubota M105SHDC with the V3800-DI 105 hp diesel, 2003-2009
• Kubota M108SDS with the V3800-DI diesel, 2007-2014
• Kubota M108SDS2 with the V3800-DI diesel, 2007-2014
• Kubota M108SDSF with the V3800-DI diesel, 2007-2014
• Kubota M108SDSL with the V3800-DI diesel, 2007-2014
• Kubota M108SDSL2 with the V3800-DI diesel, 2007-2014
• Kubota M108SDSL2S with the V3800-DI diesel, 2007-2014
• Kubota M108SDSLS with the V3800-DI diesel, 2007-2014
• Kubota M108SH with the V3800-DI diesel, 2007-2014
• Kubota M108SHD with the V3800-DI diesel, 2007-2014
• Kubota M5-091HS
• Kubota M5-091HD12
• Kubota M5-091HF
• Kubota M5-111HS
• Kubota M5-111HD12
• Kubota M5-111HF
ALSO FITS, KUBOTA V3300 TRACTORS:
• Kubota M6800 with the V3300E 68 hp diesel, 1998-2005
• Kubota M6800DT with the V3300E 68 hp diesel, 1998-2004
• Kubota M6800HD-F with the V3300E 68 hp diesel, 2001-2005
• Kubota M6800HDC with the V3300E 68 hp diesel, 2001-2005
• Kubota M6800S with the V3300E 68 hp diesel, 1998-2005
• Kubota M6800S-F with the V3300E 68 hp diesel, 1998-2005
• Kubota M6800SC with the V3300E 68 hp diesel, 1999-2004
• Kubota M6800SD-F with the V3300E 68 hp diesel, 1998-2005
• Kubota M6800SDC with the V3300E 68 hp diesel, 2000-2004
• Kubota M6800SDT with the V3300E 68 hp diesel, 1998-2005
• Kubota M6800S-CAB with the V3300E 68 hp diesel, 1997-2005
• Kubota M6800SDT-CAB with the V3300E 68 hp diesel, 1997-2005
• Kubota M8200 with the V3300 82 hp diesel, 1998-2005
• Kubota M8200C with the V3300 82 hp diesel, 1998-2005
• Kubota M8200CCS with the V3300 82 hp diesel, 1998-2005
• Kubota M8200DT-F with the V3300 82 hp diesel, 1998-2005
• Kubota M8200DTC with the V3300 82 hp diesel, 1999-2005
• Kubota M8200F with the V3300 82 hp diesel, 1998-2004
• Kubota M8200HD-F with the V3300 82 hp diesel, 1998-2005
• Kubota M8200HDC with the V3300 82 hp diesel, 1998-2005
• Kubota M8200SDNB with the V3300 82 hp diesel, 2000-2005
• Kubota M8200SDNBC with the V3300 82 hp diesel, 2000-2005
• Kubota M8200SDNBF with the V3300 82 hp diesel, 2000-2005
• Kubota M8200SDTNC with the V3300 82 hp diesel
• Kubota M8200-CAB with the V3300 82 hp diesel, 1997-2005
• Kubota M8200DT-CAB with the V3300 82 hp diesel, 1997-2005
• Kubota M8200SDTN-CAB with the V3300 82 hp diesel, 1997-2005
• Kubota M9000 with the V3300 90 hp diesel, 1999-2009
• Kubota M9000C with the V3300 90 hp diesel, 1999-2009
• Kubota M9000DT-F with the V3300 90 hp diesel, 1999-2009
• Kubota M9000DTC with the V3300 90 hp diesel, 1999-2009
• Kubota M9000DTCCS with the V3300 90 hp diesel, 2000-2009
• Kubota M9000DTL with the V3300 90 hp diesel, 1999-2009
• Kubota M9000DTL-F with the V3300 90 hp diesel, 1999-2009
• Kubota M9000DTM with the V3300 90 hp diesel, 2000-2009
• Kubota M9000DTMC with the V3300 90 hp diesel, 2001-2009
• Kubota M9000DTMCW with the V3300 90 hp diesel, 2001-2009
• Kubota M9000DTMW with the V3300 90 hp diesel, 2001-2009
• Kubota M9000F with the V3300 90 hp diesel, 1999-2009
• Kubota M9000HD-F with the V3300 90 hp diesel, 2002-2009
• Kubota M9000HDC with the V3300 90 hp diesel, 2002-2009
• Kubota M9000HDL with the V3300 90 hp diesel, 2002-2009
• Kubota M9000-CAB with the V3300 90 hp diesel, 1997-2005
• Kubota M9000DT-CAB with the V3300 90 hp diesel, 1997-2005
ALSO FITS, KUBOTA M5040 TO M7060 TRACTORS:
• Kubota M5040DTC with the V3300 diesel, 2007-2010
• Kubota M5040DTC-1 with the V3300 diesel, 2007-2010
• Kubota M5040FC with the V3300 diesel, 2007-2010
• Kubota M5040FC-1 with the V3300 diesel, 2007-2010
• Kubota M5040HDC with the V3300 diesel, 2007-2010
• Kubota M5140DTC with the V3300 diesel, 2010-2020
• Kubota M5140HDC with the V3300 diesel, 2010-2020
• Kubota M5140FC with the V3300 diesel, 2010-2020
• Kubota M6040DTC with the V3300 diesel, 2007-2013
• Kubota M6040DTC-1 with the V3300 diesel, 2007-2013
• Kubota M6040FC with the V3300 diesel, 2007-2013
• Kubota M6040FC-1 with the V3300 diesel, 2007-2013
• Kubota M6040HDC with the V3300 diesel, 2007-2013
• Kubota M6060HD with the V3307 diesel, 2013-2023
• Kubota M6060HDC with the V3307 diesel, 2013-2023
• Kubota M6060HFC with the V3307 diesel, 2013-2023
• Kubota M7040DTC with the V3307 diesel, 2007-2013
• Kubota M7040DTC-1 with the V3307 diesel, 2007-2013
• Kubota M7040FC with the V3307 diesel, 2007-2013
• Kubota M7040FC-1 with the V3307 diesel, 2007-2013
• Kubota M7040HDC with the V3307 diesel, 2007-2013
• Kubota M7040HDNBC with the V3307 diesel, 2007-2013
• Kubota M7060HD with the V3307 diesel, 2013-2023
• Kubota M7060HD12 with the V3307 diesel, 2013-2023
• Kubota M7060HDC with the V3307 diesel, 2013-2023
• Kubota M7060HFC with the V3307 diesel, 2013-2023
• Kubota M7060HDC12 with the V3307 diesel, 2013-2023
ALSO FITS, THOMAS SKID STEERS AND CATERPILLAR MINI EXCAVATORS:
• Thomas 225 skid steer loader with the Kubota V3300T diesel, 2004-2007
• Thomas 245 skid steer loader with the Kubota V3300T diesel, 2004-2007
• Thomas T245HD S skid steer loader with the Kubota V3300, 1998-2003
• Thomas T245HF skid steer loader with the Kubota V3300, 1998-2003
• Caterpillar mini excavator 308 with the Cat C3.3B diesel, 2018-2025
• Caterpillar mini excavator 308.5 with the Cat C3.3B diesel, 2013-2022
• Caterpillar mini excavator 308E with the Cat C3.3B diesel, 2013-2022
• Caterpillar mini excavator 308E CR with the Cat C3.3B diesel, 2013-2025
• Caterpillar mini excavator 308E SR with the Cat C3.3B diesel, 2013-2022
• Caterpillar mini excavator 308E2 with the Cat C3.3B diesel, 2013-2022
• Caterpillar mini excavator 308E2 CR with the Cat C3.3B diesel, 2013-2022
• Caterpillar mini excavator 308E2 CR VAB with the Cat C3.3B diesel, 2013-2022
• Caterpillar mini excavator 308E2 SR with the Cat C3.3B diesel, 2013-2022
• Caterpillar mini excavator 309 with the Cat C3.3B diesel, 2019-2022
• Caterpillar mini excavator 309 CR with the Cat C3.3B diesel, 2019-2022
• Caterpillar mini excavator 309 CR VAB with the Cat C3.3B diesel, 2019-2022
• Caterpillar mini excavator 310 with the Cat C3.3B diesel, 2019-2025
SPECIFICATIONS:

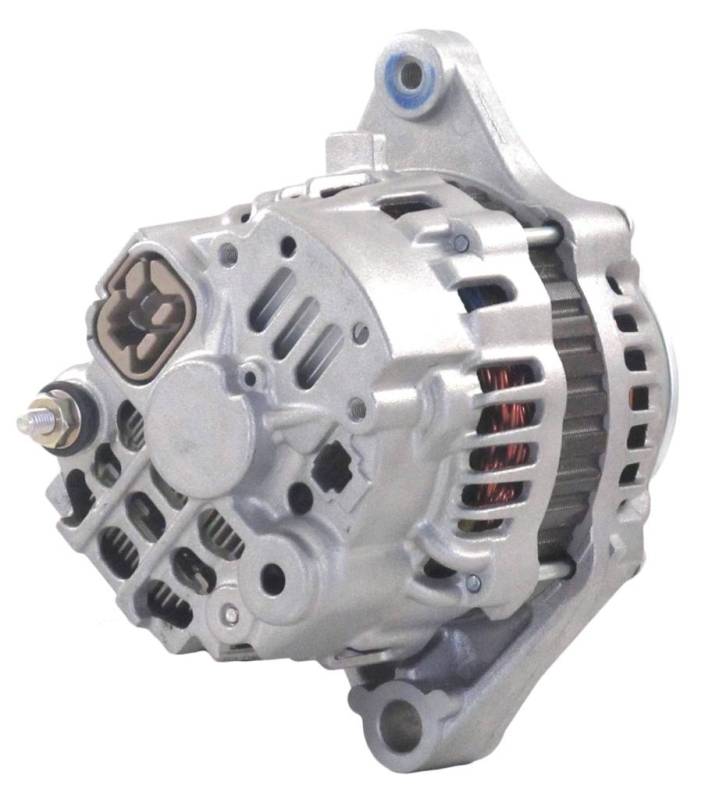

• Type: alternator, internal regulator, internal fan (IR/IF), A7TA type
• Voltage: 12 volt
• Output: 45 amp
• Rotation: clockwise (CW)

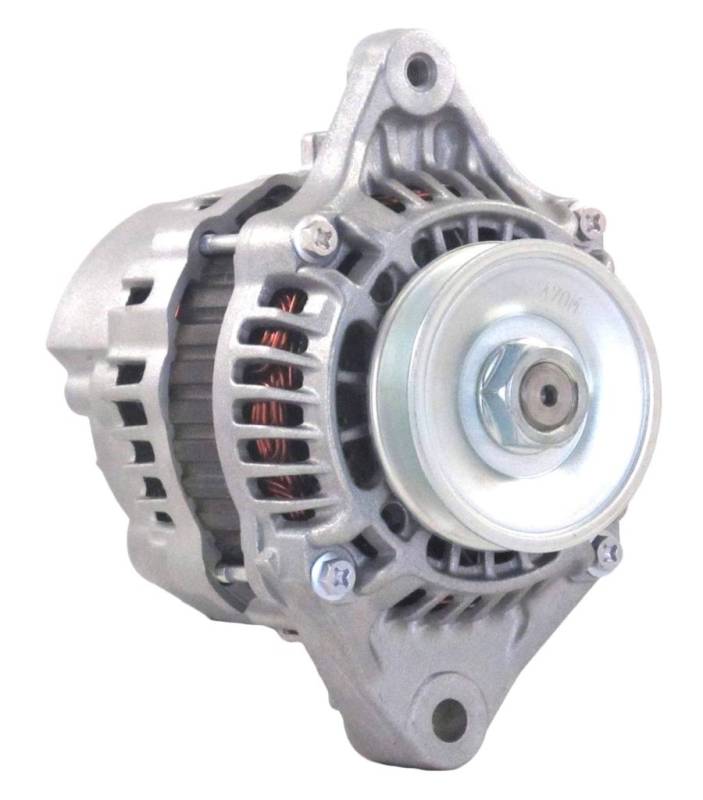

• Pulley: 1 groove V pulley, 74 mm (73.7 mm, 2.913 in) OD
• Plug: rear plug, 10 o'clock
• Mounting: spool, M8-1.25 threaded ear and 10.7 mm unthreaded ear
• Polarity: negative ground
• Weight: 9.4 lb (4.27 kg)
• Condition: New aftermarket
