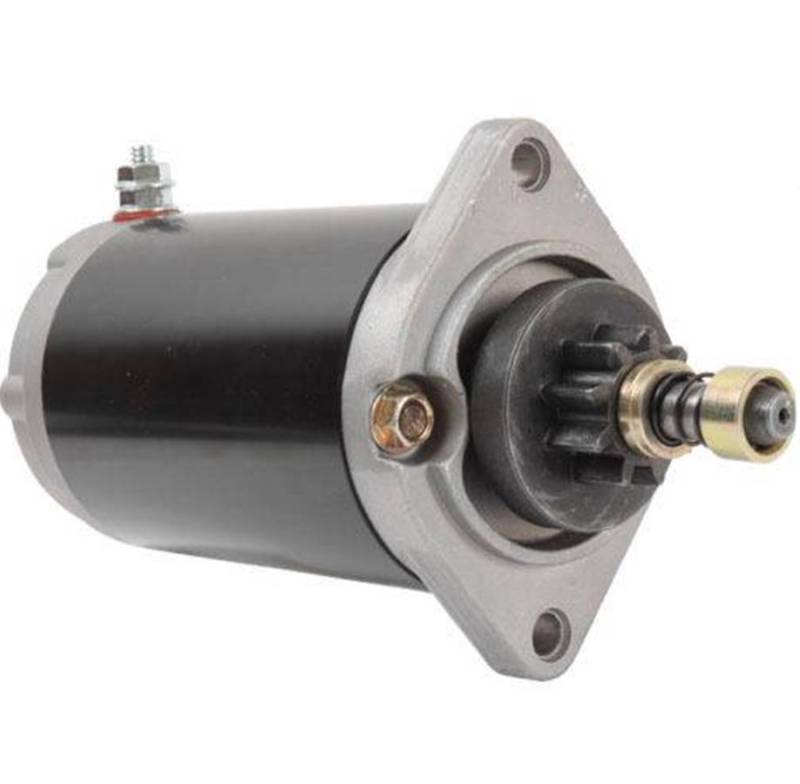

12V 9 Tooth Starter Compatible With 2009-2013 Bearcat 570 Xt Ltd 2008-2013 F570 T570 565Cc

OEM PART NUMBERS:
• 0645-539
• 0645-389
• 0745-331
• 0745-351
• 0745-358
• 0745-382
• 0745-395
• 0745-434

SPECIFICATIONS:
• Voltage: 12V
• Rotation: Clockwise (CW)
• Teeth: 9
• Starter Type: PMDD (Permanent Magnet Direct Drive)
• Gear OD: 29.3mm (1.154")
• Length: 137mm (5.394")
• Registry OD: 61.5mm (2.421")
• B+ Terminal: 1/4-20 Stud
• Mounting Hole Center-to-Center: 89.5mm
• Mounting Ear Holes: 8.5mm Unthreaded
• Manufacturer: United Technologies

FITS ARCTIC CAT SNOWMOBILES:
• F570 565cc (2008-2013)
• T570 565cc (2008-2013)
• Bearcat 570 565cc (2009-2013)
• Bearcat 570 LTD 565cc (2011-2012)
• Bearcat 570 XT 565cc (2009-2013)
• Bearcat 570 XT LTD 565cc (2011-2013)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
