OEM PART NUMBERS:
• Case IH: 234987A1
• Lucas: 27602B / 27602D / 27602E / 27602 / 27536 / 27536A / 26404 / 26404A
• McCormick: 4213912M91 / 706022A1
• Magneti Marelli: 63227602
• 20500969
SPECIFICATIONS:

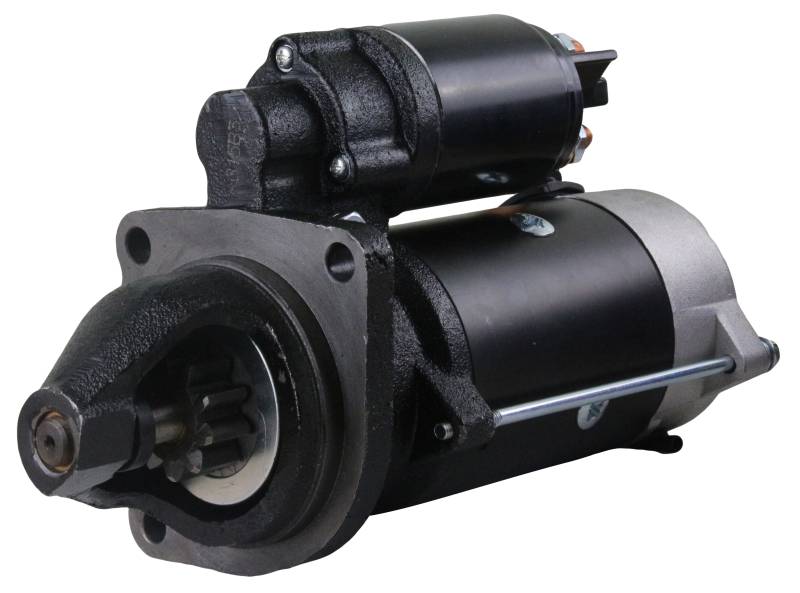

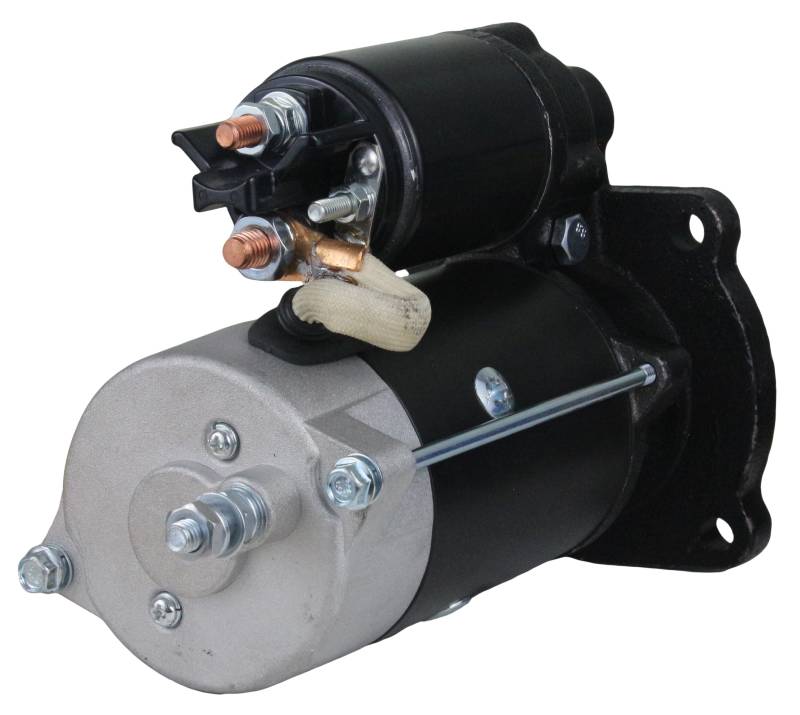

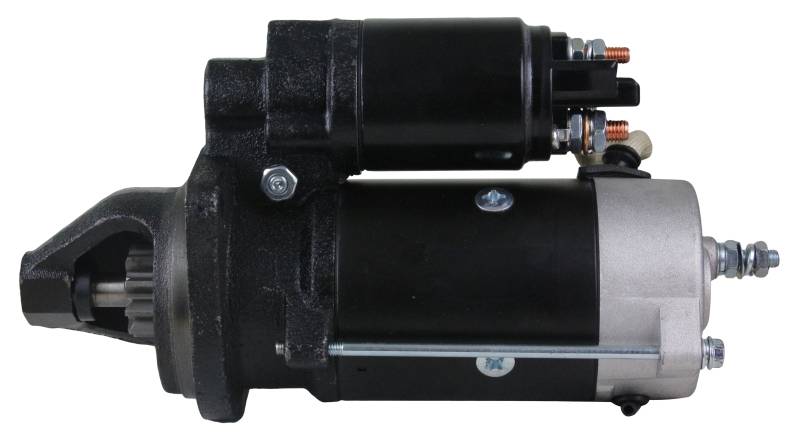

• Type: DD (Direct Drive) Starter Motor
• OEM Design: Magneti Marelli / Lucas M50 / M127 Series
• Voltage: 12V
• Power: 2.8 kW
• Rotation: Clockwise (CW)
• Teeth: 10
• Gear OD: 39.5mm / 1.555in
• Mounting: Three 11.0mm ID Unthreaded Ears
• Weight: 29.9 lbs / 13.59 kg
• Condition: New
APPLICATIONS SUMMARY:
• Case IH C70/C80/C90/C100, CX70/CX80/CX90/CX100 (1998-1999)
• Case IH MX80C/MX90C (1998-1999)
• McCormick MC70/MC80/MC90/MC100/MC115 (2001-2006)
• Perkins 1004-42 NA / 1004.40T Turbo / 1004 4TWG Diesel
