12V Starter Motor Compatible With Briggs & Stratton 14-20.5Hp V-Twin Fits Engine 400707 401707

5744*1
BRIGGS & STRATTON PART NUMBERS:
• 498148 (current number)
• 495100 (superseded by 498148)
• 399928 (superseded by 498148)
• 498594

REPLACEMENT PART NUMBERS:
• Oregon 33-709, 33709
• Wilson 91-35-1035, 91351035

SPECIFICATIONS:
• Product: Starter
• Type: starter motor, PMDD (permanent magnet direct drive)
• Voltage: 12 volt
• Rotation: CCW (counterclockwise)
• Pinion: 16 tooth plastic gear, gear OD 40.3 mm (1.587 in)
• Field case length: 108 mm (4.25 in), long case
• Mounting: three unthreaded ears, 8.3 mm, 8.3 mm and 10.3 mm ID

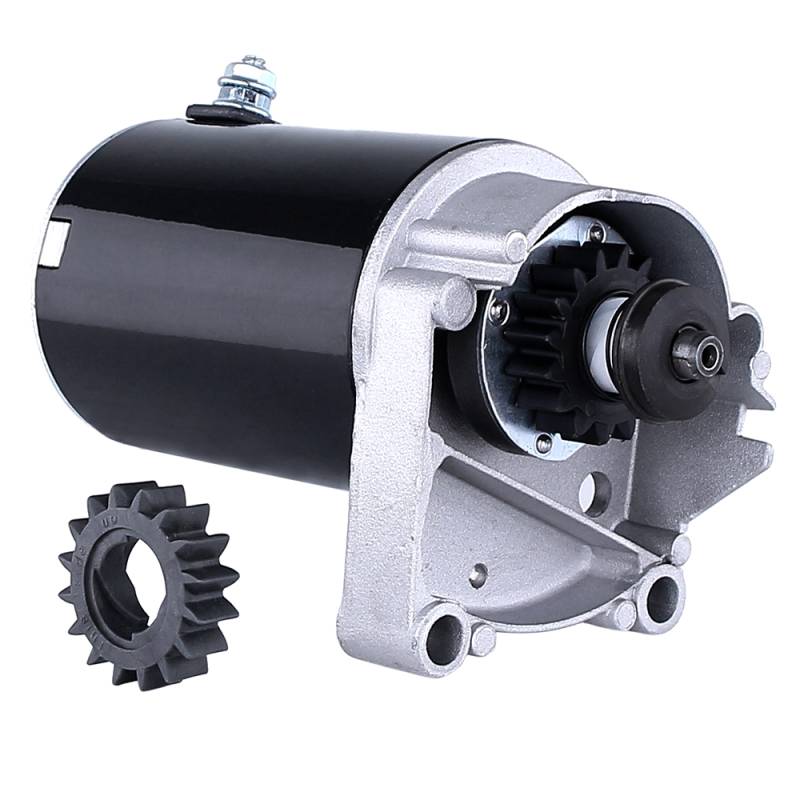

• Includes: extra 16 tooth plastic gear
• Flywheel: for plastic and aluminum flywheel ring gears only
• Engines: Briggs & Stratton air-cooled opposed twin, 14 to 20.5 HP
• Weight: 2.57 kg (5.66 lb)
• Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $123.74
Sale: $70.71
Save: 43%
Save: $53.03
Qty:
Free Shipping!

Description

CRAFTSMAN 19-21 HP LAWN TRACTORS:
• Craftsman 917.27081 19 HP with the Briggs & Stratton 42E707 opposed twin (1998-2000)
• Craftsman 917.27082 19 HP with the Briggs & Stratton 42E707 opposed twin (1998-2000)
• Craftsman 944.60919 and 944.60989 19 HP with the Briggs & Stratton 42E707 (1999)
• Craftsman 917.27083 20 HP, 46 in deck, with the Briggs & Stratton 461707 (1999-2000)
• Craftsman 917.27084 20 HP, 42 in deck, with the Briggs & Stratton 461707 (1999-2000)
• Craftsman 917.27093 20 HP with the Briggs & Stratton 461707 (2000)
• Craftsman 944.60070 20 HP (2000) and 944.60080 20 HP (2000-2001) with the Briggs & Stratton 461707
• Craftsman 917.27181, 917.27182 19 HP and 917.27183, 917.27184 21 HP with the Briggs & Stratton 461707 (2001)

CRAFTSMAN 19-20 HP 917.25 SERIES:
• Craftsman 917.25256 19 HP with the Briggs & Stratton 42A707 (1995)
• Craftsman 917.25656 and 917.25657 19 HP with the Briggs & Stratton 42A707 (1996)
• Craftsman 917.25147 20 HP with the Briggs & Stratton 460777 (1996)

MURRAY AND SCOTTS 18 HP:
• Murray 46170, 46250, 46800, 46900 46 in deck with the Briggs & Stratton 422707 (1994)
• Murray 46370 and 46371 46 in deck with the Briggs & Stratton 422707 (1994-1996)
• Scotts 46562X8 46 in deck with the Briggs & Stratton 422777 (1997)

STEINER AND WHITE:
• Steiner S-18 and ST-18 with the Briggs & Stratton 422447 18 HP horizontal (1980-1982)
• White FR-18 with the Briggs & Stratton 422447 18 HP horizontal (1996)
• White LGT-1610 with the Briggs & Stratton 402707 16 HP (1979-1981)
• White LGT-1655 with the Briggs & Stratton 402707 16 HP (1980-1988)
• White LGT-1600 with the Briggs & Stratton 402707 16 HP (1982-1988)

GILSON:
• Gilson 53070 and 53071 with the Briggs & Stratton 422437 18 HP (1982)
• Gilson 52084 with the Briggs & Stratton 402707 16 HP (1983-1984)
• Gilson 53073 and 53074 with the Briggs & Stratton 422707 18 HP (1983-1984)
• Gilson 53077 with the Briggs & Stratton 400707 14 HP (1985-1987)
• Gilson 53079 and 53080 with the Briggs & Stratton 422707 18 HP (1985-1987)

DEUTZ-ALLIS AND TROY-BILT:
• Deutz-Allis T-816 with the Briggs & Stratton 402707 16 HP (1986-1987)
• Deutz-Allis 616 with the Briggs & Stratton 402707 16 HP (1987-1990)
• Deutz-Allis 1816 with the Briggs & Stratton 16 HP opposed twin, Briggs engine only (1988-1991)
• Troy-Bilt 1668R with the Briggs & Stratton 402447 16 HP (1989)
• Troy-Bilt 3114GR and 3114HR with the Briggs & Stratton 400707 14 HP (1989)
• Troy-Bilt 3214GR and 3214HR with the Briggs & Stratton 400707 14 HP (1990)
• Troy-Bilt 3016HR with the Briggs & Stratton 402707 16 HP (1990)

BRIGGS & STRATTON OPPOSED TWIN ENGINES:
• Air cooled opposed twin 14 HP horizontal and vertical
• Air cooled opposed twin 16 HP horizontal
• Air cooled opposed twin 18 HP horizontal
• Air cooled opposed twin 20.5 HP
• Engine series 400707, 401707, 402437, 404437, 422432, 422435, 422437, 422442, 422445
• Engine series 422707, 422777, 42A707 (18.5 HP), 42B707, 42D707, 42D777, 42E707, 42E777, 461707 (20.5 HP)
• Engine series 400417, 400437, 400447, 400777 (14 HP), 402415, 402417, 402431, 402445, 402447, 402707, 402777 (16 HP)
• Engine series 422447 (18 HP), 42A777, 460777, 462707

SPECIFICATIONS:
• Type: starter motor, PMDD (permanent magnet direct drive)
• Voltage: 12 volt
• Rotation: CCW (counterclockwise)
• Pinion: 16 tooth plastic gear, gear OD 40.3 mm (1.587 in)
• Field case length: 108 mm (4.25 in), long case
• Mounting: three unthreaded ears, 8.3 mm, 8.3 mm and 10.3 mm ID
• Includes: extra 16 tooth plastic gear
• Flywheel: for plastic and aluminum flywheel ring gears only
• Engines: Briggs & Stratton air-cooled opposed twin, 14 to 20.5 HP
• Weight: 2.57 kg (5.66 lb)
• Condition: New aftermarket
