Platinum Piston Kit 1Mm Over 81.00Mm Compatible With Kawasaki Ss 750 Ssxi 750 Sx 750 St 750 743Cc

OEM PART NUMBERS (EARLY STYLE — 20MM WRIST PIN):
• Kawasaki: 13001-3707 / 130013707
• Kawasaki: 13001-3710 / 130013710
• Kawasaki: 13001-3712 / 130013712
• Kawasaki: 13001-3713 / 130013713
• Kawasaki: 13001-3718 / 130013718
• Kawasaki: 13001-3722 / 130013722

RING SET OEM NUMBERS:
• 13029-3705 / 13029-3706 / 13029-3707 / 13029-3708 / 13029-3710 / 13029-3713

SPECIFICATIONS:
• Product Type: Platinum Piston Kit
• Bore Size: 81.00mm (1mm Over Standard 80.00mm)
• Piston Type: Platinum — MoS2 (Molybdenum Disulfide) Coated
• CRITICAL: Early Style Piston with 20mm Wrist Pin (NOT 22mm Big Pin)
• Engine: Kawasaki 743cc 2-Cylinder Twin 2-Stroke
• Bore x Stroke: 80mm x 74mm
• Power Output: 83 HP
• Fuel System: Triple Mikuni Carburetors
• Induction: Crankcase Reed Valve
• Cooling: Open-Loop Water Cooling

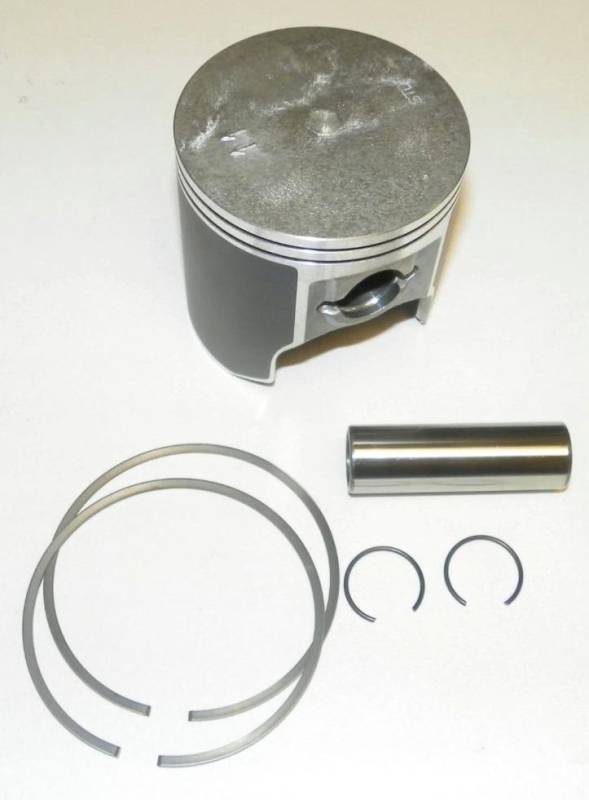

• Kit Includes: Piston, Ring Set, Wrist Pin (20mm), Circlips — Individual (2 Required Per Motor)
• Piston-to-Wall Clearance: .004-.0045"
• Weight: 2 lbs

APPLICATIONS (EARLY 20MM PIN MODELS 1992-1995):
• Kawasaki SS/SSXi/SX/ST/STS/SXi/Xi Sport/XIR/ZXI 750 (1992-1995)
• ⚠ Does NOT fit 1995+ Big Pin (22mm) models — verify wrist pin size
