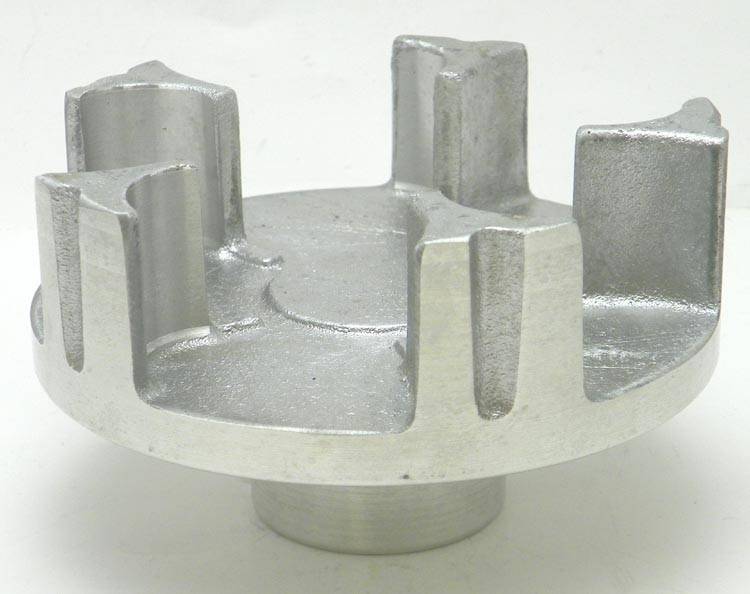

Drive Shaft Coupling Flange Crankshaft Side 27Mm Compatible With 1995-1997 Yamaha Wave Raider 1100

003-221
OEM Part Numbers

Yamaha:
63M-45813-00-9M
63M45813009M
63M-45813-00-5B (earlier revision)
63M458130005B
99999-02871-00 (alternate)
63M-45813-01-94 (supersedes 63M-45813-00-9M)
63M458130194

Specifications

Type: Coupling Flange — Crankshaft Side
Material: Cast Aluminum
Size: 27mm
Weight: 2 lbs
Position: Crankshaft Output to Drive Shaft
Function: Transfers Rotational Power from Crankshaft to Driveline
Engine: Yamaha 1100 Triple — 1051cc 3-Cyl 2-Stroke 110HP
Fitment: 1995-1997 Yamaha Wave Raider 1100, Wave Venture 1100
Condition: New Aftermarket

Applications

Yamaha Wave Raider 1100 (1995-1996)
Yamaha Wave Venture 1100 (1995-1997)
Engine: 1051cc 3-Cylinder 2-Stroke — 110HP @ 6500 RPM

Crankshaft Coupling Flange for Yamaha Wave Raider and Wave Venture 1100

This aftermarket 27mm coupling flange replaces Yamaha OEM part 63M-45813-00-9M on the 1995-1997 Wave Raider 1100 and Wave Venture 1100 personal watercraft. The coupling flange is the crankshaft-side connection point that mates the engine output to the drive shaft, transferring full engine power to the jet pump assembly. Manufactured from cast aluminum and machined to OEM tolerances for proper engagement with the drive shaft splines. A worn or damaged coupling flange can cause driveline vibration, power loss, and potential damage to the drive shaft or jet pump. This is a critical driveline component that should be inspected during any jet pump or drive shaft service.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $84.47
Sale: $48.27
Save: 43%
Save: $36.20
Qty:
Free Shipping!

Description

Applications

Yamaha 1100 Triple — 1051cc 3-Cylinder 2-Stroke — 110HP:

Yamaha Wave Raider 1100 (RA1100T) 1995
1051cc — 3-Cylinder — 2-Stroke — 110HP @ 6500 RPM
3x Mikuni Carburetors — CDI Ignition — Open-Loop Cooling

Yamaha Wave Raider 1100 (RA1100U) 1996
1051cc — 3-Cylinder — 2-Stroke — 110HP @ 6500 RPM
3x Mikuni Carburetors — CDI Ignition — Open-Loop Cooling

Yamaha Wave Venture 1100 (WVT1100T) 1995
1051cc — 3-Cylinder — 2-Stroke — 110HP @ 6500 RPM
3x Mikuni Carburetors — CDI Ignition — Open-Loop Cooling

Yamaha Wave Venture 1100 (WVT1100U) 1996
1051cc — 3-Cylinder — 2-Stroke — 110HP @ 6500 RPM
3x Mikuni Carburetors — CDI Ignition — Open-Loop Cooling

Yamaha Wave Venture 1100 (WVT1100V) 1997
1051cc — 3-Cylinder — 2-Stroke — 110HP @ 6500 RPM
3x Mikuni Carburetors — CDI Ignition — Open-Loop Cooling

Component Details:
27mm Coupling Flange — Crankshaft Side
Cast Aluminum Construction — Machined to OEM Tolerances
Connects Crankshaft Output to Drive Shaft Assembly
Weight: 2 lbs

Note: OEM 63M-45813-00-9M has been superseded to 63M-45813-01-94 by Yamaha. This coupler is specific to the 1051cc 1100 Triple platform. Do not confuse with 6M6-45813 series (650/700cc models).

Details

Shipping Information

  • Item Requires Shipping
  • 0.9 lbs.
  • W4.0000” x H4.0000” x L6.0000”
  • Free Shipping!
