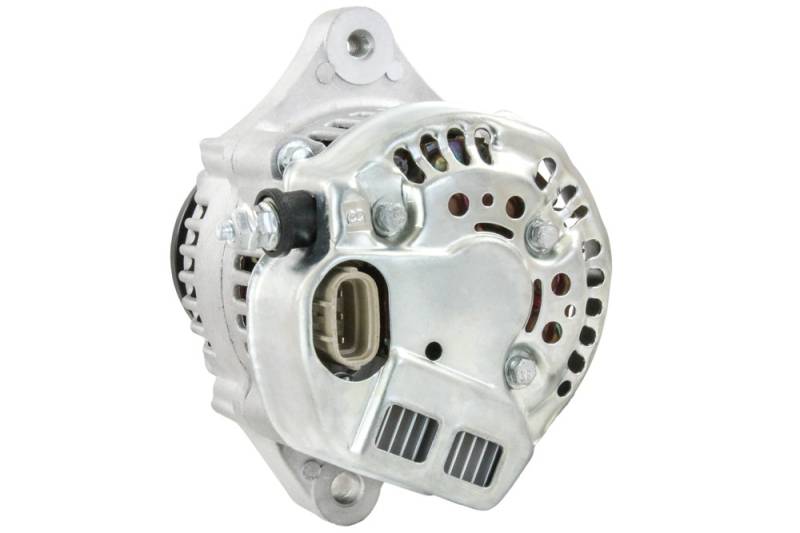

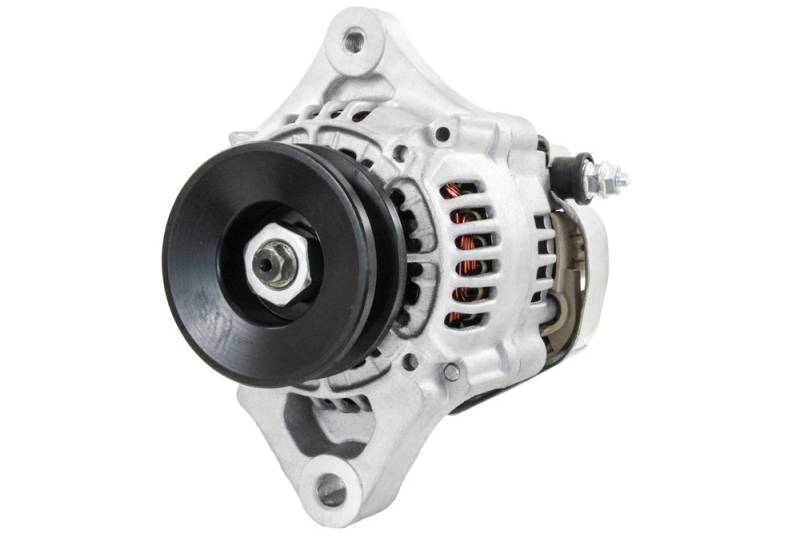

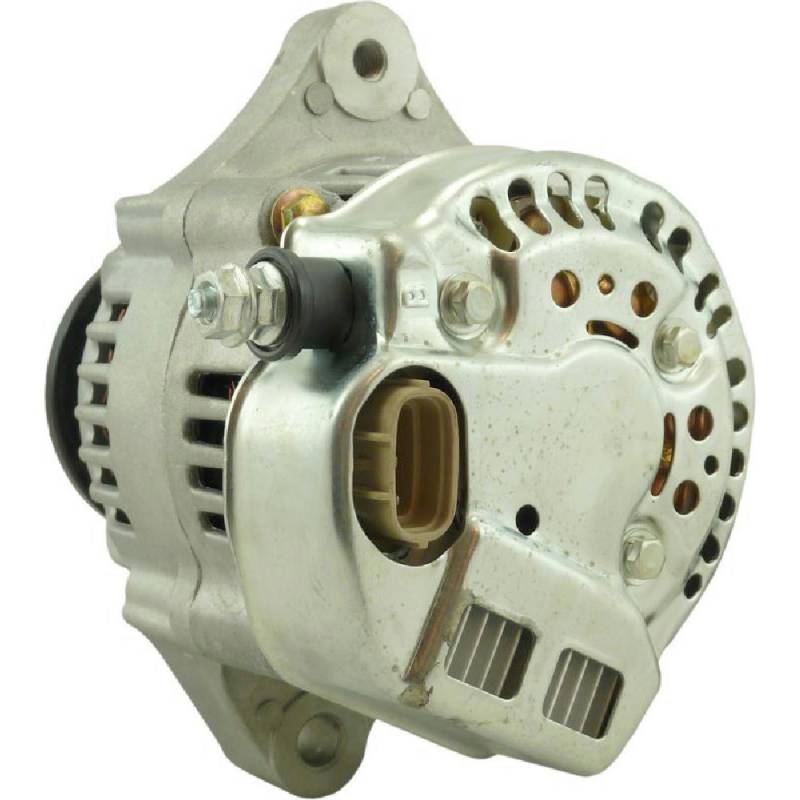

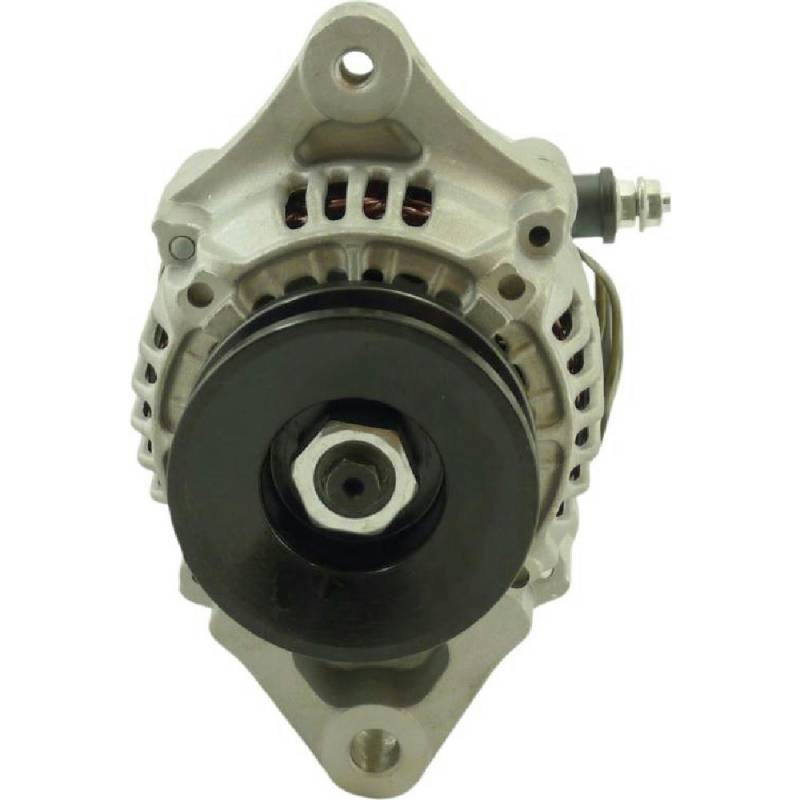

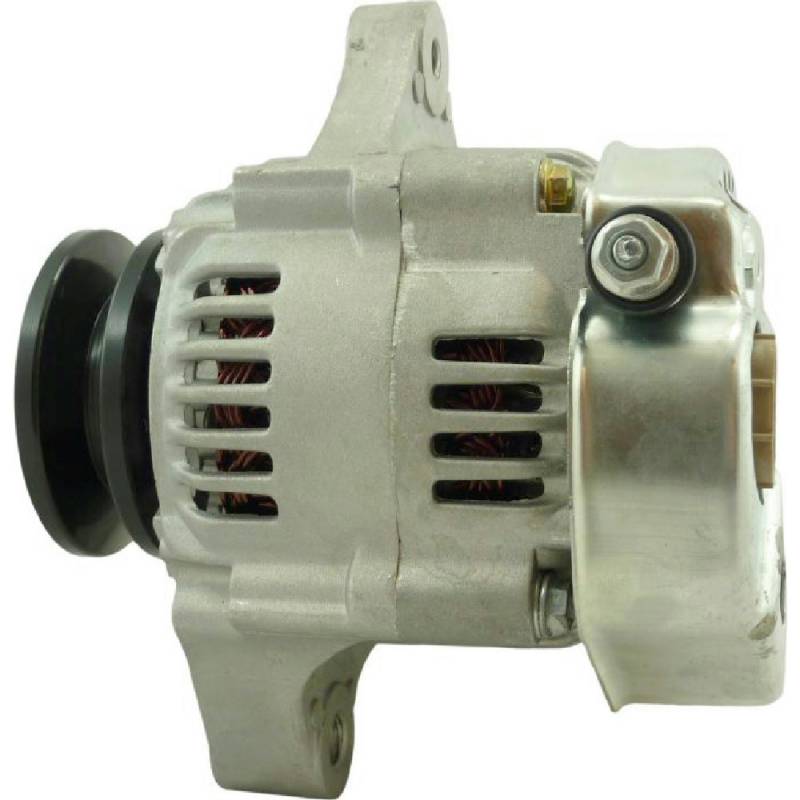

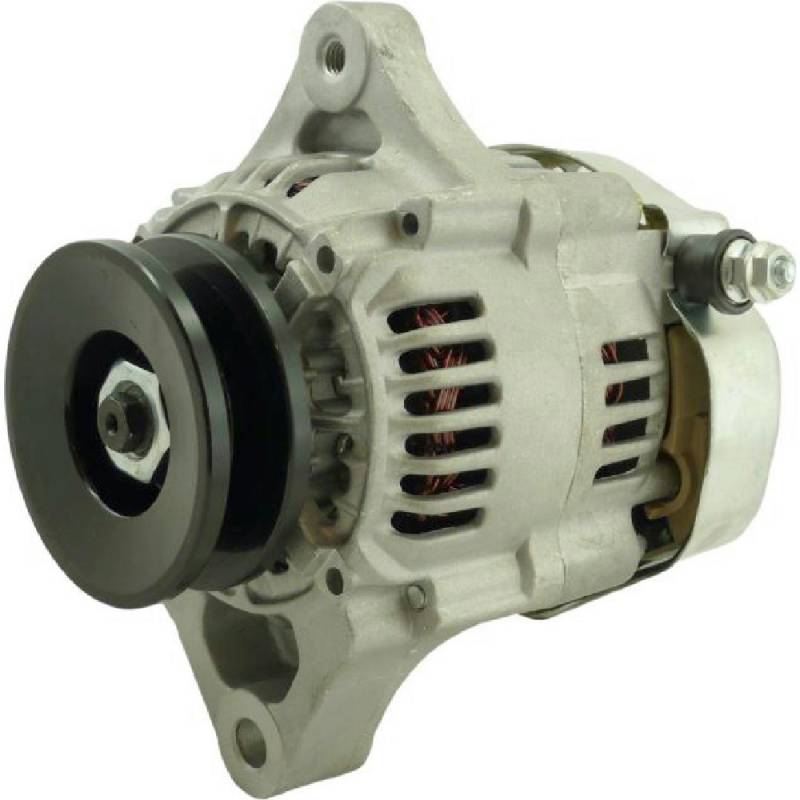

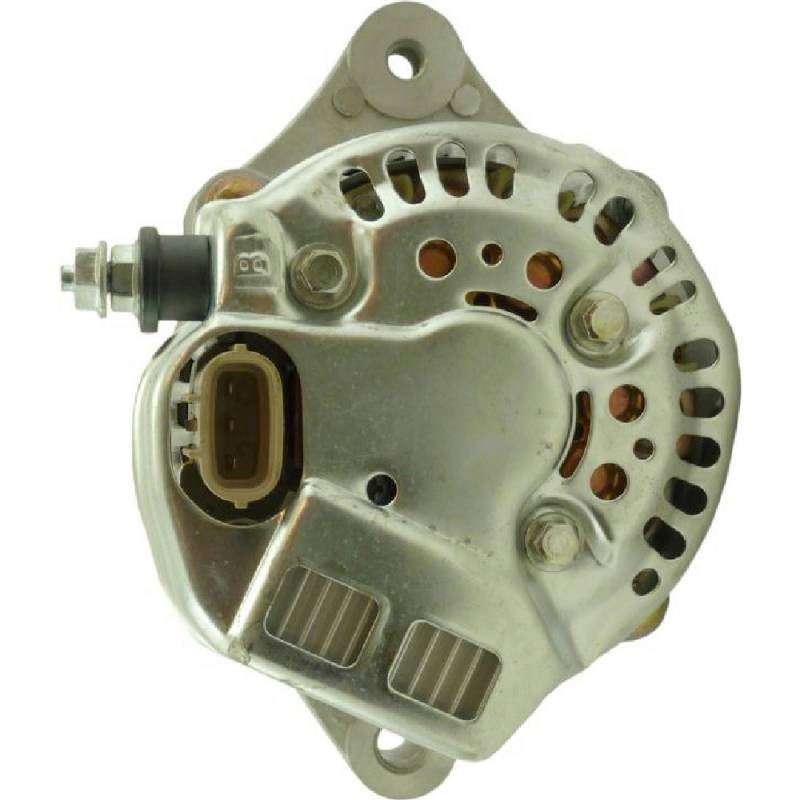

New Alternator Compatible With Kubota Bobcat Steiner Wheel Tractor 16678-64012 100211-4730

SKU: 12202*1

KUBOTA PART NUMBERS:
• 16678-64010, 1667864010
• 16678-64011, 1667864011
• 16678-64012, 1667864012
• 16678-64013, 1667864013
• 16678-64014, 1667864014
• 16652-64011, 1665264011
• 16652-64012, 1665264012
• 1G090-64010, 1G09064010
• 1G090-64012, 1G09064012
• 1G090-64013, 1G09064013
• 1G012-64011, 1G01264011
• TC429-15681, TC42915681

DENSO PART NUMBERS:
• 100211-4730, 1002114730, 100211-473
• 100211-4731, 1002114731
• 100211-4732, 1002114732
• 100211-4733, 1002114733
• 101211-3130, 1012113130
• 9760218-473, 9760218473

EQUIPMENT OE PART NUMBERS:
• Bobcat 6988709, 7458001, 6686227
• Doosan 15907991, 22567929
• Ingersoll Rand 22355499
• Case New Holland XJBR-02319, XJBR-02548, XJBR-04350
• Skyjack 136101, 137857

OTHER PART NUMBERS:
• Kokusan Denki GP9917
• Lucas LRA02208, LRA2208
• Delco Remy DRA0347
• Mahle 11.209.714, AAG5193, MG1146, IA9543
• Wilson 90-29-5295, 90295295
• Wilson 70-29-12202, 702912202

SPECIFICATIONS:
• Type: Denso IR/IF
• Voltage: 12 Volt
• Amperage: 40 Amp
• Rotation: Clockwise (CW)
• Regulator: internal
• Plug: 328, rear, 9:00
• Pulley: 1 groove solid V
• Mount: spool, 2 ears
• Ear 1: M8-1.25 threaded
• Ear 2: 10.3 mm unthreaded
• Ear spacing: 140 mm
• B+ terminal: M6-1.0
• Polarity: negative ground
• Weight: 7.43 lb / 3.38 kg

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $269.45

Sale: $153.97

Save: 43%

Save: $115.48

Description
Details
Shipping
Reviews

Description

⚠️ 12 VOLT 40 AMP DENSO ALTERNATOR:
• 12 volt, 40 amp, clockwise, internal regulator, internal fan, 9:00 rear plug (328)
• 1 groove solid V pulley, spool mount, 2 ears: M8-1.25 threaded and 10.3 mm unthreaded, 140 mm apart
• M6-1.0 B+ stud, negative ground, 7.43 lb / 3.38 kg
• Replaces Kubota 16678-64010 / 1G090-64010, Denso 100211-4730 and Bobcat 6988709

KUBOTA EXCAVATORS:
• 2004-2019 Kubota KX61-3, V1505-E
• 1997-2004 Kubota KX71-2, V1505-E
• 2005-2019 Kubota KX71-3, V1505-E
• 2019-2022 Kubota KX71-3S, V1505-E
• 2009-2018 Kubota U25S, D1105

BOBCAT AND INGERSOLL RAND:
• 2011-2020 Bobcat E26 mini excavator, Kubota V1505-E
• 2000-2007 Bobcat B200 wheel tractor, Kubota D1105 turbo
• Bobcat B250, Kubota D1105
• Ingersoll Rand BL-275, Kubota D1105T diesel

HITACHI MINI EXCAVATORS:
• 1995-2002 Hitachi EX27-2, V1505-E
• 1995-2002 Hitachi EX30, V1505-E
• 1995-2002 Hitachi EX30-2, V1505-E
• 1995-2002 Hitachi EX35, V1505-E
• 1995-2002 Hitachi EX35-2, V1505-E
• 1995-2002 Hitachi EX40, V1505-E
• 1995-2002 Hitachi ZX30, V1505-E
• 1995-2002 Hitachi ZX35, V1505-E

AUSA DUMPERS, FORKLIFTS AND TELEHANDLERS:
• 2006-2022 Ausa D108RM, D902
• 2006-2022 Ausa D108RM x4, D902
• 2006-2016 Ausa D150RM, D902
• 2006-2016 Ausa D150RM x4, D902
• 2006-2015 Ausa D150RMG, D902
• 2006-2019 Ausa D175RMS, D902
• 2006-2019 Ausa D175RMS x4, D902
• 2006-2015 Ausa D201RH, V1505
• 2006-2015 Ausa D201RHG, V1505
• 2006-2019 Ausa D201RHS, V1505
• 2006-2019 Ausa D201RHGS, V1505
• 2011-2019 Ausa C11M forklift, D902
• 2007-2019 Ausa CH150 forklift, V1505
• 2007-2019 Ausa CH150H x4 forklift, V1505
• 2006 Ausa C150H, V1505-E2B
• 2006 Ausa C150H x4, V1505-E2B
• 2010-2019 Ausa T144H x4 telehandler, V1505
• 2010-2019 Ausa TH2513 telehandler, V1505

BOMAG ROLLERS:
• 2011-2013 Bomag BW80 AD-5, D902
• 2011-2013 Bomag BW90 AD-5, D902
• 2011-2013 Bomag BW90 SC-5, D902
• 2011-2013 Bomag BW100 ACM-5, D902
• 2011-2013 Bomag BW100 ADM-5, D902
• 2011-2013 Bomag BW100 SC-5, D902
• 2011-2013 Bomag BW100 SCC-5, D902

MANITOU FORKLIFTS AND TELEHANDLERS:
• 2014-2020 Manitou TMM20, V1505-E
• 2013-2020 Manitou TMM20 4W, V1505-E
• 2014-2020 Manitou TMM25, V1505-E
• 2013-2020 Manitou TMM25 4W, V1505-E
• 2010-2019 Manitou 160ATJ, V1505-E
• 2010-2019 Manitou 180ATJ, V1505-E

CASE AND HYUNDAI MINI EXCAVATORS:
• Case CX17C, Case New Holland XJBR-02319
• Case CX26C, Case New Holland XJBR-02548
• Hyundai R17Z-9AK, R17Z-9AK CA, R17Z-9AK NH
• 2016-up Hyundai R25Z-9AK, Kubota D1305

SKYJACK SCISSOR LIFTS:
• Skyjack SJ6832RT, Kubota D902 (Skyjack 137857)
• Skyjack SJ8831RT, Kubota WG972 dual fuel (Skyjack 136101)
• Skyjack SJ8841RT, Kubota WG972 dual fuel (Skyjack 136101)

STEINER AND POWERBOSS:
• Steiner 230 tractor, Kubota 28 HP diesel
• Steiner 235 tractor
• Steiner 525 tractor
• Powerboss Armadillo 6X sweeper
• 2014-2016 Powerboss AM7D-III
• 2013-2016 Powerboss Atlas

SCHAFFER, NORCAR AND GIANT LOADERS:
• 2010-up Schaffer 2028, D1105
• Schaffer 222, D1105
• 2008-up Schaffer 222S, D1105
• 2008-up Schaffer 2336, V1505
• 2004-up Schaffer 3033S, V1505-T
• 2007-up Schaffer 3046 yard loader, V1505-T
• 2004-up Schaffer Comfort 45, V1505-T
• 2006-up Schaffer Plus Pro 46, V1505-T
• 2005-up Norcar 760, D1105-E
• 2005-up Norcar 765, V1505-E, D1105-E
• 2010-up Norcar a60, D1105
• 2013-up Norcar a62, D1105
• 2011-up Norcar a75, V1505-E
• 2008-up Giant D262S, D262SW, D1105
• 2010-up Giant D263S, D1105
• 2006-up Giant V451T, V1505-T

OTHER EQUIPMENT:
• 2008-up Belos Trans Pro 3440, D1105-T
• 2008-up Belos Trans Pro 4560, V1505-T
• 2006-up Belos Trans Pro 54, V1505-T
• 2012-up Attack HW1130-K25, D1105
• 2012-up Attack HW1230-K36, V1505
• 2012-up Ferrari Cromo K40 RS, V1505
• 2012-up Fiori 700, D902
• 2010-up Tuchel Quattro, D902
• 2006-up Tuchel Trac Trio, Z602-E3B
• 2010-up VM Loader SQ1026, D1105
• 2004-up Agromatic 760, Kubota

ENGINES:
• Kubota V1505, V1505-B, V1505-E, V1505-T, V1505-E2B 1.5L
• Kubota D1105, D1105-E, D1105-T 1.1L
• Kubota D902 0.9L, D1305 1.3L, Z602
• Kubota WG972, WG972-EFI, WG1605 gasoline and dual fuel
