OEM PART NUMBERS:
• OMC: 584980 / 0584980, 586284 / 0586284
• United Technologies: 5721740-M030SM / 5721740M030SM
• United Technologies: SM57217
• Sierra Marine: 18-5632 / 185632

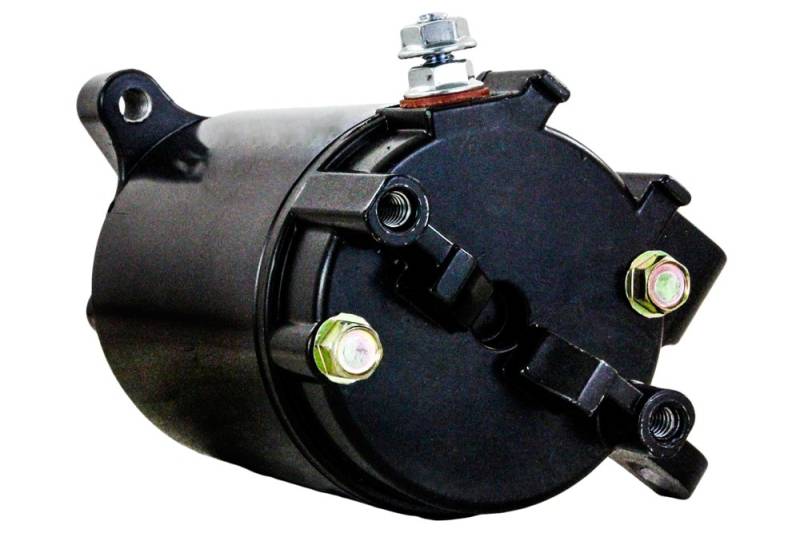

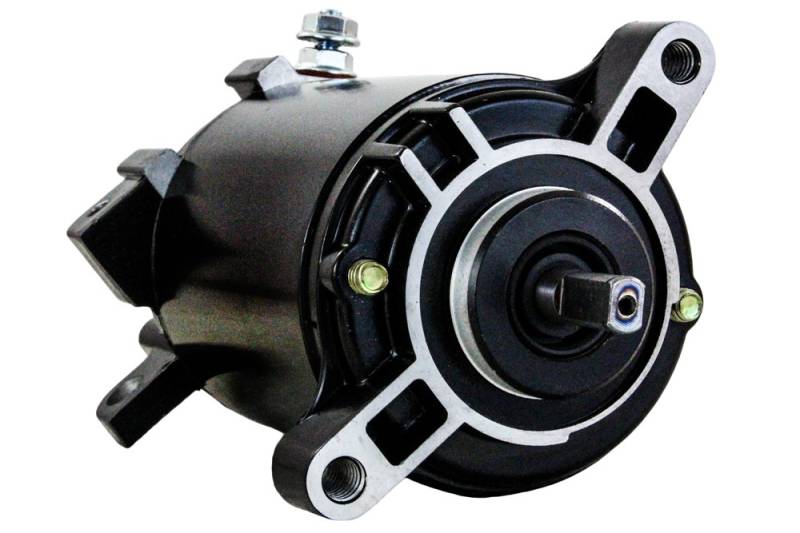

SPECIFICATIONS:
• Type: PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V
• Rotation: Clockwise (CW)
• Field Case Length: 85.73mm / 3.375in
• Mounting Ear 1: 5/16-18 Threaded
• Mounting Ear 2: 5/16-18 Threaded
• CE Housing: (3) 1/4-20 Threaded Holes
• Shaft: Dual Flat Sides
• Pinion: Not Included
• Weight: 4.63 lbs / 2.10 kg
• Condition: New
EVINRUDE / JOHNSON OUTBOARD APPLICATIONS:
• Evinrude E90EL/PL, E100WQL/WQX, E105W, E115 series (1995-2001)
• Johnson 90EL/EX/GL/PL/PX/SL/VL 90HP (1995-2006)
• Johnson 100WPL/WPX/WQL/WQX 100HP (1998-2000)
• Johnson 115EL/GL/J/PL/PX/SL/SX/TSL/TSX 115HP (1995-2006)
AFTERMARKET CROSS REFERENCE:
• Arco Marine: 5399
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
