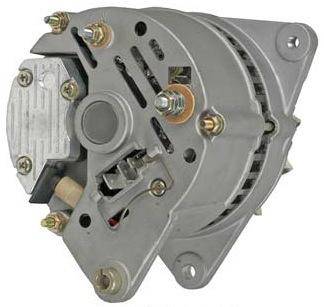

12V Alternator Compatible With 1986-1992 Ford 5610 6610 7610 New Holland 6610 Diesel Tractor Lucas

OEM PART NUMBERS:
• Ford: E3NN-10B376-AB / E3NN10B376AB
• Ford: E3NN-10B376-AC / E3NN10B376AC
• Ford: E3NN-10B376-AD / E3NN10B376AD
• Lucas: 24256, 24256A, 24256B, 24256C, 24256D
• Lucas: 54022292, 54022310
• Lucas Reman: A2522
• Marelli: 63324256, MAN134

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 45A
• Rotation: CW (Clockwise)
• Fan: External
• Regulator: Internal
• Regulator Clock: 5:00
• Polarity: Negative
• Output Stud: M6-1.0
• Weight: 9.265 lbs / 4.21 kg
• Condition: New

APPLICATION:
• Ford 5610/6610/7610/7710 Farm Tractor Diesel (1986-1992)
• Ford 231/233/333/531 Industrial Tractor Diesel (1975-1981)
• Ford 455 Backhoe Diesel (1987-1988)
• New Holland 6610 Tractor Diesel (1987-1993)

12V Alternator - Ford and New Holland 6610 Diesel Tractor
New 45 amp alternator for Ford 5610, 6610, 7610, 7710 and New Holland 6610 diesel tractors. Also fits Ford 231, 233, 333, 531 industrial tractors and 455 backhoe. Replaces Lucas 54022292, 54022310, 24256 series, and Ford E3NN-10B376-AD.
