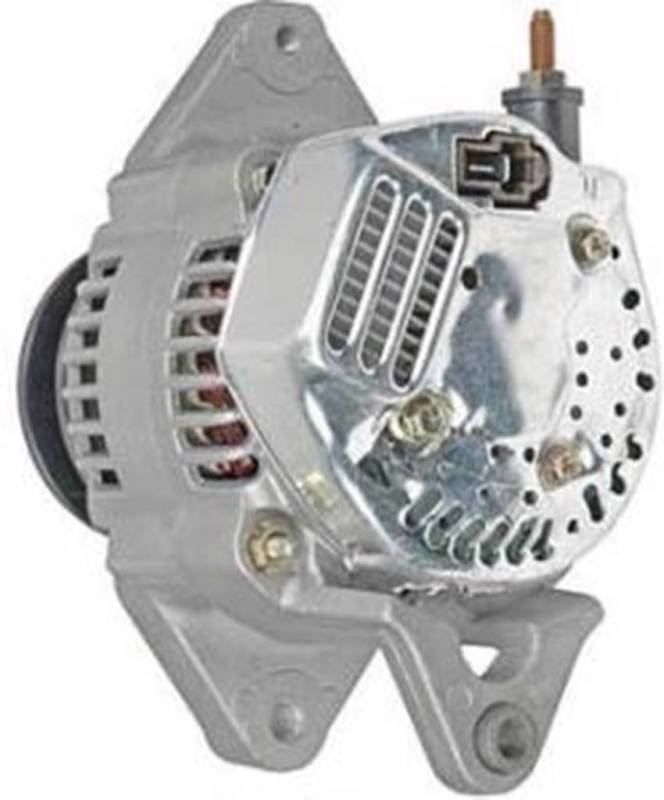

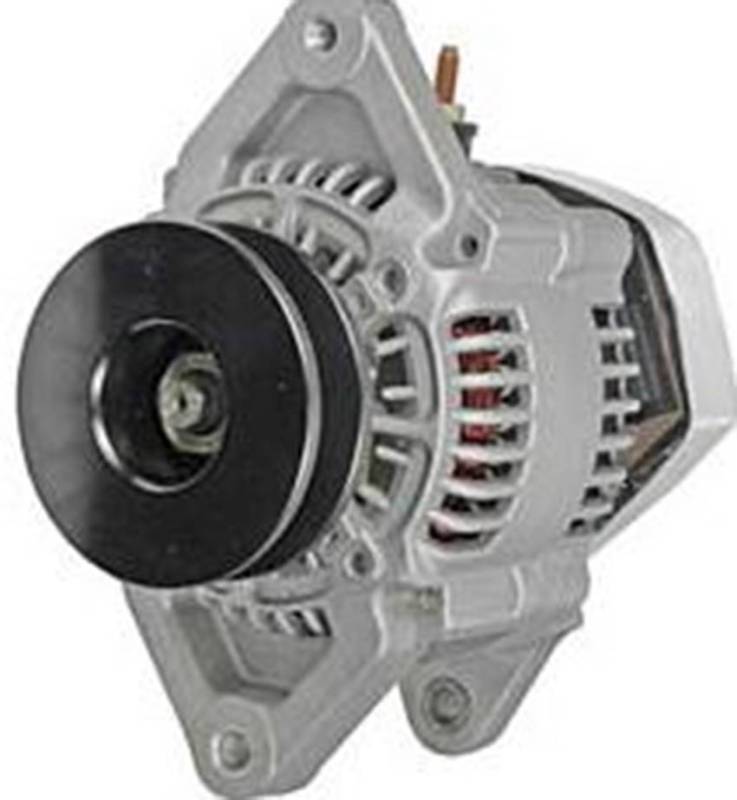

New Alternator Compatible With Toyota Lift Truck 5Fd-45 24V 1Z 11Z Eng 1002114103 1002114104

12210*4
TOYOTA PART NUMBERS:
• 27060-78300, 2706078300
• 27060-78300-71, 270607830071
• 27070-23060, 2707023060
• 27070-23060-71, 270702306071
DENSO (NIPPONDENSO) PART NUMBERS:
• 100211-4100, 1002114100
• 100211-4101, 1002114101
• 100211-4102, 1002114102
• 100211-4103, 1002114103
• 100211-4104, 1002114104
• 100211-4190, 1002114190
• 100211-4191, 1002114191
OTHER REPLACEMENT NUMBERS:
• Hyster 3049396
• Lucas LRA02430
• Wilson 90-29-5310, 90295310
• Wilson 90-29-5311, 90295311

SPECIFICATIONS:
• Voltage: 24V
• Output: 20 amp
• Unit type: Denso type
• Regulator: internal
• Fan: internal
• Regulator position: 12:00
• B+ terminal: M6-1.0
• Polarity: negative ground
• Weight: 7.95 lbs / 3.61 kg
• Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $311.22
Sale: $177.84
Save: 43%
Save: $133.38
Qty:
Free Shipping!

Description

TOYOTA LIFT TRUCKS, 1Z ENGINE:
• TOYOTA LIFT TRUCK 5FD-20 1Z ENGINE 24V 1986-1988
• TOYOTA LIFT TRUCK 5FD-23 1Z ENGINE 24V 1986-1988
• TOYOTA LIFT TRUCK 5FD-25 1Z ENGINE 24V 1986-1988
• TOYOTA LIFT TRUCK 5FD-28 1Z ENGINE 24V 1986-1988
• TOYOTA LIFT TRUCK 5FD-30 1Z ENGINE 24V 1986-1988

TOYOTA LIFT TRUCKS, 11Z ENGINE:
• TOYOTA LIFT TRUCK 5FD-33 11Z ENGINE 24V 1988
• TOYOTA LIFT TRUCK 5FD-35 11Z ENGINE 24V 1988
• TOYOTA LIFT TRUCK 5FD-38 11Z ENGINE 24V 1988
• TOYOTA LIFT TRUCK 5FD-40 11Z ENGINE 24V 1988
• TOYOTA LIFT TRUCK 5FD-45 11Z ENGINE 24V 1988
• TOYOTA LIFT TRUCK 5FDE-35 11Z ENGINE 1995-2007

TOYOTA LIFT TRUCKS, 12Z ENGINE:
• TOYOTA LIFT TRUCK 5FD-50 12Z ENGINE 1995-2007
• TOYOTA LIFT TRUCK 5FD-60 12Z ENGINE 1995-2007
• TOYOTA LIFT TRUCK 5FD-70 12Z ENGINE 1995-2007

SPECIFICATIONS:
• Voltage: 24V
• Output: 20 amp
• Unit type: Denso type
• Regulator: internal
• Fan: internal
• Regulator position: 12:00
• B+ terminal: M6-1.0
• Polarity: negative ground
• Weight: 7.95 lbs / 3.61 kg
• Condition: New aftermarket

Details

Shipping Information

  • Item Requires Shipping
  • 10.0 lbs.
  • W8.0000” x H8.0000” x L8.0000”
  • Free Shipping!
