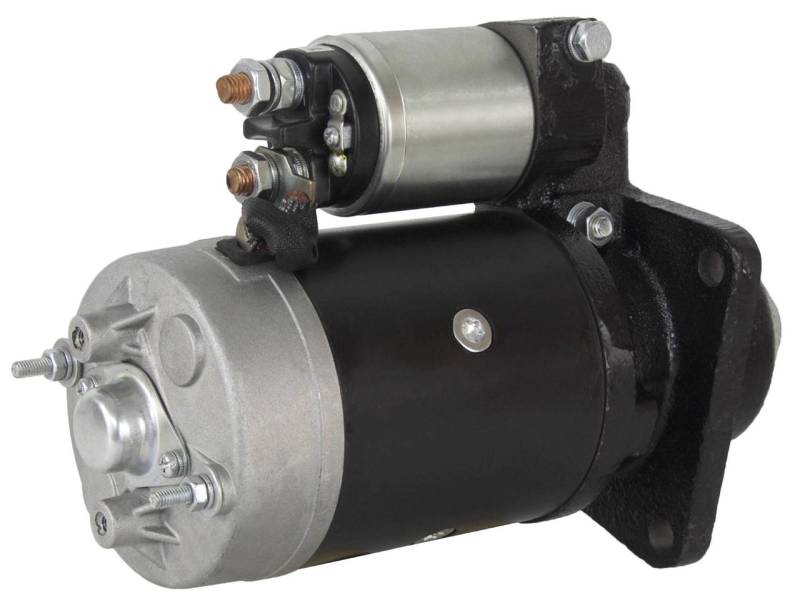

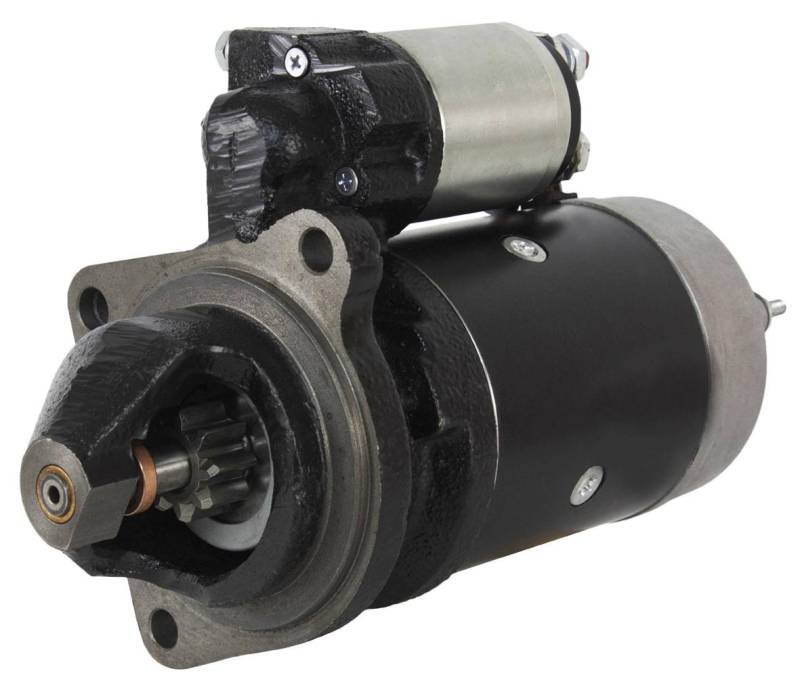

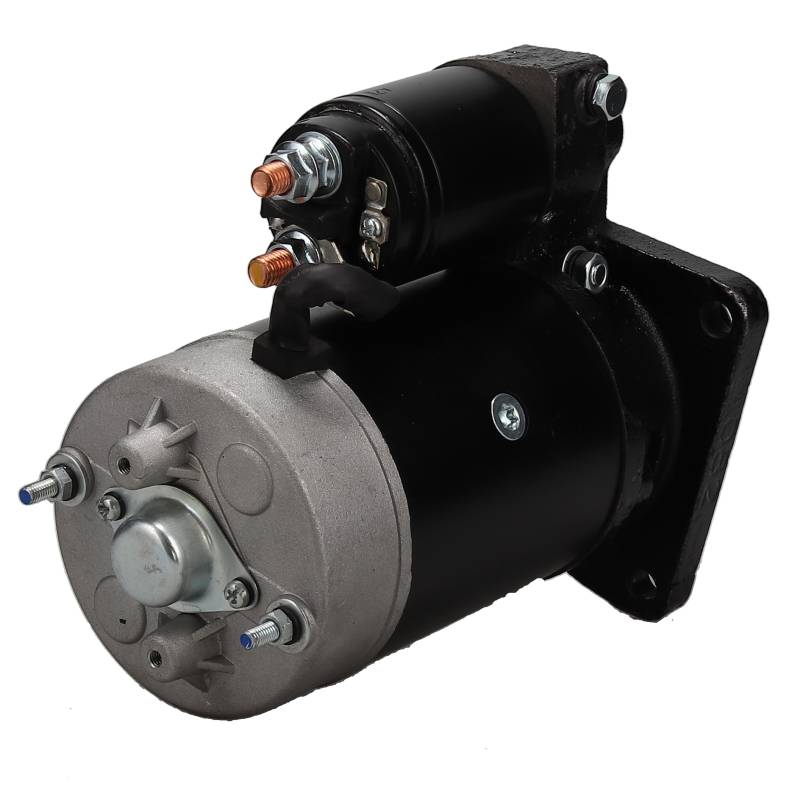

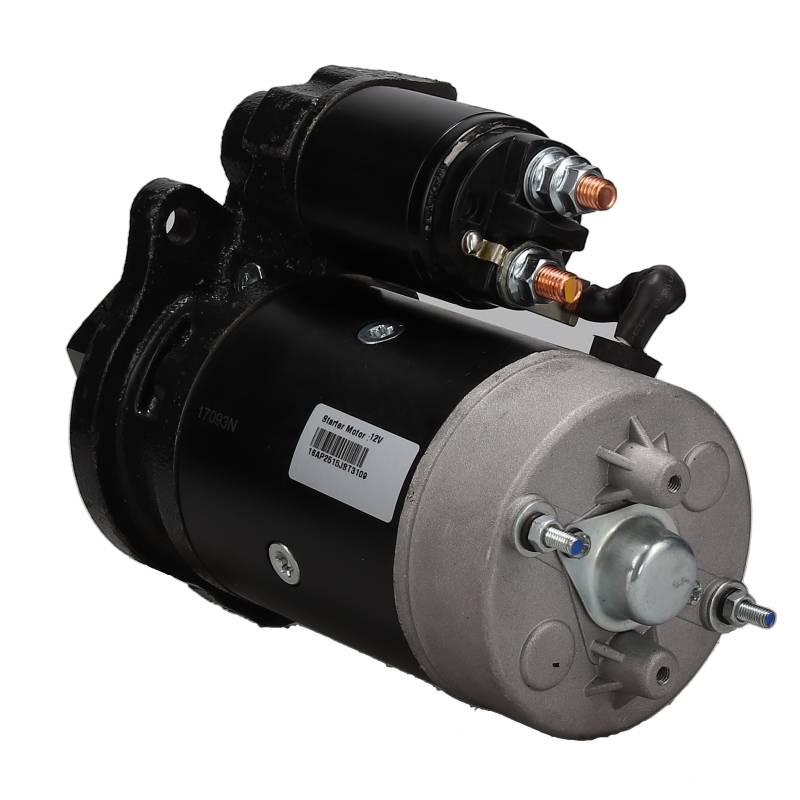

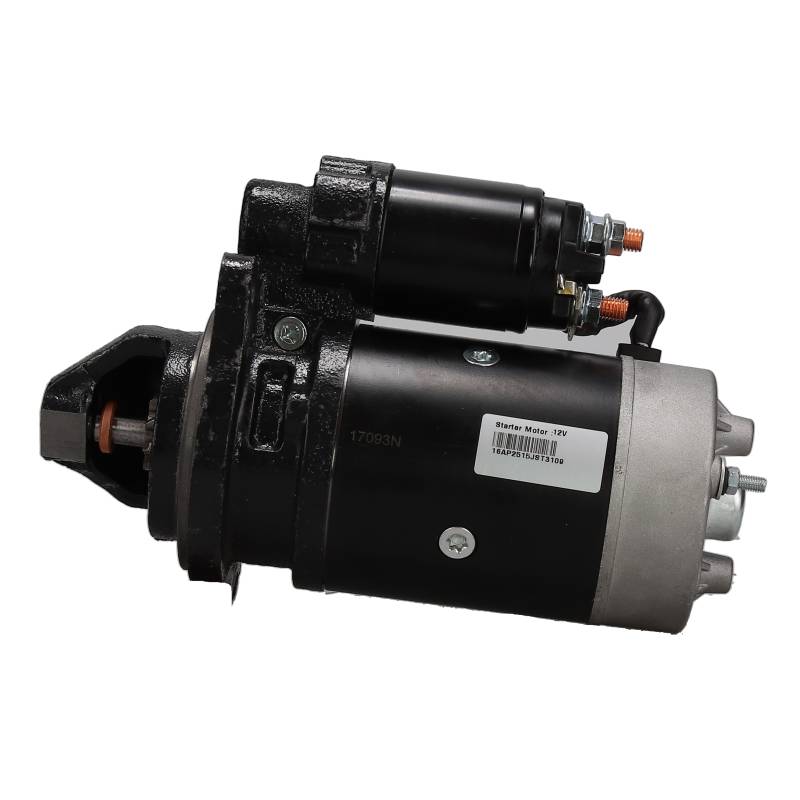

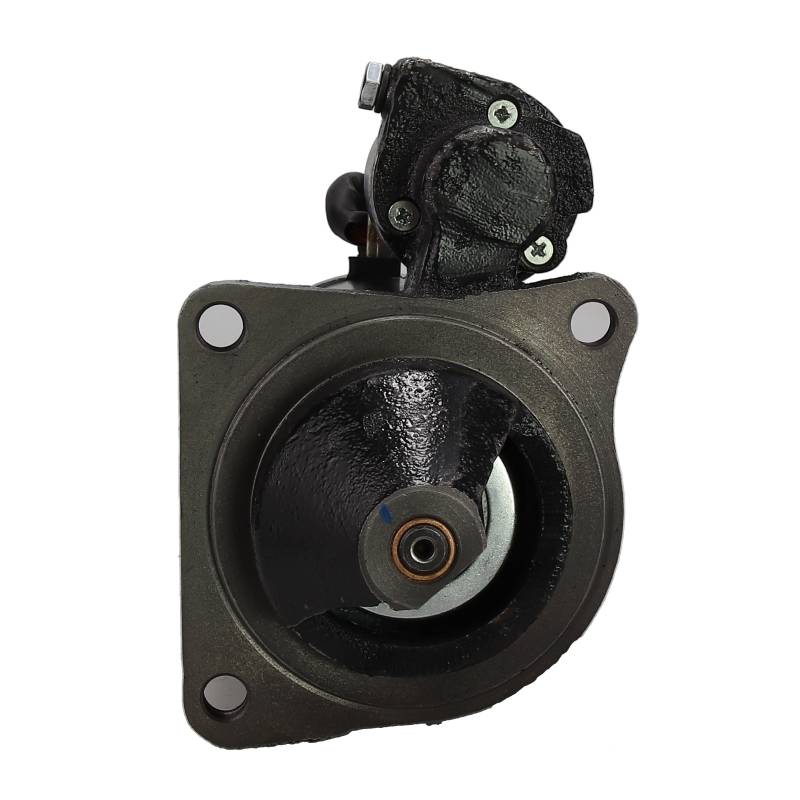

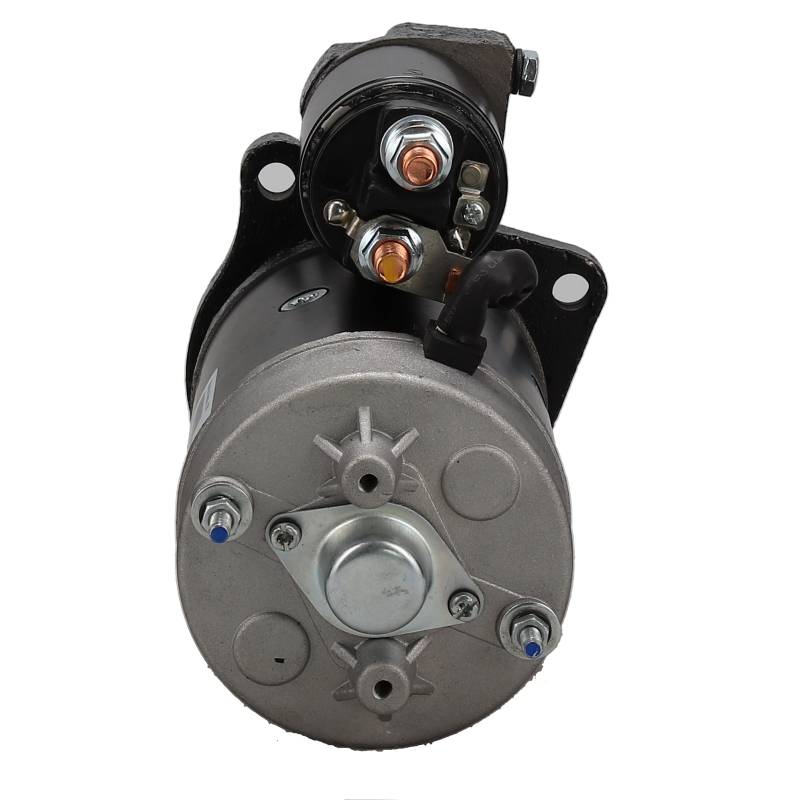

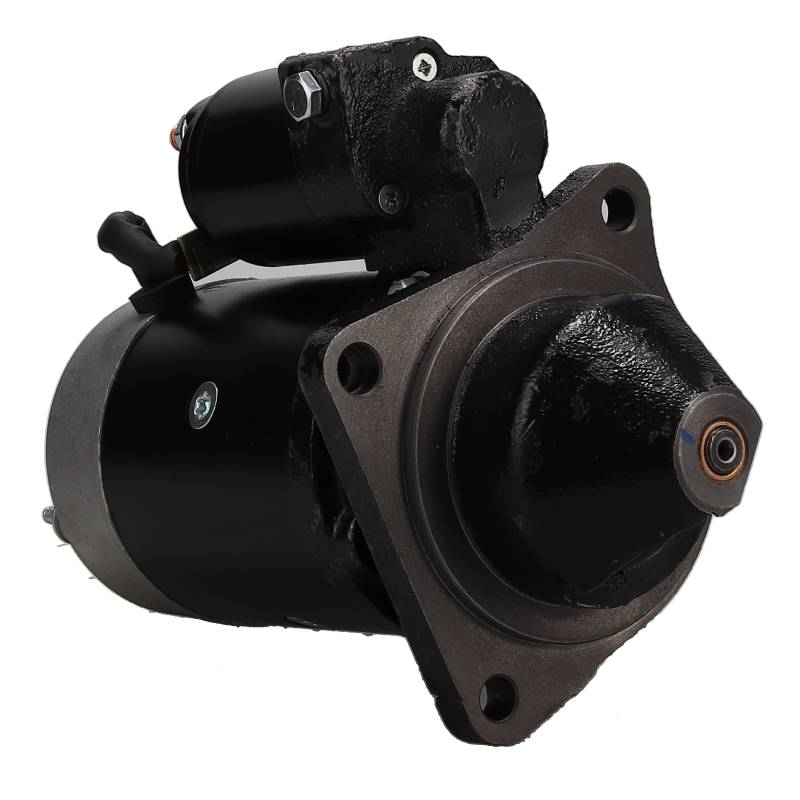

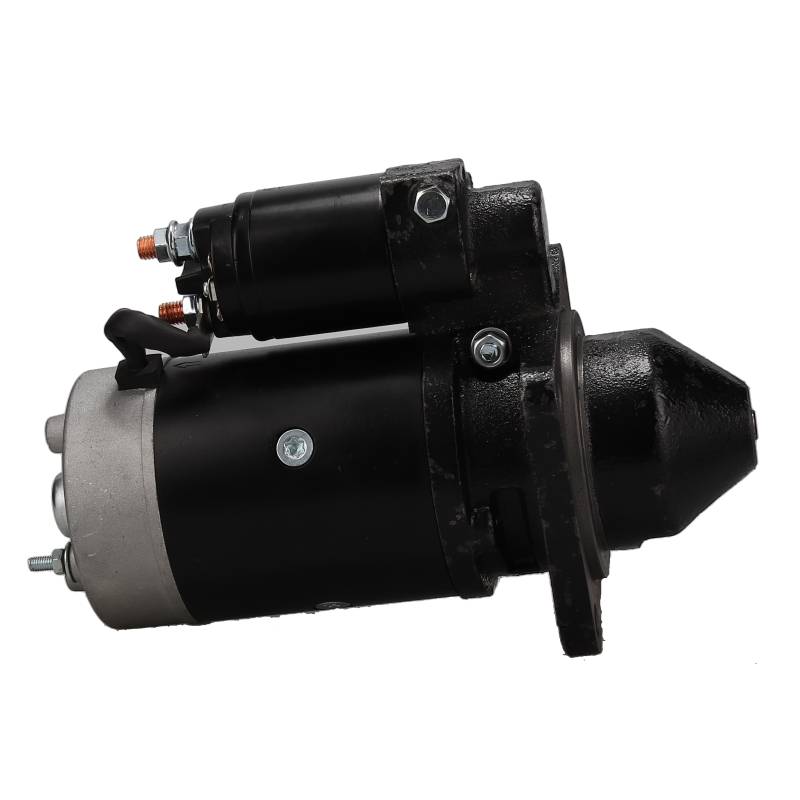

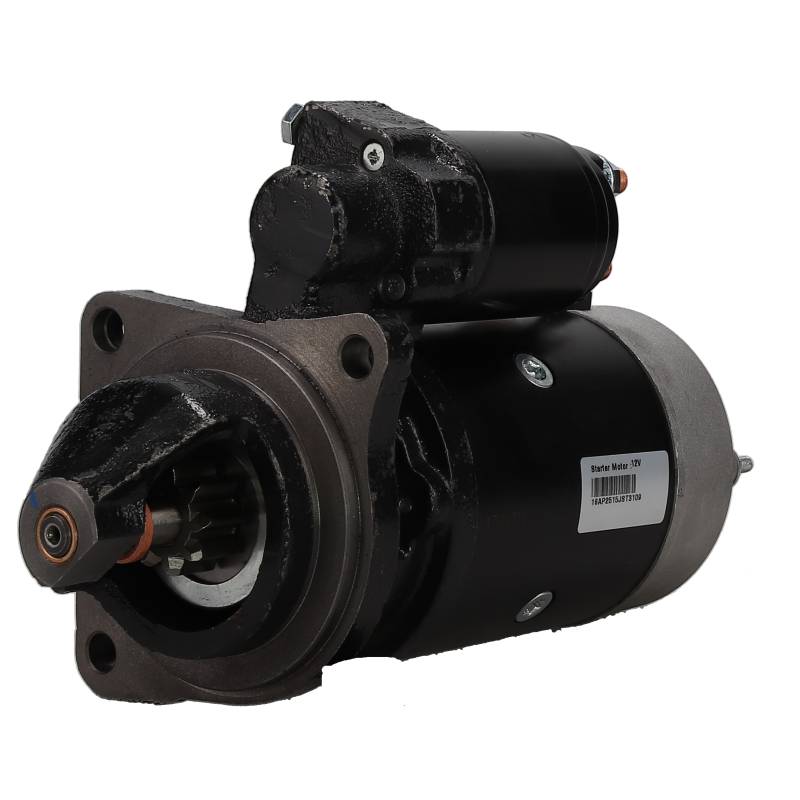

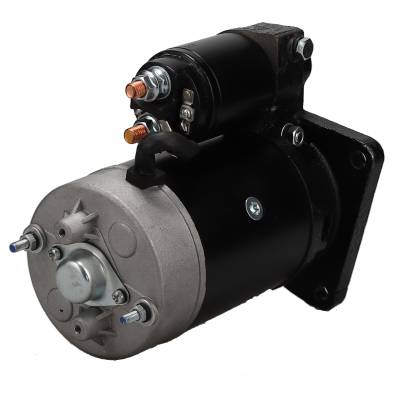

New Starter Motor Compatible With Fiat-Allis Wheel Loader Fl-4C 0-001-362-105 0-001-362-322

(0) Reviews: Write first review
0001362032*5
BOSCH PART NUMBERS:
• 0986011220, 0-986-011-220
• 0986011221, 0-986-011-221
• 0001362032
• 0001362039
• 0001362105
• 0001362332
• 0986012670, 0-986-012-670
• 0986012671
• 0001359021
• 0986016740, 0-986-016-740
• 0001359102
• 0001367028
• 0001367082
• SR914X

LETRIKA (ISKRA) / MAHLE PART NUMBERS:
• 11.130.203, 11130203, IS0203, AZJ3538
• 11.130.510, 11130510
• 11.130.618, 11130618
• 11.130.403, 11.130.410, 11.130.322, 11.130.199, 11.130.140
• IS0403, IS0409, IS0618
• AZJ3110, AZJ3115, AZJ3116, AZJ3145, AZJ3195, AZJ3517, AZJ3535, AZJ3582
• Mahle MS388, MS107, MS192, MS195

MAGNETI MARELLI PART NUMBERS:
• 63216827, 63216825, 63216826, 63216831, 943216831, 63213815, 63296865, 30380301
• 63217121, 943217121
• MT68A, MT68AA, MT68AB, MT68AC, MT68AD, MT71Z, MT38QA, MT38TB
• MSN219, MSN226, MSN227
• MT71A, MT71AA, MT71AB, 63247125, 943217126, 63217125, 63217126, 63207159, 63207161, 63217101, 63224600, 30380319

EQUIPMENT OE PART NUMBERS:
• Fiat 4759929, 4819723, 88205005, 4169096, 4172113, 4682998, 4710224, 4722682, 4728682, 84224935
• Fiat 4737755, 4988513, 4807373, 4739353, 4745279, 4745929, 2022506, 4699705, 4755109, 4763996, 4807375, 87376493, 88205006, 9972215
• Fiat New Holland 4169093, 4692478, 4702248, 4832942
• Iveco 500333269, 500338953, 500333271, 504059251, 4807373, 4739353, 4745279, 4745929
• Lancia 2022507
• White 30-3043509, 303043509
• AGCO C000900060030
• Claas 6005706617

OTHER PART NUMBERS:
• Magneton 9124330, 9-124-330, 9144744, 9-144-744
• Hella 8EA726196-001, CS572, 8EA726032-001, CS240, 8EA731785-001, CS795
• Lucas S0847, S0850, S0944, LRS00847, LRS00850, LRS850, 26290, 26390
• Prestolite 20500847
• Valeo S2134, 436073, 436074, 436075, 458297
• Wilson 91-15-7010, 91-15-6928, 91156928
• Electroputere (Romania) 2130, 2134, 2134000, DM2130, DM2134

SPECIFICATIONS:
• Type: Direct drive (Letrika AZJ / Marelli MT68 style)
• Voltage: 12 Volt
• Power: 2.7 kW (Letrika IS0203; replaces 2.4 kW Marelli, 2.7 kW IS0618 and 3.0 kW IS0403)
• Rotation: Clockwise (CW)
• Teeth: 9
• Pinion OD: 34.3 mm / 1.35 in, module 3
• Mounting: 3 ears, 12.0 mm unthreaded
• Length: 249.5 mm / 9.823 in
• Battery stud: M10-1.5, blade switch terminal
• Weight: 27.46 lb / 12.48 kg
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $353.61
Sale: $202.06
Save: 43%
Save: $151.55
Qty:
Free Shipping!

Description

⚠️ 12 VOLT 2.7 KW DIRECT DRIVE STARTER:
• 12 volt, 2.7 kW (Letrika IS0203 / Mahle MS388), clockwise, direct drive, 9 tooth, 34.3 mm / 1.35 in pinion, module 3
• 3 mounting ears, 12.0 mm unthreaded, 249.5 mm / 9.823 in long, M10 battery stud, blade switch terminal
• 27.46 lb / 12.48 kg
• Replaces Iskra IS0203 and IS0618 (2.7 kW), the 2.4 kW Marelli Fiat 4807373 and the 3.0 kW IS0403, Bosch 0986011220, Fiat 4737755, White 30-3043509

HESSTON TRACTORS (FIAT DIESEL):
• 1983-1984 Hesston 466, 466DT, 8035
• 1981-1982 Hesston 480-8, 8035
• 1983-1984 Hesston 566, 566DT, 8035
• 1981-1984 Hesston 580, 580DT, 8035
• 1981-1982 Hesston 640, 640DT, 8045
• 1983-1984 Hesston 666, 666DT, 8045
• 1981-1984 Hesston 680, 680DT, 8045
• 1983-1984 Hesston 766, 766DT, 8045
• 1981-1984 Hesston 780, 780DT, 8045
• 1981-1982 Hesston 880-5, 880-5DT, 8055
• 1985-1991 Hesston 45-66DT, 8035
• 1985-1991 Hesston 55-46DT, 55-56DT, 55-66DT, 8035
• 1985-1991 Hesston 60-66, 60-66DT, 60-66F, 60-66LP, 60-66DTF, 8035
• 1985-1991 Hesston 60-90DT, 8035
• 1990-1991 Hesston 65-56, 8045
• 1985-1991 Hesston 70-66, 70-66DT, 70-66F, 8045
• 1985-1991 Hesston 70-76FDT, 70-76LP, 8045
• 1985-1991 Hesston 70-90, 70-90DT, 8045
• 1985-1991 Hesston 80-66, 80-66DT, 80-66F, 80-66FDT, 8045
• 1985-1991 Hesston 80-90, 80-90DT, 8045

FIAT AND NEW HOLLAND ITALIA TRACTORS:
• Fiat 402, 404, 404DT, 420, 420DT, 440, 440DT, 440V
• Fiat 450, 450DT, 455C, 470DT, 470DTS, 480, 480 8DT, 480S, 480V, 500S
• Fiat 580DT, 8035.04
• Fiat 605C, 605CS, 640DT, 665C, 666, 666DT, 670, 670DT, 680DT, 8045.02
• Fiat 765C, 766DT, 780DT, 855C, 8045.04
• Fiat 880-5, 8055.04
• Fiat 1000DT, 1000DTS, 1000S, 1380, 8065
• Fiat New Holland 65-46, 65-56, 65-66, 65-88, 65-90, 8045.06
• Fiat New Holland 70-56, 70-65, 70-66, 70-66DT, 70-66F, 70-66LP, 70-66 Vigneto, 70-75, 70-76, 70-76V, 70-86F, 70-88, 70-90
• Fiat New Holland 80-65, 80-66, 80-66DT, 80-75, 80-88, 80-90, 80-90DT, 82-86F, 85-55, 85-90
• Agrifull 45, 45DT, 50, 50DT, 55, 55DT, 55 Frutteto, 55 Vigneto, 60C, 60CL, 60LM, 60 Frutteto, 570F, 570V, 65, 65DT, 65LM, 670, 70, 70C, 70 Frutteto, A70LM, 80, 80C, 80F, 80DTF, 80-66, 80-70C, 80-70F, 80-76, 82-86F
• 1984-1992 Fiat Hesston 55-46, 55-56, 55-65, 55-66, 55-66DT, 55-66LP, 55-75, 55-85, 55-86, 55-88, 55-90, 45-66, 8035.06 2.7L
• 1984-1992 Fiat Hesston 60-46, 60-56, 60-65, 60-66, 60-66DT, 60-66LP, 60-75, 60-85, 60-86, 60-88, 60-90, 60-93, 60-94, 8035.05 2.9-3.0L
• Fiat 50-66, 55-76F, 55-76V, 60-76F, 62-86F
• 1972-1984 Fiat 465C, 466, 474, 480DT, 500DT, 505C, 505S, 540DT, 540S, 565C, 566, 570DT, 570F, 580DT, 8035
• 1999-2004 New Holland TN55, TN55D, TN55S, 2.9L 50 HP
• 1999-2003 New Holland TN65, TN65D, TN65F, TN65S, TN70, 2.9L
• 1999-2003 New Holland TN75, TN75D, TN75S, 2.9L 75 HP
• Case IH JX55, JX60, JX65, JX70
• Case IH JX1060C, JX1060V, JX1070C, JX1070N, JX1070V, JX1075C, JX1075N, JX1075V
• Case IH AVJ55, AVJ60, VJ60
• White 2-50 Field Boss (Fiat engine), White 2-60 (4-211)
• Goldoni 1045R
• Montana C6862, 2404.055 diesel

LONG AND UTB UNIVERSAL TRACTORS:
• 1980-1988 Long 260, UTB 2-95
• 1980-1990 Long 310, UTB 2-110
• 1980-1985 Long 340, 500, 530, 640
• 1974-1989 Long 350, 445, 550
• 1977-1991 Long 360, 460, UTB 3-143
• 1979-1990 Long 510, UTB 3-165
• 1975-1979 Long 560, UTB 4-191
• 1980-1989 Long 600, 850
• 1979-1990 Long 610, UTB 4-219
• 1975-1978 Long 1010
• 1990-1997 Long 2360, 2460, 3-143; 1995-1997 2360 DTC, 2460 DTC
• 1990-1997 Long 2610, 4-219; 2630
• UTB Universal 350, 445, 445 HCP, 453, 483, 500, 523, 530, 532, 533

FIAT-ALLIS, LAVERDA, BENFRA AND FORKLIFTS:
• 1982-1983 Fiat-Allis 545B wheel loader
• 1971-1978 Fiat-Allis FL-4C crawler loader, 8035
• Fiat-Allis FL-4D, FG65A
• Laverda 3300, 3300AL, 3350, 3350AL, 3400, 3450, 3500, 3550, 3600, 3650, 3750 combine, Aifo 8051, 8061, 8065
• New Holland 3500, 3550, 3750, L517 combine
• Benfra 1.45, 215, 4.11, 7.07, 9.09, 9.10 loader, Aifo 8031, 8041, 8061
• Fiat OM forklift DI 20C, 25C, 30C, 8035.05.359 (also listed as Iveco Fiat 20C, 25C, 30C, 1986-1990)
• Fiat OM forklift DI 30CH, 35C, 40C, 45C, 50CH, 60C, 8045.05.359
• Fiat OM forklift DI 70C, 80C, 8055.05.250
• Fiat forklift DI 30, 35, 40, 50, DIM 30, DIM 35
• 1971-1987 Fiat forklift BI 20C, BI 25C, BI 30C, BIM 20, BIM 25, DI 12, DI 15, DIM 20, DIM 25, DM 12, DM 15

ENGINES:
• Fiat 8035, 8045, 8055, 8065
• Iveco Aifo 8031, 8041, 8051, 8060, 8061, 8065
