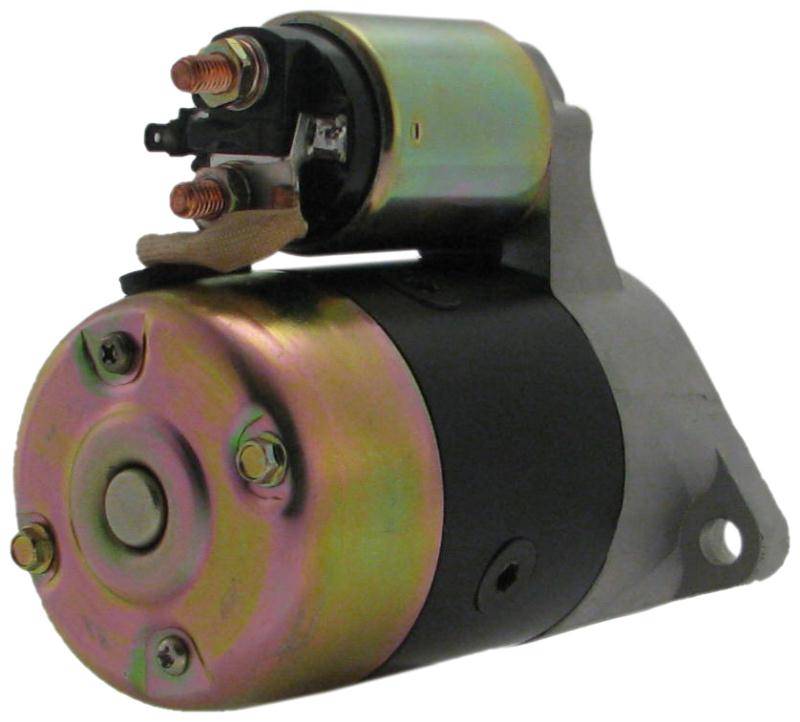

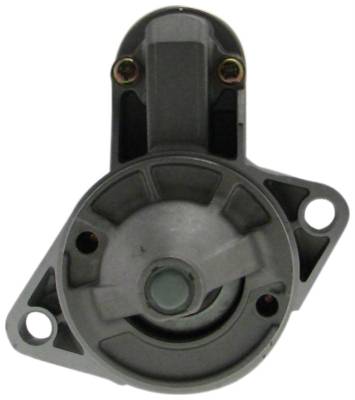

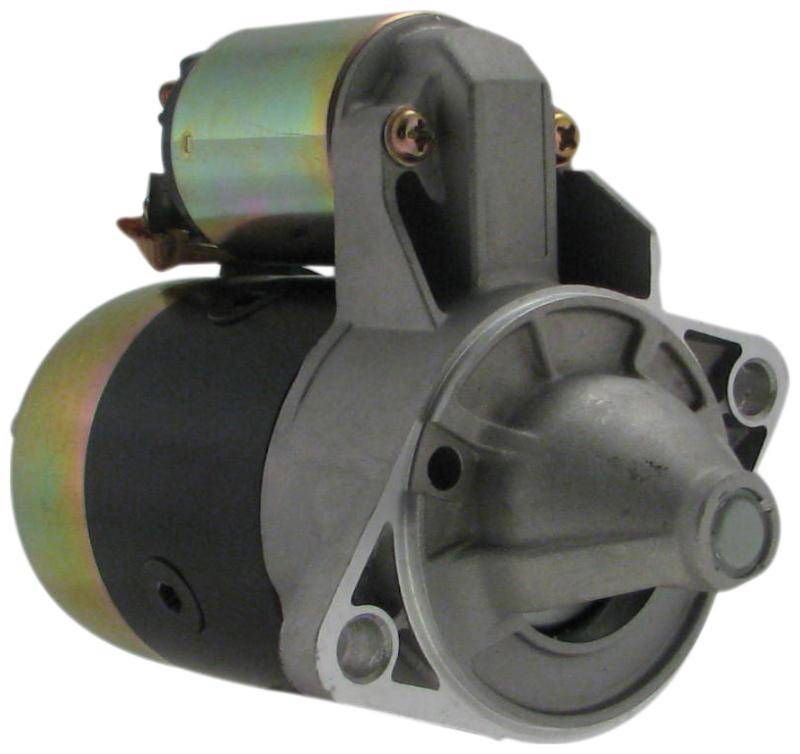

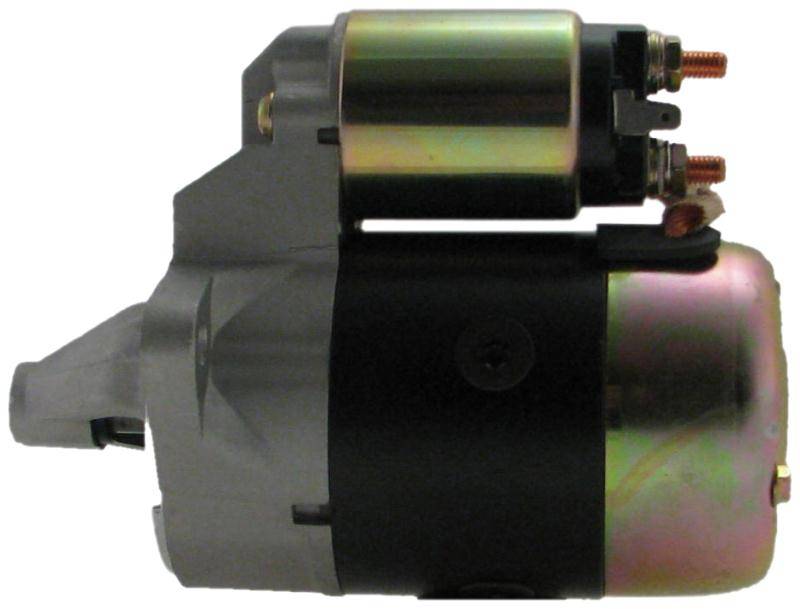

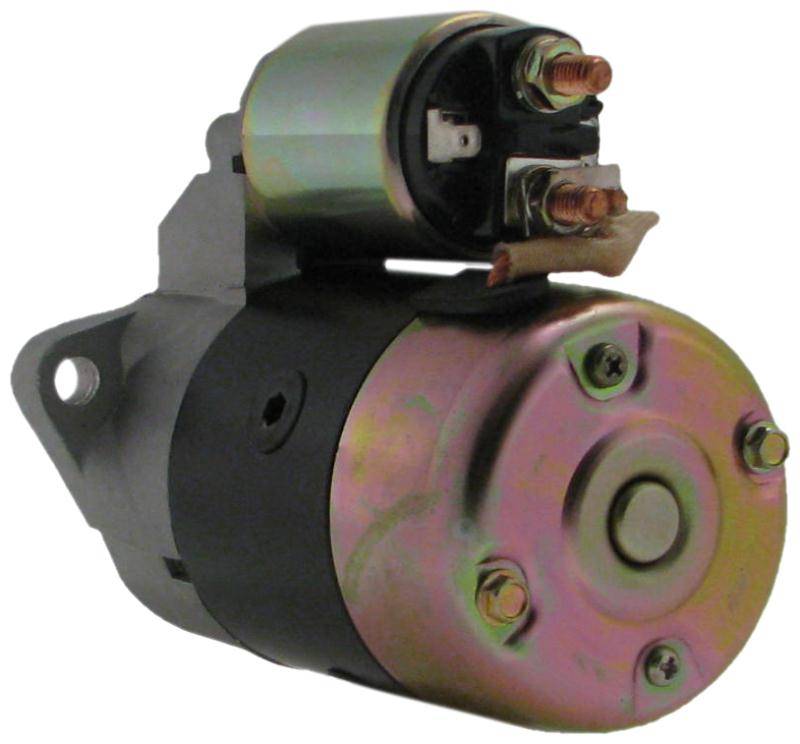

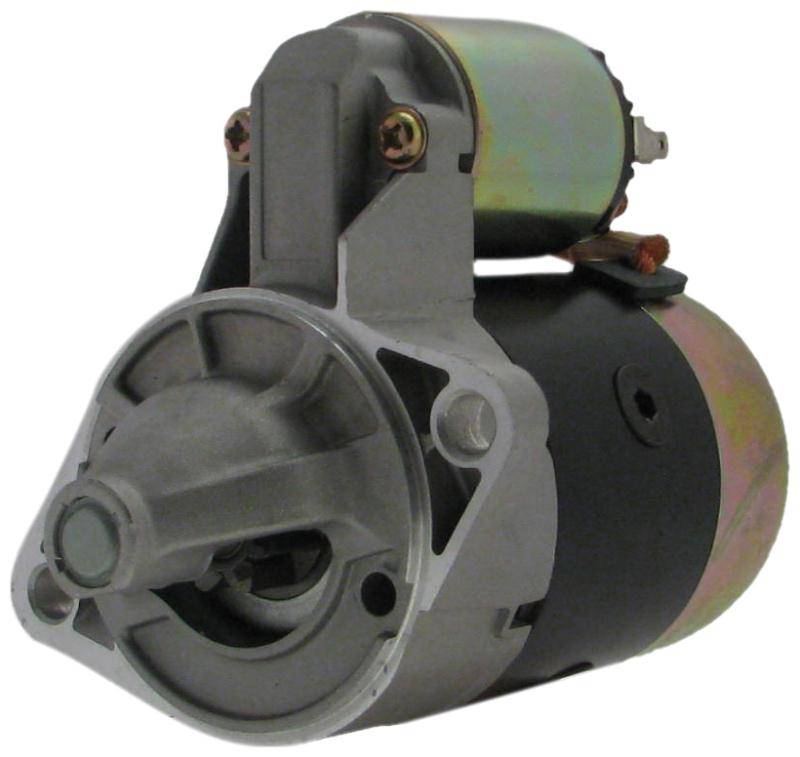

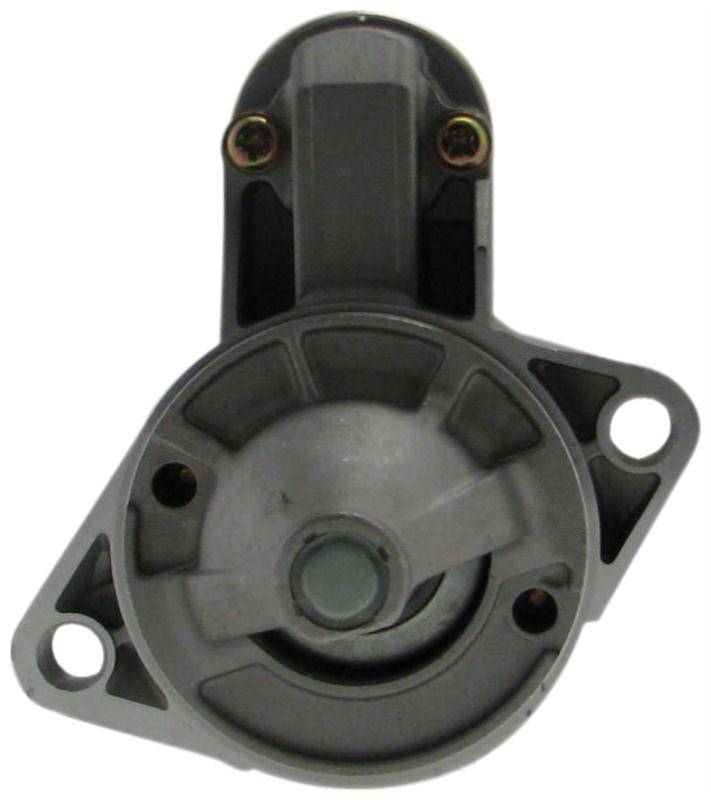

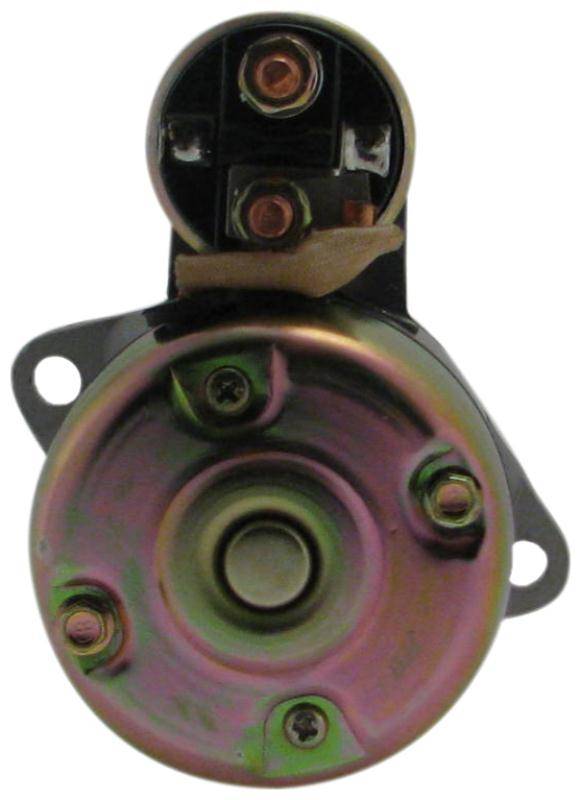

Starter Compatible With Tcm Forklift Fcg15n6 Fcg18n7 Fcg28n A15 H20 Engine Cw Mitsubishi M3t21882

(0) Reviews: Write first review
16794C3
OEM PART NUMBERS:
• Mitsubishi: M3T41181 / M3T41185 / M3T38581 / M3T38682 / M3T21882D
• Mitsubishi: M3T21781 / M3T21781D / M3T21881 / M3T21882
• Mitsubishi: M3T21281 / M3T21281D / M3T21282 / M3T25181 / M3T11272
• Mitsubishi: MEY2R / MEY3R / MEA13-1 / MEA13-2
• Nissan: 23300-P5110 / 23300P5110 / 23300-P5111 / 23300P5111
• Nissan: 23300-P5112 / 23300-P5113 / 23300-P5114
• Nissan: 23300-15815 / 23300-15811 / 23300-42L13
• Nissan: 23300-00H00 / 23300-00H10 / 23300-00H11 / 23300-60S10
• Nissan: 23300-L1110 / 23300-L1111 / 23300-L2910 / 23300-L2911 / 23300-L2912
• Kalmar: 4942421 / 4948522
• Towmotor: 971522

SPECIFICATIONS:
• Voltage: 12V
• Type: DD (Direct Drive)
• Rotation: CW (Clockwise)
• Tooth Count: 8
• Gear OD: 28mm / 1.102"
• Power: 0.8kW
• Mounting Ear 1: 10.5mm ID Unthreaded
• Mounting Ear 2: 10.5mm ID Unthreaded
• Weight: 9.7 lbs / 4.41 kg
• Condition: New

APPLICATION:
• TCM FG9/FG9N/FG10N/FG14N/FG15N/FG18N A15/J15PU Engine (1985-2006)
• TCM FG20N/FG23N/FG25N/FG28N/FG30N H20 Engine (1979-2007)
• TCM FCG-Series A15/H20/J15PU Engine (1979-2006)
• TCM FVG20N-FVG30N H20 Engine (1979-2002)
• TCM FHG15N/FHG18N H20 Engine (1980-2001)
• TCM SG10N/SG12N H20 Engine (1980-1999)
• Nissan Forklifts AEH/APH/CEF/CPH/EGH H20/A15/J15 Engine
• Komatsu FG108 H20PNE3 (1980-1999)

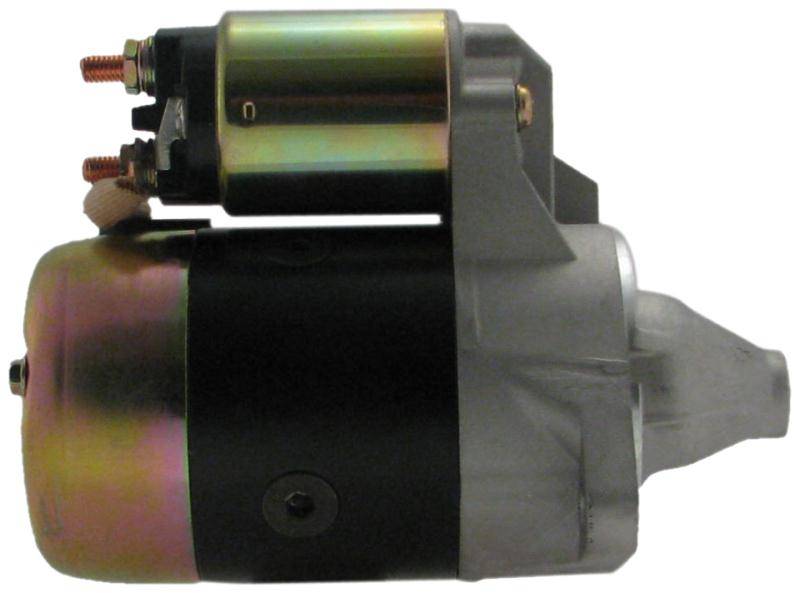

12V Mitsubishi DD Starter - TCM and Nissan Forklifts H20 A15 J15PU Engines
Brand new Mitsubishi DD starter motor for TCM and Nissan forklifts equipped with Nissan H20, A15, H15, H25, and J15PU engines. 12V clockwise rotation with 8 tooth pinion gear and 28mm gear OD. Replaces Mitsubishi M3T41181, M3T41185, M3T38581, M3T38682, M3T21882D, M3T21781D, MEY2R, MEY3R, Nissan 23300-P5110 through 23300-P5114, 23300-00H10, 23300-42L13, 23300-15815, Kalmar 4942421, 4948522, and Towmotor 971522.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $197.68
Sale: $112.96
Save: 43%
Save: $84.72
Qty:
Free Shipping!

Description

TCM FG-SERIES FORKLIFTS:
• FG9/FG9N A15 Engine (1985-2006)
• FG10N A15 Engine (1985-2006)
• FG14N A15/J15PU Engine (1985-2006)
• FG15N A15/J15PU Engine (1985-2006)
• FG18N A15 Engine (1985-2006)
• FG20N A15/H20/J15PU Engine (1979-2007)
• FG23N A15/H20 Engine (1979-2007)
• FG25N A15/H15/H20/J15PU Engine (1979-2002)
• FG28N H20 Engine (1979-2007)
• FG30N H20 Engine (1979-2007)

TCM FCG-SERIES FORKLIFTS:
• FCG10N7 A15 Engine (1985-2006)
• FCG15N6 A15 / FCG15N7 J15PU Engine (1979-2006)
• FCG18N6 J15PU240 / FCG18N7 A15 Engine (1979-2002)
• FCG20N/FCG23N/FCG25N/FCG28N H20 Engine (1979-2002)

TCM FVG-SERIES FORKLIFTS:
• FVG20N/FVG23N/FVG25N H20 Engine (1979-2002)
• FVG28N/FVG30N H20 Engine (1979-2002)

TCM FHG-SERIES FORKLIFTS:
• FHG15N/FHG18N H20 Engine (1980-2001)

TCM MISC EQUIPMENT:
• SG10N/SG12N H20 Engine (1980-1999)

NISSAN FORKLIFTS:
• AEH/AH/APH/ASH H20 Engine
• CEF/CEGH/CEH H20 Engine
• CF J15 / CPF/CPH H20 Engine
• CQF/CRGH/EGH H20 Engine
• F01 J15 / F02 H20 Engine
• PF/PGF H20 / QF01 J15 / QGF02 H20 Engine

KOMATSU FORKLIFTS:
• FG108 H20PNE3 Nissan Gas (1980-1999)

NOTE: Verify OEM part number before ordering to ensure proper fitment.
