OEM PART NUMBERS:
• 428000-5120 / 4280005120
• 428000-5121 / 4280005121
• 428000-5122 / 4280005122
• (ND prefix): ND428000-5120
• Bluebird: 0108907 / 00108907
• Kalmar: 90032414
• Cummins: 90032414 / 3478887
• Cross Reference: 246-31102
• Cross Reference: M95307H
SPECIFICATIONS:

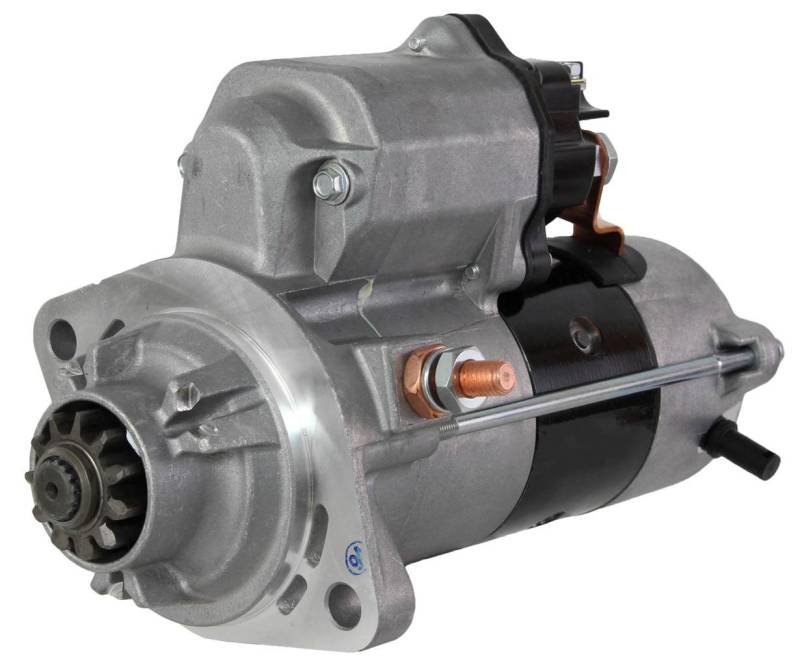

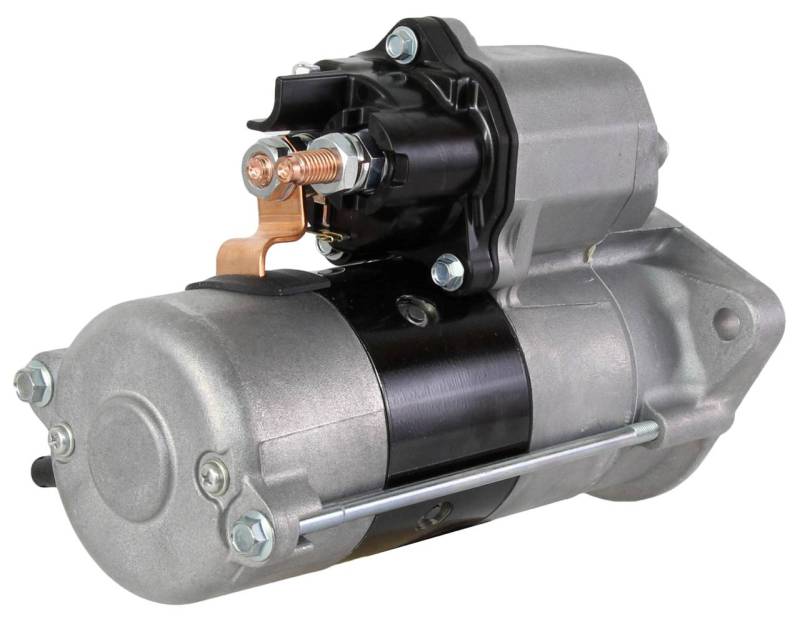

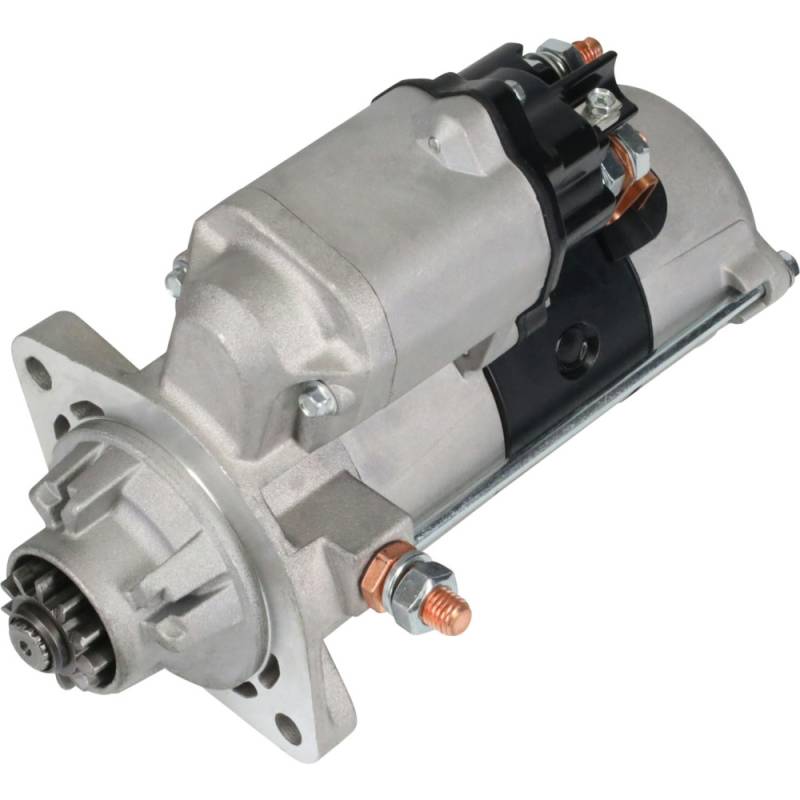

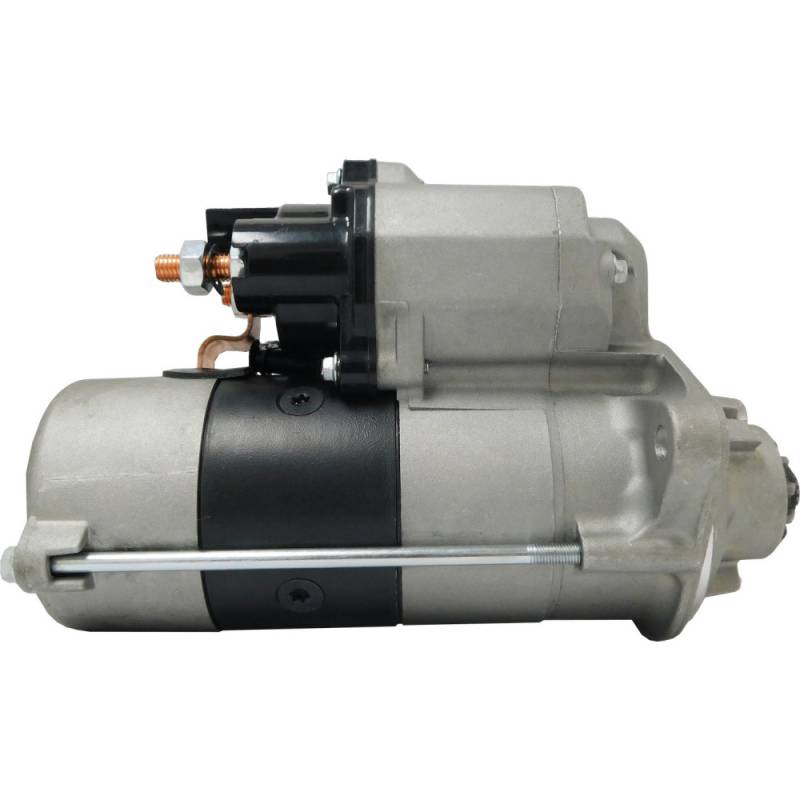

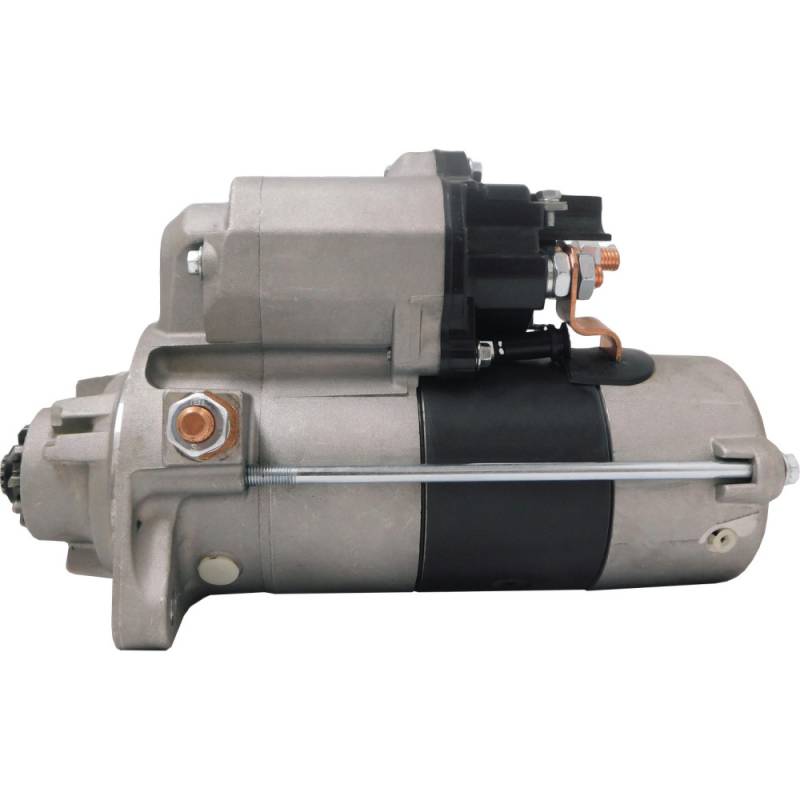

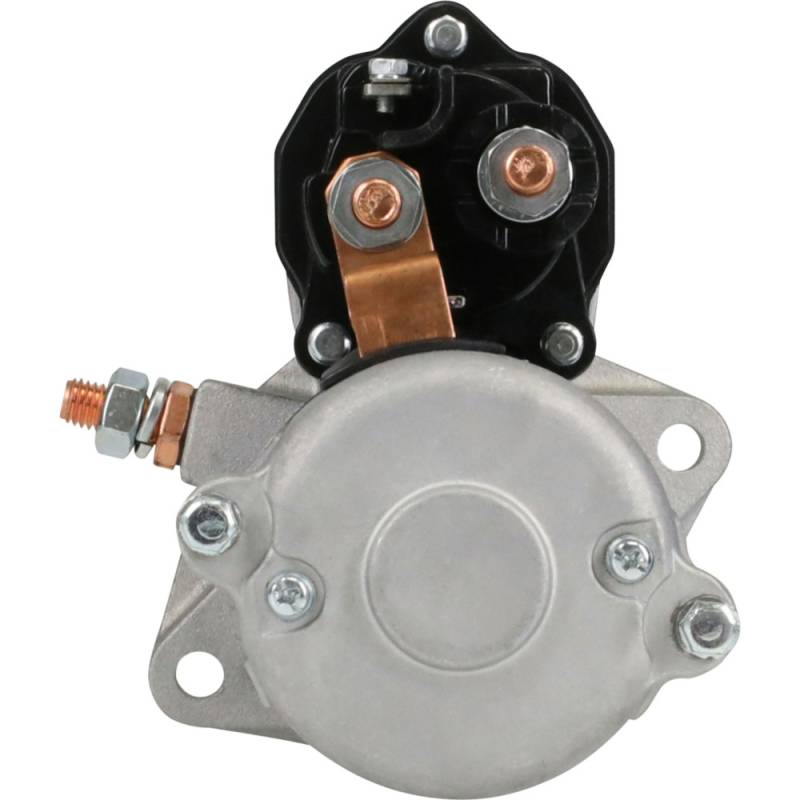

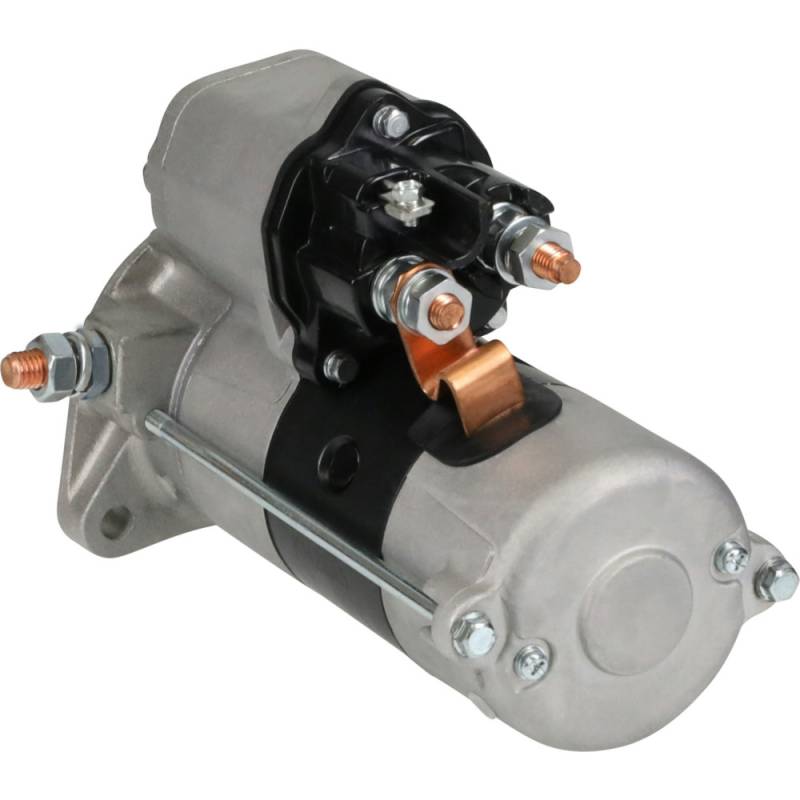

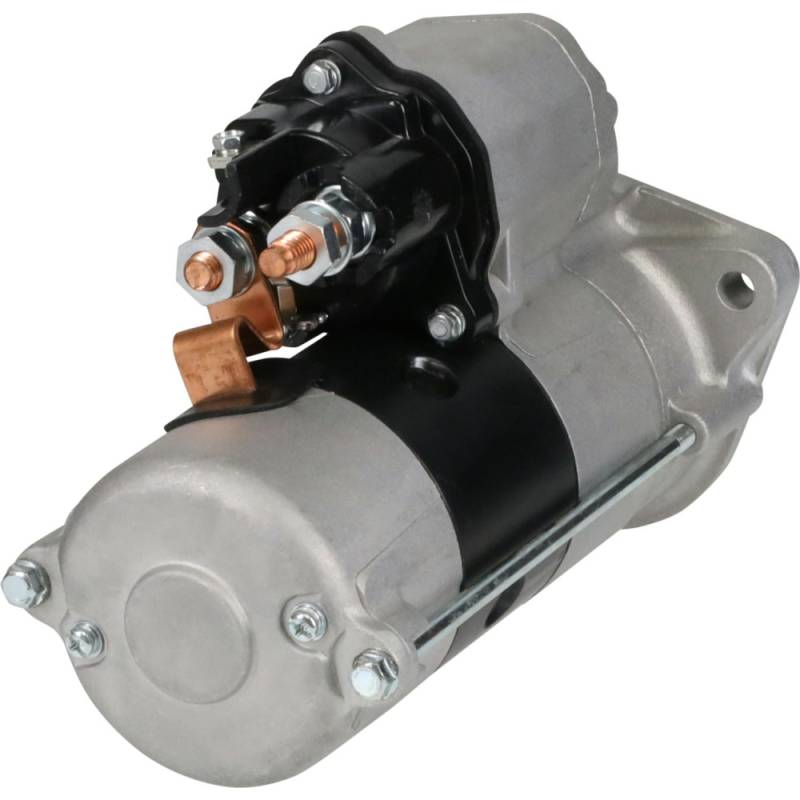

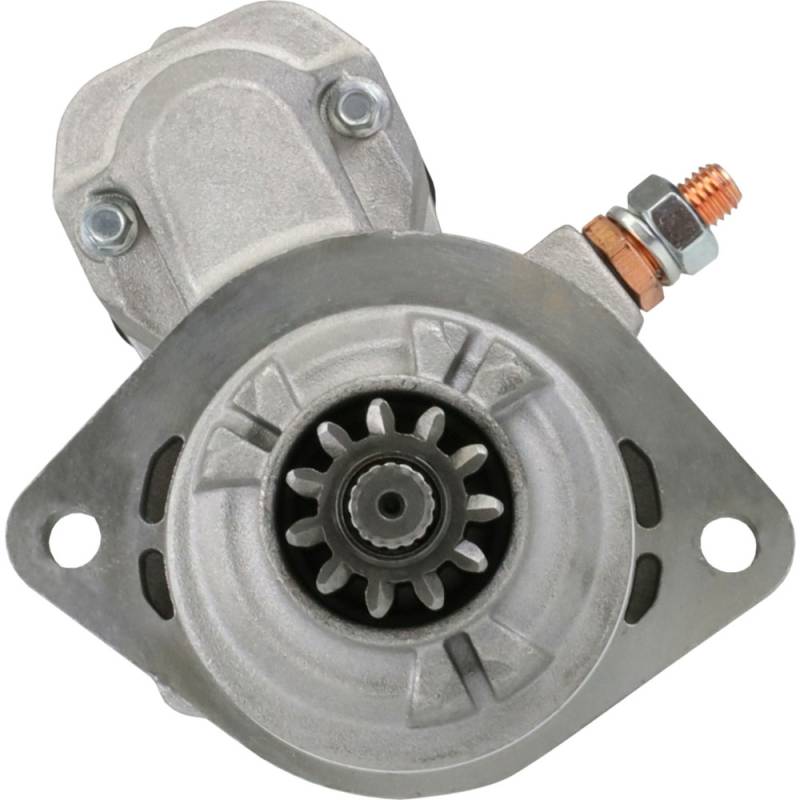

• Type: Starter Motor — PLGR (Planetary Gear Reduction)
• Family: PA90S
• Voltage: 12V
• Power: 3kW / 4.02HP
• Rotation: CW (Clockwise)
• Teeth: 11
• Gear OD: 1.567" / 39.8mm
• Mounting Ear 1: 11.2mm Unthreaded
• Mounting Ear 2: 11.2mm Unthreaded
• Battery Stud: M10-1.5 Threaded
• Motor Stud: M10-1.5 w/ Connector Attached to CE Housing
• Switch Terminal: Screw Type
• Weight: 17.5 lbs / 7.95 kg
• Condition: New
APPLICATIONS:
• Bluebird All Models w/ Cummins ISB 6.7L (ISB-07) Turbodiesel 200-300HP (2007+)
• Ottawa T2 4x2 / 6x4 Terminal Tractors w/ Cummins ISB / QSB 6.7L 164-200HP (2007+)
• Capacity TJ5000 / TJ5000 DOT w/ Cummins B6.7 173-200HP (2007+)
• Capacity TJ6500 DOT / TJ7000 / TJ9000 w/ Cummins ISB 6.7L (2007+)
• Capacity SABRE5 w/ Cummins ISB 6.7L 200HP (2015+)
• Paccar PX-6 6.7L Turbodiesel Applications (rebadged Cummins ISB) (2007+)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
