OEM PART NUMBERS:
• Mercury Marine / Force: 824051
• Mercury Marine (superseded): 830250A2 / 830250A6
• Mercury Marine (current): 8M0055012 / 8M0090334 / 8M0171817
• Mercury Marine: 811673-1 (reservoir assembly)
• Quicksilver: 8M6007532
AFTERMARKET CROSS REFERENCE:
• API Marine: PT495NK
• Arco Marine: 6274
• 18-6775
SPECIFICATIONS:

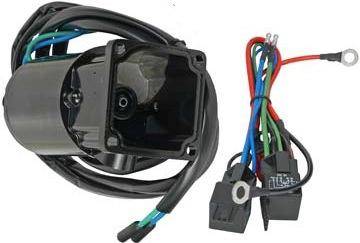

• Type: Tilt Trim Motor
• Voltage: 12V
• Rotation: Reversible
• Wire Connection: 2-Wire (replaces OE 3-wire 1993-1995)
• Mounting: 4 Bolt
• Shaft: Female 4mm Hex
• Field Housing OD: 78mm (3.071 in)
• Overall Length: 160mm (6.299 in)
• Weight: 7 lbs
• Tilt System: Single Ram
• Condition: New
MERCURY OUTBOARD APPLICATIONS:
• 65HP / 65HP Jet 3-Cyl (1994-1999)
• 75HP 3-Cyl Looper (1990-1999) / 80HP 4-Cyl (1994-1999)
• 90HP 3-Cyl Looper (1990-1999) / 100HP 4-Cyl Looper (1985-1999)
• 115HP 4-Cyl Looper (1989-1999) / 120HP 4-Cyl (1995-1997)
• 125HP 4-Cyl Looper (1994-1999)
FORCE OUTBOARD APPLICATIONS:
• 85HP (1986-1991) / 90HP 3-Cyl (1986-1997)
• 120HP 4-Cyl (1986-1997) / 125HP (1986-1991) / 150HP (1987-1994)
MARINER OUTBOARD:
• 75HP-125HP w/single ram tilt system (1986-1999)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
