OEM PART NUMBERS:
• 46-4037 / 464037 / 46-4037RM / 464037RM
• MFY4203 / MFY-4203 / MFY4203D / MFY-4203D
• MFY4203RM / MFY-4203RM / MFY4203S / MFY-4203S
• Western Motor: W-4037 / W4037
• Haldex Barnes / Concentric: 2200943 / 2201043 / 220-1136 / 2201136
• Cross-Reference: 94-06-1835 / 94061835 / 94-06-1836 / 94061836
SPECIFICATIONS:

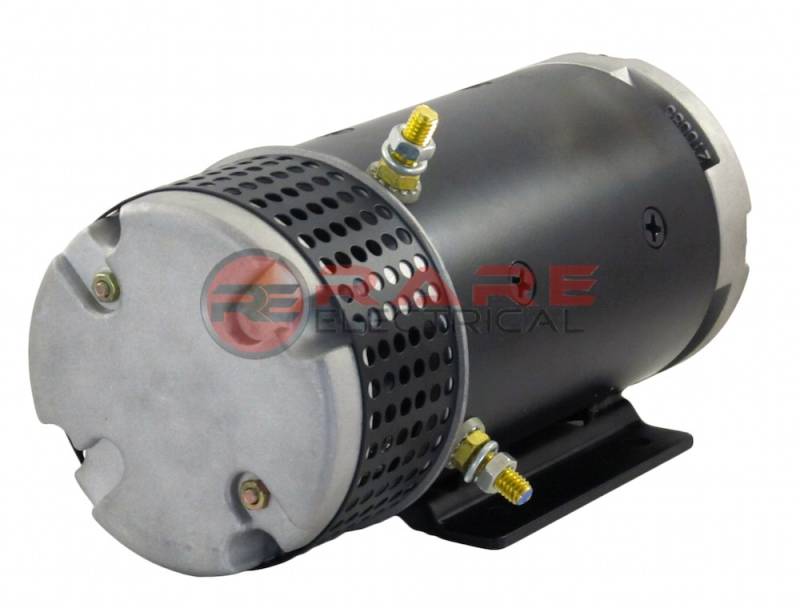

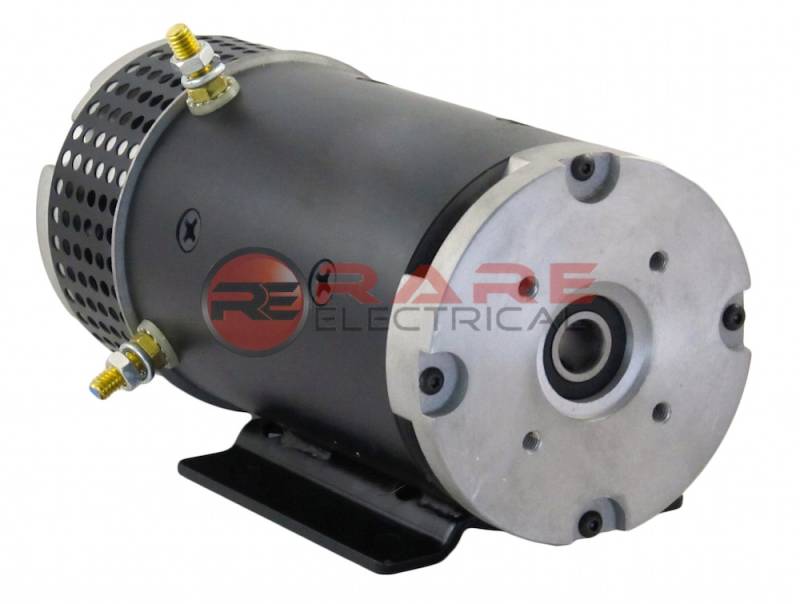

• Type: Hydraulic Pump Motor — 24V DC — CW
• Power: 7 HP / 9-Spline Shaft / 25mm (0.984") OD
• Field Housing OD: 5.031" (127.8mm) / Length: 10.315" (262mm)
• Mounting: 10mm ID Holes x 92mm Center to Center
• Terminal: 5/16-18 / Housing: Cast Aluminum DE / Black Field
• Weight: 30 lbs / Condition: New
CATERPILLAR / HALDEX BARNES APPLICATIONS:
• Caterpillar 522 / 532 / 552 Power Steering
• Haldex Barnes / JS Barnes / Concentric Hydraulic Applications
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
