ISKRA / LETRIKA PART NUMBERS:
• AMJ5222 / AMJ-5222
• AMJ5762 / AMJ-5762
• AMJ5710
• IM0036 / IM-0036
• 11.212.633 / 11212633
• 11.216.144 / 11216144
ADDITIONAL CROSS-REFERENCES:
• W-8776A / W8776A
• 995385000004 / 99-538.50.00-00/4
• 99536500022 / 99-536.50.00-22
SPECIFICATIONS:

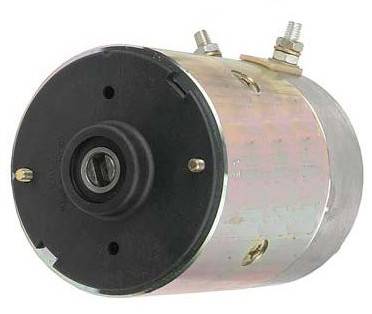

• Product Type: Hydraulic Motor (DC Motor)
• Unit Type: Iskra / Letrika (MAHLE)
• Voltage: 12V
• Amperage: 230A
• Power: 1.6 kW
• Speed: 2,600 RPM
• Rotation: CW (Clockwise)
• OD: 114.5mm / 4.508 in
• Shaft OD: 14.9mm / 0.587 in
• Shaft: 6.5mm Slotted
• Length: 172.5mm / 6.791 in
• Terminals: 2x M8-1.25
• Thru Bolts: 3 and 9 o'clock position
• Insulated Ground
• Weight: 6.7 kg / 14.8 lbs
• Condition: New
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
