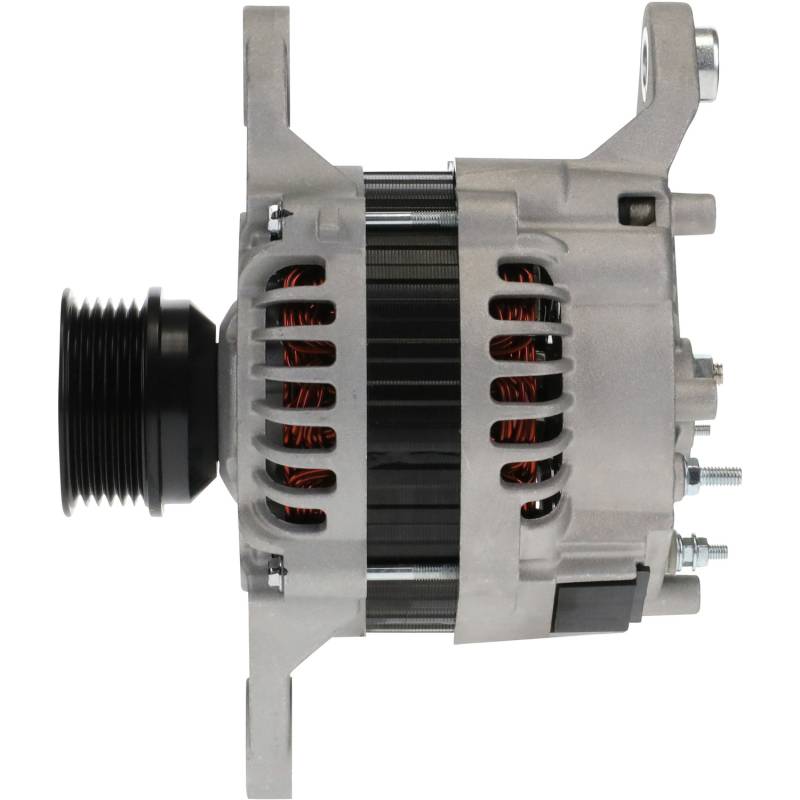

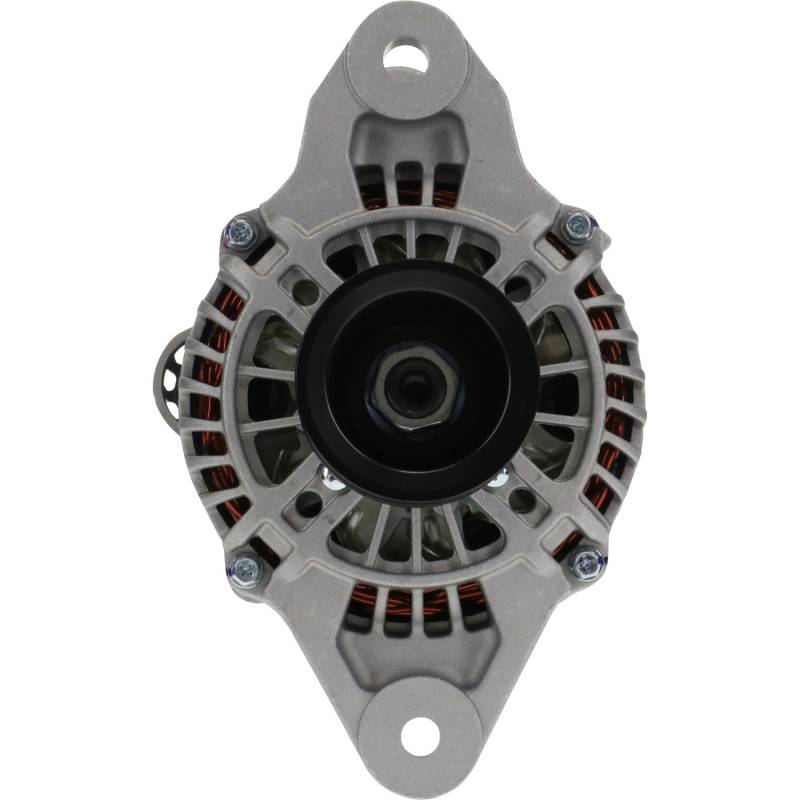

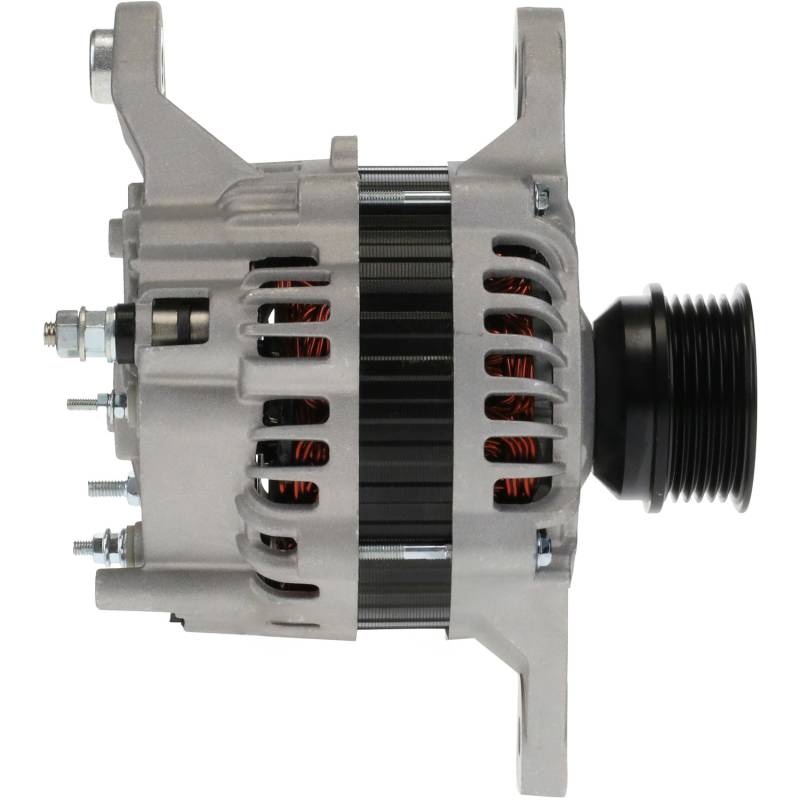

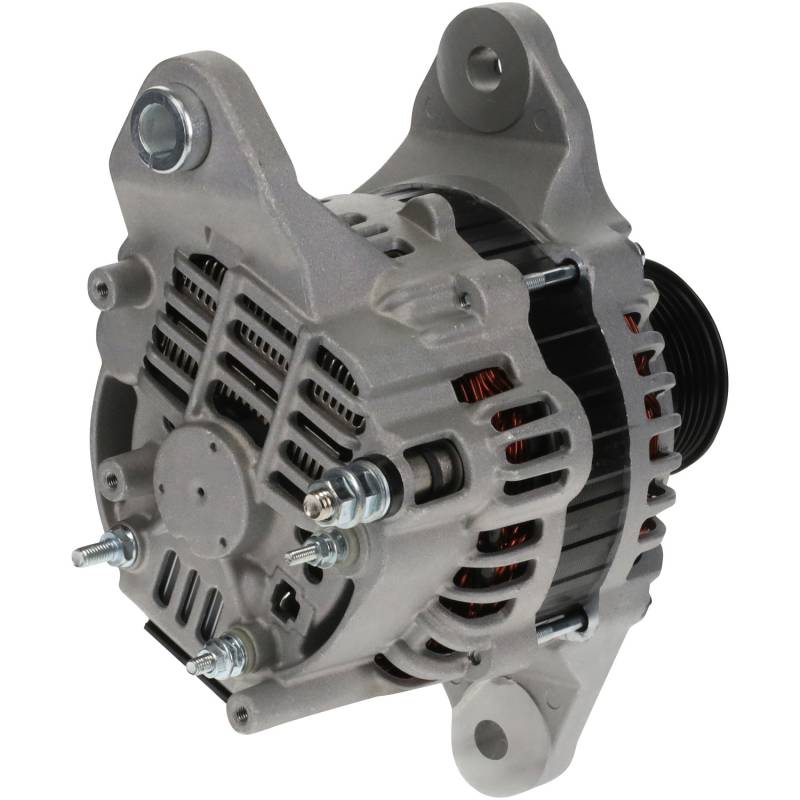

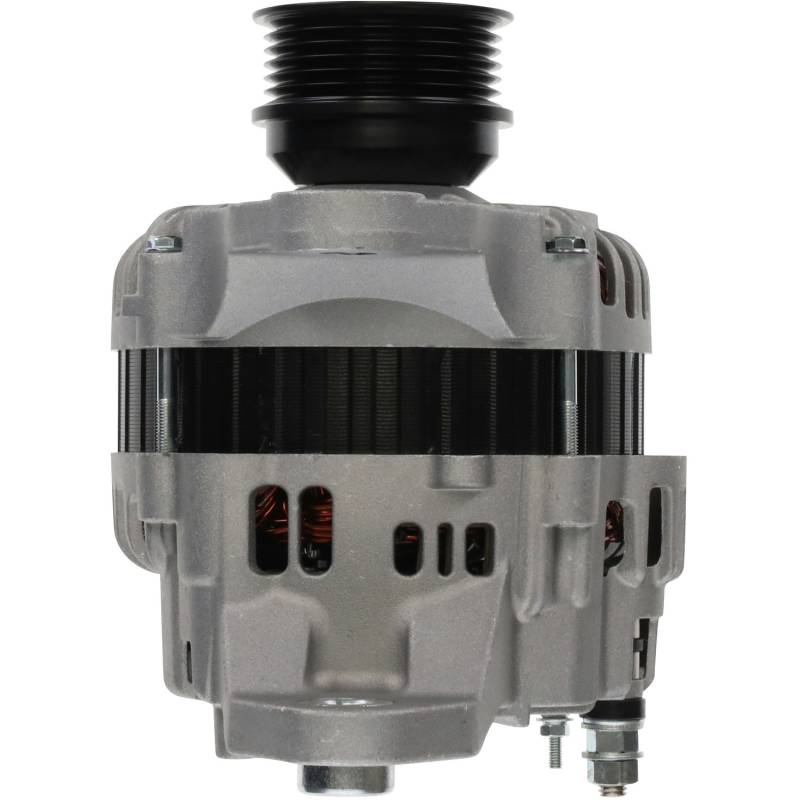

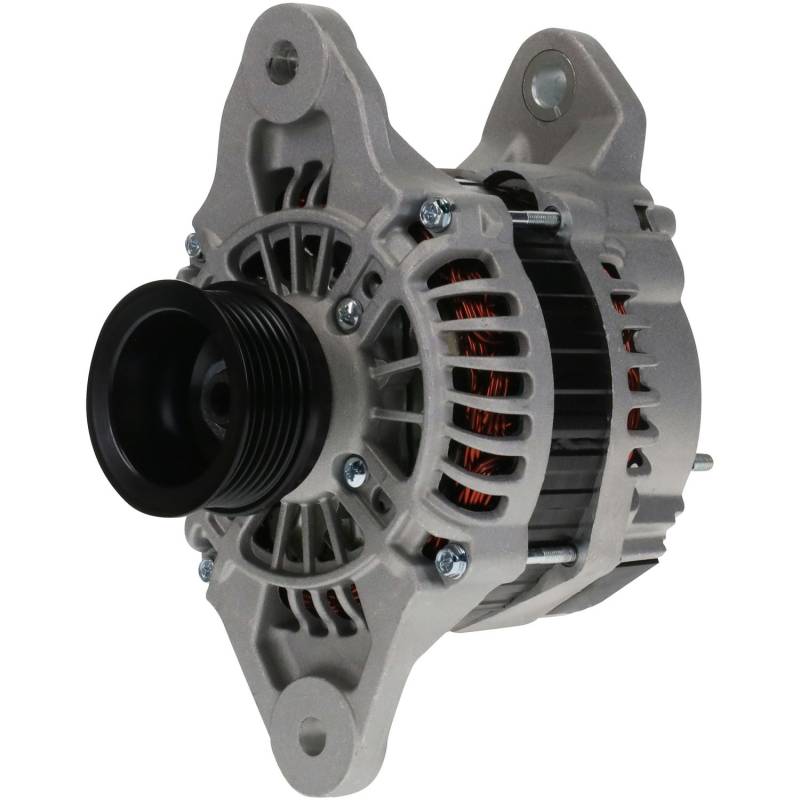

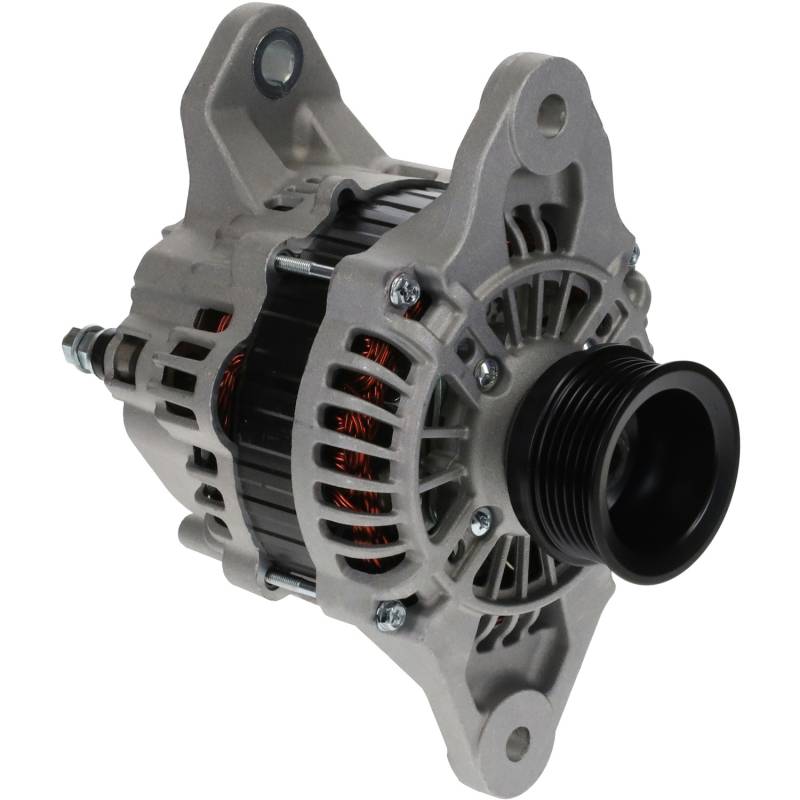

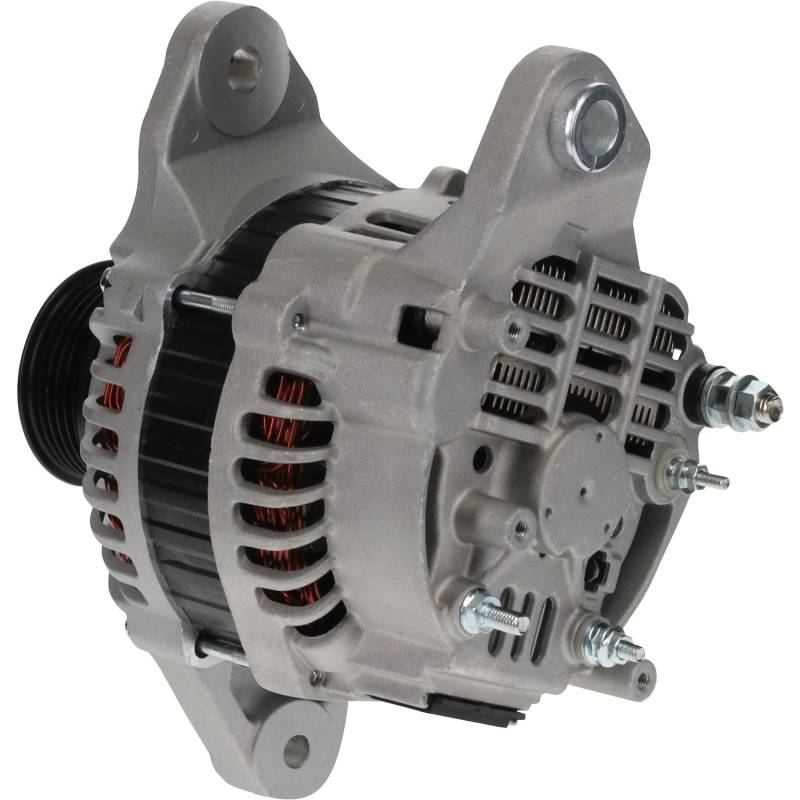

Volvo Penta / Mitsubishi Marine Alternator - 12V 115 Amp J180 Mount for Volvo Penta D-Series Marine Diesel Engines. SAE J1171 Marine Ignition Protection Certified.
SPECIFICATIONS:
- Voltage: 12V (14V regulated)
- Amperage: 115 Amps
- Type: Mitsubishi Design
- Rotation: Clockwise (CW)
- Regulator Position: 1:00
- Regulator: Internal (IR)
- Fan: Internal (IF)
- Polarity: Negative Ground
- Mount: J180 Hinge (7.79 in)
- B+ Output: M8 × 1.25mm
- Pulley: 6-Groove Serpentine (63mm)
- Certification: SAE J1171
- Weight: 16.9 lbs (7.67 kg)
VOLVO PENTA PART NUMBERS:
3840181, 3817662, 874502, 3803650, 3587216, 3587218, 3803911, 3819662, 21697753
MITSUBISHI PART NUMBERS:
A3TR0091, A3TR0091ZT, A003TR0091, A003TR0091ZT, A3TR0092, A3TR0092ZT, A003TR0092, A003TR0092ZT, A3TR0093, A3TR0093ZT, A003TR0093, A003TR0093ZT, A3TR0094, A3TR0094ZT, A003TR0094, A003TR0094ZT, A3TR5092, A3TR5092ZT
CROSS REFERENCES:
• Lester: 12745
• Lucas: LRA02921
• Arrowhead: 143-36127
• WAI: A-80160
FEATURES:
✓ SAE J1171 Marine Certified
✓ Internal regulator & fan
✓ J180 hinge mount
✓ 6-groove serpentine pulley
✓ Marine-grade construction
✓ High 115A output
"
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
