Top End Rebuild Kit 0.75Mm Over 80.75Mm Compatible With 2000-2003 Kawasaki 1100 Stx Di 2001-2004

OEM PART NUMBERS:
• Kawasaki: 13001-3734 / 130013734

SPECIFICATIONS:
• Type: Top End Rebuild Kit (0.75mm Oversize Bore)
• Standard Bore: 80.0mm / Oversize: 80.75mm (0.75mm Over)
• Engine: Kawasaki 1071cc 3-Cylinder 2-Stroke Vertical Triple
• Fuel System: Ficht Direct Injection (DI)
• Power: 130HP / Liquid Cooled / Digital CDI Ignition
• Weight: 6 lbs / Condition: New

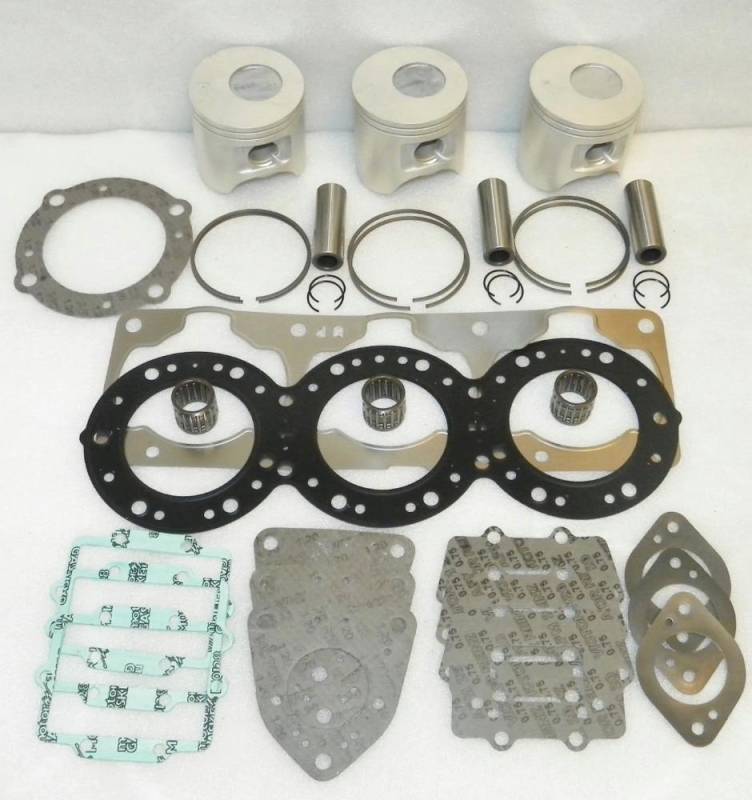

KIT CONTENTS (Complete 3-Cylinder Top End):
• (3) Cast Pistons with Ring Sets (Japanese RIK Performance)
• (3) Wrist Pins / (3) Wrist Pin Bearings / (6) Circlips
• Complete Gasket Set (Head, Base, Exhaust Gaskets, O-Rings)

BORE SIZE CHART (Kawasaki 1100 DI):
• Standard: 80.00mm
• 0.25mm Over: 80.25mm
• 0.50mm Over: 80.50mm
• 0.75mm Over: 80.75mm (010-842-13) — THIS KIT
• 1.00mm Over: 81.00mm

APPLICATIONS (DI ONLY):
• 1100 STX DI (2000-2003) / Ultra 130 (2001-2004)
