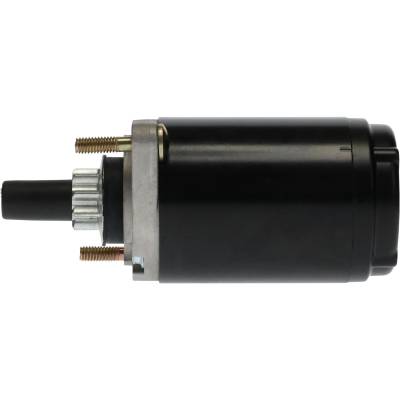

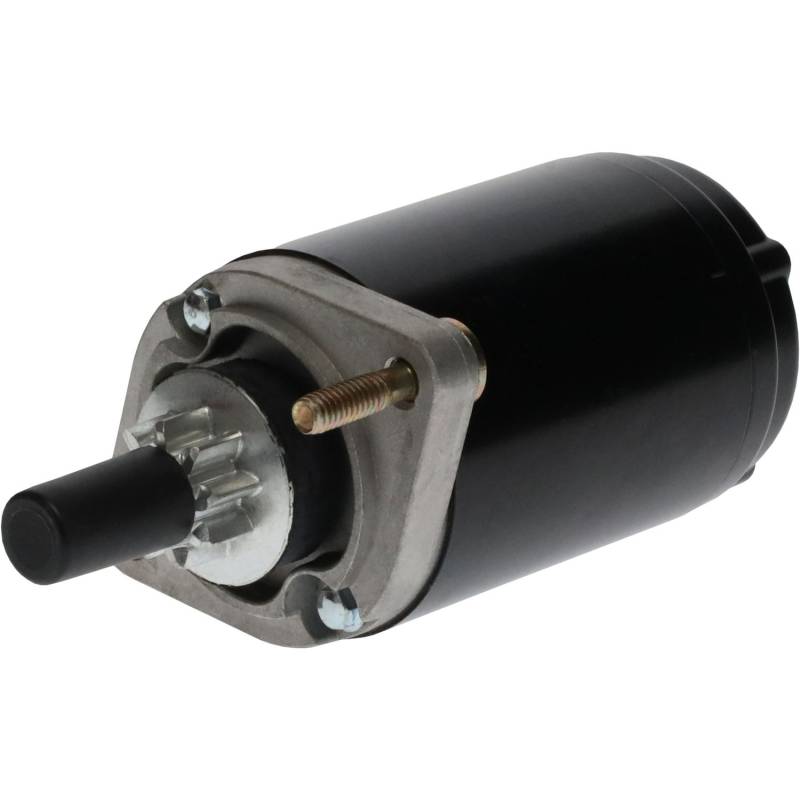

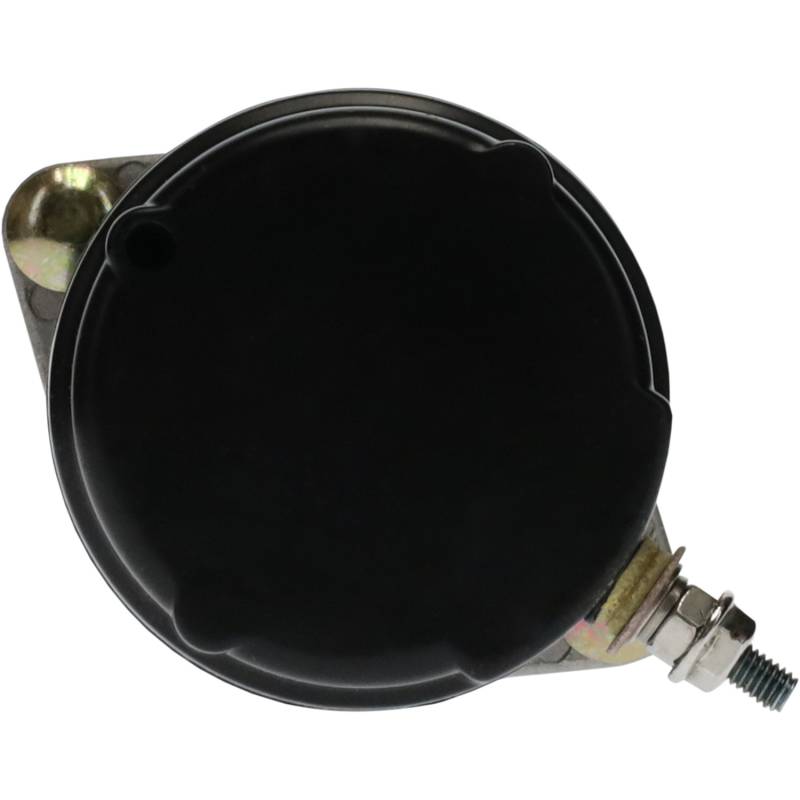

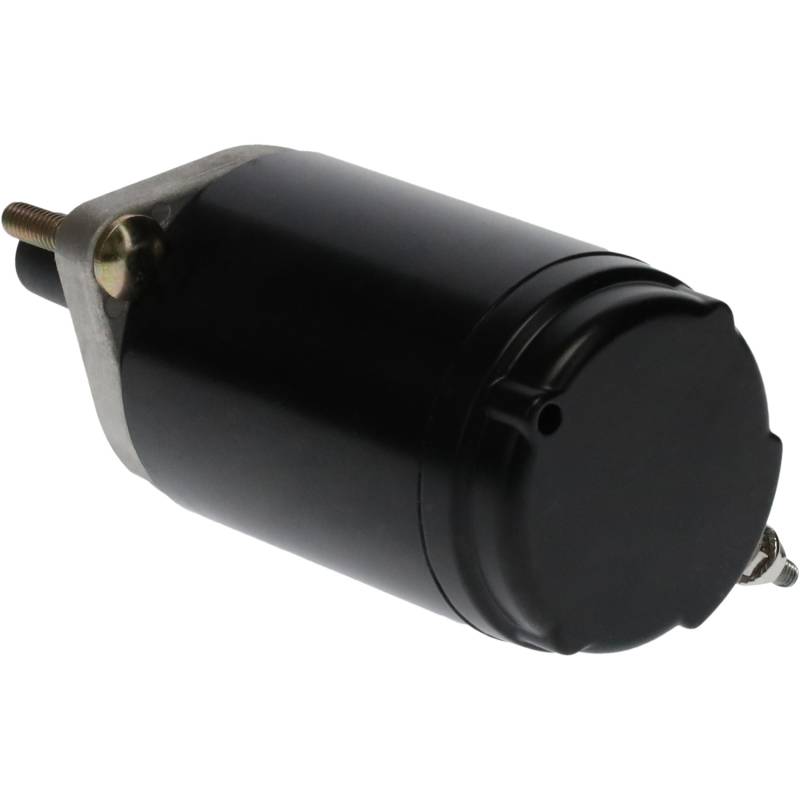

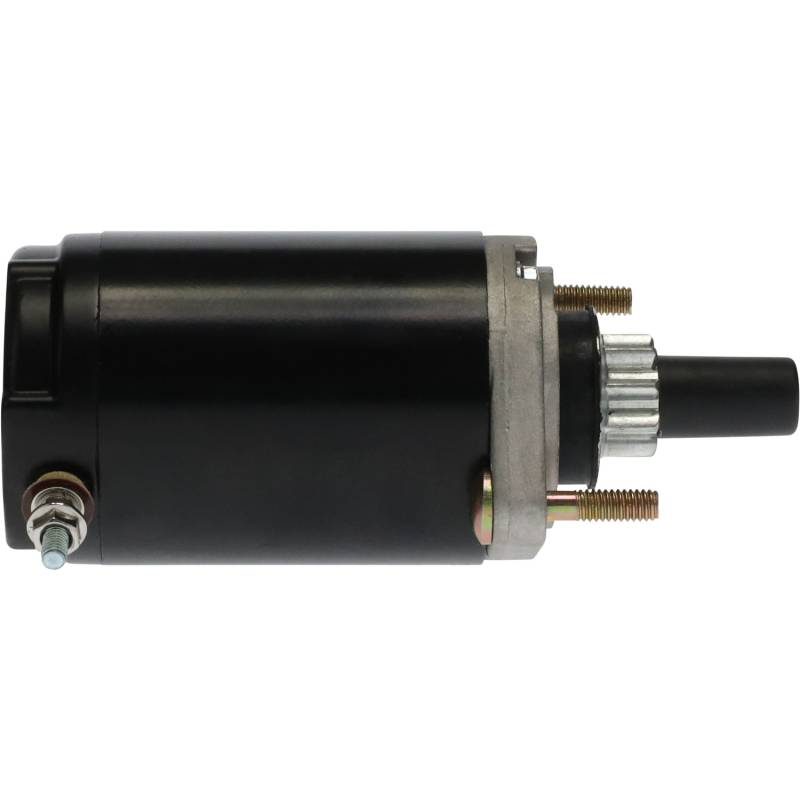

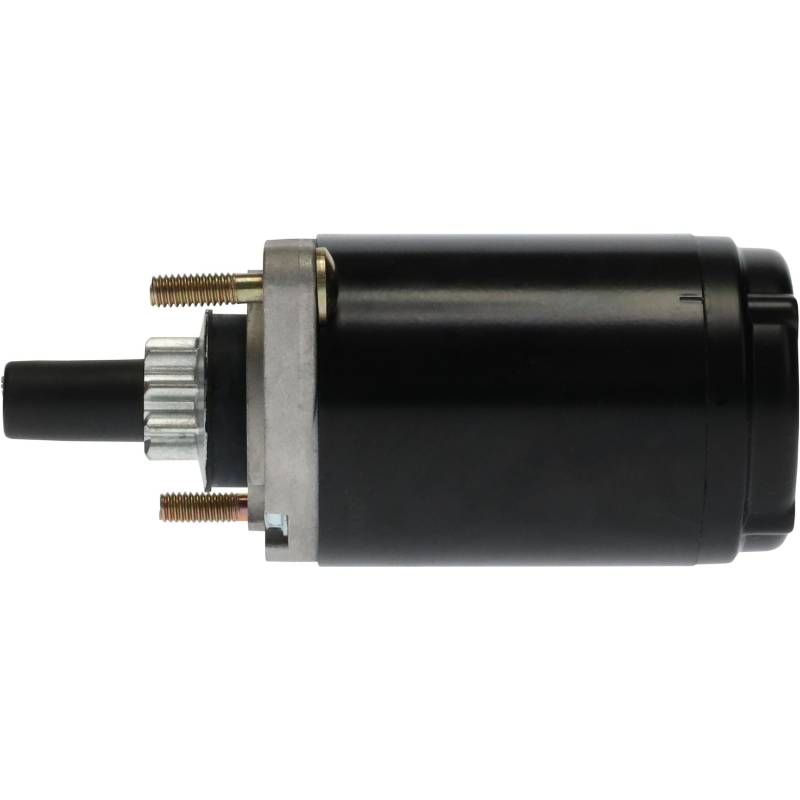

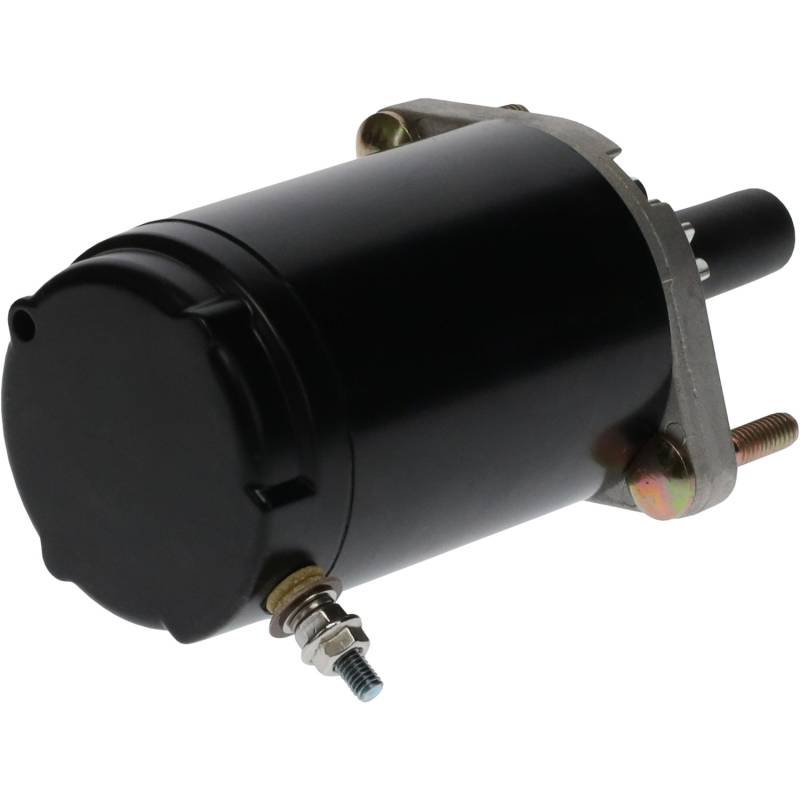

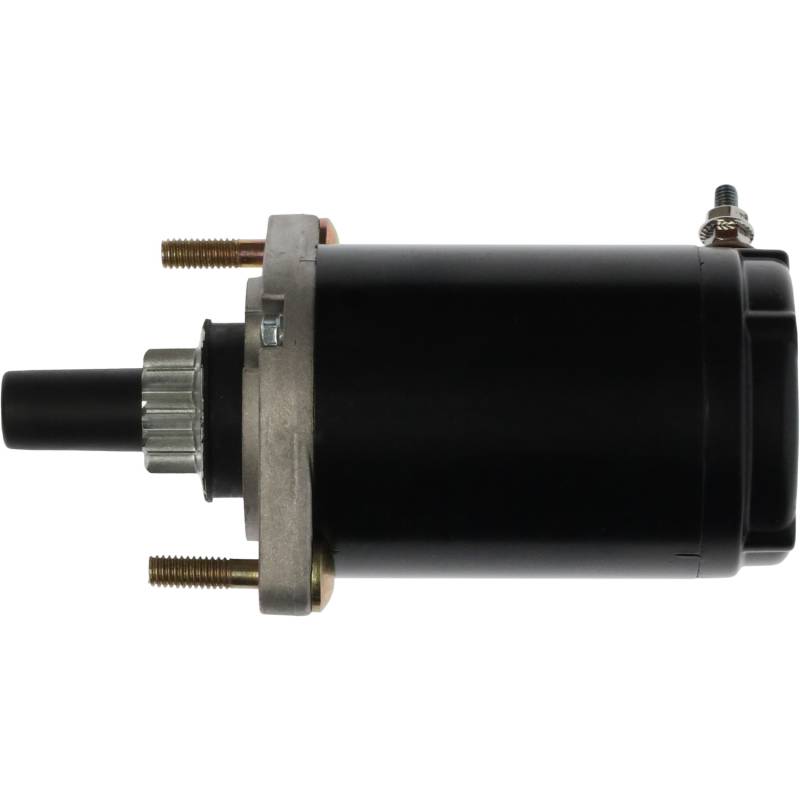

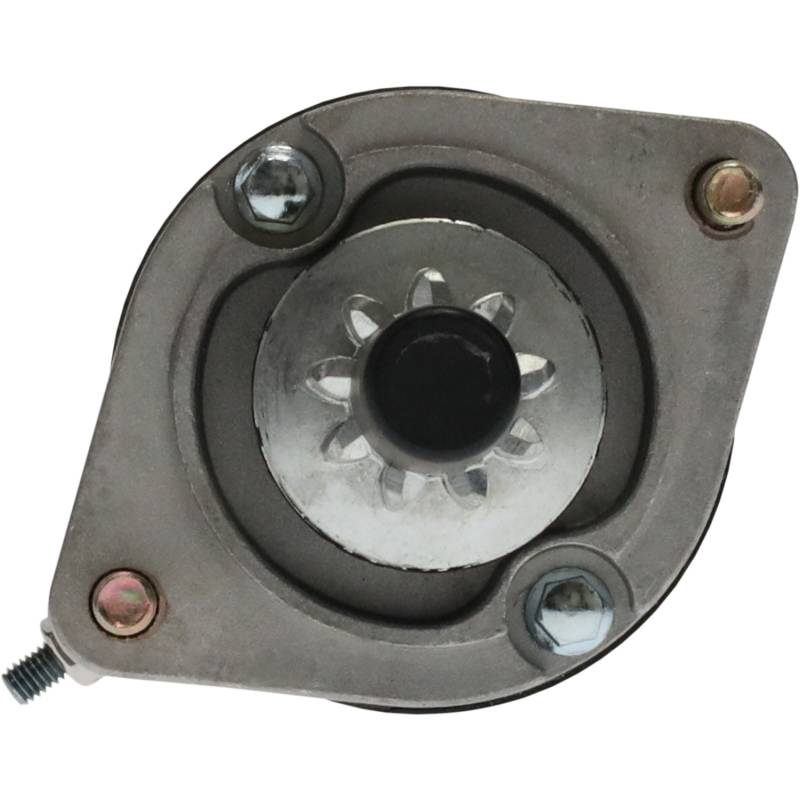

Snowmobile Starter 12V 9T Compatible With Arctic Cat Panther 440 Deluxe Esr Lc Mountain Cat Prowler

5944B3
OEM PART NUMBERS:
• Arctco: 0745-052
• Arctco: 0745-257
• Arctco: 0745-030
• Arctco: 0745-018
• Arctco: 0745-357 (replaced by 0745-434)
• Arctco: 0745-434 (current number)
• Arctco: 6639-631
• Arctco: 0745-395
• Arctco: 0745-382
• Arctco: 0745-376
• Arctco: 0745-358
• Arctco: 0745-351
• Arctco: 0745-331
• Arctco: 0645-064

SUPERSESSION CHAIN:
• 0745-052 → superseded by 0745-257 → superseded by 0745-357 → superseded by 0745-434
• 0745-018 → superseded by 0745-030 → superseded by 0745-357 → superseded by 0745-434

SPECIFICATIONS:
• Type: Starter Motor
• Voltage: 12V
• Rotation: CW (Clockwise)
• Teeth: 9
• Gear OD: 29.1mm / 1.146in
• Weight: 6 lbs / 2.72 kg
• Brush Type: Carbon
• Torque: 1.74 Nm
• Cycle Rating: 10000
• Manufacturer: Johnson Electric
• Dimensions: Length 183mm (7.2in), Width 78mm (3.1in), Height 78mm (3.1in)
• Mounting Hole Distance: 90mm (3.5in)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $179.13
Sale: $102.36
Save: 43%
Save: $76.77
Qty:
Free Shipping!

Description

ARCTIC CAT SNOWMOBILE APPLICATIONS:

PANTERA (431cc):
• Pantera 440 (431cc) - 1988, 1989, 1990, 1991, 1992
• Pantera 550 (550cc) - 1993, 1994

PANTHER (339-431cc):
• Panther 340 (339cc) - 1998, 1999, 2000
• Panther 370 (367cc) - 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• Panther 440 (431cc) - 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002
• Panther 440 Deluxe (431cc) - 1991, 1992, 1993, 1994, 1995, 1996
• Panther 440 ESR (431cc) - 2001
• Panther 440 LC (431cc) - 1996
• Panther 440 Mountain Cat (431cc) - 1990, 1991

PROWLER (431cc):
• Prowler 440 (431cc) - 1990, 1991, 1992, 1993, 1994
• Prowler 440 2-Up (431cc) - 1991, 1992, 1993, 1994
• Prowler 440 Mountain Cat (431cc) - 1991, 1992
• Prowler 440 Special (431cc) - 1991, 1992
• Prowler 550 2-Up (550cc) - 1995

PUMA (339cc):
• Puma 340 (339cc) - 1994, 1995, 1996, 1997
• Puma 340 2-Up (339cc) - 1994, 1995, 1996, 1997
• Puma 340 Deluxe (339cc) - 1994, 1995, 1996, 1997

SUPER JAG (431cc):
• Super Jag 440 (431cc) - 1989, 1990, 1991, 1992

Z 370 (367cc):
• Z 370 (367cc) - 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
• Z 370 ES (367cc) - 2000, 2001, 2002, 2003
• Z 370 ESR (367cc) - 2003
• Z 370 LX (367cc) - 2004, 2005, 2006, 2007

Z 440 (431cc):
• Z 440 (431cc) - 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
• Z 440 ES (431cc) - 2000, 2001, 2002, 2003
• Z 440 ESR (431cc) - 2003
• Z 440 LX (431cc) - 2004, 2005, 2006
• Z 440 Sno-Pro (431cc) - 1999, 2000, 2001, 2002, 2003

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 6.0 lbs.
  • W6.0000” x H6.0000” x L10.0000”
  • Free Shipping!
