1989-2003 Valve Shaft Spring Holder Clip Direct Fit Replacement Compatible With Sea-Doo 580 650 720

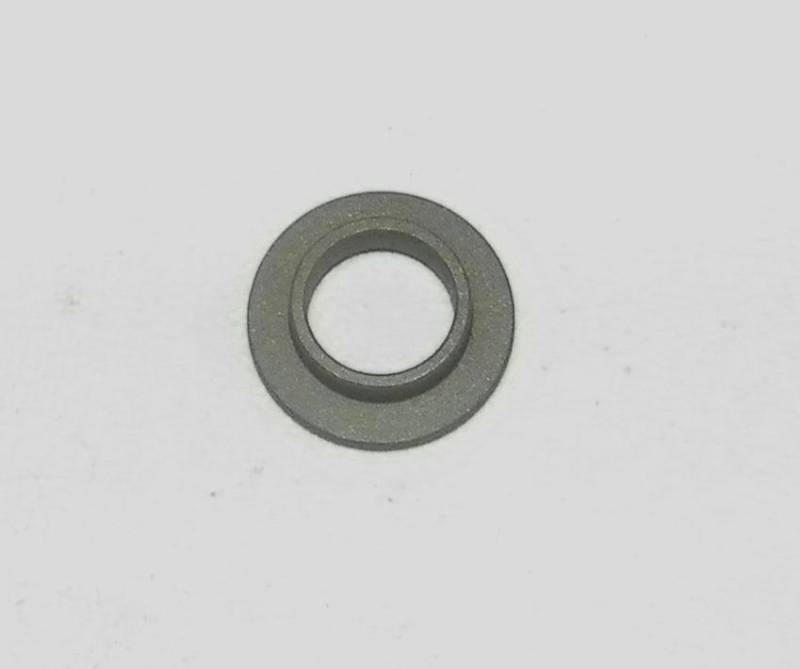

ROTARY SHAFT SPRING HOLDER — SEA-DOO 580/650/720/800 APPLICATIONS

ROTAX 587 (580cc) — Twin Cylinder 2-Stroke
Bore: 76.5mm x Stroke: 64mm | 50-56 HP | Rotary Valve Induction
- Sea-Doo GT 580 (1990-1991)
- Sea-Doo GTS 580 (1992-1996)
- Sea-Doo GTX 580 (1992-1993)
- Sea-Doo SP 580 (1989-1996)
- Sea-Doo SPI 580 (1993-1996)
- Sea-Doo SPX 580 (1993)
- Sea-Doo XP 580 (1992)

ROTAX 657 (650cc) — Twin Cylinder 2-Stroke
Bore: 78mm x Stroke: 68mm | ~65 HP | Rotary Valve Induction
- Sea-Doo GTX 650 (1994-1995)
- Sea-Doo SPX 650 (1994-1995)
- Sea-Doo XP 650 (1993-1995)
- Sea-Doo XPI 650 (1994)

ROTAX 717 (720cc) — Twin Cylinder 2-Stroke
Bore: 82mm x Stroke: 68mm | 85 HP | Rotary Valve Induction
- Sea-Doo GS 720 (1997-2001)
- Sea-Doo GSI 720 (1997)
- Sea-Doo GTI 720 (1996-2003)
- Sea-Doo GTI LE 720 (2002-2003)
- Sea-Doo GTS 720 (1996-2001)
- Sea-Doo HX 720 (1995-1997)
- Sea-Doo SP 720 (1997)
- Sea-Doo SPI 720 (1996)
- Sea-Doo SPX 720 (1996-1997)
- Sea-Doo XP 720 (1995)

ROTAX 787 (800cc) — Twin Cylinder 2-Stroke RAVE
Bore: 82mm x Stroke: 75mm | 110 HP | RAVE Exhaust Valves | Rotary Valve Induction
- Sea-Doo GSX 800 (1996-1997)
- Sea-Doo GSX RFI 800 (1999-2001)
- Sea-Doo GTI LE RFI 800 (2003)
- Sea-Doo GTX 800 (1996-1997)
- Sea-Doo GTX RFI 800 (1998-2002)
- Sea-Doo SPX 800 (1997-1999)
- Sea-Doo XP 800 (1995-1997)

NOTE: This spring holder retains the rotary valve return spring on the shaft. It is an essential component for proper rotary valve timing and operation. Common replacement during rotary valve shaft service or engine rebuild.
