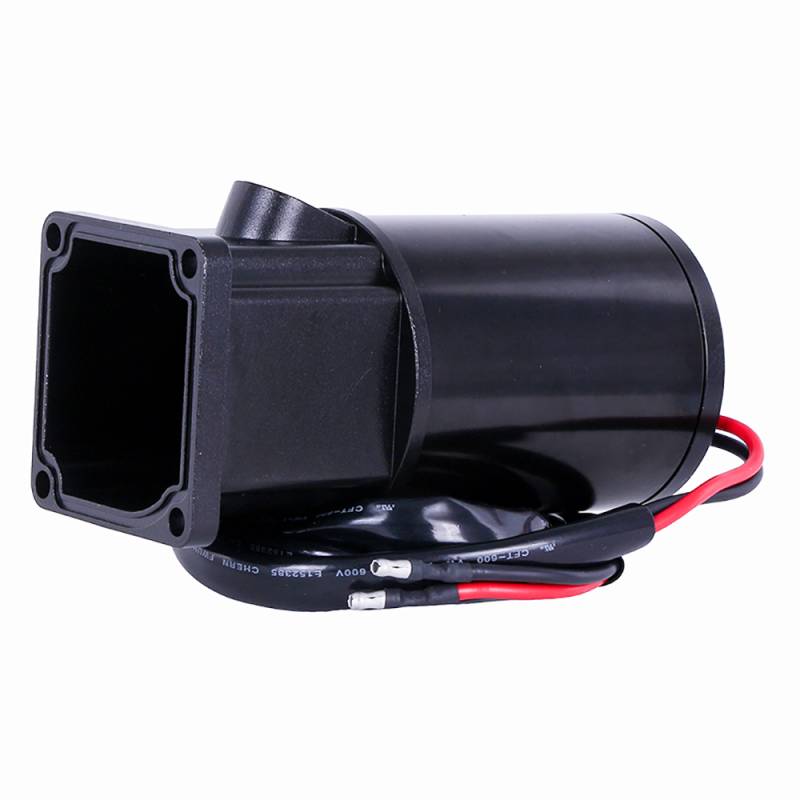

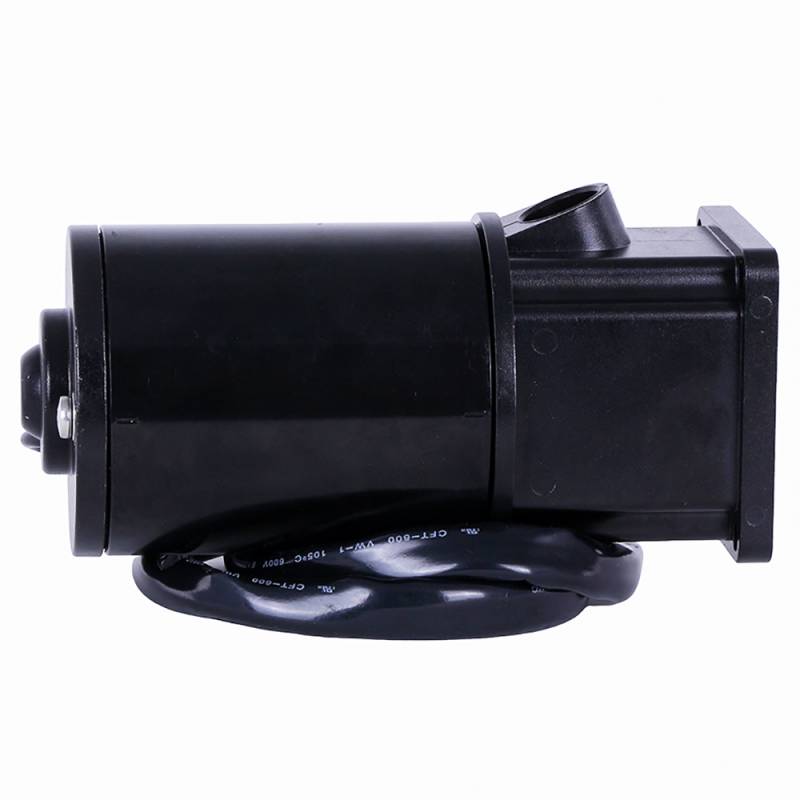

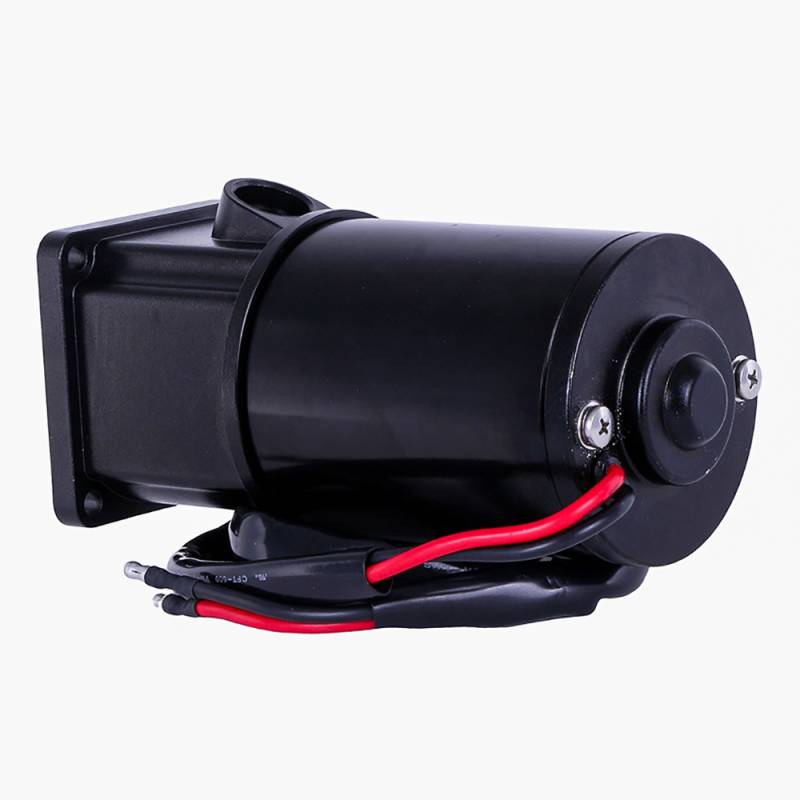

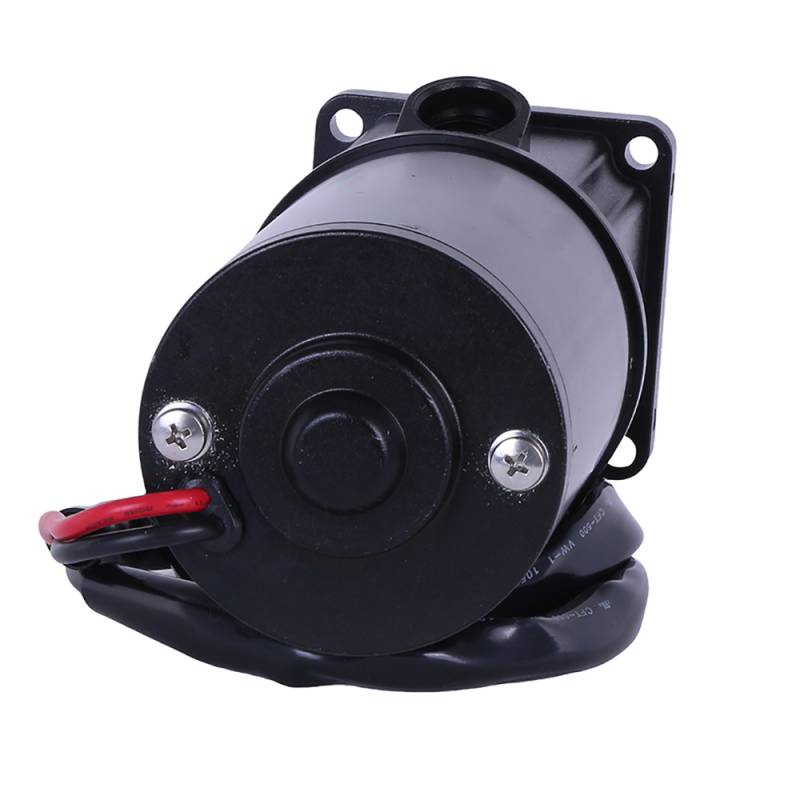

Tilt Motor & Reservoir Fits Mercury Marine 813447 819479A1 819480A1 893907A02

API MARINE: PT496NK-2
ARCO MARINE: 6276
MERCURY MARINE: 809885A1 809885A2 809885T2 813447 819479A1 819480A1 885654T1
SIERRA MARINE: 18-6777

ITEM DESCRIPTION: TRIM MOTOR
UNIT TYPE: MERCURY
VOLTAGE: 12
ROTATION: REVERSIBLE
SHAFT NOTES: HOLLOW HEX SHAFT
OVERALL LENGTH: 175 MM / 6.890 IN
FIELD HOUSING OD: 72.8 MM / 2.866 IN

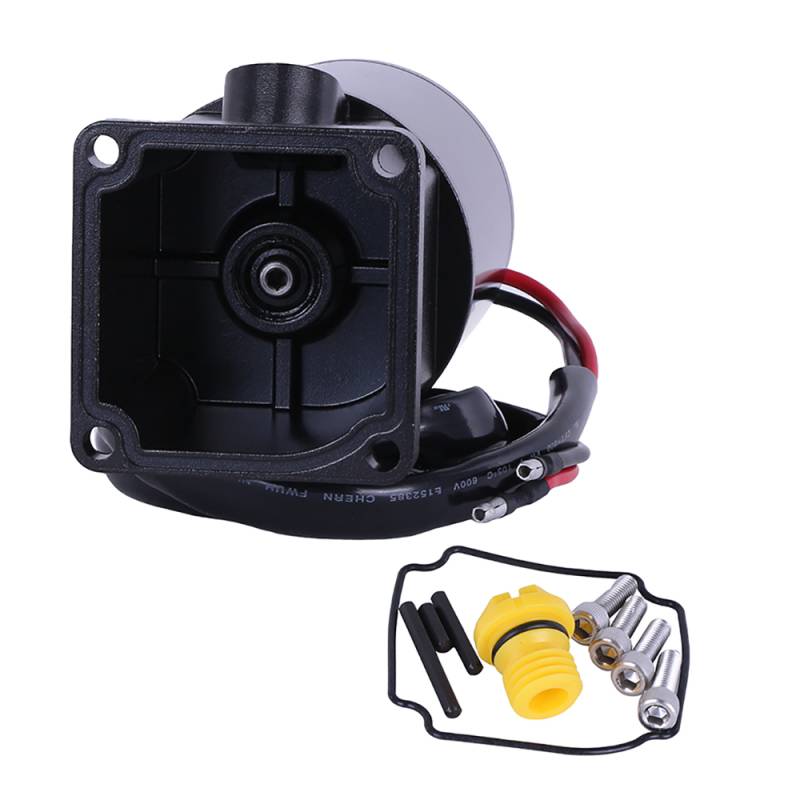

NOTES: 2-WIRE CONNECTION INCLUDES (2) 3-1 / 2 FOOT WIRE HARNESS WITH BULLET CONNECTORS AND HARDWARE KIT WITH O-R ING
WEIGHT: 8 LBS

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
