OEM PART NUMBERS:
• Kubota: K7711-96810 / K771196810
• Kubota: K7711-61800 / K771161800
• Kubota: K7711-96800 / K771196800
• Kubota: K7571-96800 / K757196800
• Kubota: K7571-96810 / K757196810
• Kubota: K7571-96811 / K757196811
• Kubota: K7571-96812 / K757196812
• Kubota: 77700-02602 / 7770002602
• Denso: 428000-5401 / 4280005401
• Denso: 428000-5400 / 4280005400
• Polaris: 3070684
• Toro: 132-4948 / 1324948 98-9705 / 989705
• Laymoor: 9107041
SPECIFICATIONS:

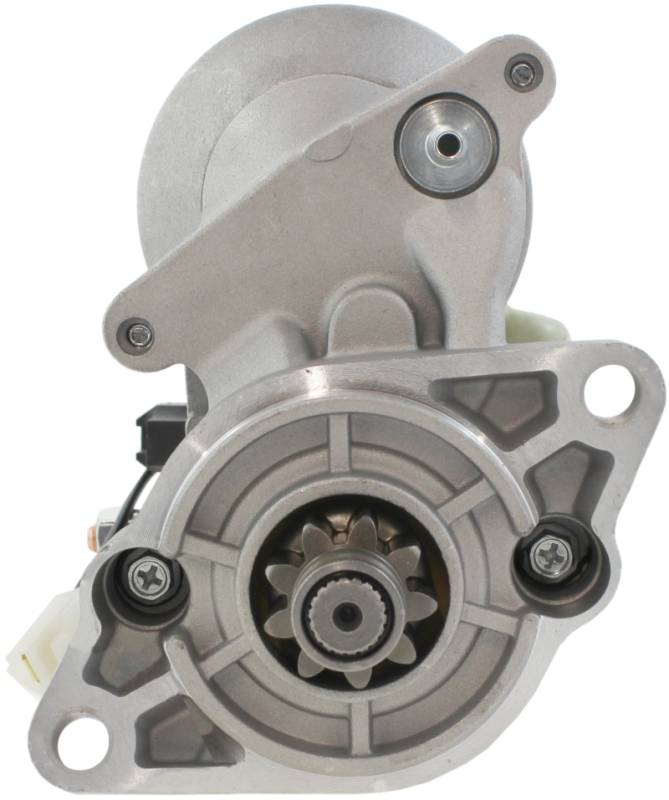

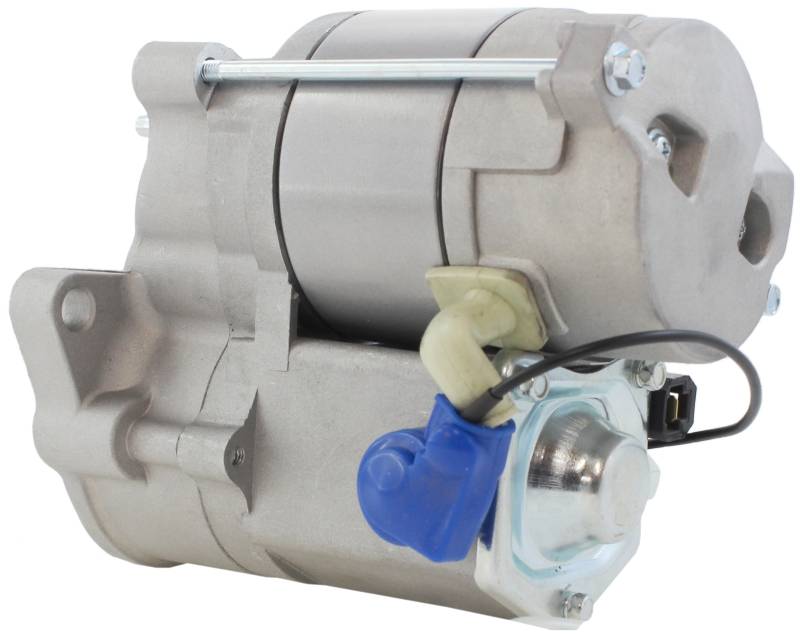

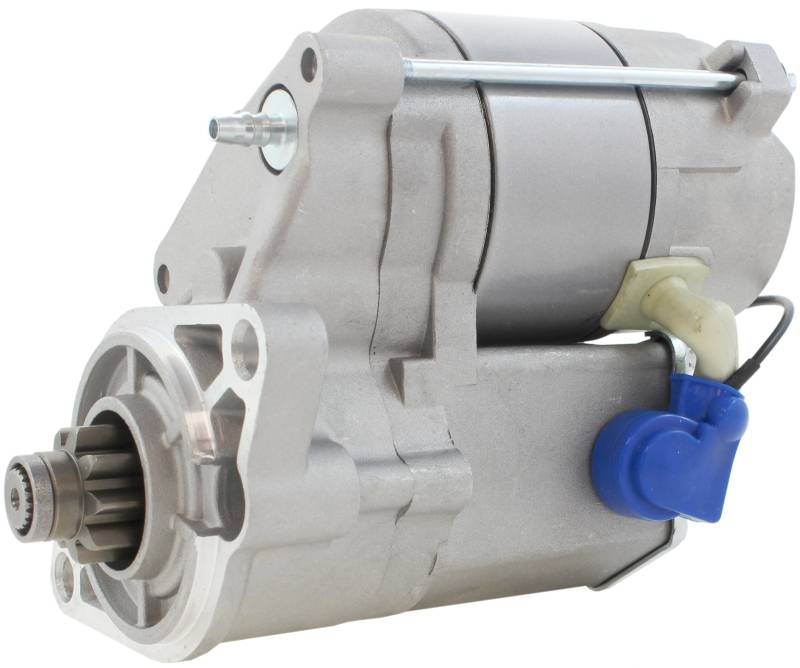

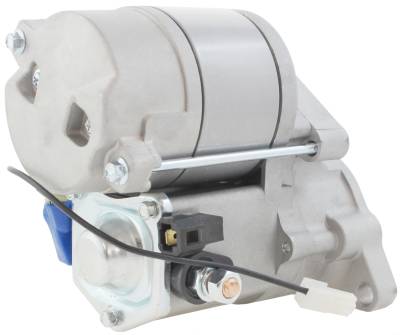

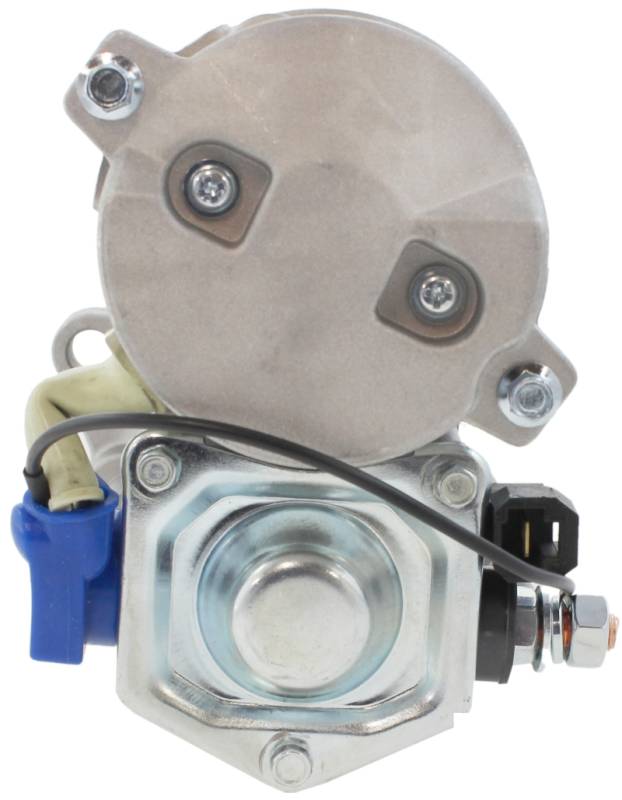

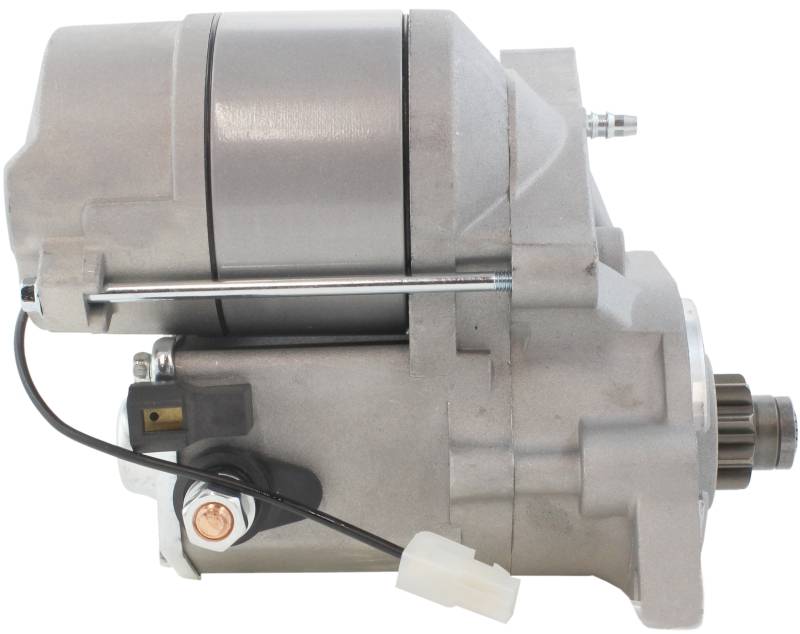

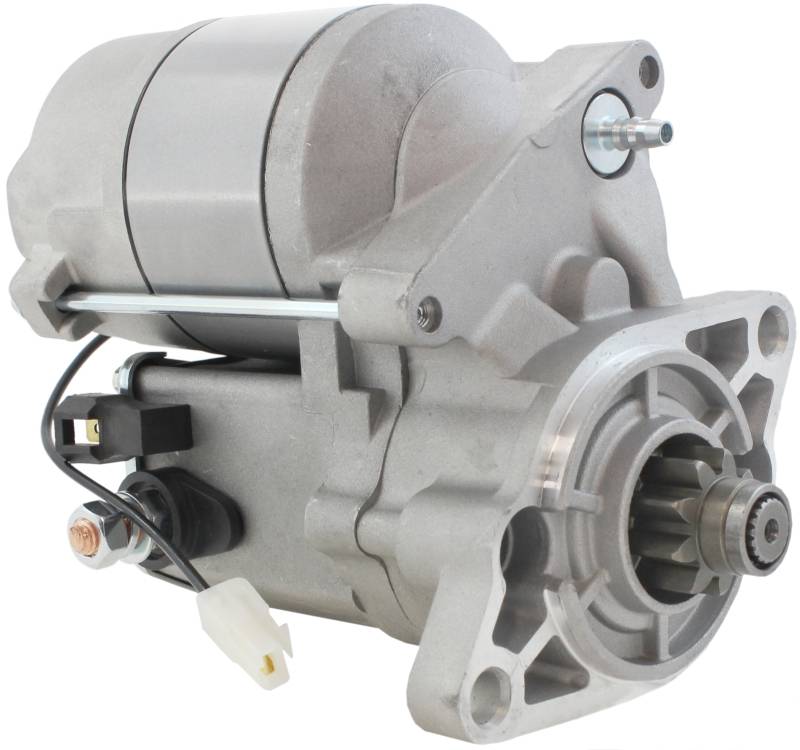

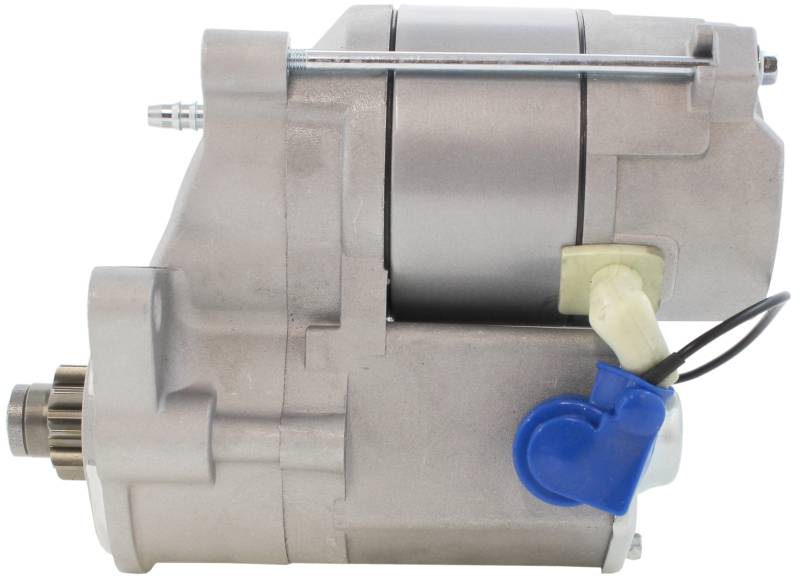

• Unit Type: Starter Motor
• Starter Type: OSGR (Offset Gear Reduction) - Denso Type
• Voltage: 12V
• Power: 1.4kW
• Rotation: CW (Clockwise)
• Teeth: 9 Splines
• Mounting: 2-Ear Mount on DE Housing
• Weight: 6 lbs / 2.72 kg
• Condition: New
KUBOTA D1105 APPLICATIONS (3-Cyl 1.1L 24.8HP):
• RTV1100 / RTV1100CR / RTV1100CW (2007-2012)
• RTV1140 / RTV1140CPX (2009-2017)
• RTV-X1100C / RTV-X1120D / RTV-X1140 (2013-2024)
• Toro Groundsmaster 228-D / 328-D / 3100-D
• Toro Reelmaster 5400-D (D1105-T Turbo) / 5500-D
KUBOTA D902 APPLICATIONS (3-Cyl 898cc 21.6HP):
• RTV900 All Variants (2004-2009) / RTV-X900 (2013-2024)
• Polaris PRO XD 2000D / 4000D / Ranger 902D (2019-2024)
OTHER APPLICATIONS:
• Toro Dingo TX 1000 Loader (22327/22328) Kubota D1305
• Laymoor Sweeper Kubota Diesel
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
