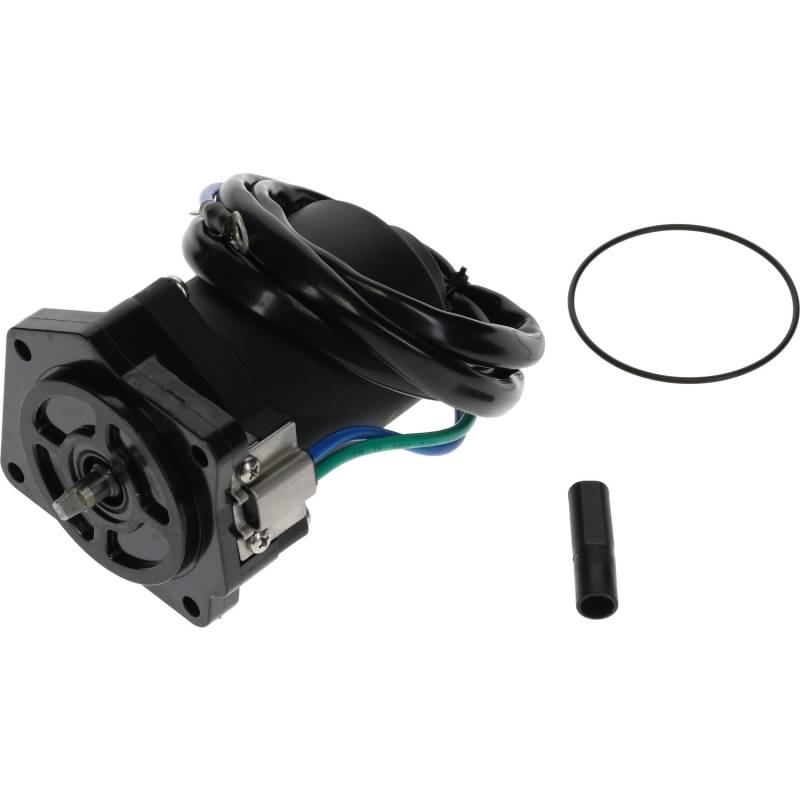

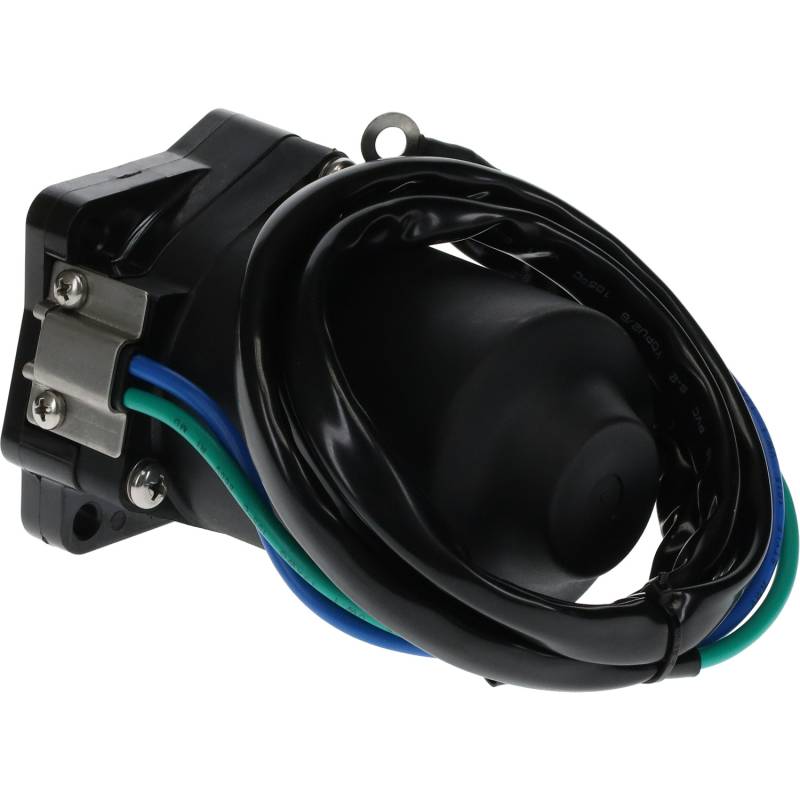

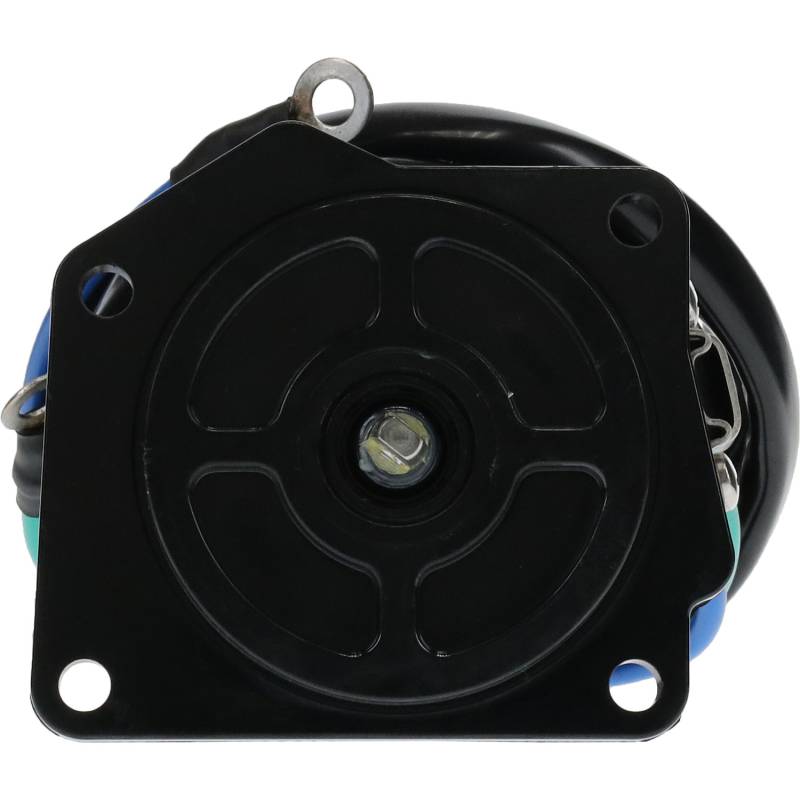

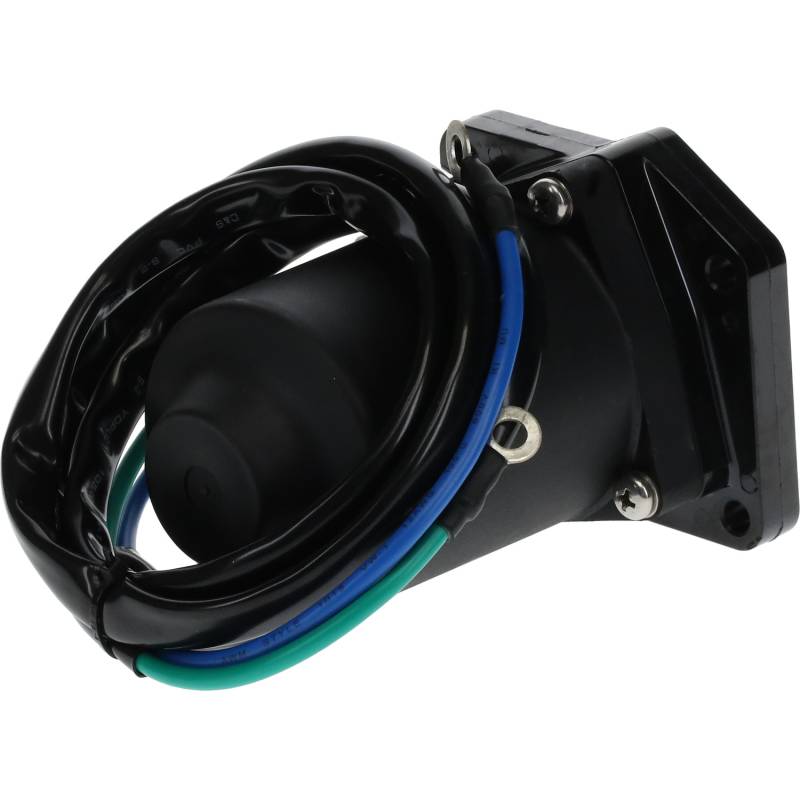

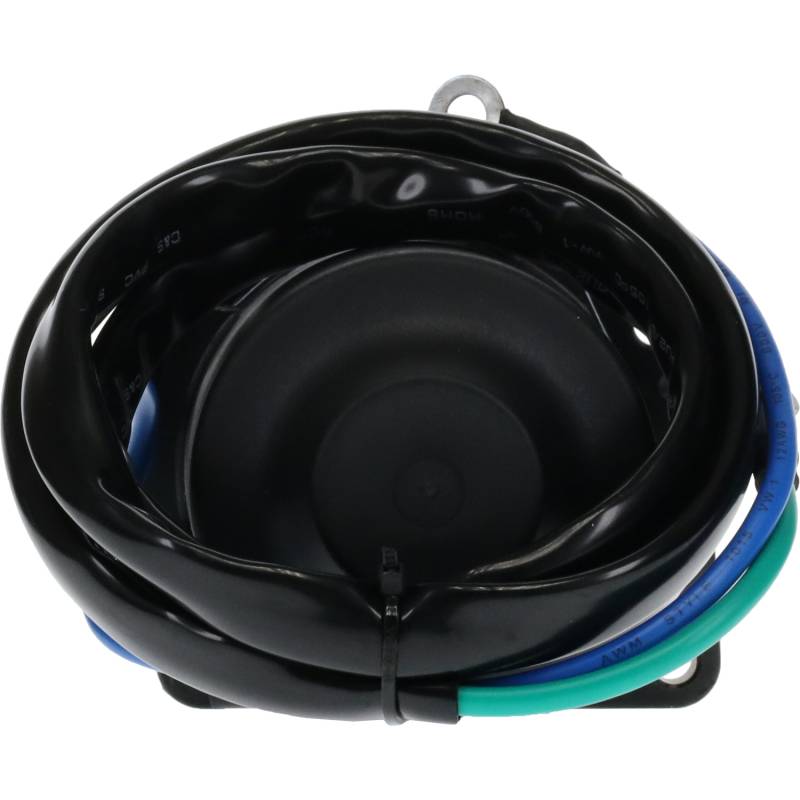

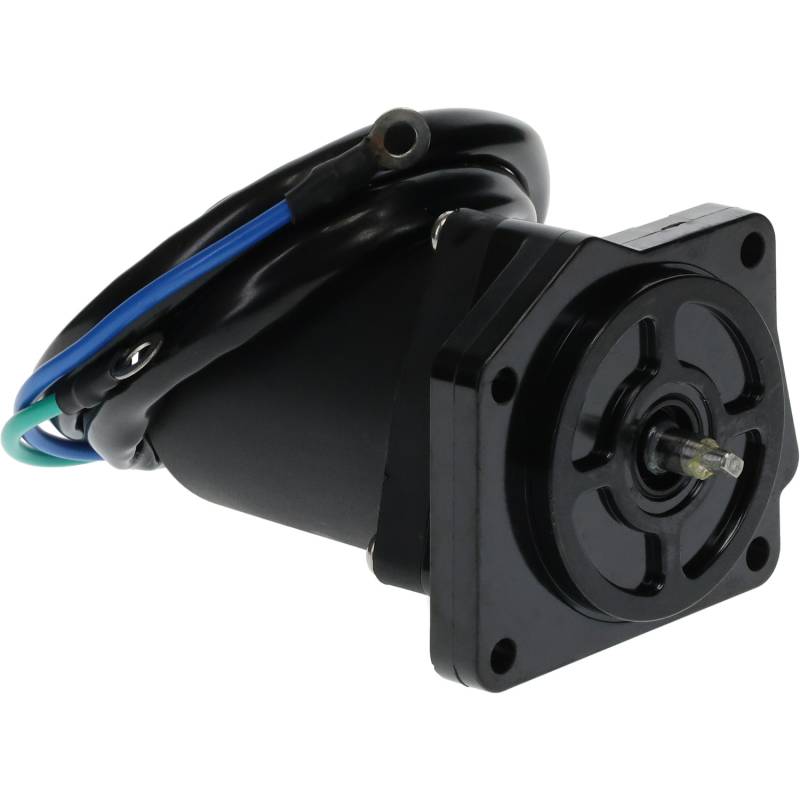

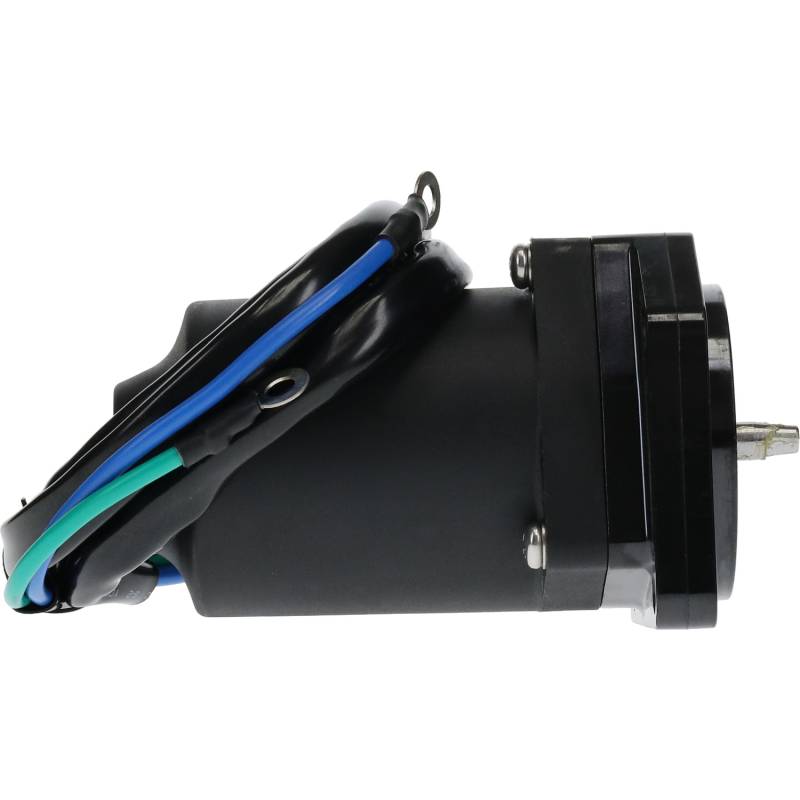

Tilt Trim Motor Compatible With Yamaha F75tlr F90tjr F90tlr F90txr 2005-2011 75Hp 90Hp Outboard

PT627NM*4
YAMAHA OEM PART NUMBERS:
• 6D8-43880-00-00 / 6D8438800000
• 6D8-43880-01-00 / 6D8438800100
• 6D8-43880-09-00 / 6D8438800900
• 6D8-43880-00 / 6D8-43880-01 / 6D8-43880-09

AFTERMARKET PART NUMBERS:
• PT627NM (API Marine) - Long Shaft
• PT626NM (API Marine)
• 6258 (ARCO Marine)
• 10886 / 10886N (Lester)
• 430-22118
• TRM0092 / TRM0093
• PH200-T068 (Protorque)
• PH200-T059 (Protorque)
• 107-170 (PIC)

SPECIFICATIONS:
• Voltage: 12V DC
• Rotation: Reversible
• Outer Diameter: 2.563" / 65.1mm
• Shaft Diameter: 0.311" / 7.9mm
• Length: 5.496" / 139.6mm
• Shaft: 3.4mm Keyed
• Shaft Length: 1.56" (LONG SHAFT VERSION)
• Current Type: DC
• Mount: 4-Bolt
• Terminals: 2-Wire Connection
• Weight: 3.43 lbs / 1.56 kg
• Includes: O-Ring

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $179.01
Sale: $102.29
Save: 43%
Save: $76.72
Qty:
Free Shipping!

Description

YAMAHA OUTBOARD MOTORS - 4-STROKE (LONG SHAFT VERSION):

F75 SERIES (75HP):
• Yamaha F75 75HP - 2005, 2006, 2007, 2008
• Yamaha F75TLR 75HP - 2005, 2006, 2007, 2008, 2009, 2010, 2011
• Yamaha F75LA 75HP - 2014, 2015, 2016, 2017, 2018

F90 SERIES (90HP):
• Yamaha F90 90HP - 2005, 2006, 2007, 2008
• Yamaha F90TJR 90HP - 2005, 2006, 2007, 2008, 2009, 2010, 2011
• Yamaha F90TLR 90HP - 2005, 2006, 2007, 2008, 2009, 2010, 2011
• Yamaha F90TXR 90HP - 2005, 2006, 2007, 2008, 2009, 2010, 2011
• Yamaha F90JA 90HP - 2014, 2015, 2016, 2017, 2018
• Yamaha F90LA 90HP - 2014, 2015, 2016, 2017, 2018
• Yamaha F90XA 90HP - 2014, 2015, 2016, 2017, 2018

ENGINE SPECIFICATIONS:
• Engine Type: 4-Stroke
• Power Output: 75HP / 90HP

NOTES:
• THIS IS THE LONG SHAFT VERSION (1.56")
• Two different shaft styles were used
• Verify your original part before ordering
• Voltage: 12V DC
• Rotation: Reversible
• 4-Bolt Mount
• 2-Wire Connection
• O-Ring Included
