YAMAHA: 6D8-43880-01-00 6D8438800100 6D8-43880-00-00 6D8438800000 6D8-43880-09-00 6D8438800900

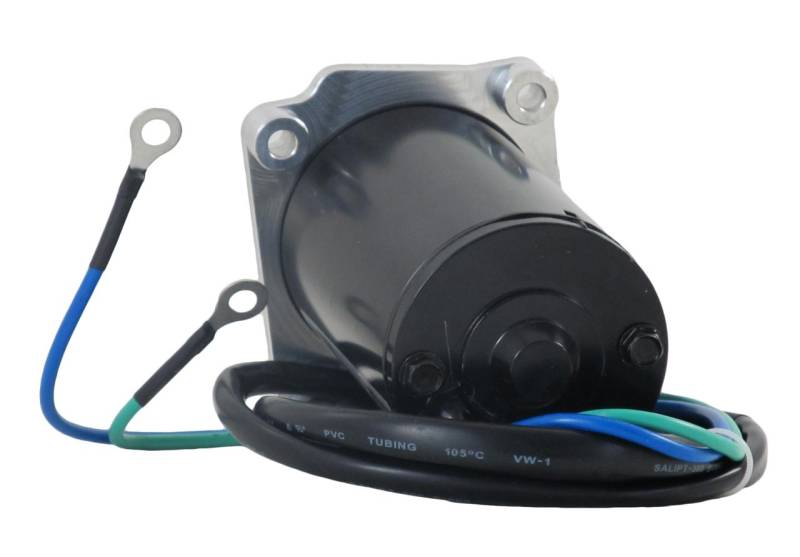

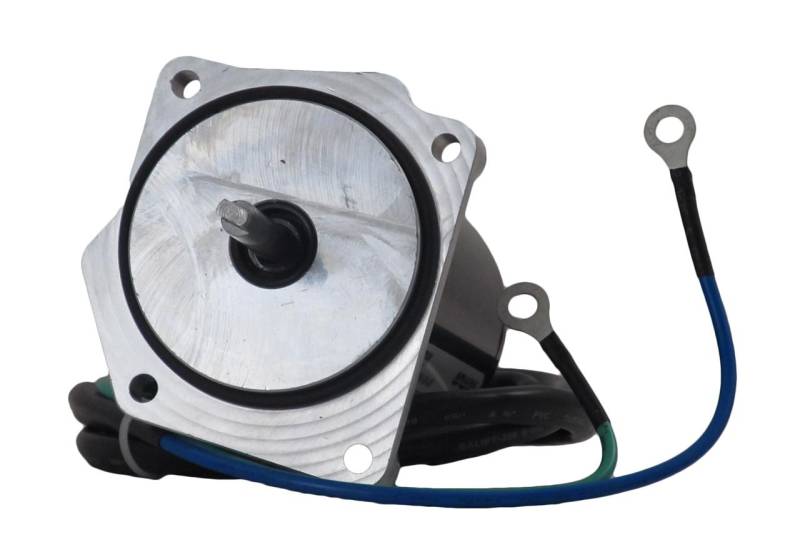

ITEM DESCRIPTION: TILT TRIM MOTOR
UNIT TYPE: YAMAHA
VOLTS: 12
ROTATION: REVERSIBLE
OD: 2.563IN / 65.1MM
SHAFT: 0.311IN / 7.9MM
LENGTH: 5.496IN / 139.6MM
SHAFT: 3.4MM KEYED
CURRENT TYPE: DC
WEIGHT: 3.43 LBS / 1.56 KG
NOTES: OE SHAFT LENGTH MAY VARY - USE SUPPLIED COUPLER IF LONGER SHAFT LENGTH IS NEEDED
NOTES: 4 BOLT MOUNT
NOTES: O-RING INCLUDED
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
THIS IS THE TILT TRIM FOR THESE MODELS WITH THE LONG SHAFT 1.56". THERE WERE TWO DIFFERENT STYLES. PLEASE CHECK YOUR PART AND IF YOU ARE UNSURE, PLEASE CALL US BEFORE PLACING AN ORDER. THIS IS THE LONG SHAFT 1.56" TILT TRIM MOTOR.
YAMAHA OUTBOARD MOTOR F75 75, 90 H.P. 2005-2008
YAMAHA OUTBOARD MOTOR F90 75, 90 H.P. 2005-2008
YAMAHA OUTBOARD MOTOR 4-STROKE F75TLR POWER TRIM TILT 75HP 2005-2011
YAMAHA OUTBOARD MOTOR 4-STROKE F90TJR POWER TRIM TILT 90HP 2005-2011
YAMAHA OUTBOARD MOTOR 4-STROKE F90TLR POWER TRIM TILT 90HP 2005-2011
YAMAHA OUTBOARD MOTOR 4-STROKE F90TXR POWER TRIM TILT 90HP 2005-2011
YAMAHA OUTBOARD MOTOR F75LA 75HP 2014-2018
YAMAHA OUTBOARD MOTOR F90JA 90HP 2014-2018
YAMAHA OUTBOARD MOTOR F90LA 90HP 2014-2018
YAMAHA OUTBOARD MOTOR F90XA 90HP 2014-2018
