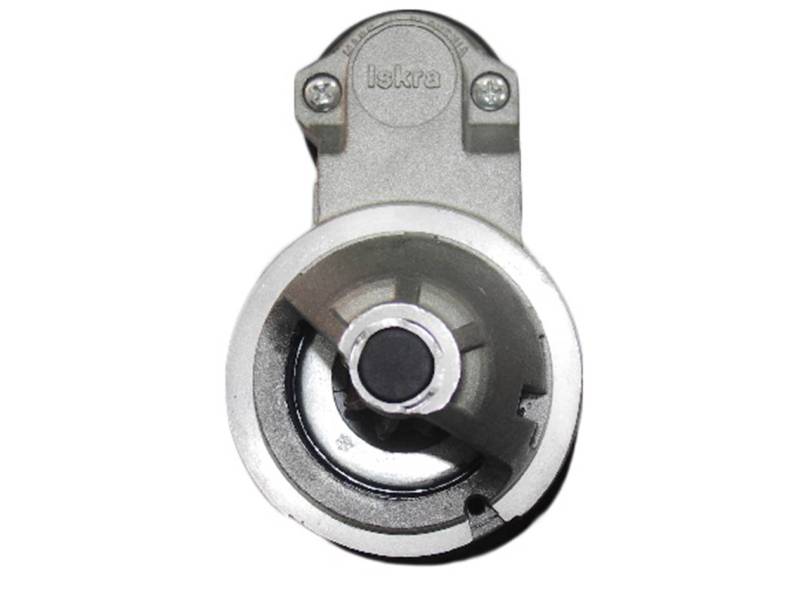

New Starter Motor Compatible With Hatz 1B20 1B27 1B30 1B40 1B50 Single-Cylinder Diesel 243-517Cc

IS1151
OEM PART NUMBERS:
• Iskra/Letrika: IS1151 / IS1021 / AZE1241
• Iskra/Letrika: 11.131.059 / 11131059 / 11.131.530 / 11131530
• Hatz: 50497201
• CV PSH: 11131530

SPECIFICATIONS:
• Type: PMDD (Permanent Magnet Direct Drive)
• OEM: Iskra/Letrika — NEW OEM Unit
• Voltage: 12V
• Power: 1kW
• Rotation: CCW (Counterclockwise)
• Teeth: 8
• Mount Flange: 66mm
• Total Length: 202mm
• Must re-use OE mounting brackets
• Weight: 8 lbs
• Condition: New OEM

APPLICATIONS:
• Hatz 1B20 (243cc) / 1B27 (280cc) / 1B30 (347cc)
• Hatz 1B40 (462cc) / 1B50 (517cc)
• Single-cylinder air-cooled 4-stroke DI diesel engines

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $1,024.99
Sale: $572.01
Save: 44%
Save: $452.98
Qty:
Free Shipping!

Description

HATZ 1B-SERIES SINGLE-CYLINDER DIESEL ENGINES:
• 1B20 243cc Single-Cyl 69x65mm Air-Cooled 4-Stroke DI ~4.7HP
• 1B27 280cc Single-Cyl 74x65mm Air-Cooled 4-Stroke DI
• 1B30 347cc Single-Cyl 80x69mm Air-Cooled 4-Stroke DI ~6.7HP
• 1B40 462cc Single-Cyl 88x76mm Air-Cooled 4-Stroke DI ~10.2HP
• 1B50 517cc Single-Cyl 93x76mm Air-Cooled 4-Stroke DI ~11.6HP

TYPICAL EQUIPMENT APPLICATIONS:
• Portable Generators and Light Towers
• Construction Compactors and Vibrating Plates
• Welders and Pressure Washers
• Pumps and Mobile Hydraulic Units
• Agricultural Equipment and Turf Care
• Industrial and Stationary Power

HATZ ENGINE DETAILS:
• German-manufactured (Motorenfabrik Hatz, Ruhstorf, Germany)
• Air-cooled single-cylinder 4-stroke direct injection diesel
• Known for exceptional reliability and long service life
• Displacement range: 243cc to 517cc / 4.7-11.6HP

IMPORTANT NOTES:
• This is a NEW OEM Iskra/Letrika starter
• Must RE-USE original OE mounting brackets from old starter
• Sold by part number — verify before ordering
