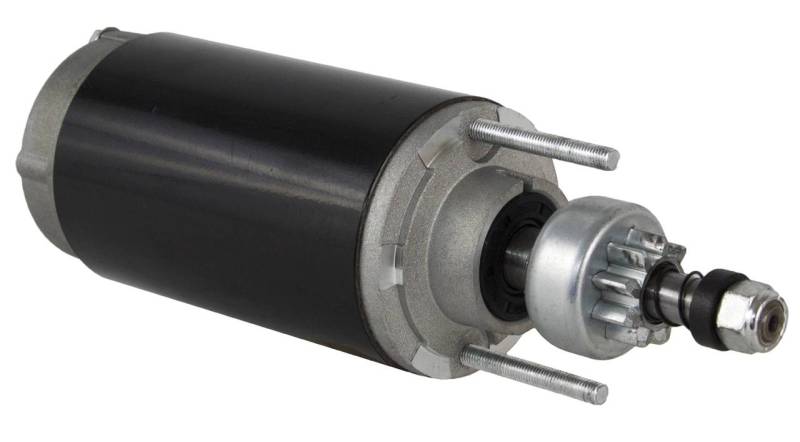

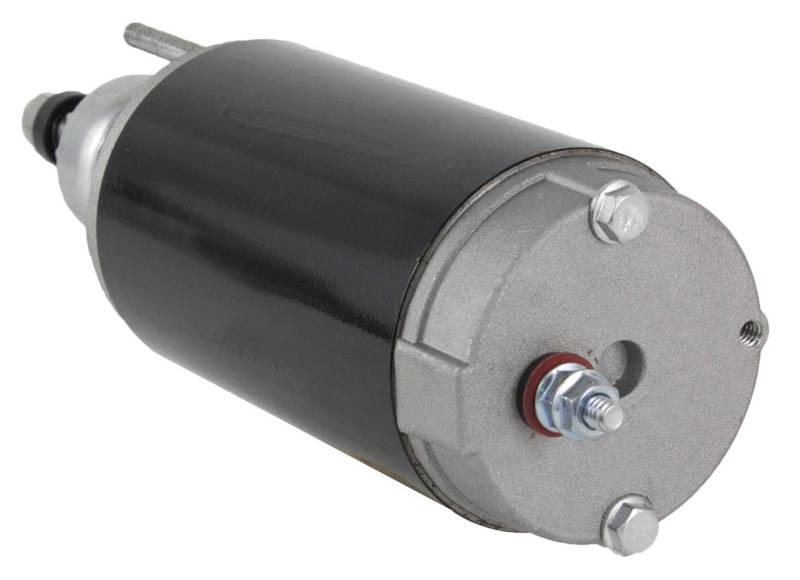

New 12V Ccw Pmdd Starter Compatible With 1995-2000 Mercury Marine 120 120Xr 120Xr2 Sport Jet 1.7L

(0) Reviews: Write first review
5734*2
OEM CROSS-REFERENCE PART NUMBERS — MERCURY MARINE / FORCE:
• Mercury Marine / Force: 50-819968 / 50819968
• Mercury Marine / Force: 50-819968-1
• Mercury Marine / Force: 50-819968-2
• Mercury Marine / Force: 50-819968-3
• Mercury Marine / Force: 50-819968-4
• Mercury Marine / Force: 50-819968-T4
• Mercury Marine: 50-853869 / 50853869
• Mercury Marine: 50-853869T / 50853869T
• Mercury Marine: 50-898265003 / 898265003 / 898-265003

OEM CROSS-REFERENCE PART NUMBERS — JOHNSON ELECTRIC:
• Johnson Electric: 5667640
• Johnson Electric: 6713240
• Johnson Electric: SM56676
• Johnson Electric: SM67132

OEM CROSS-REFERENCE PART NUMBERS — UNITED TECHNOLOGIES (UT):
• United Technologies: 5667640-M030SM / 5667640MO30SM
• United Technologies: 6713240-M030SM / 6713240MO30SM

SPECIFICATIONS:
• Product Type: Force / Mercury Marine Outboard & Sport Jet Starter Motor (PMDD)
• OEM Manufacturer: Johnson Electric / United Technologies (UT)
• Voltage: 12 Volt
• Rotation: Counterclockwise (CCW)
• Starter Type: PMDD (Permanent Magnet Direct Drive)
• Number of Teeth: 9
• Pinion / Gear OD: 28.7mm / 1.130"
• Field Case Length: 4.8" / 121.9mm
• Mounting Hardware: (2) 1/4-20 x 1.85" Long Bolts
• Weight: 7.2 lbs / 3.27 kg
• Application: Force 75-120HP Outboard / Mercury Sport Jet 90-120HP (1993-2000)
• Engine: 1.2L (75.1ci) Inline OR 1.7L (103ci) Inline Powerhead
• Condition: New

APPLICATION SUMMARY — FORCE 75-120HP OUTBOARD + MERCURY SPORT JET 90-120HP 1993-2000:
• 1998-1999 Force Marine 75EL / 75ELPT / 90ELPT / 90EXLPT / 120ELPT / 120EXLPT
• 1993-1995 Mercury Marine 90 Sport Jet (1.2L 75.1ci) / 1996-1997 95XR Sport Jet (1.2L)
• 1995 Mercury Marine 120 Sport Jet (1.7L 103ci) / 1996-1998 120XR Sport Jet (1.7L)
• 1999-2000 Mercury Marine 120XR2 Sport Jet 120HP (1.7L 103ci)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $200.74
Sale: $114.71
Save: 43%
Save: $86.03
Qty:
Free Shipping!

Description

FORCE 75HP MARINE OUTBOARDS — UT STARTER (1998-1999):
• 1998-1999 Force Marine 75EL 75HP Outboard — UT PMDD Starter (Serial #OE318772-ON)
• 1998-1999 Force Marine 75ELPT 75HP Outboard — UT PMDD Starter (Power Trim, Serial #OE318772-ON)

FORCE 90HP MARINE OUTBOARDS — UT STARTER (1998-1999):
• 1998-1999 Force Marine 90ELPT 90HP Outboard — UT PMDD Starter (Power Trim, Serial #OE318772-ON)
• 1998-1999 Force Marine 90EXLPT 90HP Outboard — UT PMDD Starter (Extended Long Power Trim, Serial #OE318772-ON)

FORCE 120HP MARINE OUTBOARDS — UT STARTER (1998-1999):
• 1998-1999 Force Marine 120ELPT 120HP Outboard — United Tech PMDD Starter (Power Trim)
• 1998-1999 Force Marine 120EXLPT 120HP Outboard — United Tech PMDD Starter (Extended Long Power Trim)

MERCURY MARINE SPORT JET — POWERHEAD & JET DRIVE APPLICATIONS:
• 1993-1995 Mercury Marine 90 Sport Jet 90HP — 1.2L (1200cc / 75.1ci) Inline Powerhead & Jet Drive
• 1996-1997 Mercury Marine 95XR Sport Jet 95HP — 1.2L (1200cc / 75.1ci) Inline Powerhead & Jet Drive
• 1995 Mercury Marine 120 Sport Jet 120HP — 1.7L (1700cc / 103ci) Inline Powerhead & Jet Drive
• 1996-1998 Mercury Marine 120XR Sport Jet 120HP — 1.7L (1700cc / 103ci) Inline Powerhead & Jet Drive
• 1999-2000 Mercury Marine 120XR2 Sport Jet 120HP — 1.7L (1700cc / 103ci) Inline Powerhead & Jet Drive

FORCE → MERCURY HISTORICAL CONTEXT:
• Mercury Marine produced the Sport Jet line directly (1993-2000)
• Force outboards were built by U.S. Marine Power Equipment Corporation 1984-1996
• In 1996, Mercury Marine acquired U.S. Marine / Force and continued Force production through 1999
• Same starter covers both Mercury Sport Jet drives AND Force 75-120HP outboard motors during this period
• Force 75HP and 90HP variants require Serial Number OE318772-ON (the Mercury-era production starter)

FITMENT NOTES — CRITICAL APPLICATION REQUIREMENTS:
• 12 VOLT SYSTEM REQUIRED
• Counterclockwise (CCW) rotation, 9-tooth pinion, 1.130" (28.7mm) gear OD
• PMDD (Permanent Magnet Direct Drive) starter — original Johnson Electric / UT design
• Field case length: 4.8" / 121.9mm
• Mounting: (2) 1/4-20 x 1.85" long bolts
• Weight: 7.2 lbs (3.27 kg)
• OEM Manufacturer: Johnson Electric / United Technologies
• For Force 75HP / 90HP applications: REQUIRES Serial Number OE318772-ON (the post-acquisition Mercury-era production starter)
• Will NOT fit Force 75/90HP outboards from before Serial #OE318772 (those use a different earlier starter)
• Will NOT fit Force 40-50HP outboards (those use or 5729 — different starter family)
• Will NOT fit Mercury 75/90/115HP standard outboards (different starter — typically series)
• Will NOT fit Mercury 4-Stroke Sport Jet variants (different starter family)
• Will NOT fit Mercury 175 / 200 / 240 Sport Jet (different starter family)
• Always verify your OEM part number from the original starter unit before ordering
