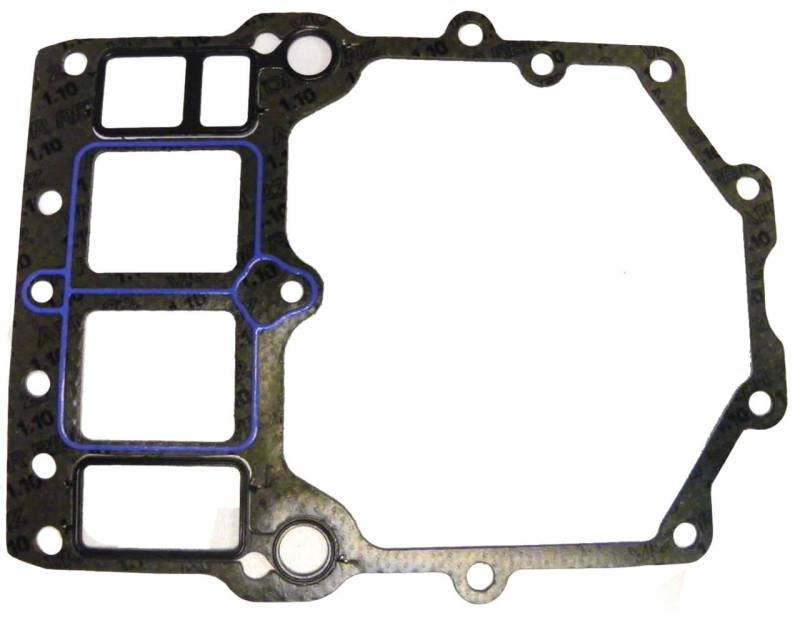

Cylinder Base Gasket Compatible With Yamaha 150 175 200 Hpdi 90-Degree V6 2.6L 2-Stroke Direct

511-14
OEM PART NUMBERS:
• Yamaha: 68F-45113-00-00 / 68F451130000
• Yamaha: 68F-45113-01-00 / 68F451130100 (Alternate)

SPECIFICATIONS:
• Type: Cylinder Base Gasket
• Position: Between Cylinder Block and Crankcase
• Bore: 90mm (3.544")
• Stroke: 68mm (2.677")
• Engine: 90-Degree V6 2-Stroke HPDI 2.6L
• HP Range: 150-200HP
• Year Range: 2000-2012
• Condition: New

YAMAHA OUTBOARD APPLICATIONS:
• Yamaha 150 HPDI 2.6L 90-Degree V6 (2000-2012)
• Yamaha 175 HPDI 2.6L 90-Degree V6 (2001-2012)
• Yamaha 200 HPDI 2.6L 90-Degree V6 (2000-2012)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $139.65
Sale: $79.80
Save: 43%
Save: $59.85
Qty:
Free Shipping!

Description

YAMAHA 90-DEGREE V6 HPDI 2-STROKE OUTBOARDS (150-200HP):
• Yamaha 150 HPDI 2.6L (2596cc) 90-Degree V6 2-Stroke HPDI 90mm Bore (2000-2012)
• Yamaha 175 HPDI 2.6L (2596cc) 90-Degree V6 2-Stroke HPDI 90mm Bore (2001-2012)
• Yamaha 200 HPDI 2.6L (2596cc) 90-Degree V6 2-Stroke HPDI 90mm Bore (2000-2012)

NOTE:
• Bore: 90mm (3.544") / Stroke: 68mm (2.677")
• Displacement: 2.6L (2596cc / 158ci)
• 90-Degree Bank Angle V6 with HPDI Direct Injection

Details

Shipping Information

  • Item Requires Shipping
  • 0.1 lbs.
  • W7.8000” x H0.2500” x L10.3000”
  • Free Shipping!
