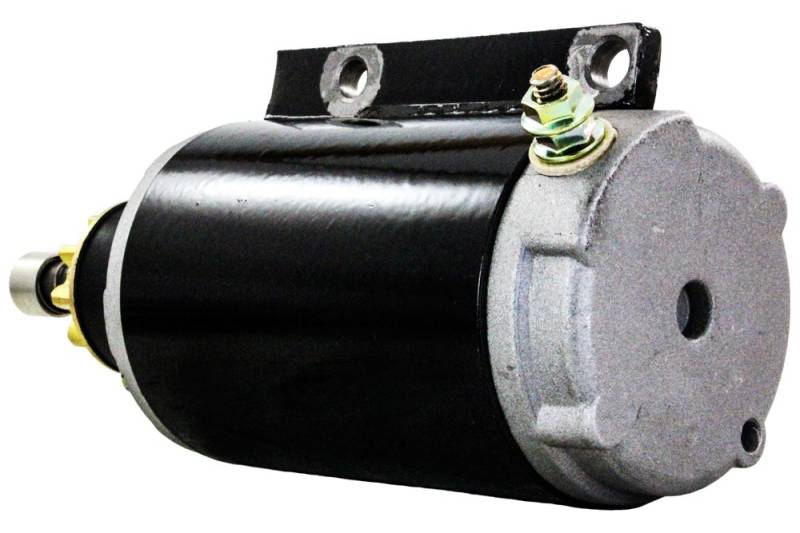

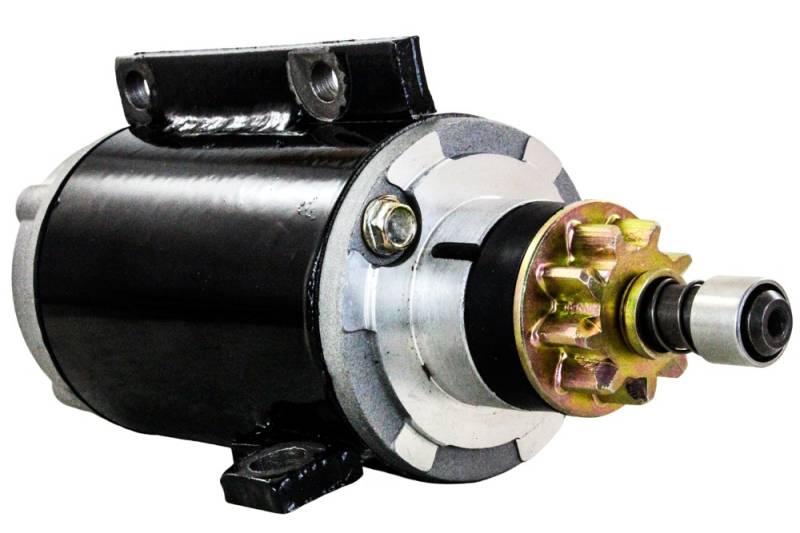

New 12V Ccw Pmdd Starter Compatible With 1989-2005 Johnson 40E 40El 40Pl 40R 40Te 40Tl 40Hp Outboard

(0) Reviews: Write first review
5713*2
OEM CROSS-REFERENCE PART NUMBERS — OMC (JOHNSON/EVINRUDE):
• OMC: 583482 / 0583482
• OMC: 585056 / 0585056
• OMC: 586279 / 0586279

OEM CROSS-REFERENCE PART NUMBERS — UNITED TECHNOLOGIES (UT):
• United Technologies: 5704640-M030SM / 5704640MO30SM
• United Technologies: 5059240-M030SM / 5059240MO30SM
• United Technologies: SM57046

OEM CROSS-REFERENCE PART NUMBERS — PRESTOLITE:
• Prestolite: 20513537TBA

SPECIFICATIONS:
• Product Type: OMC Johnson/Evinrude Marine Outboard Starter Motor (PMDD)
• OEM Manufacturer: United Technologies (UT)
• Voltage: 12 Volt
• Rotation: Counterclockwise (CCW)
• Starter Type: PMDD (Permanent Magnet Direct Drive)
• Number of Teeth: 9
• Pinion / Gear OD: 35.8mm / 1.409"
• Field Case Length: 4" / 101.6mm
• Drive: 2-piece rubber starter drive
• Weight: 5.91 lbs / 2.69 kg
• Application: OMC Johnson/Evinrude 40HP / 48HP / 50HP Outboard (1987-2005)
• Engine: OMC 44.9ci (736cc) 2-Cyl 2-Stroke OR 56.1ci (919cc) 3-Cyl 2-Stroke
• Condition: New

APPLICATION SUMMARY — OMC JOHNSON/EVINRUDE 40-50HP OUTBOARDS 1987-2005:
• Evinrude 40HP E40E / E40EL / E40TE / E40TEL / E40TL / E40TTL (44.9ci 2-cyl) 1989-1998
• Evinrude 48HP E48ESL (44.9ci 2-cyl) 1987-1996
• Evinrude 50HP E50BE / E50BEL / E50TEL / E50TL (44.9ci 2-cyl) 1989-1997
• Evinrude 50HP E50DTL / E50EL / E50TTL (56.1ci 3-cyl) 1995-1998
• Johnson 40HP 40E / 40EL / 40PL / 40R / 40TE / 40TEL / 40TL / 40TPL / 40TTL (44.9ci 2-cyl) 1989-2005
• Johnson 48HP 48ESL (44.9ci 2-cyl) 1987-1996
• Johnson 50HP 50BE / 50BEL / 50EL / 50ESL / 50PL / 50TEL / 50TL / 50TSL (44.9ci 2-cyl) 1989-2005
• Johnson 50HP 50DTL / 50EL / 50TTL (56.1ci 3-cyl) 1995-2000
• Johnson 50J Jet 35HP (44.9ci 2-cyl) 1991-1997

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $183.26
Sale: $104.72
Save: 43%
Save: $78.54
Qty:
Free Shipping!

Description

EVINRUDE 40HP OUTBOARDS — 44.9CI (736CC) INLINE-2 2-STROKE (1989-1998):
• 1989-1998 Evinrude E40E 40HP Outboard — 44.9ci Inline-2 2-Stroke (UT 9-Tooth Starter, 4.033" HSG)
• 1989-1997 Evinrude E40EL 40HP Outboard — 44.9ci Inline-2 2-Stroke
• 1989-1998 Evinrude E40TE 40HP Outboard — 44.9ci Inline-2 2-Stroke
• 1989-1998 Evinrude E40TEL 40HP Outboard — 44.9ci Inline-2 2-Stroke
• 1989-1998 Evinrude E40TL 40HP Outboard — 44.9ci Inline-2 2-Stroke
• 1989-1998 Evinrude E40TTL 40HP Outboard — 44.9ci Inline-2 2-Stroke

EVINRUDE 48HP OUTBOARDS — 44.9CI (736CC) INLINE-2 2-STROKE (1987-1996):
• 1987-1996 Evinrude E48ESL 48HP Outboard — 44.9ci Inline-2 2-Stroke

EVINRUDE 50HP 2-CYLINDER OUTBOARDS — 44.9CI (736CC) (1989-1997):
• 1989-1994 Evinrude E50BE 50HP Outboard — 44.9ci Inline-2 2-Stroke
• 1989-1995 Evinrude E50BEL 50HP Outboard — 44.9ci Inline-2 2-Stroke
• 1989-1995 Evinrude E50TEL 50HP Outboard — 44.9ci Inline-2 2-Stroke
• 1989-1997 Evinrude E50TL 50HP Outboard — 44.9ci Inline-2 2-Stroke

EVINRUDE 50HP 3-CYLINDER OUTBOARDS — 56.1CI (919CC) (1995-1998):
• 1995-1998 Evinrude E50DTL 50HP Outboard — 56.1ci Inline-3 2-Stroke
• 1995-1997 Evinrude E50EL 50HP Outboard — 56.1ci Inline-3 2-Stroke
• 1995-1998 Evinrude E50TTL 50HP Outboard — 56.1ci Inline-3 2-Stroke

JOHNSON 40HP OUTBOARDS — 44.9CI (736CC) INLINE-2 2-STROKE (1989-2005):
• 1989-1995 Johnson 40E 40HP Outboard — 44.9ci Inline-2 2-Stroke
• 1989-1998 Johnson 40EL 40HP Outboard — 44.9ci Inline-2 2-Stroke
• 1999-2005 Johnson 40PL 40HP Outboard — 44.9ci Inline-2 2-Stroke
• 1989-2001 Johnson 40R 40HP Outboard — 44.9ci Inline-2 2-Stroke
• 1989-1998 Johnson 40TE 40HP Outboard — 44.9ci Inline-2 2-Stroke
• 1989-1998 Johnson 40TEL 40HP Outboard — 44.9ci Inline-2 2-Stroke
• 1989-1998 Johnson 40TL 40HP Outboard — 44.9ci Inline-2 2-Stroke
• 1999-2001 Johnson 40TPL 40HP Outboard — 44.9ci Inline-2 2-Stroke
• 1989-1998 Johnson 40TTL 40HP Outboard — 44.9ci Inline-2 2-Stroke

JOHNSON 48HP OUTBOARDS — 44.9CI (736CC) INLINE-2 2-STROKE (1987-1996):
• 1987-1996 Johnson 48ESL 48HP Outboard — 44.9ci Inline-2 2-Stroke

JOHNSON 50HP 2-CYLINDER OUTBOARDS — 44.9CI (736CC) (1989-2005):
• 1989-1994 Johnson 50BE 50HP Outboard — 44.9ci Inline-2 2-Stroke
• 1989-1995 Johnson 50BEL 50HP Outboard — 44.9ci Inline-2 2-Stroke
• 1999-2001 Johnson 50EL 50HP Outboard (2-cyl) — 44.9ci Inline-2 2-Stroke
• 1997-1998 Johnson 50ESL 50HP Outboard — 44.9ci Inline-2 2-Stroke
• 1999-2005 Johnson 50PL 50HP Outboard — 44.9ci Inline-2 2-Stroke
• 1989-1995 Johnson 50TEL 50HP Outboard — 44.9ci Inline-2 2-Stroke
• 1989-1998 Johnson 50TL 50HP Outboard — 44.9ci Inline-2 2-Stroke
• 1998 Johnson 50TSL 50HP Outboard — 44.9ci Inline-2 2-Stroke

JOHNSON 50HP 3-CYLINDER OUTBOARDS — 56.1CI (919CC) (1995-2000):
• 1995-1998 Johnson 50DTL 50HP Outboard — 56.1ci Inline-3 2-Stroke
• 1995-2000 Johnson 50EL 50HP Outboard (3-cyl variant) — 56.1ci Inline-3 2-Stroke
• 1995-1998 Johnson 50TTL 50HP Outboard — 56.1ci Inline-3 2-Stroke

JOHNSON JET 50HP OUTBOARD — 44.9CI (736CC) (1991-1997):
• 1991-1997 Johnson 50J Jet 35HP Outboard — 44.9ci Inline-2 2-Stroke (Jet propulsion variant)

FITMENT NOTES — CRITICAL APPLICATION REQUIREMENTS:
• 12 VOLT SYSTEM REQUIRED
• Counterclockwise (CCW) rotation, 9-tooth pinion, 1.409" (35.8mm) gear OD
• PMDD (Permanent Magnet Direct Drive) starter — original UT design
• Field case length: 4" / 101.6mm
• Weight: 5.91 lbs (2.69 kg)
• Drive: 2-piece rubber starter drive design
• Will NOT fit OMC 25/28/30/35HP outboards (those use — different starter)
• Will NOT fit OMC 60/65/70/75HP outboards (those use — different starter)
• Will NOT fit OMC 80-140HP outboards (those use series — different starter)
• Will NOT fit OMC 4-Stroke outboards (different starter family entirely)
• Will NOT fit pre-1987 OMC 40-50HP outboards (those use earlier Bendix-drive starter)
• Always verify your OEM part number from the original starter unit before ordering
