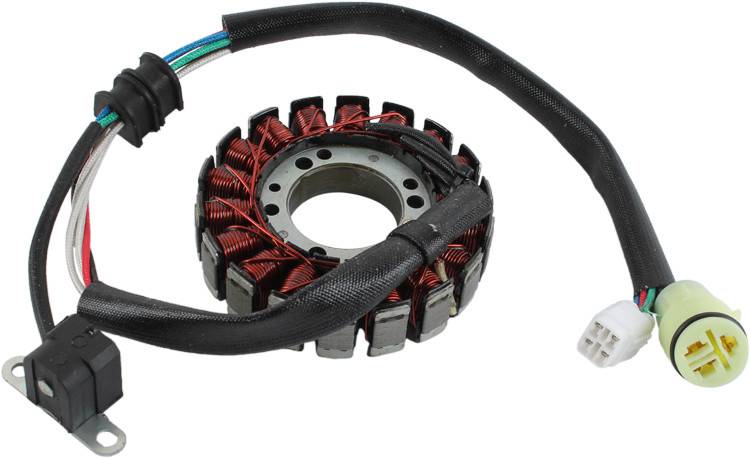

Stator Coil Compatible With Yamaha Bear Tracker 250 Yfm250x 2001-2004 Bruin Big Bear 250 Raptor 660R

(0) Reviews: Write first review
AYA4044
OEM PART NUMBERS:
• Yamaha: 4XE-81410-00-00 / 4XE814100000 (Bear Tracker 250)
• Yamaha: 1P0-H1410-00-00 / 1P0H141000-00 (Big Bear 250)
• Yamaha: 5LP-81410-00-00 / 5LP814100000 (Raptor 660R)
• Yamaha: 5LP-81410-01-00 / 5LP814100100 (Raptor 660R)
• Yamaha: 5LP-81410-02-00 / 5LP814100200 (Raptor 660R)

SPECIFICATIONS:
• Item Description: Stator Coil / Magneto Stator w/ Pickup Coil
• Voltage: 12V
• Exterior Diameter: 94mm
• Interior Diameter: 34mm
• Thickness: 13mm
• Coils: 18
• Wires: 7
• Plugs: 2
• Pins: 7
• Includes Pickup Coil: Yes
• Temperature Rating: 200°C
• Weight: 4 lbs
• Condition: New

YAMAHA ATV APPLICATIONS:
• Bear Tracker 250 YFM250X 229.6cc Air-Cooled SOHC (2001-2004)
• Bruin 250 YFM250B 229.6cc Air-Cooled SOHC (2005-2006)
• Big Bear 250 YFM250B 229.6cc Air-Cooled SOHC (2007-2009)
• Raptor 660R YFM660R 660cc Liquid-Cooled SOHC 5-Valve (2001-2005)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $56.56
Sale: $32.32
Save: 43%
Save: $24.24
Qty:
Free Shipping!

Description

YAMAHA BEAR TRACKER 250 (2001-2004):
• YFM250X Bear Tracker 250 2WD 229.6cc Air-Cooled SOHC 4-Stroke Single Cylinder (2001-2004)
• YFM250XHN Bear Tracker Realtree Edition 229.6cc SOHC (2001-2002)
• 71mm Bore x 58mm Stroke, 8.7:1 Compression, Mikuni 34mm BST Carb
• 5-Speed Manual, 2WD, Electric + Pull Start, Utility ATV

YAMAHA BRUIN 250 (2005-2006):
• YFM250B Bruin 250 229.6cc Air-Cooled SOHC 4-Stroke Single Cylinder (2005-2006)
• Same 229.6cc engine platform as Bear Tracker 250

YAMAHA BIG BEAR 250 (2007-2009):
• YFM250B Big Bear 250 229.6cc Air-Cooled SOHC 4-Stroke Single Cylinder (2007-2009)
• Same 229.6cc engine platform, succeeded Bruin 250

YAMAHA RAPTOR 660R (2001-2005):
• YFM660R Raptor 660R 660cc Liquid-Cooled SOHC 5-Valve 4-Stroke Single Cylinder (2001-2005)
• YFM660R Raptor 660R Limited Edition 660cc SOHC (2002-2004)
• YFM660R Raptor 660R SE (Special Edition) 660cc SOHC (2005)
• 100mm Bore x 84mm Stroke, 36HP, Dual 33mm Mikuni Carbs
• 5-Speed Manual, 2WD Chain Drive, Sport ATV

NOTE: This stator fits both 229.6cc utility ATVs (Bear Tracker/Bruin/Big Bear 250) and the 660cc sport ATV (Raptor 660R). Despite different engine displacements, all models share the same stator mounting and electrical configuration. The Bear Tracker 250 was succeeded by the Bruin 250 (2005-2006), then the Big Bear 250 (2007-2009) — all using the same 229.6cc air-cooled engine.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 2.0 lbs.
  • W7.0000” x H3.0000” x L7.0000”
  • Free Shipping!
