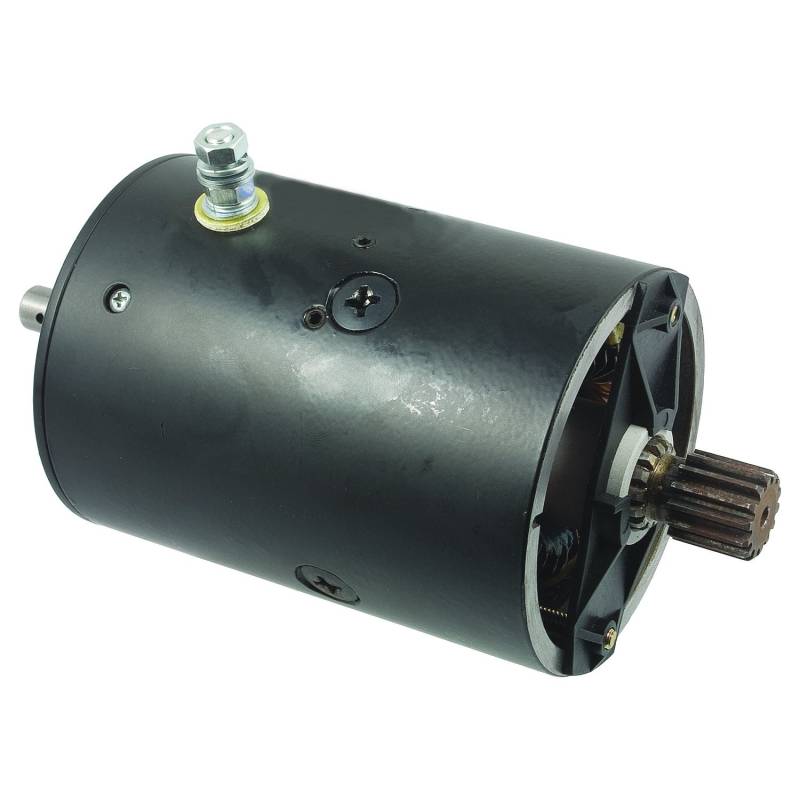

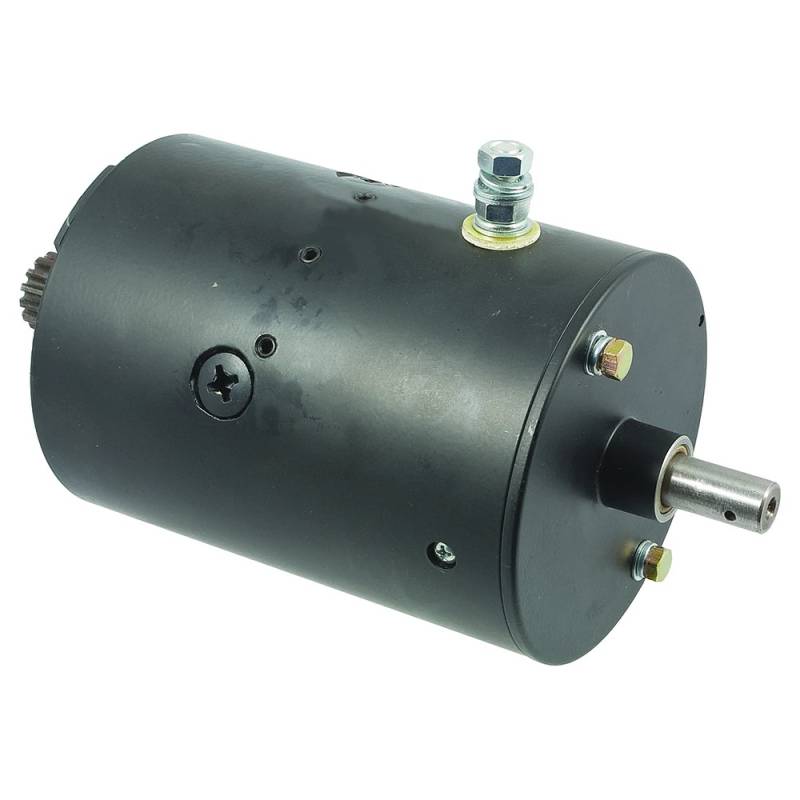

Winch Motor Compatible With Warn Bellview 12V Ccw Counter-Clockwise 14-Tooth Gear 1-Post 4-Coil

⚠️ 12V DC CCW 1-POST WINCH MOTOR, POWER IN ONLY, 14 TOOTH GEAR, NEW:
• 12 volt DC, counterclockwise rotation, power in only
• One 5/16-24 terminal post, the winch grounds through the case and frame
• Heavy duty 4-coil field, upgrade from the original 2-coil field
• 14 tooth gear on a 15 mm slotted shaft, roll pin hole in the CE shaft
• Thru bolts at 5:00 and 11:00, 4.500 in (114.3 mm) field case, about 18 lb
• Steel CE plate with center hole included, reuse the original CE brake assembly if fitted
• Reversible 3-post motors with a keyed or splined shaft (power in and out winches) are a different part

BELLEVIEW UPRIGHT WINCHES:
• Belleview Model 6000 upright spur gear winch, 6,000 lb, 1959-1960s
• Belleview 6000 brass tag winch built by Belleview Mfg. Co., Portland, Oregon
• Belleview / Warn 6000 lb upright winch with cable operated controls, late 1960s

EARLY WARN UPRIGHT WINCHES (BELLEVIEW CASE):
• Warn 5687 Belleview series upright winch, 6,000 lb, to 1974
• Warn 5687 Belleview series upright winch, 8,000 lb, to 1974
• Warn 5721 Belleview case upright winch, cable operated brake and clutch
• Warn 8000 upright winch, 8,000 lb Belleview case, before 1974

VEHICLES THESE WINCHES WERE FITTED TO:
• Jeep CJ-5 with a Belleview or Warn 8000 upright winch, 1960s-1974
• Jeep CJ-6 with a dealer installed Belleview upright winch, 1968
• Jeep J20 pickup with a Warn 8000 upright winch, early 1970s
• Toyota Land Cruiser FJ40 with a Warn 5687 or Belleview 6000 winch, 1960s-1974
• Ford Bronco (early) with a Warn 5687 Belleview winch, 1966-1974
