PRESTOLITE: 46-3650 160-801 MHT6101 MHT7001 MHT7101 MHT7101S MHT-6101 MHT-7001 MHT-7101 MHT-7101S
WESTERN MOTOR: W-8703 W8703

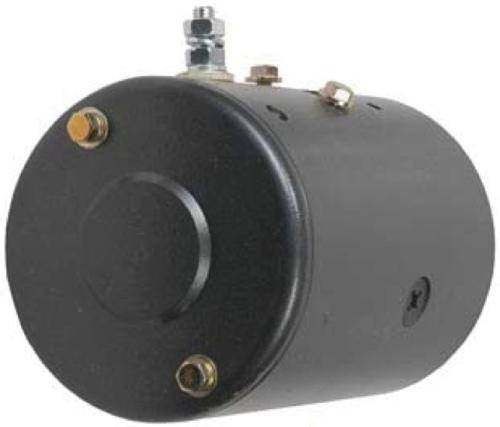

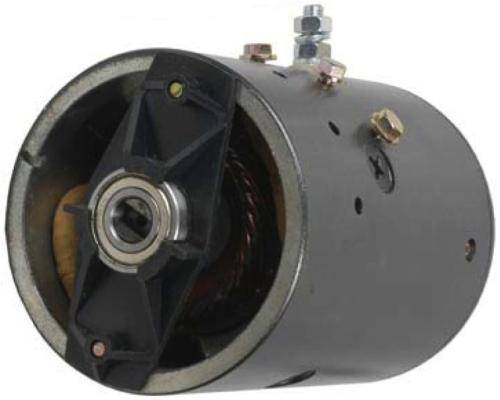

ITEM DESCRIPTION: ELECTRIC MOTOR
UNIT TYPE: AMETEK
VOLTAGE: 12
ROTATION: COUNTERCLOCKWISE
SHAFT OUTSIDE DIAMETER: 15 MM
SHAFT SPECIFICATIONS: SLOTTED SHAFT
SHAFT NOTES: SLOTTED SHAFT
TERMINAL 1 SIZE: 5/16-24
OVERALL LENGTH: 183.8 MM / 7.236 IN
SPECIFICATIONS: 114.3 MM / 4.500 IN
WEIGHT: 18 LBS
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
PLEASE VERIFY YOUR OEM PART NUMBER FROM YOUR ORIGINAL UNIT TO HELP ENSURE FITMENT.
BELLVIEW
EARLY WARN WINCH
THRU BOLTS AT THE 5 & 11 POSITION
DRIVE END OF SHAFT HAS A 14 THOOTH GEAR, CE SHAFT HAS A HOLE FOR A ROLL PIN
SHIPPED WITH A STEEL CE PLATE WITH HOLE IN THE TOP OF THE BUSHING HUB FOR THE SHAFT TO COME THROUGH, USE YOUR ORIGINAL CE BRAKE ASSEMBLY IF NEEDED
