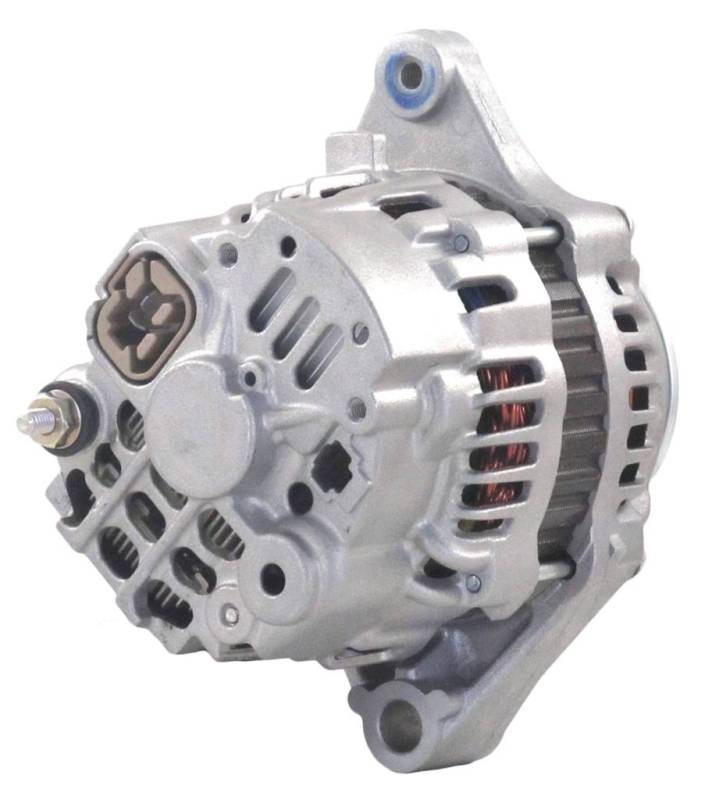

Alternator Compatible With Kubota M6800dt M6800sc M8200ccs 68Hp 82Hp V3300e V3300 Diesel Tractor 12V

12363B2
KUBOTA PART NUMBERS:
• 1C010-64010, 1C01064010
• 1C010-64011, 1C01064011
• 1C010-64012, 1C01064012
• 1C010-64013, 1C01064013
• 1C010-64014, 1C01064014
• KEARA-1C010, KEARA1C010
• KEARA-1C011, KEARA1C011
• 3C081-74010, 3C08174010
• 3C081-74011, 3C08174011
• 3C081-74012, 3C08174012
• K3C081-74012, K3C08174012
• 3A251-74010, 3A25174010
• 3A251-74011, 3A25174011
• 1C011-64010, 1C01164010
• 1C011-64011, 1C01164011
• 1C011-64012, 1C01164012
• 1C011-64013, 1C01164013
• 1G381-64012, 1G38164012
• 3A651-74010, 3A65174010
• 3A651-74011, 3A65174011
• 3C581-74011, 3C58174011
• 3C581-74012, 3C58174012

MITSUBISHI PART NUMBERS:
• A7TA1677, A007TA1677
• A7TA1677A, A007TA1677A
• A7TA3577, A007TA3577
• A7TA3577A, A007TA3577A
• A7TA3577B, A007TA3577B
• A7TA3577BZC, A007TA3577BZC
• A7TA3577C, A007TA3577C
• A1TA1777, A001TA1777
• A1TA1777ZC, A001TA1777ZC
• A1TA3677, A001TA3677
• A1TA3677B, A001TA3677B
• A1TA3677D, A001TA3677D

OTHER REPLACEMENT NUMBERS:
• Wilson 90-27-3271, 90273271, 90-27-3271N
• Hyundai XJBT-03118, XJBT03118
• Caterpillar 385-5043, 3855043
• Lucas LRA03900
• Autoelectro AEK3900
• DRI 583115602

SPECIFICATIONS:
• Type: alternator, internal regulator, internal fan (IR/IF), A7TA type
• Voltage: 12 volt
• Output: 45 amp
• Rotation: clockwise (CW)

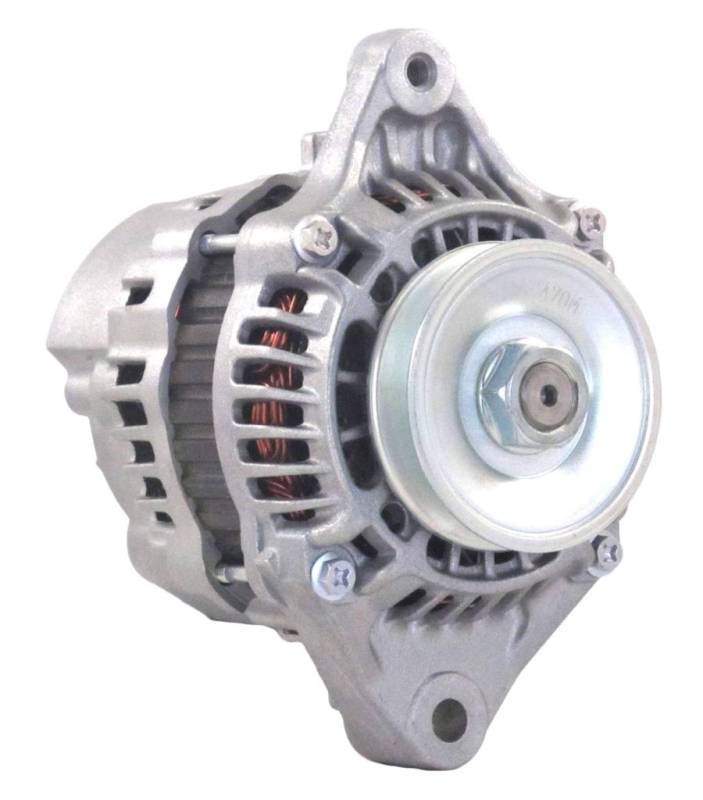

• Pulley: 1 groove V pulley, 74 mm (73.7 mm, 2.913 in) OD
• Plug: rear plug, 10 o'clock
• Mounting: spool, M8-1.25 threaded ear and 10.7 mm unthreaded ear
• Polarity: negative ground
• Weight: 9.4 lb (4.27 kg)
• Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $334.23
Sale: $190.99
Save: 43%
Save: $143.24
Qty:
Free Shipping!

Description

KUBOTA M6800 TRACTORS, V3300E:
• Kubota M6800 with the V3300E 68 hp diesel, 1998-2005
• Kubota M6800DT with the V3300E 68 hp diesel, 1998-2004
• Kubota M6800HD-F with the V3300E 68 hp diesel, 2001-2005
• Kubota M6800HDC with the V3300E 68 hp diesel, 2001-2005
• Kubota M6800S with the V3300E 68 hp diesel, 1998-2005
• Kubota M6800S-F with the V3300E 68 hp diesel, 1998-2005
• Kubota M6800SC with the V3300E 68 hp diesel, 1999-2004
• Kubota M6800SD-F with the V3300E 68 hp diesel, 1998-2005
• Kubota M6800SDC with the V3300E 68 hp diesel, 2000-2004
• Kubota M6800SDT with the V3300E 68 hp diesel, 1998-2005
• Kubota M6800S-CAB with the V3300E 68 hp diesel, 1997-2005
• Kubota M6800SDT-CAB with the V3300E 68 hp diesel, 1997-2005

KUBOTA M8200 TRACTORS, V3300:
• Kubota M8200 with the V3300 82 hp diesel, 1998-2005
• Kubota M8200C with the V3300 82 hp diesel, 1998-2005
• Kubota M8200CCS with the V3300 82 hp diesel, 1998-2005
• Kubota M8200DT-F with the V3300 82 hp diesel, 1998-2005
• Kubota M8200DTC with the V3300 82 hp diesel, 1999-2005
• Kubota M8200F with the V3300 82 hp diesel, 1998-2004
• Kubota M8200HD-F with the V3300 82 hp diesel, 1998-2005
• Kubota M8200HDC with the V3300 82 hp diesel, 1998-2005
• Kubota M8200SDNB with the V3300 82 hp diesel, 2000-2005
• Kubota M8200SDNBC with the V3300 82 hp diesel, 2000-2005
• Kubota M8200SDNBF with the V3300 82 hp diesel, 2000-2005
• Kubota M8200SDTNC with the V3300 82 hp diesel
• Kubota M8200-CAB with the V3300 82 hp diesel, 1997-2005
• Kubota M8200DT-CAB with the V3300 82 hp diesel, 1997-2005
• Kubota M8200SDTN-CAB with the V3300 82 hp diesel, 1997-2005

KUBOTA M9000 TRACTORS, V3300:
• Kubota M9000 with the V3300 90 hp diesel, 1999-2009
• Kubota M9000C with the V3300 90 hp diesel, 1999-2009
• Kubota M9000DT-F with the V3300 90 hp diesel, 1999-2009
• Kubota M9000DTC with the V3300 90 hp diesel, 1999-2009
• Kubota M9000DTCCS with the V3300 90 hp diesel, 2000-2009
• Kubota M9000DTL with the V3300 90 hp diesel, 1999-2009
• Kubota M9000DTL-F with the V3300 90 hp diesel, 1999-2009
• Kubota M9000DTM with the V3300 90 hp diesel, 2000-2009
• Kubota M9000DTMC with the V3300 90 hp diesel, 2001-2009
• Kubota M9000DTMCW with the V3300 90 hp diesel, 2001-2009
• Kubota M9000DTMW with the V3300 90 hp diesel, 2001-2009
• Kubota M9000F with the V3300 90 hp diesel, 1999-2009
• Kubota M9000HD-F with the V3300 90 hp diesel, 2002-2009
• Kubota M9000HDC with the V3300 90 hp diesel, 2002-2009
• Kubota M9000HDL with the V3300 90 hp diesel, 2002-2009
• Kubota M9000-CAB with the V3300 90 hp diesel, 1997-2005
• Kubota M9000DT-CAB with the V3300 90 hp diesel, 1997-2005

ALSO FITS, KUBOTA V3800-DI TRACTORS:
• Kubota M8540 with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540DT with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540DT-1 with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540F with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540F-1 with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540HD with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540HD-1 with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540HD12 with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540HD12-1 with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540HDNB with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540HDNB-1 with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540DTC with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540DTC-1 with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540FC with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540FC-1 with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540HDNBC with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540HDNBPC with the V3800-DI 85.5 hp diesel, 2007-2013
• Kubota M8540HDC with the V3800-DI 85.5 hp diesel, 2007-2009
• Kubota M8540HDC12 with the V3800-DI 85.5 hp diesel, 2007-2009
• Kubota M8540HDNBC10 with the V3800-DI 85.5 hp diesel, 2007-2009
• Kubota M8540DTHQ with the V3800-DI 85.5 hp diesel, 2007-2009
• Kubota M8540DTQ with the V3800-DI 85.5 hp diesel, 2007-2009
• Kubota M9540DT with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540DT-1 with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540F with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540F-1 with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540HD with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540HD-1 with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540HD12 with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540HD12-1 with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540HDL with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540HDL-1 with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540HDL-1S with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540HFL with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540HFL-1 with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540HFL-1S with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540DTC with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540DTC-1 with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540FC with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540FC-1 with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540HDC with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540HDC-1 with the V3800-DI 95 hp diesel, 2006-2013
• Kubota M9540HDC12 with the V3800-DI 95 hp diesel, 2007-2009
• Kubota M9540HDC-LTD with the V3800-DI 95 hp diesel, 2007-2009
• Kubota M9540HDC24-1 with the V3800-DI 95 hp diesel, 2007-2009
• Kubota M9540DTHQ with the V3800-DI 95 hp diesel, 2007-2009
• Kubota M9540DTQ with the V3800-DI 95 hp diesel, 2007-2009
• Kubota M8560HDC with the V3800 diesel, 2013-2016
• Kubota M8560HFC with the V3800 diesel, 2013-2016
• Kubota M8560HDC12 with the V3800 diesel, 2013-2016
• Kubota M9960HDC with the V3800 diesel, 2013-2016
• Kubota M9960HFC with the V3800 diesel, 2013-2016
• Kubota M9960HDC12 with the V3800 diesel, 2013-2016
• Kubota M9960HDC24 with the V3800 diesel, 2013-2016
• Kubota M95SDS with the V3800-DI 95 hp diesel, 2005-2007
• Kubota M95SH with the V3800-DI 95 hp diesel, 2005-2007
• Kubota M95SDSC with the V3800-DI 95 hp diesel, 2003-2009
• Kubota M95SDSCS with the V3800-DI 95 hp diesel, 2003-2009
• Kubota M95XDTC with the V3800-DI 95 hp diesel, 2003-2009
• Kubota M96SDS with the V3800-DI 95 hp diesel, 2007-2014
• Kubota M96SDSC with the V3800-DI 95 hp diesel, 2007-2014
• Kubota M96SH with the V3800-DI 95 hp diesel, 2007-2014
• Kubota M105SDH with the V3800-DI 105 hp diesel, 2005-2007
• Kubota M105SDS with the V3800-DI 105 hp diesel, 2005-2007
• Kubota M105SDSF with the V3800-DI 105 hp diesel, 2005-2007
• Kubota M105SDSL with the V3800-DI 105 hp diesel, 2005-2007
• Kubota M105SH with the V3800-DI 105 hp diesel, 2005-2007
• Kubota M105SHD with the V3800-DI 105 hp diesel, 2005-2007
• Kubota M105SDSC with the V3800-DI 105 hp diesel, 2003-2009
• Kubota M105SDSCC with the V3800-DI 105 hp diesel, 2003-2009
• Kubota M105SHC with the V3800-DI 105 hp diesel, 2003-2009
• Kubota M105SHDC with the V3800-DI 105 hp diesel, 2003-2009
• Kubota M108SDS with the V3800-DI diesel, 2007-2014
• Kubota M108SDS2 with the V3800-DI diesel, 2007-2014
• Kubota M108SDSF with the V3800-DI diesel, 2007-2014
• Kubota M108SDSL with the V3800-DI diesel, 2007-2014
• Kubota M108SDSL2 with the V3800-DI diesel, 2007-2014
• Kubota M108SDSL2S with the V3800-DI diesel, 2007-2014
• Kubota M108SDSLS with the V3800-DI diesel, 2007-2014
• Kubota M108SH with the V3800-DI diesel, 2007-2014
• Kubota M108SHD with the V3800-DI diesel, 2007-2014
• Kubota M5-091HS
• Kubota M5-091HD12
• Kubota M5-091HF
• Kubota M5-111HS
• Kubota M5-111HD12
• Kubota M5-111HF

ALSO FITS, KUBOTA M5040 TO M7060 TRACTORS:
• Kubota M5040DTC with the V3300 diesel, 2007-2010
• Kubota M5040DTC-1 with the V3300 diesel, 2007-2010
• Kubota M5040FC with the V3300 diesel, 2007-2010
• Kubota M5040FC-1 with the V3300 diesel, 2007-2010
• Kubota M5040HDC with the V3300 diesel, 2007-2010
• Kubota M5140DTC with the V3300 diesel, 2010-2020
• Kubota M5140HDC with the V3300 diesel, 2010-2020
• Kubota M5140FC with the V3300 diesel, 2010-2020
• Kubota M6040DTC with the V3300 diesel, 2007-2013
• Kubota M6040DTC-1 with the V3300 diesel, 2007-2013
• Kubota M6040FC with the V3300 diesel, 2007-2013
• Kubota M6040FC-1 with the V3300 diesel, 2007-2013
• Kubota M6040HDC with the V3300 diesel, 2007-2013
• Kubota M6060HD with the V3307 diesel, 2013-2023
• Kubota M6060HDC with the V3307 diesel, 2013-2023
• Kubota M6060HFC with the V3307 diesel, 2013-2023
• Kubota M7040DTC with the V3307 diesel, 2007-2013
• Kubota M7040DTC-1 with the V3307 diesel, 2007-2013
• Kubota M7040FC with the V3307 diesel, 2007-2013
• Kubota M7040FC-1 with the V3307 diesel, 2007-2013
• Kubota M7040HDC with the V3307 diesel, 2007-2013
• Kubota M7040HDNBC with the V3307 diesel, 2007-2013
• Kubota M7060HD with the V3307 diesel, 2013-2023
• Kubota M7060HD12 with the V3307 diesel, 2013-2023
• Kubota M7060HDC with the V3307 diesel, 2013-2023
• Kubota M7060HFC with the V3307 diesel, 2013-2023
• Kubota M7060HDC12 with the V3307 diesel, 2013-2023

ALSO FITS, THOMAS SKID STEERS AND CATERPILLAR MINI EXCAVATORS:
• Thomas 225 skid steer loader with the Kubota V3300T diesel, 2004-2007
• Thomas 245 skid steer loader with the Kubota V3300T diesel, 2004-2007
• Thomas T245HD S skid steer loader with the Kubota V3300, 1998-2003
• Thomas T245HF skid steer loader with the Kubota V3300, 1998-2003
• Caterpillar mini excavator 308 with the Cat C3.3B diesel, 2018-2025
• Caterpillar mini excavator 308.5 with the Cat C3.3B diesel, 2013-2022
• Caterpillar mini excavator 308E with the Cat C3.3B diesel, 2013-2022
• Caterpillar mini excavator 308E CR with the Cat C3.3B diesel, 2013-2025
• Caterpillar mini excavator 308E SR with the Cat C3.3B diesel, 2013-2022
• Caterpillar mini excavator 308E2 with the Cat C3.3B diesel, 2013-2022
• Caterpillar mini excavator 308E2 CR with the Cat C3.3B diesel, 2013-2022
• Caterpillar mini excavator 308E2 CR VAB with the Cat C3.3B diesel, 2013-2022
• Caterpillar mini excavator 308E2 SR with the Cat C3.3B diesel, 2013-2022
• Caterpillar mini excavator 309 with the Cat C3.3B diesel, 2019-2022
• Caterpillar mini excavator 309 CR with the Cat C3.3B diesel, 2019-2022
• Caterpillar mini excavator 309 CR VAB with the Cat C3.3B diesel, 2019-2022
• Caterpillar mini excavator 310 with the Cat C3.3B diesel, 2019-2025

SPECIFICATIONS:
• Type: alternator, internal regulator, internal fan (IR/IF), A7TA type
• Voltage: 12 volt
• Output: 45 amp
• Rotation: clockwise (CW)
• Pulley: 1 groove V pulley, 74 mm (73.7 mm, 2.913 in) OD
• Plug: rear plug, 10 o'clock
• Mounting: spool, M8-1.25 threaded ear and 10.7 mm unthreaded ear
• Polarity: negative ground
• Weight: 9.4 lb (4.27 kg)
• Condition: New aftermarket

Details

Shipping Information

  • Item Requires Shipping
  • 9.0 lbs.
  • W8.0000” x H8.0000” x L8.0000”
  • Free Shipping!

Customer Reviews

Comment Total Reviews (0)

Write the First Review!

You must login to post a review.
