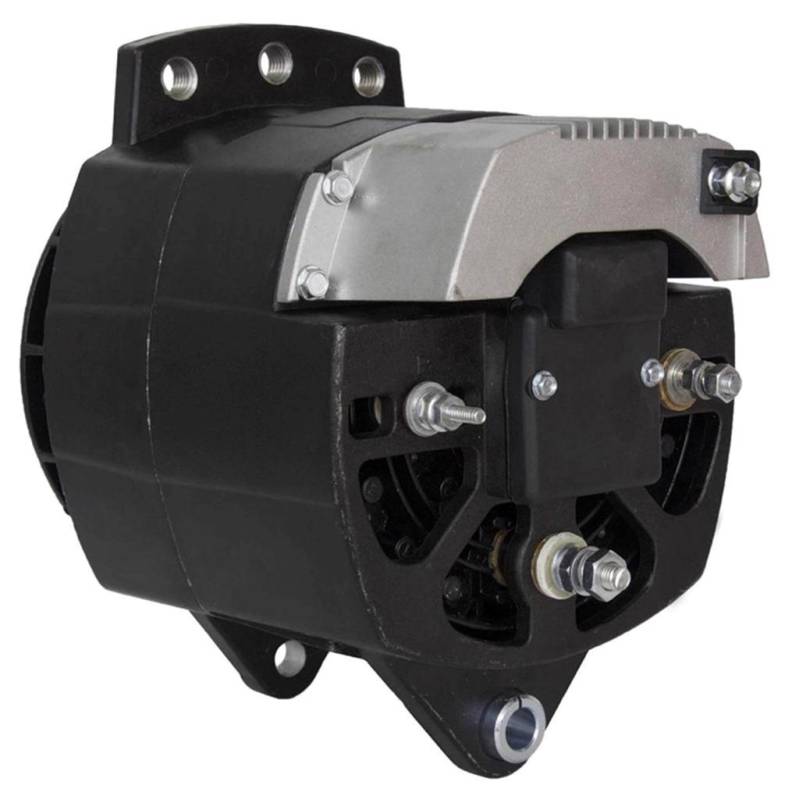

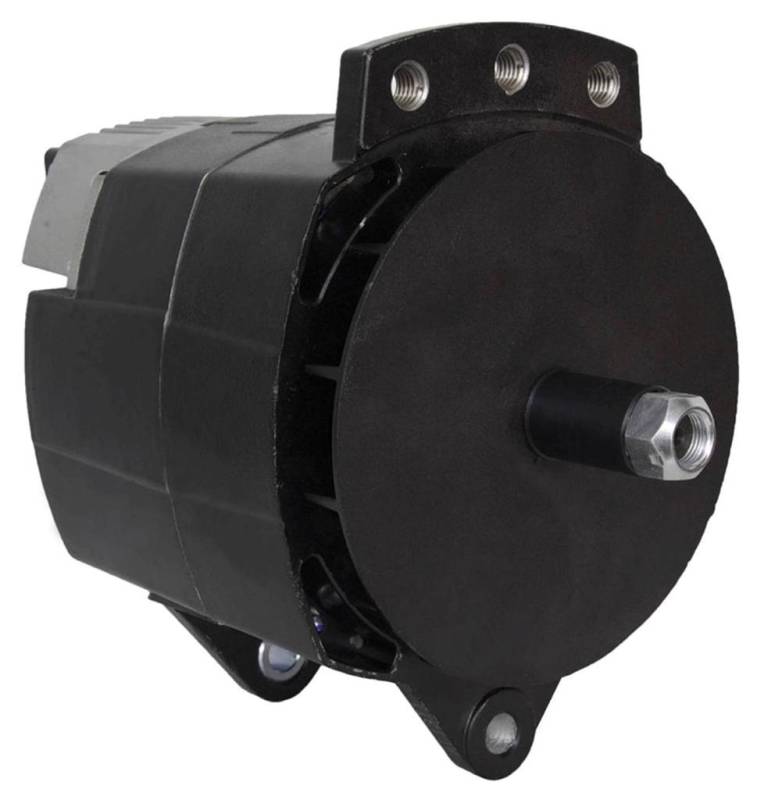

New 24V 100 Amp Alternator Compatible With Volvo Penta Marine Inboard Tamd122 Tamd122a 896892

CLARK: 896892
CUMMINS: 3279220
LEYLAND AUTO: A663

ITEM DESCRIPTION: ALTERNATOR
UNIT TYPE: MOTOROLA
VOLTAGE: 24
AMPERAGE: 100
FAN: EXTERNAL
REGULATOR: INTERNAL
ADJUSTABLE: NO
HOUSING COATING: RAW
LAMP DRIVER: NO
MOUNT: J-180
MOUNTING BOLT SIZE: 1/2-13 NC
MOUNTING HOLES: 3
NEGATIVE STUD SIZE: M6X1 .25 THD
POSITIVE STUD SIZE: M8X1 .25 THD
RECTIFIER LOCATION: INTERNAL
REGULATOR EXCITE: IGNITION EXCITE
REGULATOR MODEL: 8RL3024
REGULATOR SENSE: LOCAL SENSE
ROTATION: CLOCKWISE
SHAFT DIAMETER: .8740-.8745
SMARTCHEK REGULATOR: NO
TRIO: YES
UL APPROVED: NO
NOTES: METRIC MOUNTING
WEIGHT: 27.47 LBS / 12.49 KG
